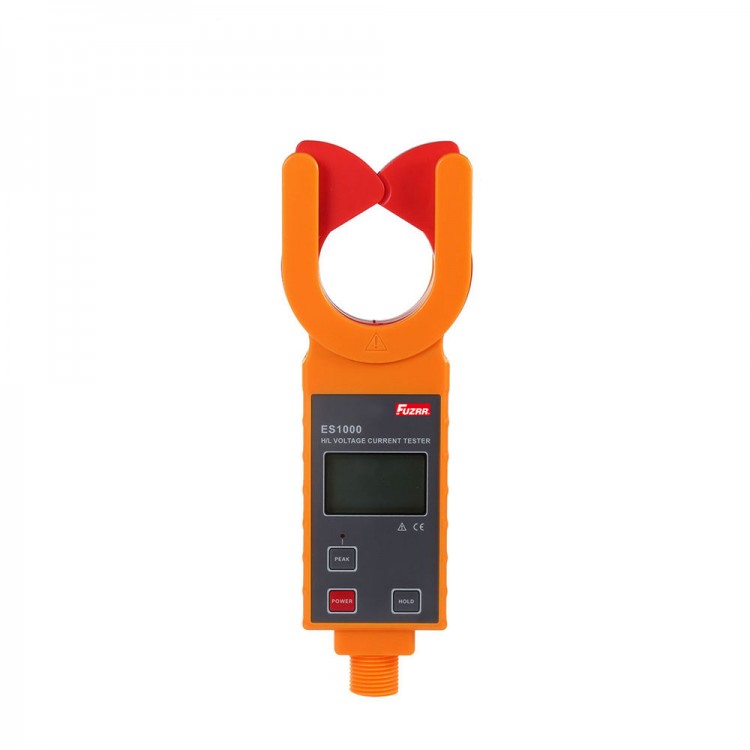

ES1000 Orange 0mA-1200A H/L Voltage Clamp Current Meter for High Voltage/Transformer Current Measurement

ES1000 Orange 0mA-1200A H/L Voltage Clamp Current Meter for High Voltage/Transformer Current Measurement

Description:
- The high-voltage clamp-type ammeter is a high-voltage measurement tool, which is composed of a special clamp-type ammeter equipped with a high-voltage insulating rod. The clamp-type ammeter uses a mask integrated circuit inside, and is connected to an insulating rod for current measurement of lines with insulation skin below 60kV or high-voltage lines with bare wires below 35kV. When the insulating rod is not used, it can also be used as a high-precision low-voltage clamp-type ammeter and a leakage current meter, which can accurately measure the current of 0.1mA. It is easy to use and easy to carry.

- It transmits test data wirelessly and is equipped with a wireless receiver, which can receive the measured data within 30 meters in a straight line (without obstacles), ensuring the high precision, high reliability and high stability of uninterrupted testing throughout the year.

- The high and low voltage clamp ammeter also has the functions of peak hold, data hold, data storage, wireless transmission, etc. Its special clamp ammeter can easily clamp or evacuate the wire under test by pushing or pulling the insulating rod forward, saving time and speed.

- It can be widely used in substations, power plants, industrial and mining enterprises, testing stations, electrical maintenance departments for current testing and field electrical work. The insulating rod has the characteristics of light weight, moisture resistance, high temperature resistance, impact resistance, bending resistance and high insulation.

Specification:
- Range: 0.0mA - 1200A (50/60Hz automatic)
- Resolution: 0.1mA
- Jaw size: diameter of 50mm
- Test accuracy: ±2%±5dgt
- Sample rate: 2 times/sec
- Function: high and low voltage current test
- Test method: clamp CT
- Dimensions: 87 x 37 x 262mm
- LCD size: 48mm x 31mm
- Net weight: about 7kg
- Overflow display: over-range overflow function: "OL" symbol display
- Data storage: 99 groups
- Data full: data full function: “FULL” symbol display
- Insulated rod: five sections of insulating rods (5 meters in total)
- Dielectric strength: AC 60kV/rms
- Line test: line voltage below 60kV with insulated sheathed wire test, below 35kV bare wire test (with insulation rod operation)
- Operating temperature: -10℃ ~ 40℃
- Storage temperature: -10℃ ~ 60℃
- Relative humidity: 0℃ ~ 31℃ <= 75%, 31℃ ~ 40℃ <= 50%
- Suitable for safety regulations: IEC1010-1, IEC1010-2-032, pollution degree 2, CAT III (600V) IEC61326 (EMC standard)

Package Included:
- 1 x Set of Clamp Current Meter
