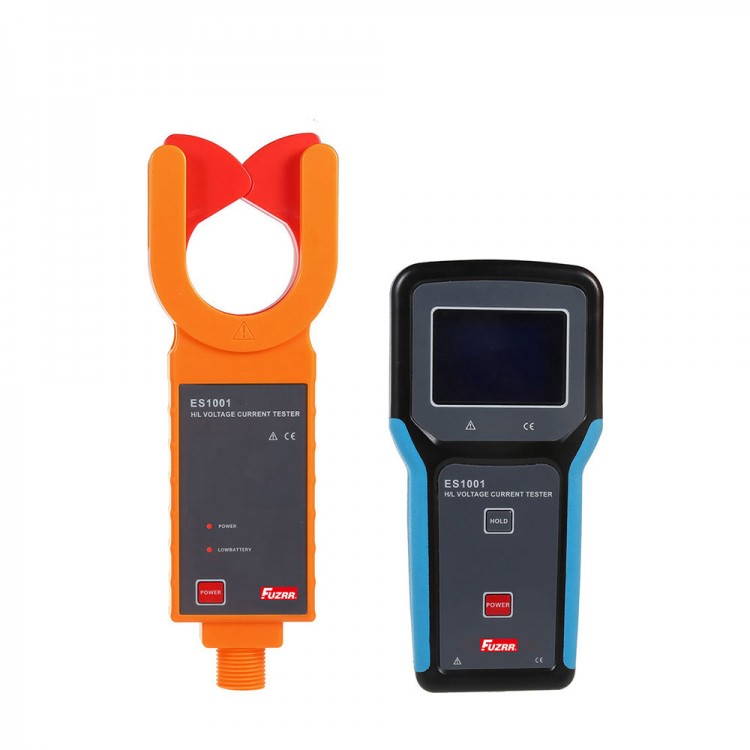

ES1001 Orange 0mA-1200A Wireless H/L Clamp Voltage Current Tester High Voltage Clamp Ammeter with 5-Meter Insulation Rod

ES1001 Orange 0mA-1200A Wireless H/L Clamp Voltage Current Tester High Voltage Clamp Ammeter with 5-Meter Insulation Rod

Description:
- The High Voltage Clamp Ammeter is a high-voltage measurement tool composed of a special clamp ammeter equipped with a high voltage insulation rod. Inside the clamp ammeter, a mask integrated circuit is used, and an insulating rod is connected to measure the current of a high voltage line with a bare wire or less than 35kV. When not using the insulation rod, it can also be used as a high-precision low-voltage clamp ammeter, leakage current meter, can accurately measure the current of 0.1mA. It is easy to use, easy to carry.

- Its wireless transmission test data, equipped with a wireless receiver, can receive measured data within 30 meters of a straight line (without obstacles), ensuring high-precision, high reliability, and high stability throughout the year..

- The H/L Voltage Clamp Meter also has functions such as peak hold, data retention, data storage, wireless transmission, etc. Its special clamp ammeter can facilitate clamping or evacuation of the measured wire by pushing or retracting the insulation rod, saving time and fast.

- It can be widely used in substations, power plants, industrial and mining enterprises and testing stations, electrical maintenance departments for current detection and field electrical work. The insulating rod has the characteristics of light weight, moisture resistance, high temperature resistance, impact resistance, bending resistance, high insulation, etc.

Specification:
- Range: 0.0mA - 1200A (50/60Hz automatic)
- Resolution: 0.1mA
- Jaw size: diameter of 50mm
- Test accuracy: ±2%±5dgt
- Sample rate: 2 times/sec
- Wireless transmission distance: 30m
- Function: high and low voltage current test
- Test method: clamp CT
- Dimensions: 87 x 37 x 262mm (host); 100 x 35 x 204mm (receiver)
- Receiver LCD size: 62mm x 44mm
- Net weight: about 7kg
- Overflow display: over-range overflow function: "OL" symbol display
- Data storage: 200 groups
- Data full: data full function: “FULL” symbol display
- Insulated rod: five sections of insulating rods (5 meters in total)
- Dielectric strength: AC 60kV/rms
- Line test: line voltage below 60kV with insulated sheathed wire test, below 35kV bare wire test (with insulation rod operation)
- Operating temperature: -10℃ ~ 40℃
- Storage temperature: -10℃ ~ 60℃
- Relative humidity: 0℃ ~ 31℃ <= 75%, 31℃ ~ 40℃ <= 50%
- Suitable for safety regulations: IEC1010-1, IEC1010-2-032, pollution degree 2, CAT III (600V) IEC61326 (EMC standard)

Package Included:
- 1 x Set of Clamp Current Meter
