Product Description:

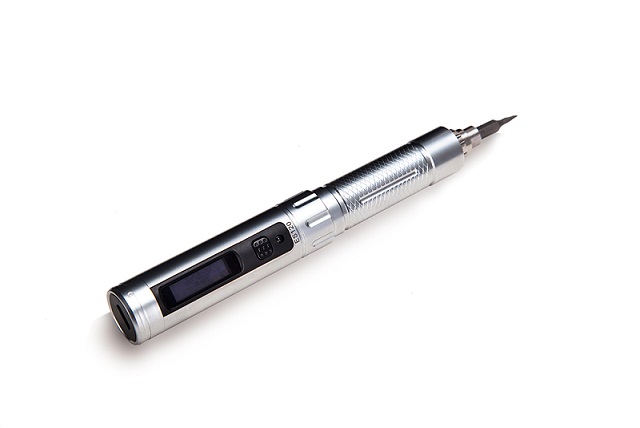

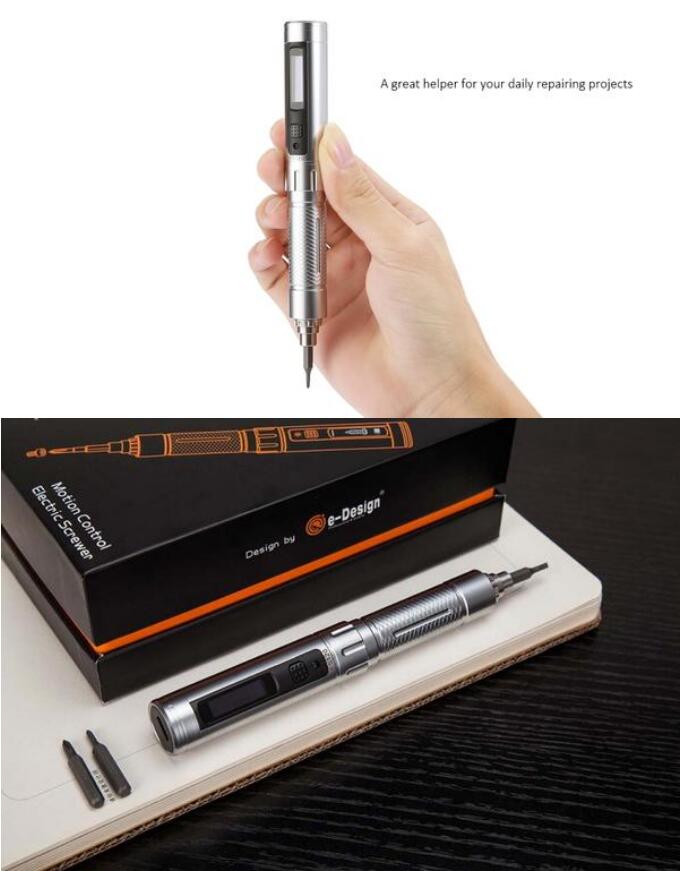

- ES120 Mini Electric Screwdriver has set a new standard for electric screwdrivers. It is an electric screwdriver with a compact structure, smart and exquisite appearance, as well as the function of motion control recognition.

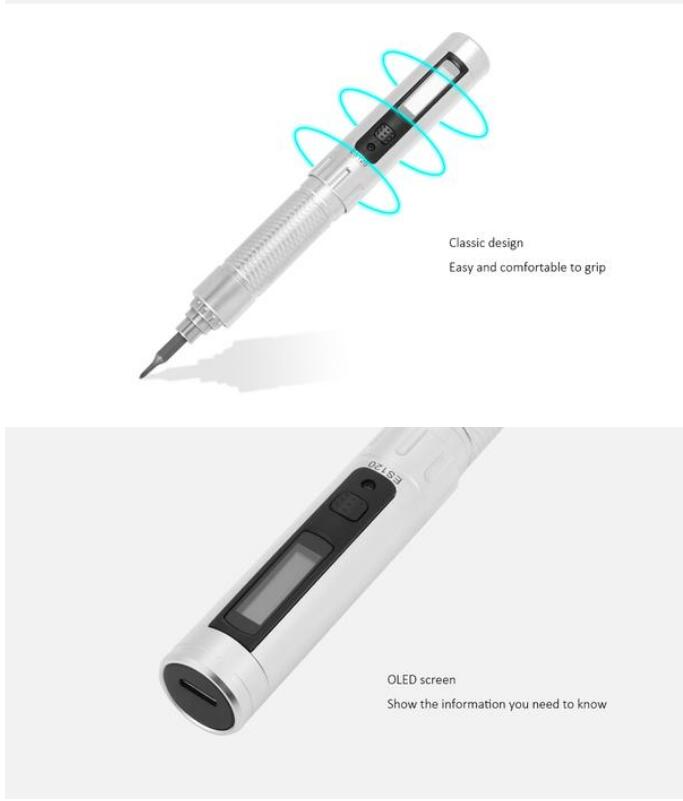

- It has only the length of a Parker pen, while endowed with a comfortable design for holding, and a set of highly energy-efficient accessories. Through an OLED screen, the device displays parameters and rotation modes of motion-control recognition. Under these help, you are able to easily complete the disassembling and assembling of your digital devices.
- ES120 includes a planetary gearbox and a high-speed electric motor, with excellent support from the STM32 embedded micro-processor and angular velocity sensor. It operates at a voltage range of DC3V to 5V, and with various hexagonal screwdriver bits, the device helps you with fast disengaging and engaging of electronic products.

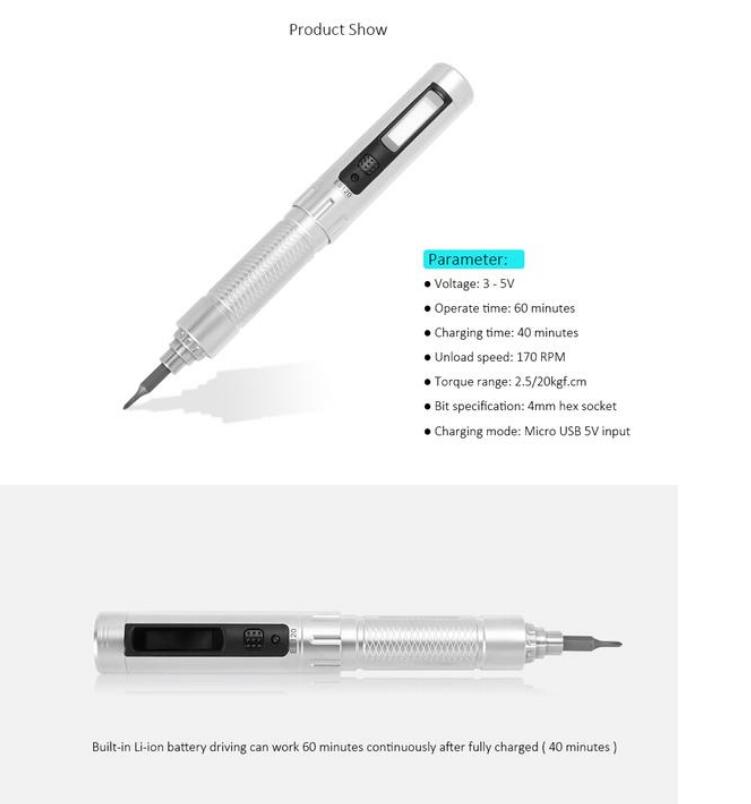

Performance Parameters:
- Operation Voltage:3-5V
- No-load Speed:About 170rpm
- Electronic Torque:2.8kgf.cm
- Maximum Torque:30kgf.cm (manual mode)

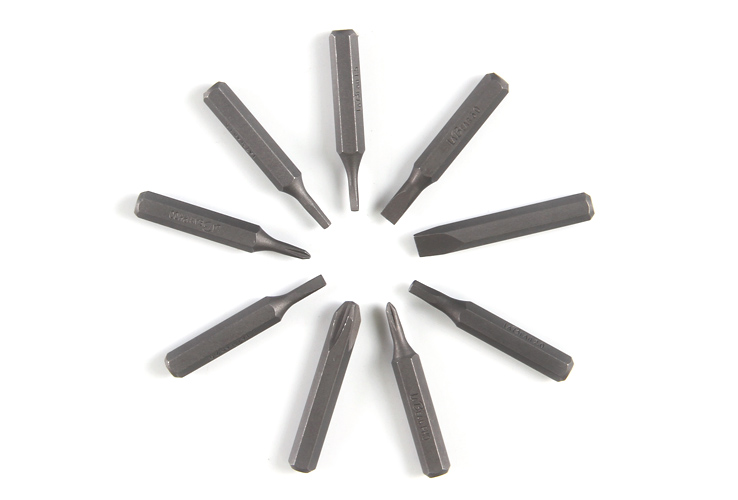

- Screwdriver Bit:4mm hexagon
- Charging Time:45min
- Running Time:30min (full power)
- Charging Mode:Micro USB 5V Input
Hardware Parameters:
- Body Material:304 Stainless steel/Copper alloy
- Screen:16x96 OLED
- Battery:300mAh 10440 Lithium-ion battery
- Lengh:131mm
- Weight:107g(Steel)/114g(Pearl)
- Rotor:Bidirectional overrunning clutch
- Gearbox:1:144 Integrated planetary gearbox
- Motor:25,000 rpm brush motor
- Main Chip:STM32
- Sensor:Angular velocity sensor

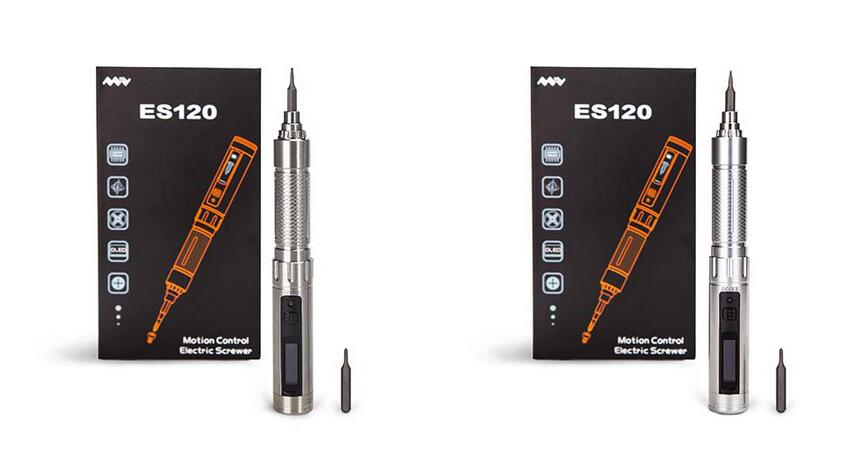

Note:Stainless steel color,copper alloy chromium plating(optional).They are different in casing surface treatment and little difference in colour,but with same parameter.
Smart Functions:
1.Battery low voltage reminder, low voltage protection mode;
2.User ustomized configuration parameters (such as torsion, torque, etc);
3.Open source application layer.

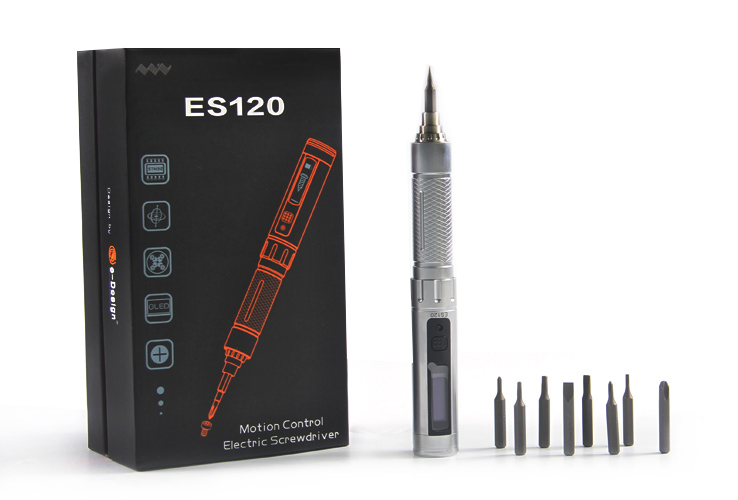

Package Include:
- 1x Motion Control Electric Screwdriver
- 1x Screwdriver head SL2.0 (Word)
- 1x Screwdriver head PH00 (hex)

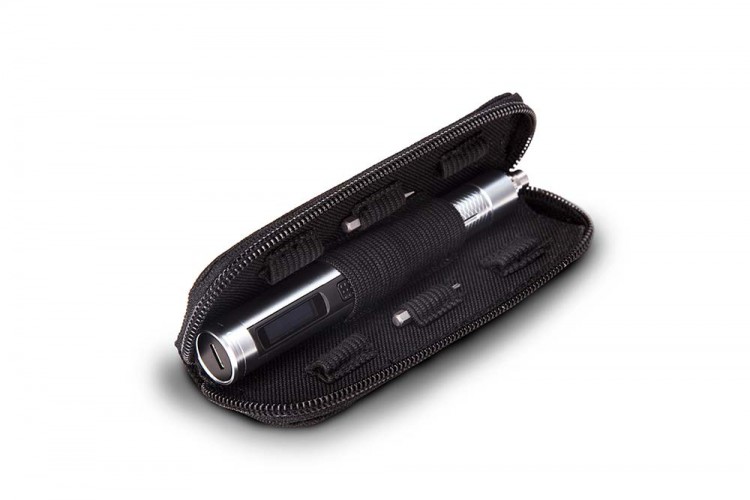

- 1x Oxford cloth carrying case
- 1x Safety Instruction
