ES3080 0.0001mohm-5000ohm AC220V 10A 3-Channel 1000W DC Resistance Tester for Larger Capacity Transformer

ES3080 0.0001mohm-5000ohm AC220V 10A 3-Channel 1000W DC Resistance Tester for Larger Capacity Transformer

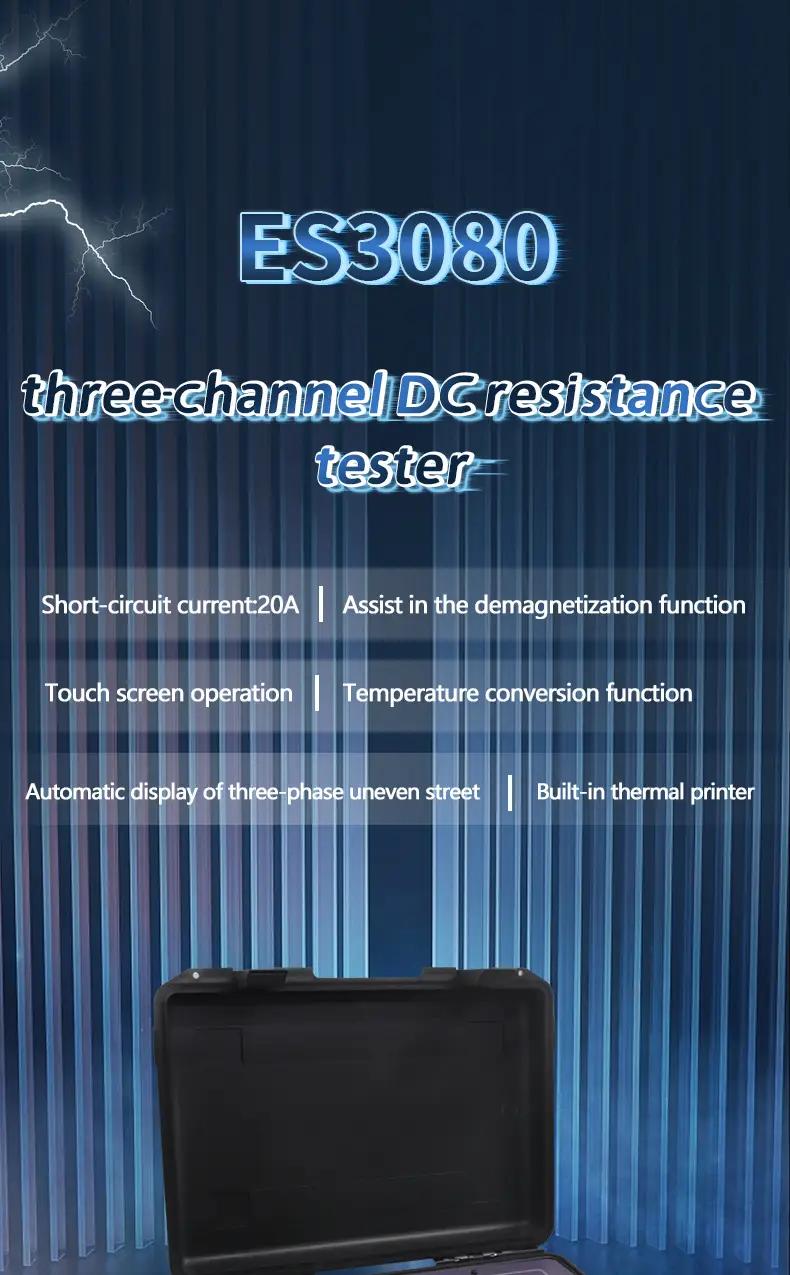

Description:
- ES3080 DC resistance tester, also known as transformer DC resistance tester, is an important instrument to check whether the connection or mechanical characteristics between windings, windings and leads are good, and whether the resistance between each phase winding is balanced, so as to ensure the safe operation of the transformer.

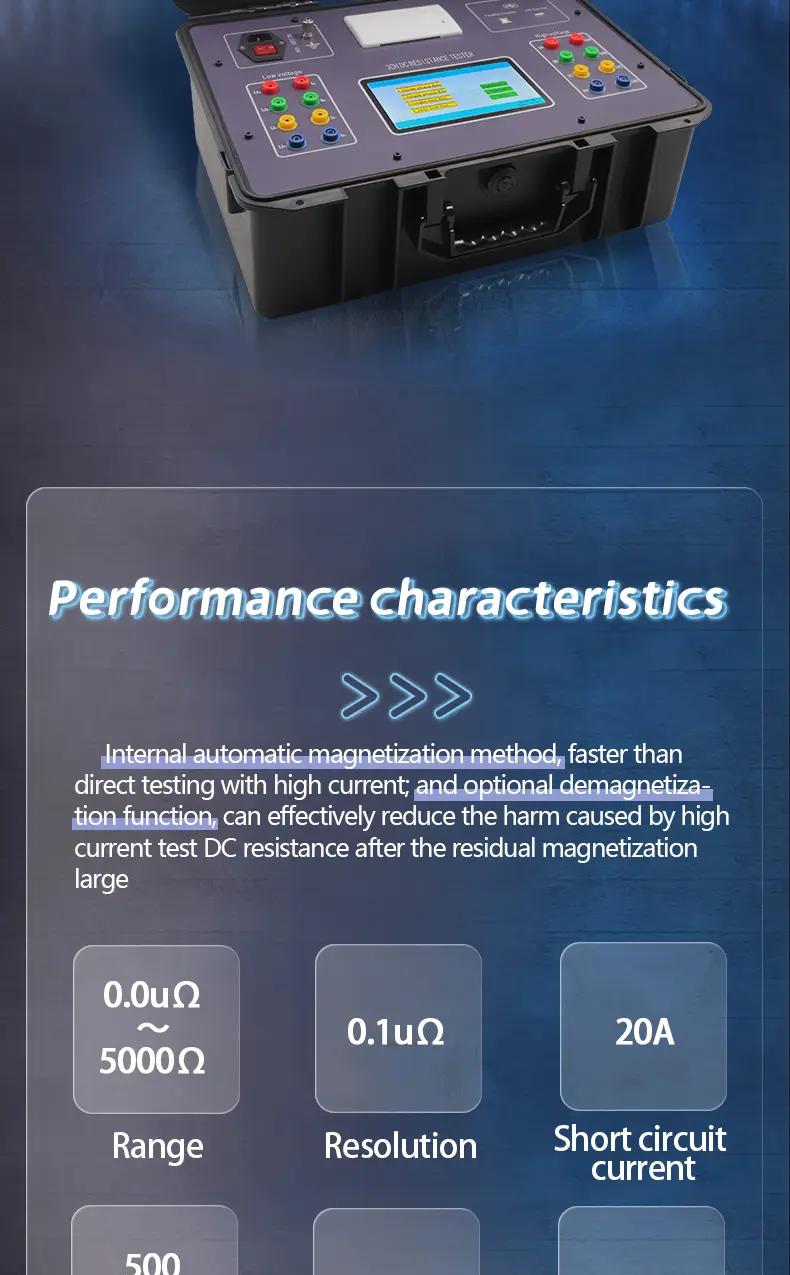

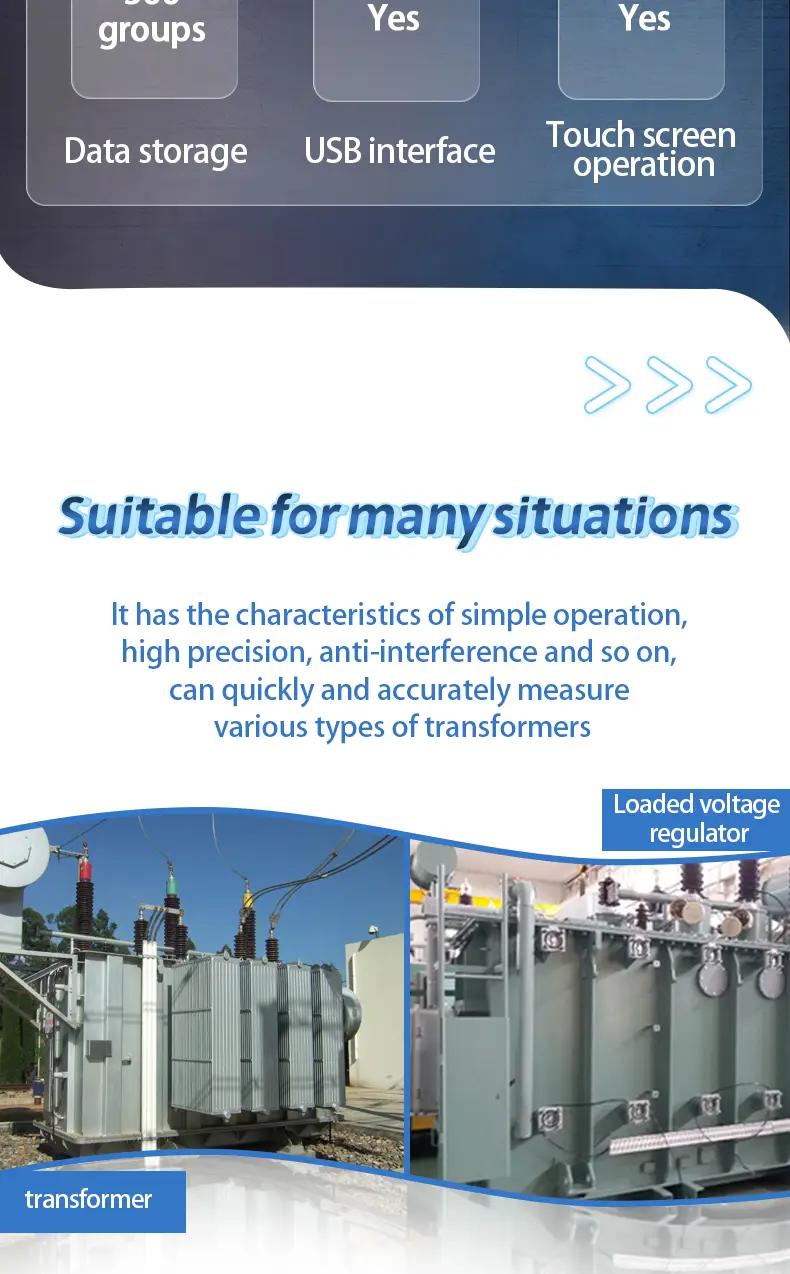

- Transformer DC resistance tester is a new type of instrument suitable for measuring the DC resistance of large-capacity transformer. It is designed as a high-precision current-stabilized power supply and test module. During the test process, it is controlled by a computer and automatically completes the steady state judgment, data acquisition, data processing and resistance measurement. Value display and printing. This instrument can be used for longitudinal test of on-load voltage regulator with secondary power supply, which completely saves test time. It also has the temperature rise test function of the transformer manufacturer. It has the characteristics of simple operation, high accuracy and anti-interference, and can measure various types of transformers quickly and accurately. The magnetic aid method is to charge the low winding by generating a magnetic field for the output current of the high winding. With the help of the excitation ampere turns of the high voltage winding, the winding inductance is greatly reduced by passing a small current to shorten the measurement time and achieve the purpose of rapid measurement. It should be noted that when measuring the DC resistance of low voltage winding with magnetic aid method, the current direction of high and low voltage winding on the same iron core column must be the same, so as to play the role of magnetic aid.

- ES3080 DC resistance tester is composed of host, test line, etc. It has the functions of reading, consulting, saving and printing historical data.

Specification:
- Function: DC resistance measurement, transformer DC resistance measurement
- Direct-current resistance: 0.0001mΩ ~ 5000Ω; precision: ±0.2%FS±5dgt; minimum resolution: 0.001mΩ
- Output current display: 0.01mA ~ 20.000A
- The conversion resistance: the winding material can be converted to measure the temperature.
- Three-phase imbalance rate: three-phase winding imbalance rate is automatically displayed.
- Partition position: the tap position can be manually set in the setting interface.
- Overload protection: have
- Self discharge: have
- Rated measurement power: 1000W
- Source: AC 220V 10A (50Hz)
- Be in a poor light: adjustable back brightness

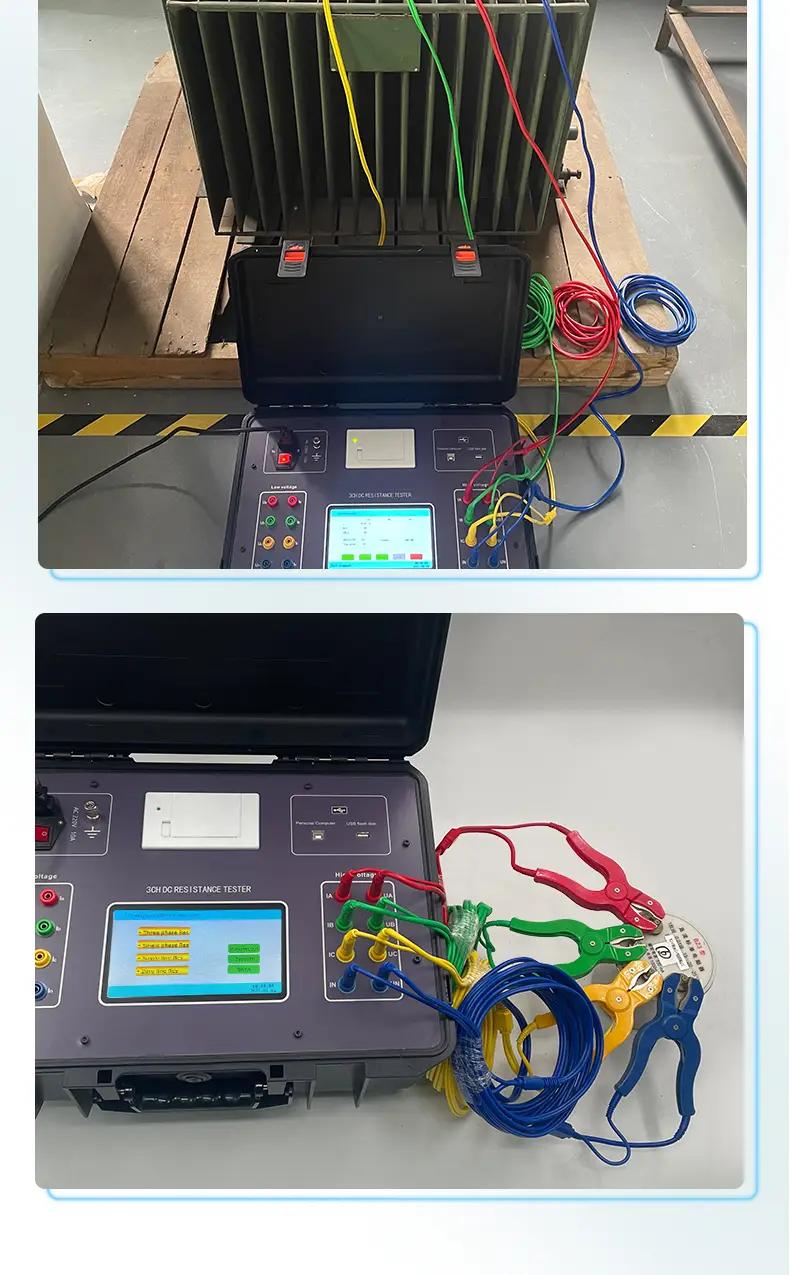

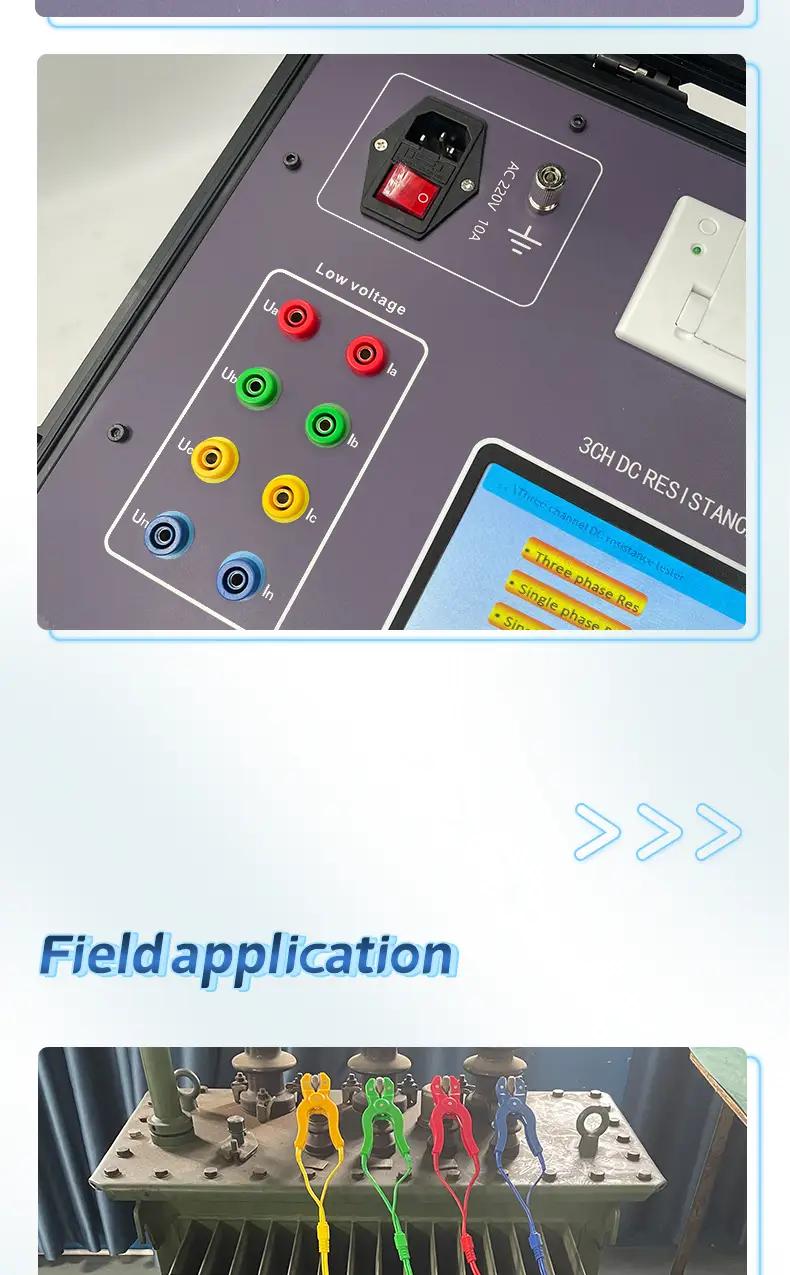

- Measurement method: four line test
- Magnetic testing: High and low voltage output current, test the resistance of the low voltage end
- Short circuit test current: 0.2A, 0.5A, 2A, 5A, 10A, 20A(Level 6 Settings)
- Short circuit maximum current: DC 20A±10%
- No-load maximum voltage: DC 27V±10%

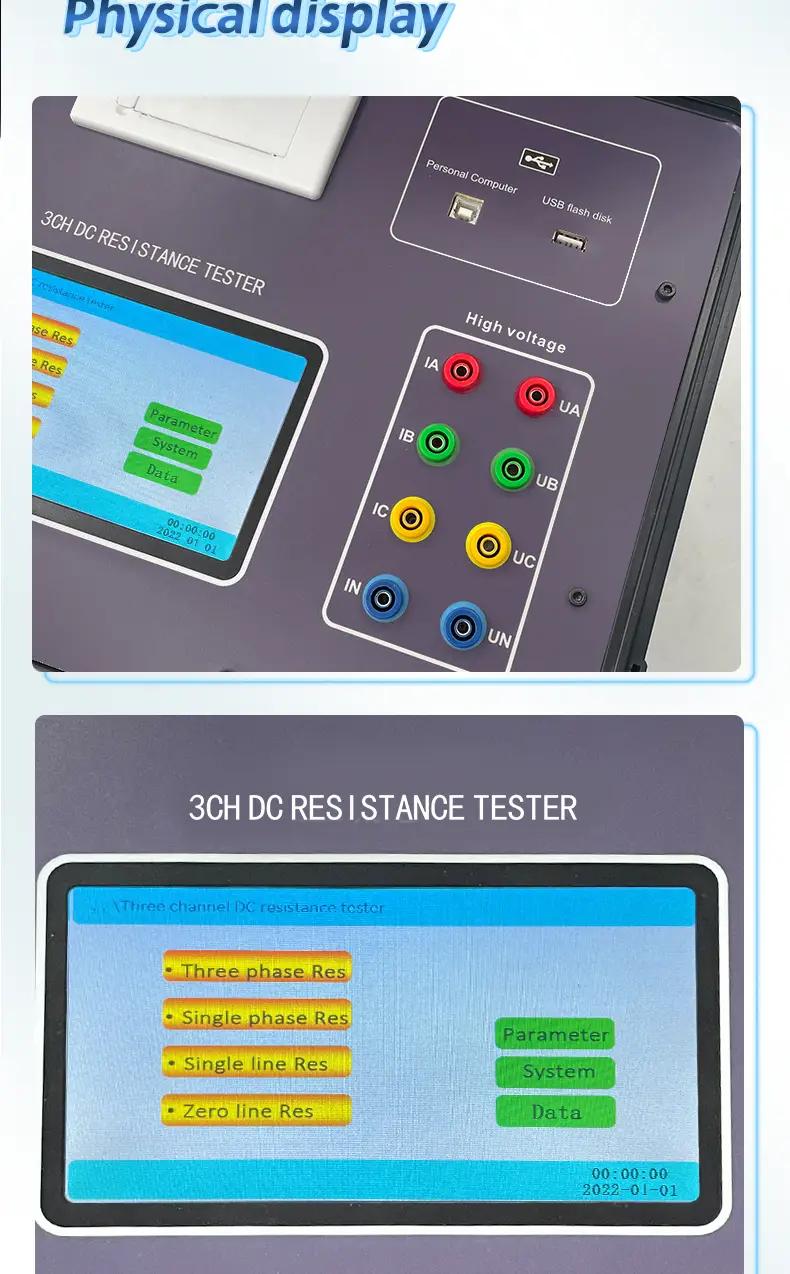

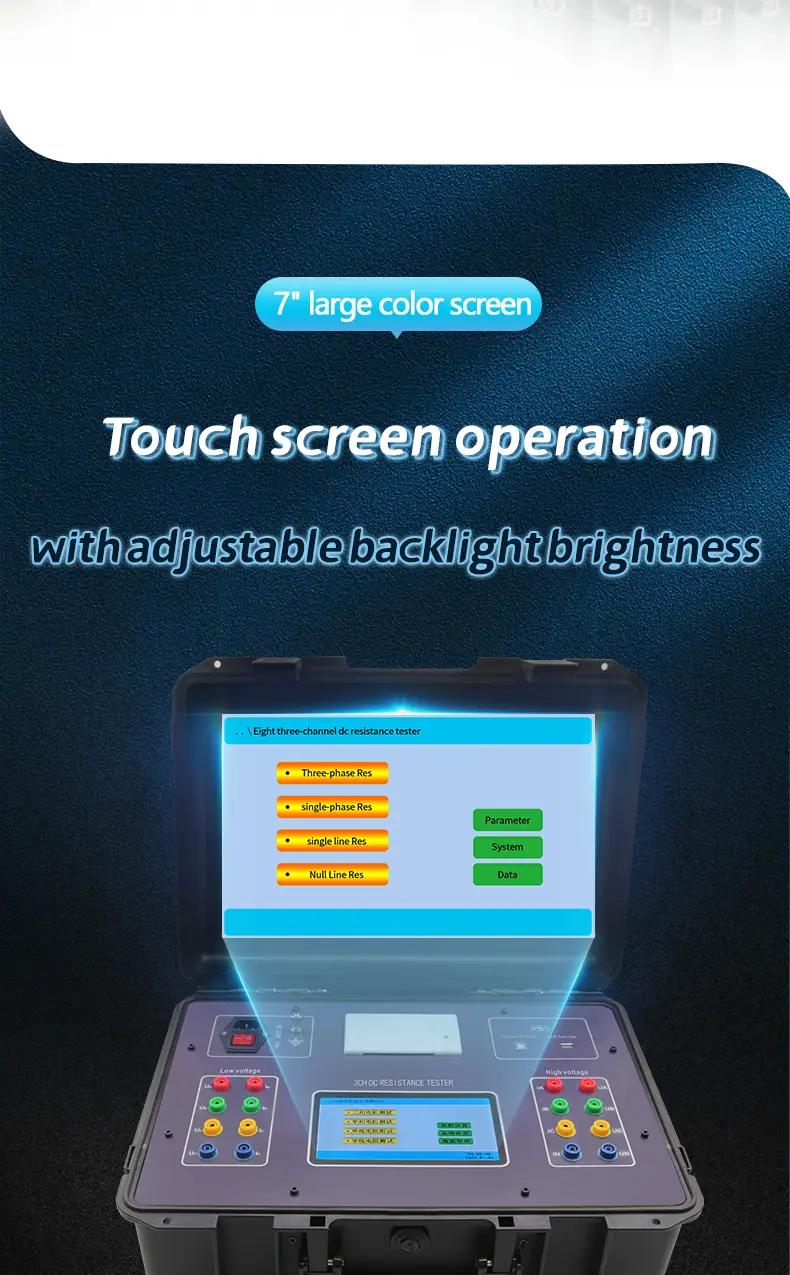

- Display mode: 7-Inch touch color screen
- Touch screen: yes
- Measuring instructions: measurement progress display and measurement prompt animation display

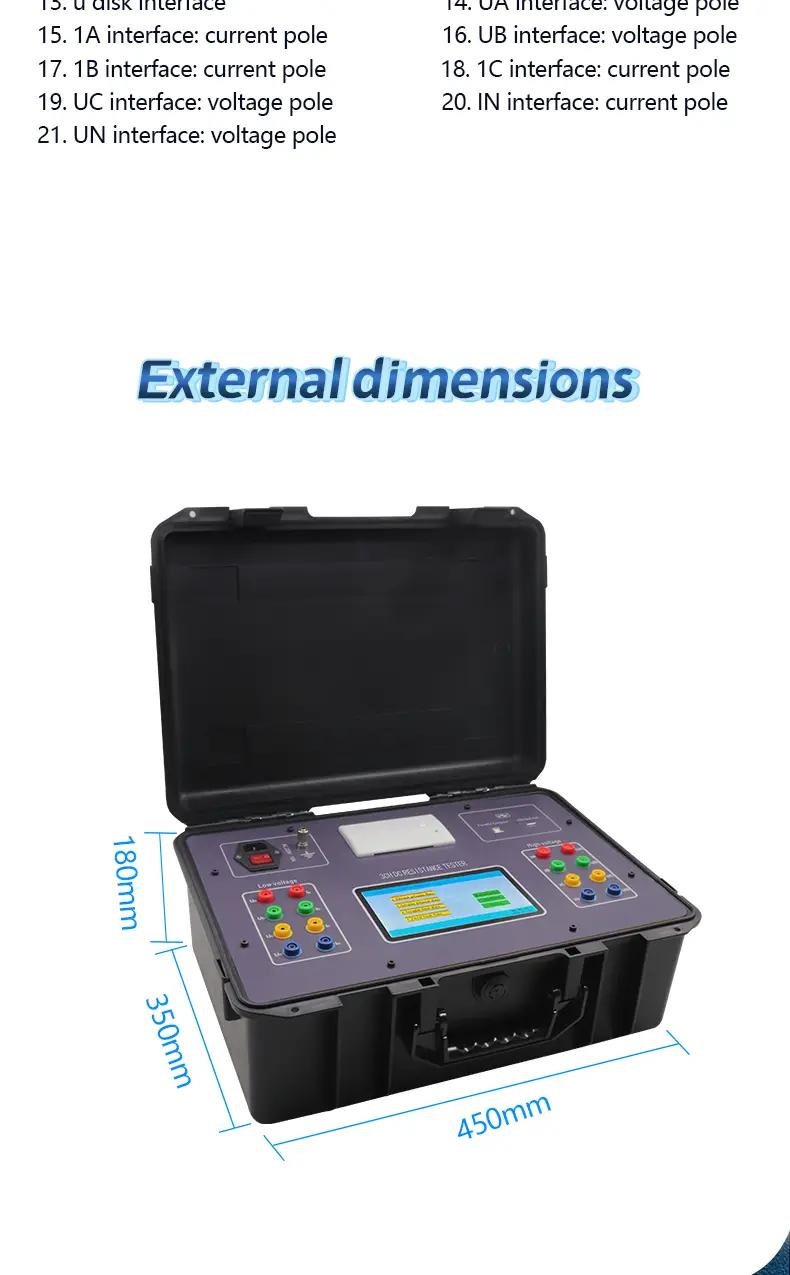

- Measuring instructions: L x W x H = 450mm x 350mm x 180mm
- The standard test line is long: Article 8
- U disk interface: use to connect to the u-disk dedicated interface
- USB joggle: connect to computer dedicated software to query and save data through USB cable
- Put a seal on: built-in thermal printer
- Print paper specifications: 57 x 40mm
- Data storage: 500 Groups
- Data access: have
- Overflow display: overload overflow function: the OL symbol display
- Auto shut off: NO
- Power dissipation:
  Bide one's time: < 110W
  Measure: 1000W
- Quality:
  Meter: 27kg
  Test the line, pack the line bag: 5.0kg
- Working temperature and humidity: -10℃ ~ 40℃; 80%RH below
- Store temperature and humidity: -20℃ ~ 60℃; 70%RH below
- Insulation resistance: > 10MΩ(500V between the circuit and the housing)
- Withstand voltage: AC 3700V/rms (Between the circuit and the housing)
- Suitable for safety regulations: IEC61010-1; IEC1010-2-31; IEC61557-1,5; IEC60529(IP54); Pollution; etc. CAT III 300V

Package Included:

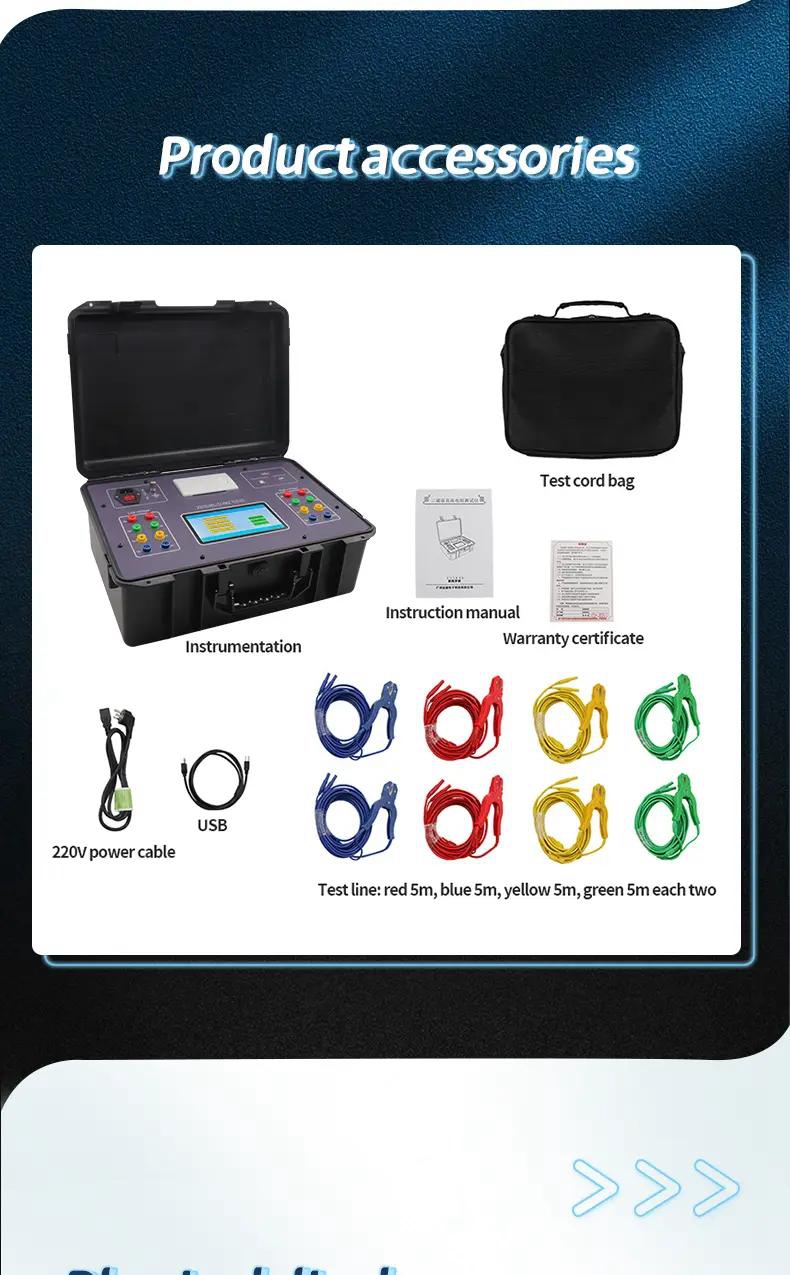

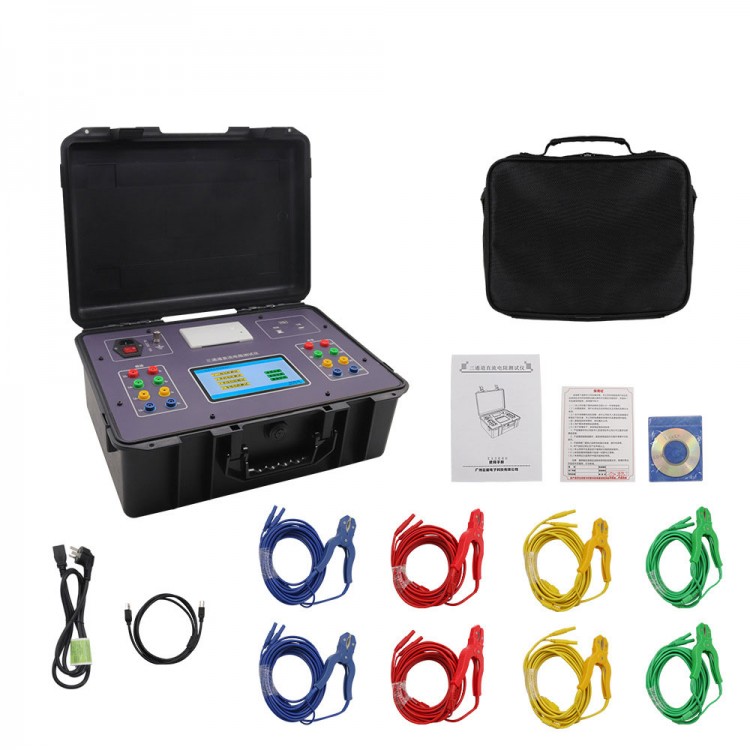

- 1 x DC Resistance Tester
- 1 x 220V Power Cable
- 1 x USB Cable
- 1 x Set of Testing Cable
- 1 x Testing Cable Bag
- 1 x User Manual
