ES9018 + Amanero USB + MUS8920X2 AD797X2 Op-Amp +TCOX 0.1PPM 4 Layer DAC Audio Decoder Board

ES9018 + Amanero USB + MUS8920X2 AD797X2 Op-Amp +TCOX 0.1PPM 4 Layer DAC Audio Decoder Board

Circuit diagram link : Click here

Description:
- This is latest DAC design from Weiliang after long time testing, its perfect performance worth you to have a try!
- 4 layers PCB board, perfectly compatible with Amanero usb IIS usb or our XMOS U8 DSD I2S usb

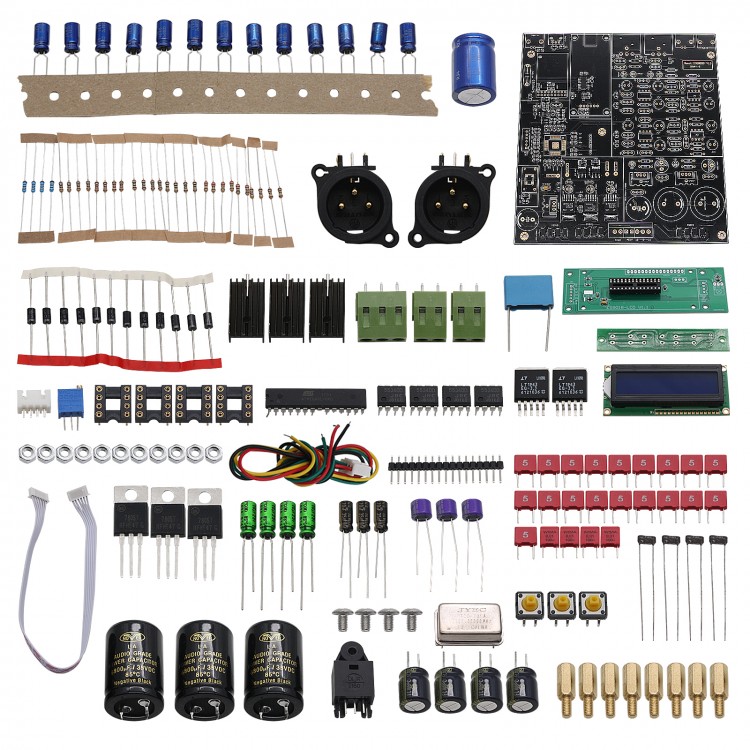

- It is not assembled board with fully tested. PLease note price include opamps and TCXO 0.1PPM in the picture, (with hifi quality components: ELNA caps,WIMA 104, 3 pcs golden plated RCA jacks , very good price)
- ES9018 IC is very good, The best DAC chip so far, very good feedbecks from customers!
- Not included USB

Main Components:
- 4 layers PCB
- Ultra precision linear regulator
- Active crystal 100M
- Display
- LM7219
- Gold-plated IC seat
- ON LM317/.337
- 5A VIS rectification
- Gold-plated balance seat
- ASM1117 1.2
- RX147
- Radiators
- WIMA
- Panasonic FC Capacitance decoupling
- NOVER 6800UF
- 718 resistance

Specification:
- Sample rate: Coaxial Supports up to 32bit 192khz
- Optical supports up to 192khz
- USB support up to 32bit 384k( option)
- Input: Optical and Coaxial + USB
- Output: RCA analog + XLR balanced output
- Input voltage : AC 15V -0--15V ; 0-9V; 0-9V
- PCB: 170*153MM

Note: No ES9018IC or 3*RCA. It is spart parts, not assembled.The USB is not included, should be bought yourself.

Package include:
- Board  X1
