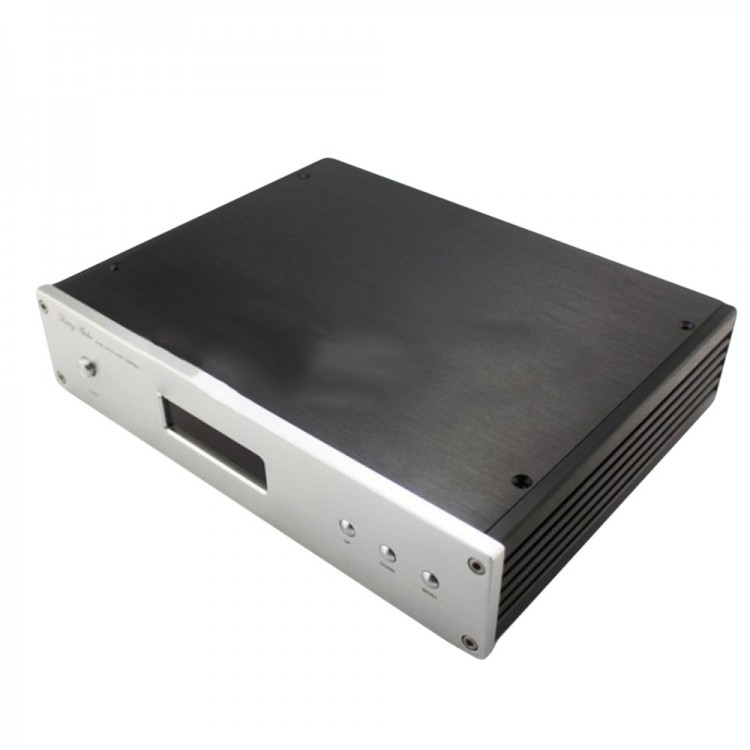

ES9018 Audio Decoder Software Control DAC Support DSD Balanced & RCA Output Silver
Description:
- 4 layers PCB board
- KG filter capacitor, ELNA AUDIO capacitor,WEL non-inductance resistance,WIMA, LT voltage regulation module.
- 1* 50WR transformer，responsible for the power supply to the analog part and digital part
- 2* Dual OP AMP LME49720NA
- 2* Single OP AMP LME49710NA
- TCXO, low noise and high accuracy, 0.1PPM
- With balanced output, RCA output
- Color: Silver
- Dimension: 280*62*211.5
- Weight: <3kg
- Coaxial and optical fiber support 192KHz 24bit input(format is PCM); and supports format under USB :
- PCM: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz (coaxial, optical fiber, AES support up to 192K)
DSD: DSD64 , DSD128, DSD256(2.822, 3.072, 5.644, 6.144, 11.2896 and 12.288MHz(DSD needs IIS transmission and supports DAC)
- Not include XMOS sub card
Package list:
- 1 x Decoder
