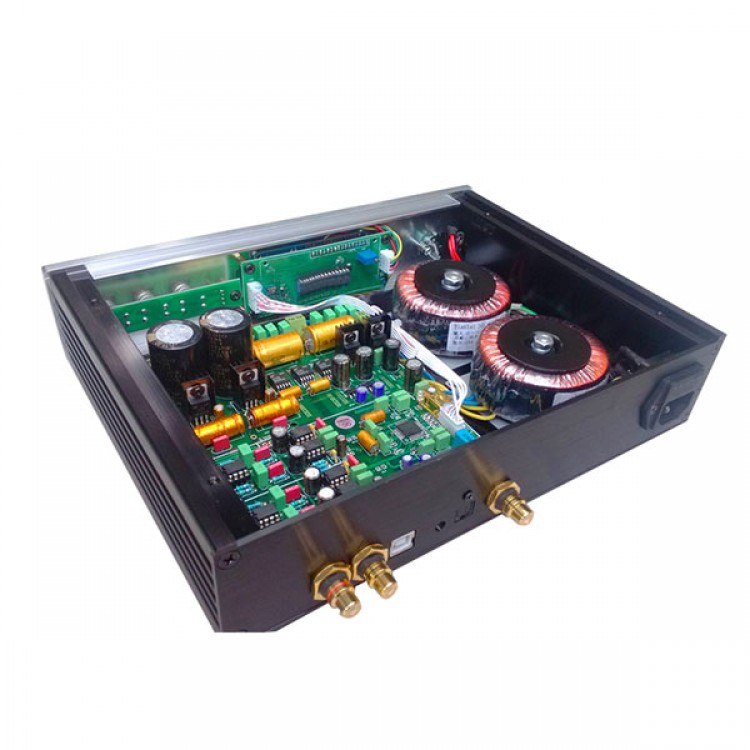

ES9018 DAC Decode Dual Ring Transformer Support DSD I2S Warm Sweet Sound
Description:
- Not including any USB daughter card
- Input max support: coaxis 192K/32BIT, optical fiber 192K/32BIT, USB input can support DSD HD file, I2S port support 384K 32BIT data format(100M crystal oscillator)
- Output: RCA output
- ES9018, top class DAC, 8 DAC independent channel, this decode parallel connects four channels and then output as 2 channels
- Adopting military level PCB board, four layers 70U copper design
- Adopting super low noise, high precision 0.1ppm TCXO crystal oscillator
- Six AD797 top class fever single operational amplifier
- Two ELNA FOR AUDIO 35V8200UF or KG 6800uf/35v capacitor
- 104 thin film capacitor works with German ERO cpacitor and WIMA capacitor
- Welwyn resistor
- Three gold plated onboard RCA
