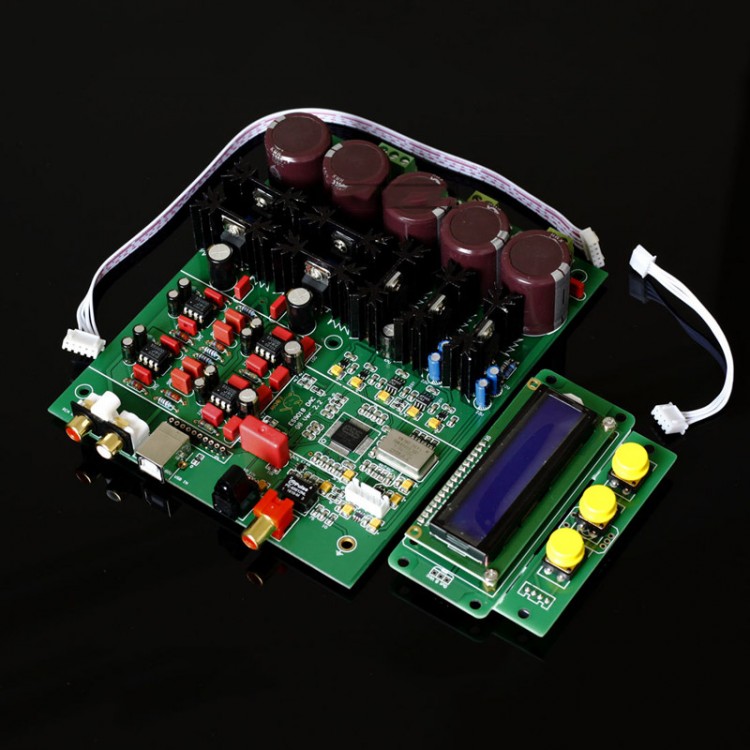

ES9018 ES9018S DAC Q8 Ver2.2 HiFi Audio Decoder Assembled Board

ES9018 ES9018S DAC Q8 Ver2.2 HiFi Audio Decoder Assembled Board

Description:

- ES9018 using the critically acclaimed ESS’patented HyperStream TM II architecture and Time Domain Jitter Eliminator, 32-Bit Audio DAC delivers an unprecedented DNR of up to 135dB in mono mode and THD+N of –120dB, the industry's highest performance level that will satisfy the needs of the most demanding audio applications.

- Q8 it is using the super DAC chip, with professional circuit design and reasonable circuit layout to building a super DAC.

Features:
- 5 pcs SamYoung 3300UF/50V capacitors + 12 pcs fast recovery rectifiers for Power supply
- Careful power supply power for DAC IC, use 2PCS top regulators LT1763 (Low Noise: 20μVRMS ) and 5PCS ADP150(Low Noise: 9 μV rms)
- Low Phase Noise Oscillator ( upgrade to 0.1ppm TCXO oscillator, click here)
- OPAMPs are 2pcs NE5532+ 2pcs JRC5534 for I/V and LPF, you can replace them easy with better OPAMPs.
- ELNA SILMIC II and Nichicon MUSE capacitors
- LCD display with MCU control( add 30USD more upgrade remote control)

- Input and output interfaces: From left to right: RCA output / USB input / Optical input / Coaxial input
- Output: RCA ( 2.0 Stereo )
- Input voltage : AC18V-0-18V + 0-9V + 0-9V (error in 3 v)
- Main PCB Size: 165 x 135MM
- Disply PCB Size: 100 x 40MM

Note:

    Some components may be will be changed without notice,but they will be with the same quality and performance.

    This price not include the USB module, so USB input can't use. if you want to have USB input, contact with us or buy a 10pin USB module, click here.

More products to building a finished DAC:

- Latest Q8 V2.3 ES9018 / ES9028 / ES9038 DAC assembled board, Click here.

- Q8 ES9018 / ES9028 / ES9038 DAC DIY KIT, click here

- Q9 ES9018 DAC assembled board, Click here

- Transformer, click here

- Suitable Case/Box/Chassis, click here

- ES9018 / ES9018S DAC finished in case, Click here.

ES9028 / ES9028PRO DAC finished in case, Click here.

ES9038 / ES9038PRO DAC finished in case, Click here.

Package included:
- 1 x Assembled DAC board
- 1 x LCD display module
- 2 x Connection line
