Description:
-

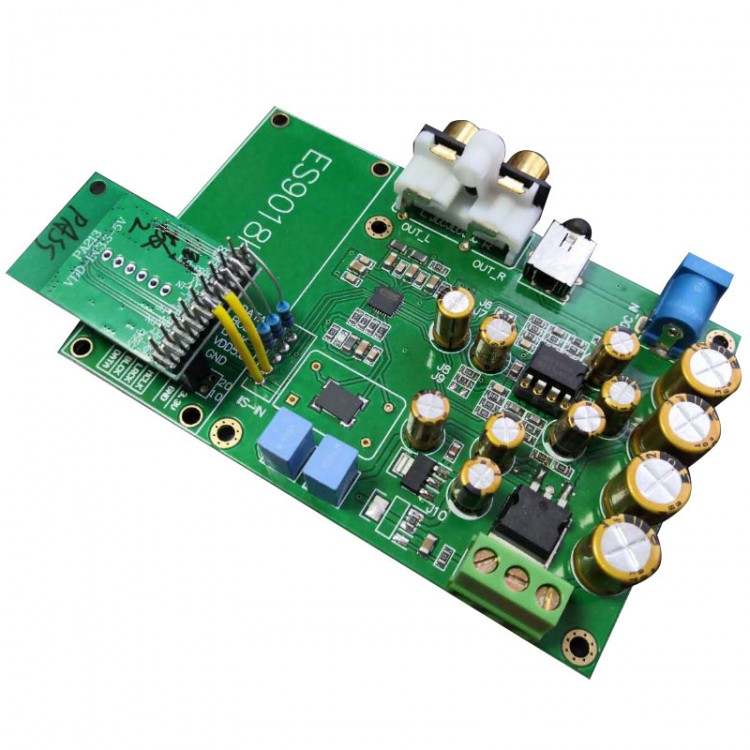

This board is finished board.，Do not containUSBcard，You can Use
XMOS208card，Italian cards(both are compatible)，All boards are welded in
batches by patch machine，Quality assurance，Internal core adoption
ES9018K2M Core Design，
- The MCK for es9018 is an independent clock
of 100m, so it is very convenient to input data BCK lrck. it is perfect
for CD DVD .
- The Board is equipped with ne5532 operational
amplifier. To upgrade the operational amplifier, customers can buy the
update operational amplifier with fever seperately
Specification:
- Voltag:DC 9-15V（standard DC5.5*2.1Seat）
- PCB size:65*65MM
- Output terminal:RCA+3.5terminal，Can be directly connected to the power amplifier，Ear drop，Headset
Input support:
- I2S/DSD:32bit 384k/DSD64,DSD128,DSD256
Foot position instruction
Plate
interface :From left to right:GND,5V output（Reserve power for the back
sub-card，For example, our Bluetooth sub-card）,LRCK,BCLK,DATA
Feature:
1:Perfect seamless interface usage，PCM DSDHandover without defect。
2:AC and DC power supply,Easy to use
3:ES9018K2MPerfect parameters，127dB DNR -120dB THD+N It's not comparable to old chips.。
4:Plate volume 65X65 Convenient installation
Power supply setting (default single power )
Jumper position(Resistance jumper) | J06 | J07 | J08 | J9 | J10 |
DC Single power supply | X | O | O | X | O |
DC Dual power supply | O | X | X | O | X |
DC Single power supply range: DC9-15V
DC Dual power supply Range: +- DC 9~+-15V
Note, O mean connect. X mean disconnect
