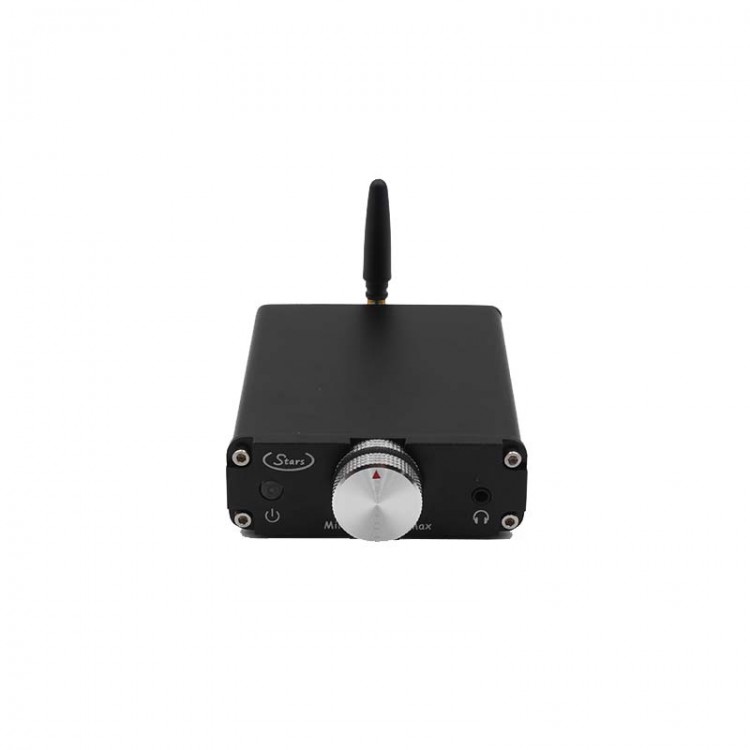

ES9038 Decoder CSR8675 Bluetooth 5.0 APTX HD LDAC XMOS XU208 384Khz DSD512 For hifi Amplifier Audio
Specifications:
- Digital input:
- Bluetooth: LDAC/aptxX HD/aptX/AAC/SBC
- USB: (USB input function is only available with USB version)
- Optional Version: XMOS version: PCM 44. lKHz-384KHz/32Bit
DSD DSD64/128/256 (DOP/Native DSD)
- This listingt is for ARM+CPLD version: PCM 44. lKHz-384KHz/32Bit
DSD DSD64/128/256/512 (DOP/Native DSD)
- Analog output:
- RCA output: 2. 4Vrms/-0dB
- 3.5mm headphone : 2. 4Vrms/-0dB
(The
earphone holder is directly connected to the RCA holder and can be
connected to most of the earphones. For better drive quality, it is
recommended to connect the amp)
Power supply requirements:
- Input voltage: DC voltage regulator +5V, voltage range: 5%
- Power interface: regular TYPE-C (supports positive and negative insertion)
- Standby current: 10MA
- Operating current: >200MA
(high-quality 5V power adapter or linear regulated power supply above 500MA is recommended)
This product does not contain power supply
Note:
Input power supply must meet the above power supply requirements, especially the power supply voltage.
Anything beyond the supply voltage range or the opposite polarity of the voltage will result in damage to the machine
