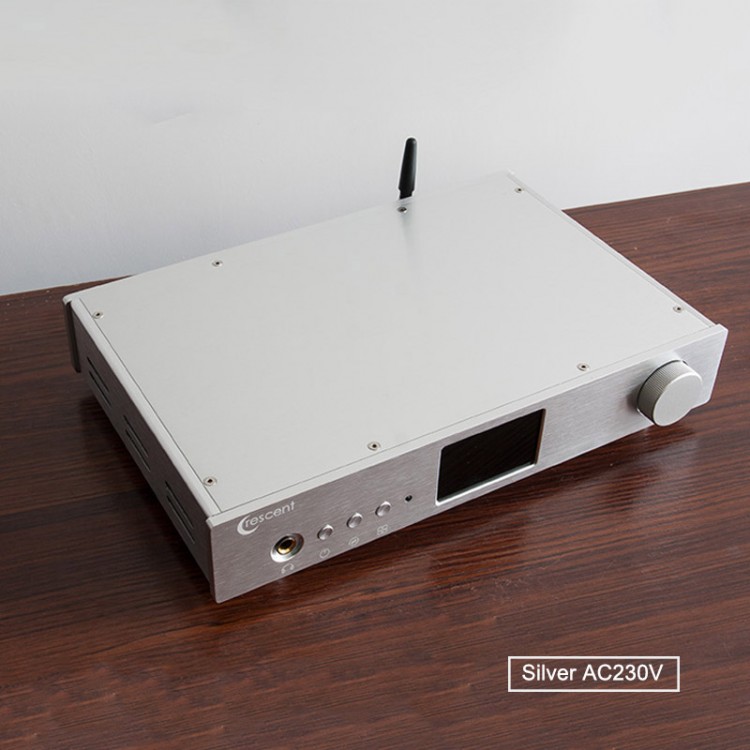

ES9038Pro DAC HiFi DAC Headphone Amplifier DSD Bluetooth Full Balance Decoding EP3Pro Silver AC230V

ES9038Pro DAC HiFi DAC Headphone Amplifier DSD Bluetooth Full Balance Decoding EP3Pro Silver AC230V

Download Driver:
http://moonshadow.com.cn/download/showdownload.php?id=23
http://moonshadow.com.cn/download/showdownload.php?id=22

Electronic Manual:
http://moonshadow.com.cn/download/showdownload.php?id=30

Description:
EP3Pro is a cost-effective decoder based on ES9038Pro chip. It uses FPGA advanced audio algorithms, a distinctive human-computer interface, and directly presents the decoding status setting information of the machine to us, with rich functions and strong playability. Refer to the official circuit and after a long period of debugging, the potential of ES9038Pro is perfectly released.

Features:
- ES9038 core voltage adopts three-stage filtering to ensure that the sound is pure and noise-free from the source. The analog part adopts a fully symmetrical Class A voltage regulator structure, 8-channel ultra-low noise LDOs make the mid-frequency sound thick and accurate, the high-frequency sound is transparent and elegant, and has a deep sound field and excellent analysis, and the low-frequency volume and texture are equally emphasized.
- Brand new user interface, intuitive and concise, advanced settings bring more gameplay, 11 filter settings, 5-level volume stepping, de-jitter switch, de-emphasis switch, etc.
- Firmware upgrade interface, update the firmware regularly according to community feedback, let this decoder be more usable
- Low jitter constant temperature crystal oscillator
- 2.8 inch 240*400 full viewing angle TFT LCD screen, all settings are clear at a glance
- Power down memory, save the last setting (under normal startup/shutdown conditions)
- Added 3pcs independent shortcut buttons
- New infrared remote control function, operation more convenient
- Imported digital volume potentiometer for ALPS, step accuracy can be set to 0.5dB/step
- USB uses the chip for HU308 XMOS, U208 core third-generation chip, more stable transmission, more powerful performance
- FPGA built-in digital signal reforming technology, clock management and multi-level digital shaping technology
- BNC supports external high-precision 10Mhz clock input
- Full interface supports DSD hard solution:
* USB supports sampling rate: PCM32bit 384K DSD DSD64, DSD128, DSD256
* Coaxial support sampling rate: PCM 32bit 384K DSD Dop64, Dop128
* BNC supports sampling rate: PCM 32bit 384K DSD Dop64, Dop128
* AES supports sampling rate: PCM 32bit 384K DSD Dop64, Dop128
* Fiber Support sampling rate: PCM 32bit 192K DSD Dop64
* I2S/DSD input supports PCM 32bit 384K DSD64~DSD512 (current UI display limitation)
- Dynamic range>123dB
- Distortion<0.001%
- Stereo separation>112dB
- Machine size: width 300 * depth 200 * height 52MM (excluding the size of the protruding part)
- Voltage: AC230V or AC115V
- Frequency response: 20Hz-20kHz
- Line output: RCA output level single-ended 2.0 Vrms at 0dBFS, balanced 6.0 Vrms at 0dBFS

Package Included:
- 1 x Set of DAC Headphone Amplifier

Note:
- It is assembled.

Remote Control's Buttons:
Left/right button: switch inputs
Up/down button: adjust volume
Ok button: mute
Play/pause button: turn on/off
MENU: menu button

HDMI (I2S/DSD) Interface is Defined as Follows:


Rear Panel Introduction (From Left to Right):
With power supply AC input socket
FW: Software upgrading port
USB: USB input
HDMI: IIS input
OPT: Optic fiber input
BCN: BNC input
COAX: Coaxial input
AES/ESU: AES input
XLR-R: Balanced R output
OUTPUT: RCA outputs
XLR-L: Balanced L output

Front Panel Introduction (From Left to Right):
6.35mm headphone jack
Switch button
Input switching
Menu
Display
Volume/Selection Knob
