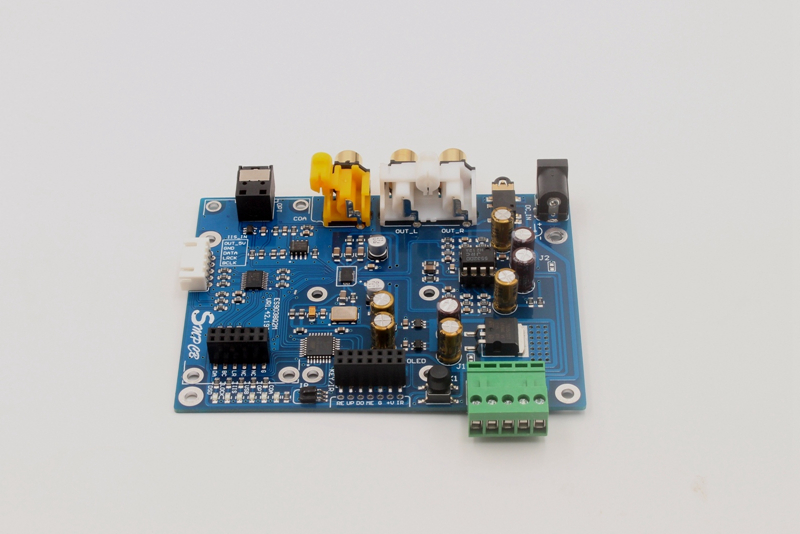

ES9038Q2M DAC Board:
- ES9038Q2M decoder chip
- Low noise linear regulated power supply
- Digital and analog parts powered separately
- Full interface supports DSD source input
- On-board LED indicator
- OLED HD screen synchronous display
- 2 IIS inputs, 3 operation modes
- 4 different power modes
- On-board infrared receiver supports infrared remote control

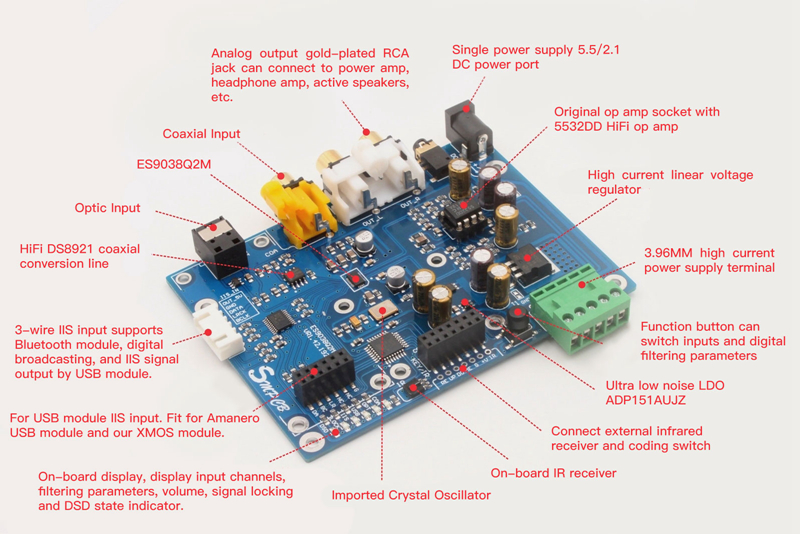

ES9038Q2M Advantages:
1.Enable More Inputs:
* There are four inputs on the board. Two IIS inputs are convenient for simultaneous access to USB module IIS, Bluetooth module IIS or other standard IIS signal sources.

2.Coaxial Circuit for Better Sound:
* DS8921 coaxial conversion circuit can reduce the phenomenon of signal loss of lock caused by external interference.

3.Rich Display:
* Provide on-board LED indicator, display input, digital filter parameters, volume function.
* HD OLED screen realizes synchronous display.

4.More Operations Enabled:
* On-board buttons make operations easier. The on-board infrared receiver supports for Apple Remote and our remote control.
* Reserved infrared receiving end and coding switch interface enable easy installation to housing.

5.HiFi Power Supply:
* Using ultra-low noise 9μVrms LDO regulator chip
* Digital and analog are powered by 2 independent voltage regulator circuits
* High current primary voltage regulation

6.More Power Supply Modes:
* 4 different power supply modes, which can be flexibly matched to meet users' needs.

7.More Accessories:
* Including 1.3-inch SPI interface OLED display module, remote control coding switch kit, and a remote control

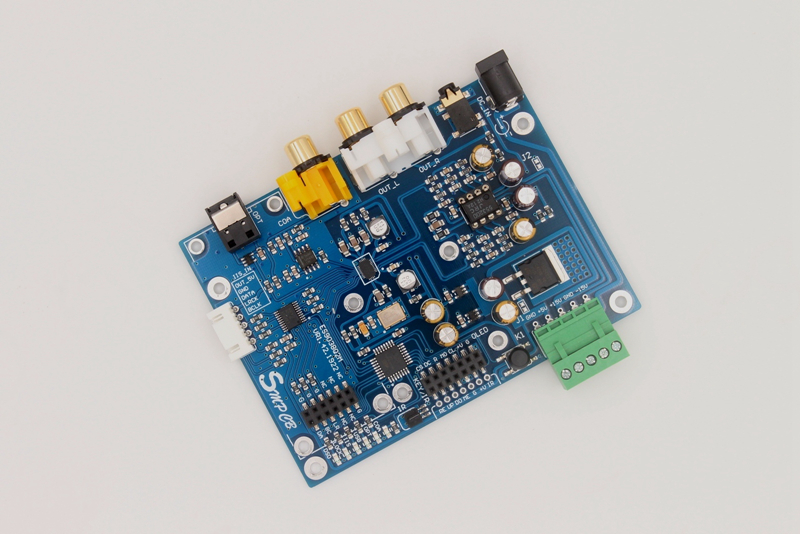

Parameters of ES9038Q2M Board:
- Size: 105.8 x 78.5mm
- Inputs: IIS (2-channel), OPT, COA
- Outputs:
* RCA (AUX): connects to power amp, headphone amp, and active speakers
* 3.5 headphone jack: The headphone jack is directly connected to RCA jack, so it is not for driving headphone directly
- Power Supply: ±15V; ﹢5(±5%) (Please refer to ES9038Q2M Board Instructions for operations)
- Line Output Level: 2Vrms/-0dB
- Supported Inputs:
* IIS: PCM44.1K-384K 32Bit/DSD64-DSD512
* Optic: PCM44.1K-192K 24Bit/DOP DSD64
* Coaxial: PCM44.1K-192K 24Bit/DOP DSD64

ES9038Q2M Board Instructions:
https://pan.baidu.com/s/1uMPo0mMZ3ez_mii-hSi-Wg
Password: 5lab

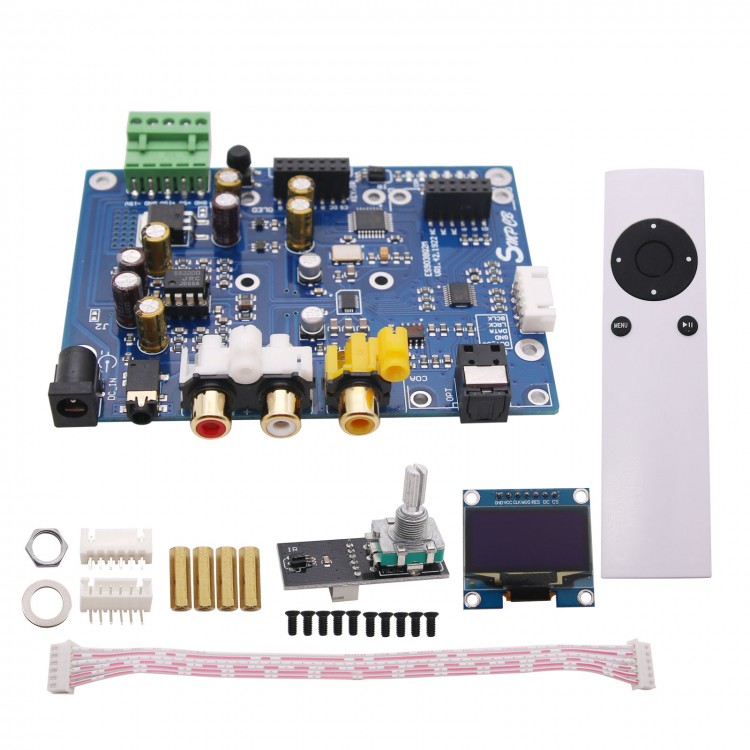

Package Included:
- 1 x 1.3" OLED Display
- 4 x M2.5X13MM Copper Pillars
- 1 x Set of Screws
- 1 x Remote Control
- 1 x Coding Switch with Infrared Receiver
- 1 x 2.54_6P Cable about 20CM
- 1 x 2.54_6P Pin Header
- 1 x ES9038 Board

Note:
- Assembling is needed.
- Bluetooth module is not included in the package.
