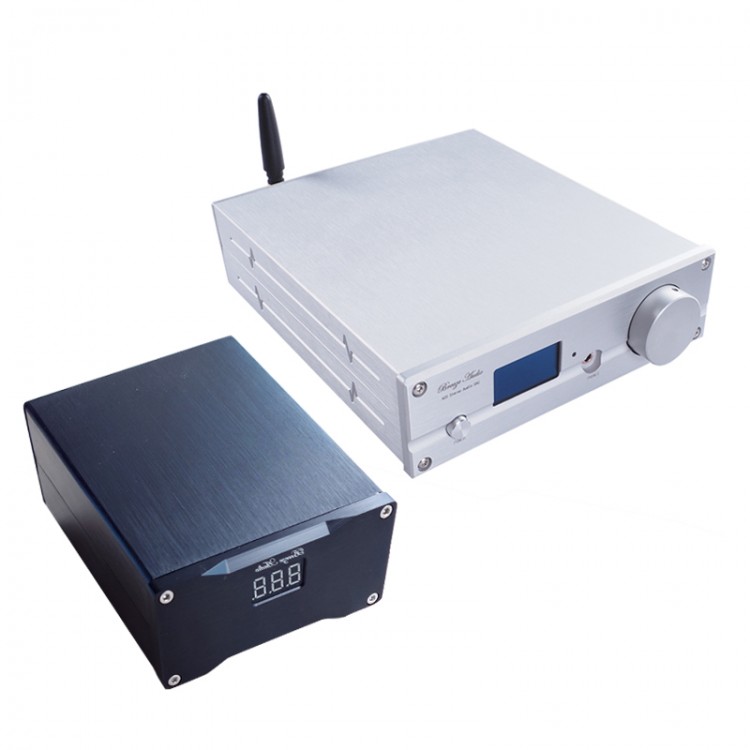

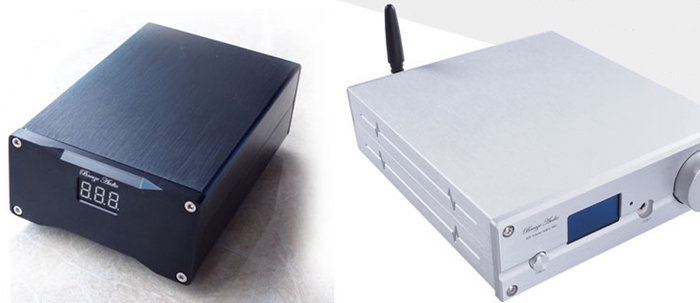

ES9038Q2M DAC Decoder Bluetooth 5.0 DSD512 Headphone Amp Silver + DC Linear Regulated Power Supply

ES9038Q2M DAC Decoder Bluetooth 5.0 DSD512 Headphone Amp Silver + DC Linear Regulated Power Supply

Features of DAC Decoder:
- Silver DAC Decoder + DC Linear Regulated Power Supply
- AKM Professional Digital Receiver: Adopt professional AKM digital receiver instead of the internal receiver of ES9038Q2M to achieve more natural sound of COAX / OPT input
- XILINX CPLD Shaping Circuit: Adopt XILINX CPLD switch instead of the internal switch of ES9038Q2M; Add digital shaping to optimize clock signal jitter, achieve better details and avoid switching POP sound
- XMOS XU208 Module: XMOS XCORE2000 series module XU208 adopts high-quality SPXO to achieve low jitter and phase noise
- ESS SABRE ES9038Q2M: Adopt widely recognized ESS SABRE series chip ES9038Q2M, for extraordinary sound quality, super low distortion; it supports high standard DSD audio
- Excellent Audio AMP: Specially designed analog circuit to achieve natural and enjoyable sound
- HiFi Headphone Amplifier Circuit: Adopts Hi-Fi headphone amplifier chip TPA6120A2; Stable power supply and powerful drive makes it suitable for 16-300Ω headphones; Designed with headphone protection circuit

Features of DC Linear Regulated Power Supply:
- Beijing Green Cube 25VA sealed ring cattle
- Precision reference + high-speed op amp + MOS output tube composed of ultra-low noise regulator circuit
- Aluminum alloy drawing process shell, attractive appearance
- Adjustable resistor adjusts the output voltage
- Vishay fast recovery high current finishing diode
- Using Taiwan copper high current DC output seat
- Philips, Panasonic FC Germany Siemens fever electrolysis
- EMI high current filter inductance
- Precisely display data

Specifications of DAC Decoder:
- Dimension: 150 x 169 x 44 mm
- Input Interface: Bluetooth 5.0/COAX/OPT/USB
- Power Supply: AC 110V/220V, Output: DC 12V 2A
- Output Interface: RCA/3.5 Headphone Jack
- USB Input: PCM: 44.1KHz-384KHz/16-32 Bit, DSD64-DSD256/DOP/Native
- COAX/OPT: PCM: 44.1KHz-384KHz/16-32 Bit, DSD64/DOP
- Bluetooth Input: Bluetooth 5.0, support Apt-X/Apt-X-HD
- THD+N: ＜0.0005%@1KHz, ＜0.0006% @20-20KHz
- SNR: ＞123dB@1KHz
- Effective Frequency: 20-20KHz/±0.35dB
- Power of Headphone Amplifier: 700mW*2@32Ω, 156mW*2@300Ω

Package Included:
- 1 x Finished Decoder Silver
- 1 x Power Adapter 12V 2A
- 1 x USB Cable
- 1 x DC Linear Regulated Power Supply
