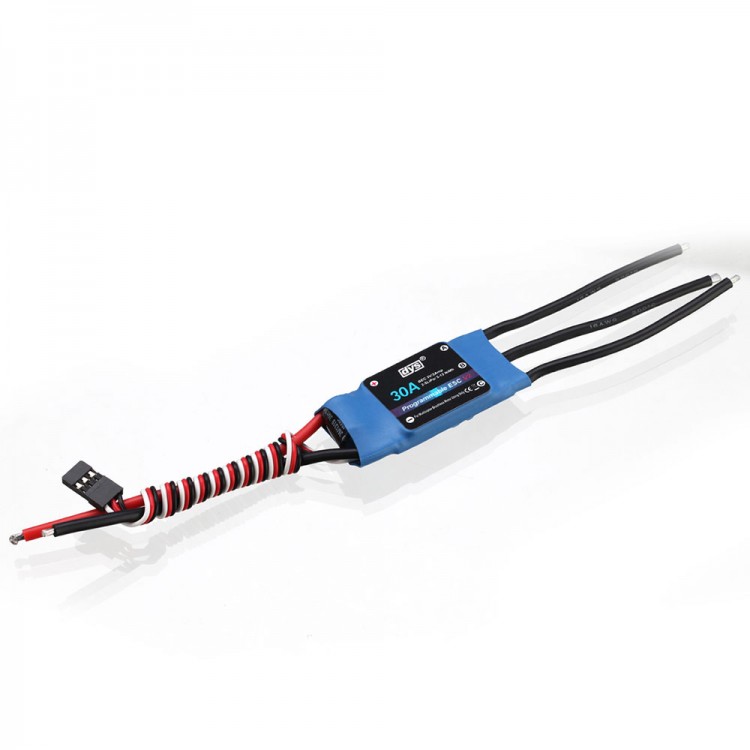

ESC 30A Electronic Speed Controller 2-5s Lipo for FPV Multicopter SimonK MB30030
Specification:
- Item No.: MB30030 Electronic Speed Controller
- Model: 30A ESC
- Categories: Speed controller
- Input voltage: 2-5s Lipo
- BEC: 2A
- Size(mm)L*W*H: 46*26*11
- Type: SimonK
- Running current:30A(Output: Continuous 30A, Burst 40A up to 10 Secs.)
- Input Voltage: DC 6-16.8V(2-5S Lixx)
- BEC: 5V 2amp.
- Size: 46mm (L) * 26mm (W) * 11mm (H).
- Weight: 23g
- With SimonK updated firmware for multicopter
Features:
- Drive tube and high-power Mos, and Mos tube plus a separate heat sink, Extreme low output resistance of the PCB(printed circuit board),super current endurance.
- The power input uses extreme low output resistance greatly enhance the power stability, and has the protective effect on the battery.
- Safety electrical function: when the power is turned on, regardless of the throttle stick in any position does not start the motor immediately, to avoid personal injury.
- Separately voltage regulator IC for microprocessor. providing good anti-jamming capability.
- Supported motor speed (Maximum): 210000 RPM (2 poles), 70000 RPM (6 poles), 35000 RPM (12 poles).
- Using Simon K’s a dedicated multi-copter program tgy_debug, and the master chip with high stability crystal oscillator, making the motor control to more precise.
Package List:
- 1 x ESC
