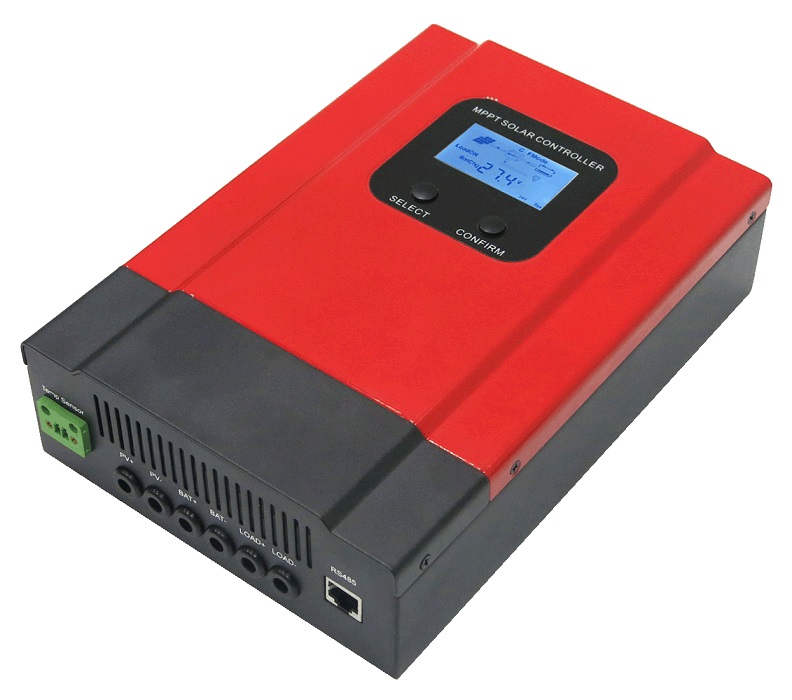

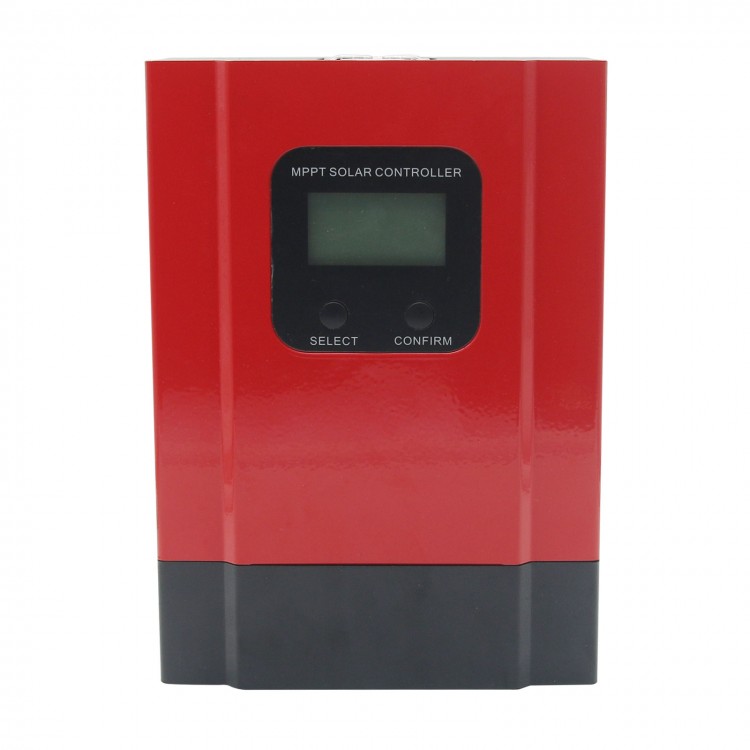

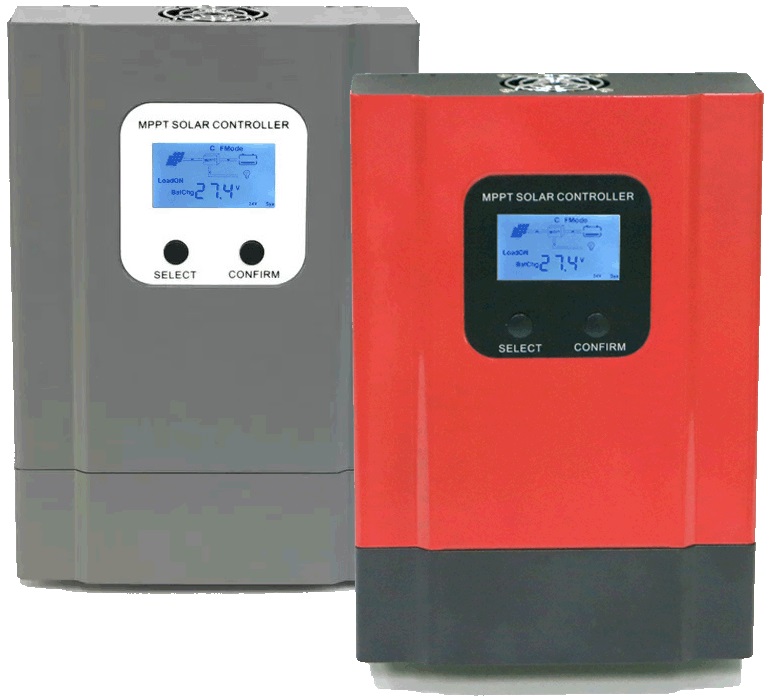

eSmart 3 Series MPPT Solar Charge Controller 60A DC 12V/24/36/48V

eSmart 3 Series MPPT Solar Charge Controller 60A DC 12V/24/36/48V

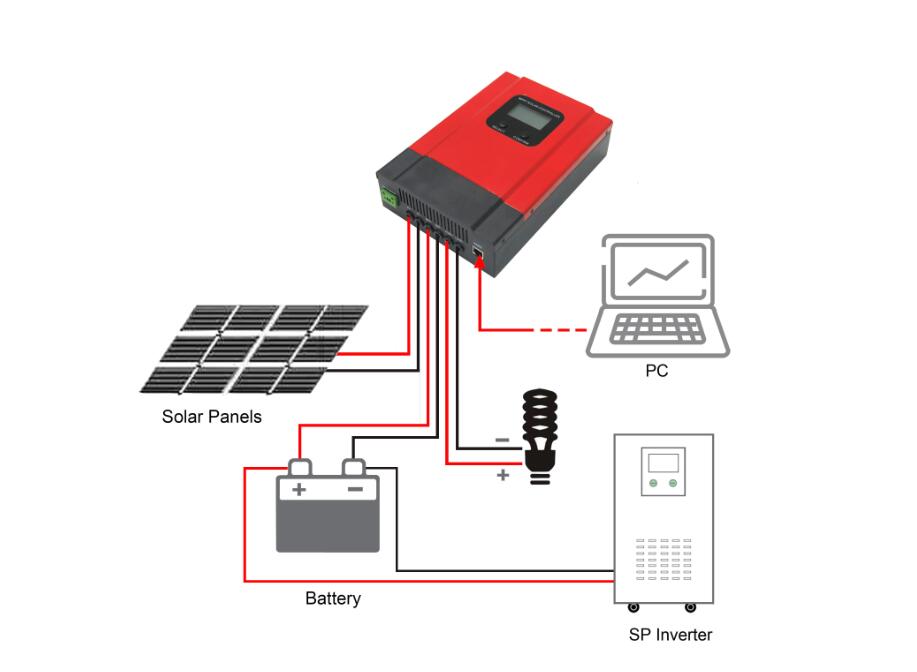

 MPPT Controller connection diagram:

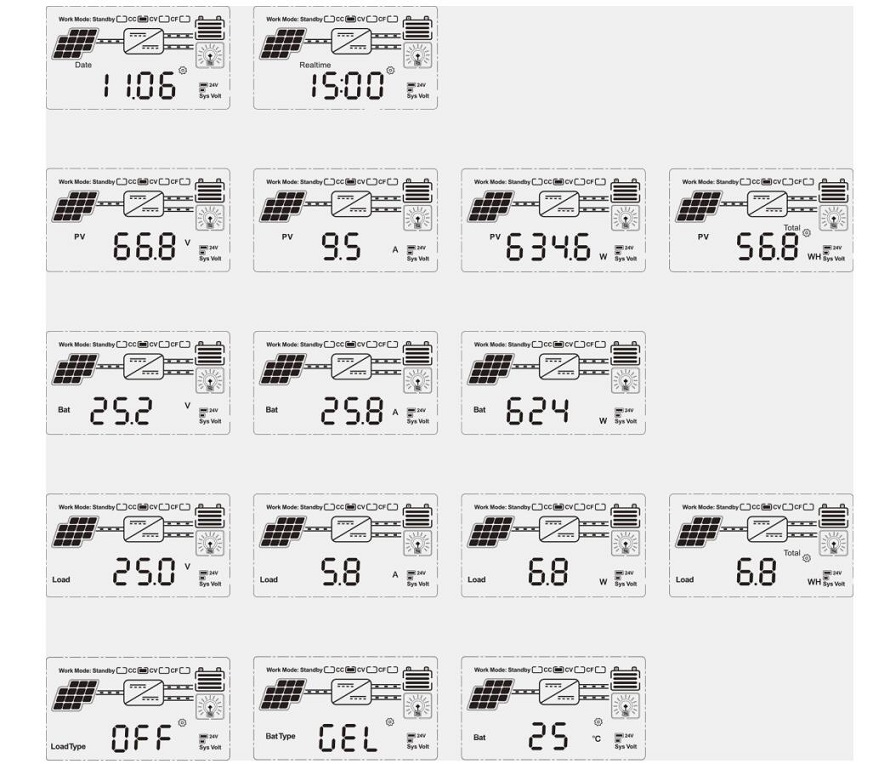

Parameters Display information

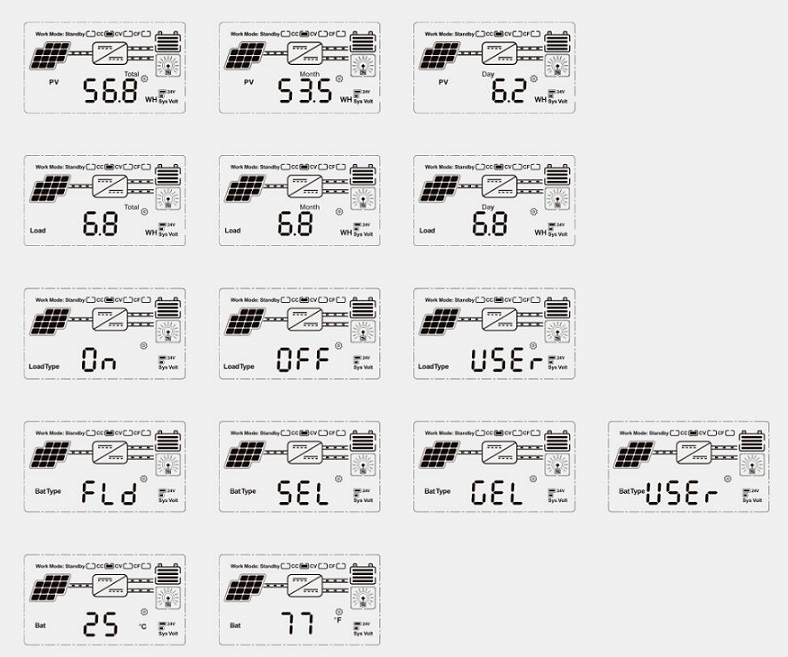

MPPT controller LCD setting information

Product Description:
- eSmart3 series is the third generation of eSmart mppt controller,based on eSmart1,eSmart2 series mppt controller,we update the display with back-light LCD display,load control way,connect way,internal structure,reduce the static standby self-consumption,energy saving and more simply for small system.etc.It features an efficient MPPT control algorithm to track the maximum power point of the PV array.Greatly improve the utilization of solar panel.
- Its intelligent LCD and upper PC display,mostly convenient for customers to check,records and parameter setting.It widely used in off-grid solar system,communication base station solar system,household solar systems,street light solar systems,field monitoring and other fields etc.

Features:
- High efficiency MPPT control algorithm,MPPT efficiency≥99.5%,whole Machine conversion efficiency upto 98%;
- 12V/24V/36V/48V system Automatic Recognition,users can use it in different system conveniently.
- Maximum PV input voltage: DC150V
- Charge mode: three stages (fast charge,constant charge,floating charge).It prolongs service life of the batteries.
- Discharge mode: ON/OFF mode,PV voltage control mode,Time control,PV & Time control mode.
- Recommended battery types: Flooded, Sealed lead acid, Gel battery.Other types of the batteries can also be defined.
- Most information could be provide by LCD like: model No.,PV input voltage,battery type,battery voltage,charging current,charging power, working status and so on. Also customer's information like company name,website and logo can be added into Solar Eagle software.
- RS485 communication,we can offer communication protocol also,it's convenient for user's integration management.
- CE,RoHS,FCC certifications approved.

Parameter:
- Model: 60A
- Charge Mode: MPPT(Maximum Power Point Tracking)
- MPPT Efficiency: ≥99.5%
- System Type: DC12V/24V/36V/48V:Automatic recognition

Input Characteristic:
- PV Max. voltage (VOC): 12V/24V/36V/48V system:150V
- High Input voltage Protection point: 12V/24V/36V/48V system:150V
- Rated PV Power: 12V system:828W;24V system:1650W;36V system:2500W;48V system:3300W

Charge Characteristic:
- Charge Mode: MPPT(Maximum Power Point Tracking)
- Charge Method:3-Stage: constant current(fast charging)-constant voltage-floating charge
- Selectable Battery Types (Default type is Gel battery): 12V/24V/36V/48V system:Flooded,Sealed lead acid,Gel battery(Other types of the batteries also can be defined)
- Rated charge current: 12V/24V/36V/48V system:60A

Output Discharge Characteristic:
- Output voltage: Based on battery voltage
- The output control: On mode,Off mode,PV voltage control mode,Time control,PV + Time control

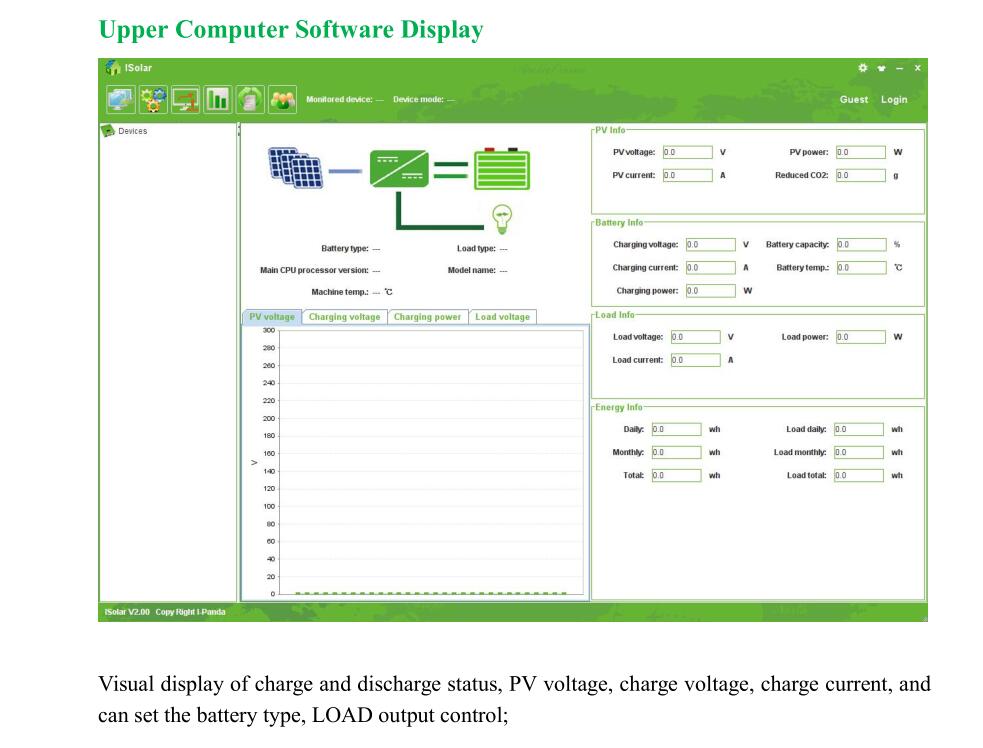

Display/Communication: LCD display/PC upper (RS485):System type,PV voltage,charge voltage,charging current,charging power,temperature

Other Parameters:
- Protect function: Yes
- Thermal methods: fan cooling
- Type of Mechanical Protection: IP 25
- Packing Size DxWxH(mm):330x245x150
- Net Weight (kg): 2.5
- Gross Weight (kg): 3

Package List:
- 1 x 60A DC 12V/24/36/48V MPPT Solar Charge Controller
- 1 x User manual
