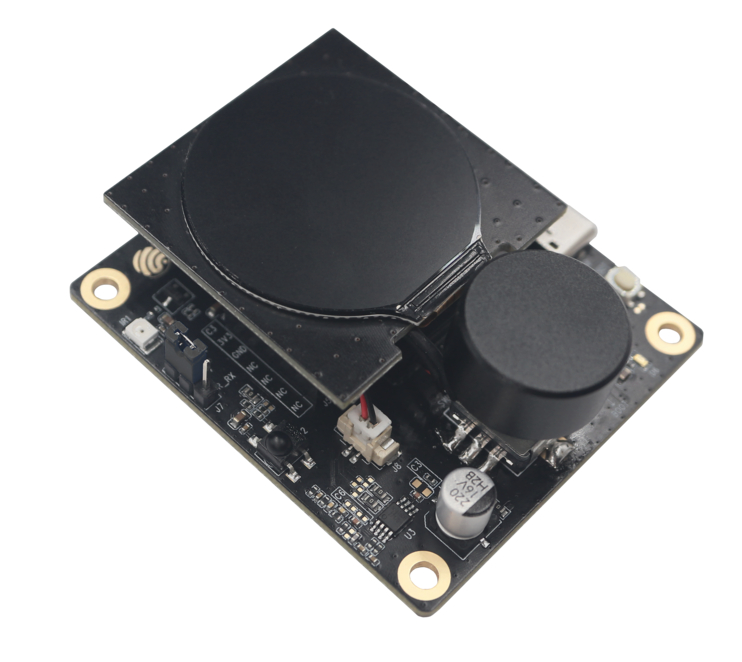

Espressif ESP32-C3-LCDkit Development Board with Rotary Encoder Switch for Wildlife Protection
Board Overview:
ESP32-C3-LCDkit is an ESP32-C3-based evaluation development board with an SPI interface display. It also has an integrated rotary encoder switch and features screen interaction. Due to its low cost, low power consumption, and high performance, ESP32-C3 satisfies the basic GUI interaction needs, gaining ground in scenarios with small screen sizes.
Features:
- Module Embedded: ESP32-C3-MINI-1 module with 4 MB flash and 400 KB SRAM
- Display: Compatibility with various sub-boards and support for displays with I2C and SPI interfaces. Please refer to LCD Sub-boards for more information
- Rotary Encoder Switch: Key switches and 360° rotation for on-screen GUI control
- Infrared module: Infrared transmitter and infrared receiver for infrared wireless control
- Audio: On-board audio amplifier and speaker for audio playback
- USB: USB Type-C downloading/debugging
Description of Components:
ESP32-C3-LCDkit is a development board designed for wildlife protection. It contains a mainboard and a sub-board.
Mainboard:

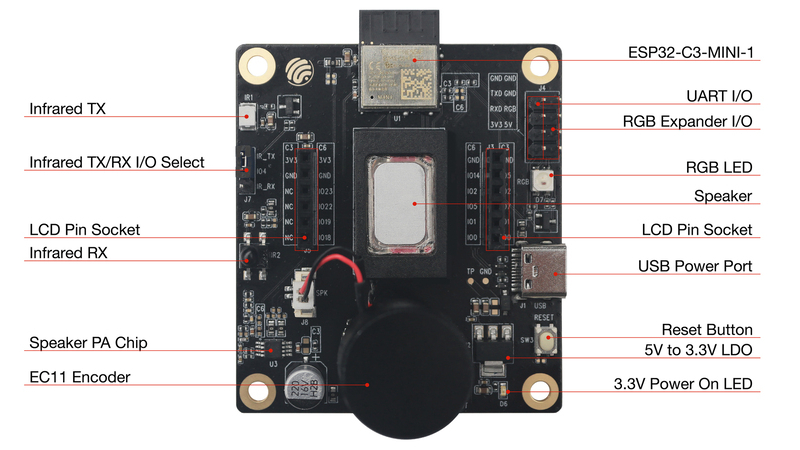

ESP32-C3-LCDkit_MB is the core of the kit, which integrates the ESP32-C3-MINI-1 module and provides ports for connection to the LCD sub-board.
LCD Sub-board:
The ESP32-C3-LCDkit_DB sub-board supports a 1.28" LCD screen with SPI interface and 240x240 resolution. The driver chip used for this screen is GC9A01.

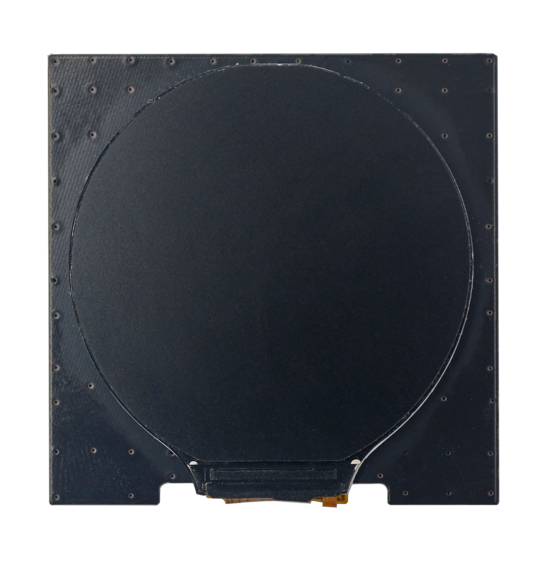

ESP32-C3-LCDkit_DB - Front
ESP32-C3-LCDkit_DB - Back
Required Hardware:
- 1 x ESP32-C3-LCDkit_MB
- 1 x LCD sub-board
- 1 x USB 2.0 cable (standard Type-A to Type-C)
- 1 x PC (for Windows, Linux and macOS)
Note:
- Please make sure to use the appropriate USB cable. Some cables can only be used for charging, not for data transfer or program flashing.
User Guide:
https://docs.espressif.com/projects/esp-dev-kits/en/latest/esp32c3/esp32-c3-lcdkit/user_guide.html
Package Included:
- 1 x Development Board
