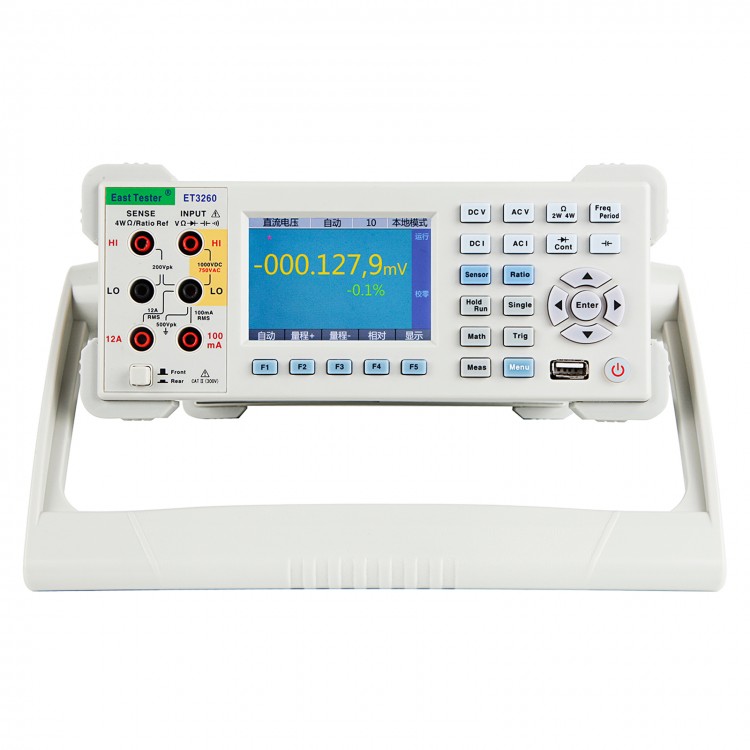

ET3260 6½ Digit Multimeter Digital Multimeter Accuracy 0.0035% With GPIB Communication Interface
Features:
* 6½ digit resolution;
* Display adopts 3.5-inch color screen (resolution 320*480), rich in display content, flexible display of various graphic interfaces, with good display effect; customized display interface according to your needs, optional graphics, numbers, mathematics and other functions at the same time displayed on the interface;
* Dual parameter display, which can display two parameters of the same input signal (for example, AC voltage value and AC frequency value can be displayed simultaneously under AC voltage measurement);
* Remote operation via IEEE 488 (GPIB) interface, RS-232 interface, LAN interface, USB Device interface;
* ET3260 has GPIB communication interface, ET3260A does not have GPIB interface;
* With trigger input and measurement completion output functions;
* The front panel has a U disk port for data storage, program upgrade and configuration;
* Two-wire and four-wire resistance measurement, 10Ω and 1GΩ extended range;
* Period and frequency measurement, the frequency can reach 300KHz;
* Capacitance measurement;
* Temperature measurement, users can set their own sensor to measure;
* Up to 12A current measurement capability;
* Multiple mathematical functions: statistics (maximum, minimum, average), zero suppression, dB, dBm, limit;
* Graphic display: trend chart, histogram, historical curve, list and other display methods;
* Support SCPI programming language, support multiple command sets;
* Input terminals are provided on the front and rear panels of the instrument;
* With internal and external calibration functions.

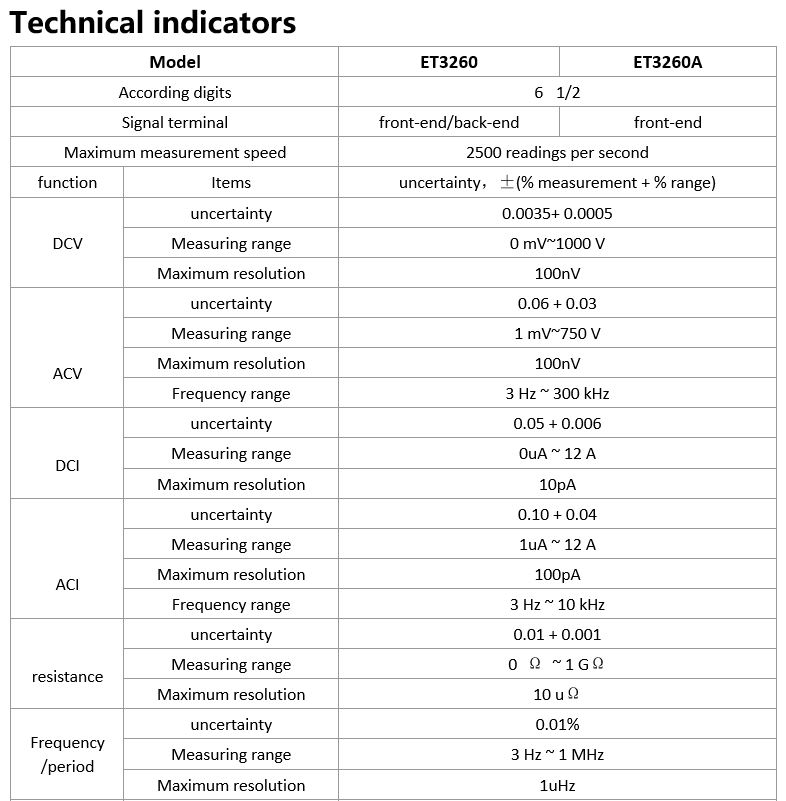

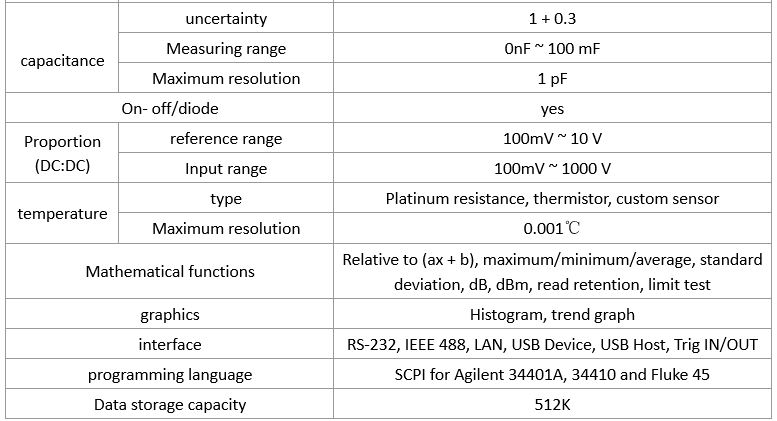

General Technical Specifications:
* Power voltage: 220V.AC plus or minus 10%, 45~66Hz, or 210V.AC plus or minus 10%, 45~440Hz
* Function: < 20W
* Display: 3.5-inch TFT LCD, resolution 48x320, color 16M
* Temperature range: -5℃ to +45℃
* Humidity range: 5%~85% relative humidity
* Interface: RS232, USB Host, USB Device, LAN, GPIB (GPIB only ET3260 support)
* Size and weight: 265mm * 102mm * 335mm (width * height * depth)
Package Included:
- 1 x Set of Digital Multimeter
