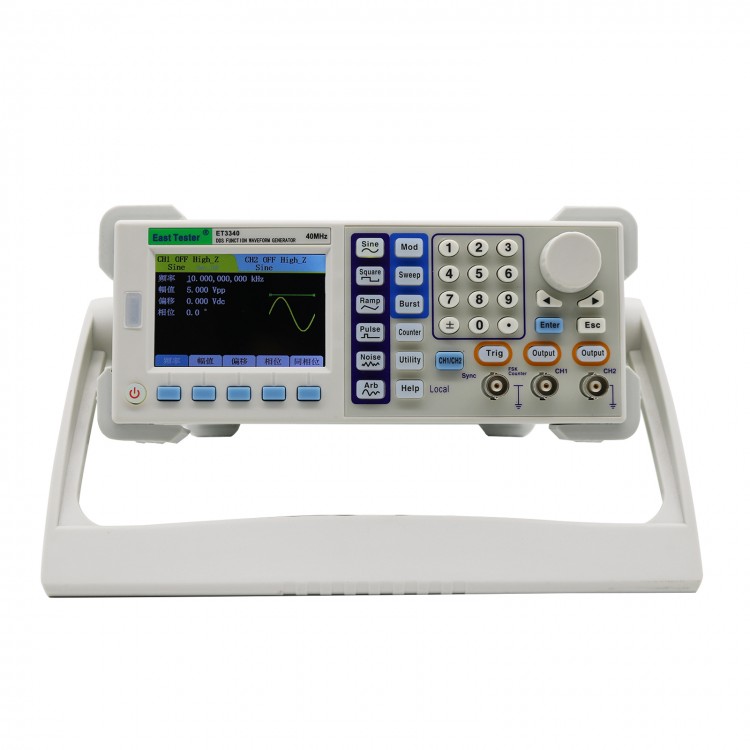

ET3340 40MHz Two Channel DDS Function Generator Function Arbitrary DDS Signal Generator 200MSa/S

ET3340 40MHz Two Channel DDS Function Generator Function Arbitrary DDS Signal Generator 200MSa/S

Description:
It is a two-channel function/arbitrary waveform generator equipped with direct digital synthesis (DDS) technology which enables output signal to be stable and accurate.

Key Features:
* 3.5-inch 480x320TFT LCD with clear graphic interface
* Chinese / English menu available
* Press key for help and information
* File management supporting USB flash disk and local storage

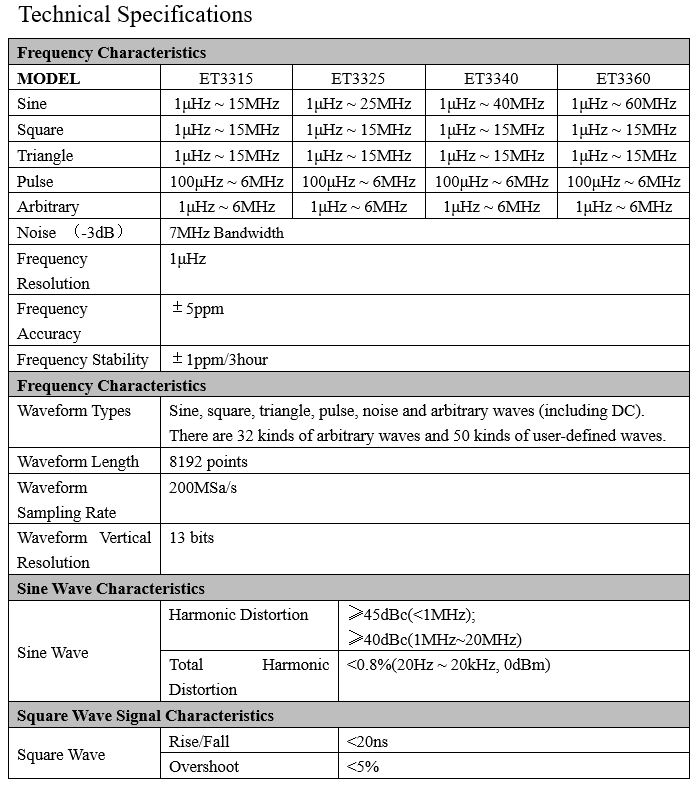

* Two-channel output with the highest output frequency is ET3315 Model is 15MHz, ET3325 Model is 25MHz, ET3340 Model is 40MHz, ET3360 Model is 60MHz.
* Sampling rate: 200MSa/S, vertical resolution: 13 bit and storage depth: 8k
* 5 basic waveforms and 32 arbitrary waveforms in-built
* Pulse wave output set in edge time

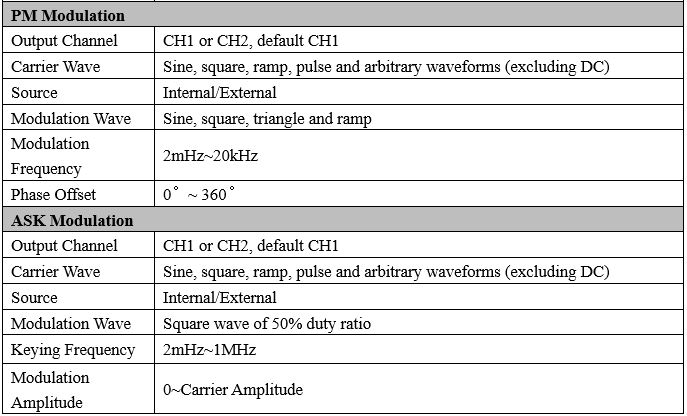

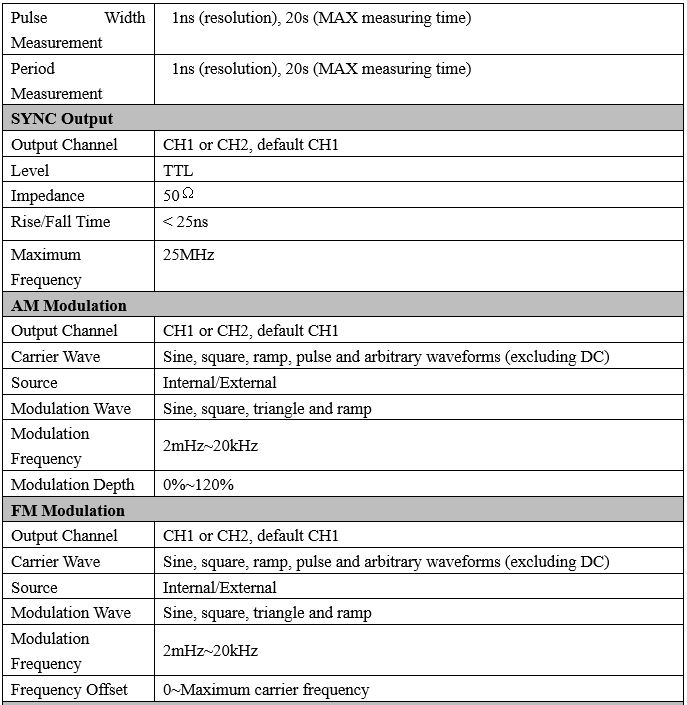

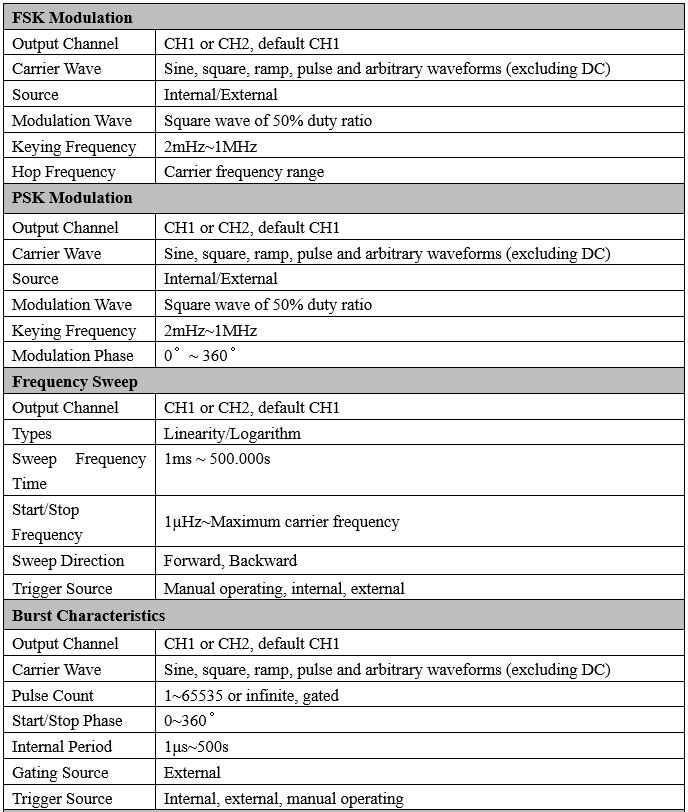

* Internal/external AM, FM, PM, ASK, FSK and PSK modulation function
* Output of linear/logarithmic frequency sweep and burst waveform

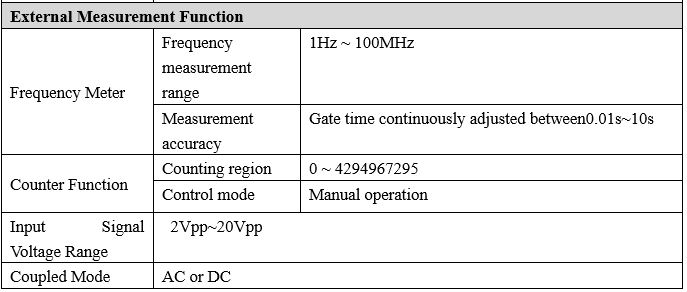

* Frequency meter of high precision of 100MHz and 32-bit counter
* With RS232 interface, USB Device, USB Host interface supporting USB flash disk storage (USB Host Optional)
* Multi-functional arbitrary waveform editing software equipped

General Technical Specifications:
* Supply voltage: 220V±10%, 45~65Hz, Or 110V±10%, 45~65Hz
* Power consumption: < 15W
* Types: 3.5-inch TFT LCD screen，Resolution480x320, 16M color
* Environment: Operation 10℃ to +40℃, Non-operation -10℃ to +60℃
* Humidity range: Within the range of 0 ~ 40℃, ≤90％ relative humidity
* Interface: RS232, USB Device; USB Host(optional)
* Display: 3.5-inch TFT LCD screen, 480 x 320 resolution
* Size: 265 * 105 * 305 mm (width x height x deep)

Package Included:
- 1 x Set of DDS Function Generator
