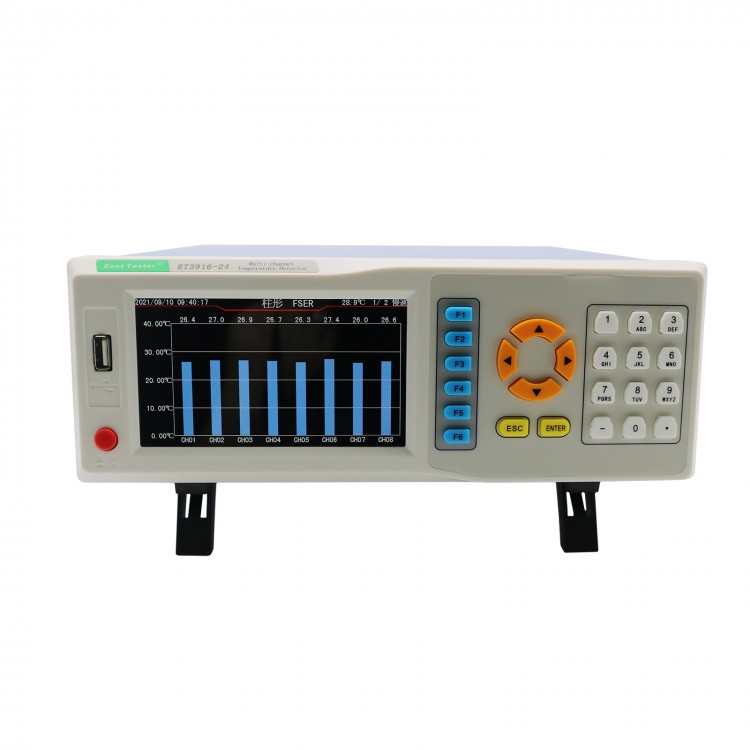

ET3916-24 Multi-Channel Temperature Detector 24CH Temperature Inspecting Instrument w/ 5" Screen

Availability: In stock, usually dispatched in 1 business day

  • Price:$458.30
  • Price in reward points: 4583 Reward Points: 46
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $449.13 $439.97 $426.22 $407.89 Contact US
Quantity:

ET3916-24 Multi-Channel Temperature Detector 24CH Temperature Inspecting Instrument w/ 5" Screen




Description:

ET3916 series multi-channel temperature tester has clear interface, flexible and convenient operation. Also, it can store a large amount of temperature measurement data. It supports J, K, T, E, S, N, B, and R type thermocouple input, which can meet the requirements of production, laboratory and R&D measurement.

It is widely used in the production, laboratory and quality supervision departments of manufacturers in the fields of lighting appliances, power tools, household appliances, motors, electric heating appliances, pharmaceuticals, petroleum, chemical industry, metallurgy, electric power and other industries and scientific research units.

Features:
- 5" industrial true color LCD screen boasts clear display and rich colors
- High-speed 32-bit microprocessor (for ARM) of high performance, and the screen response time is fast; it can support multi-channel signal acquisition, recording, display, and alarm at the same time
- Each measurement module supports 8 channels of measurement, up to 64 channels, which can be configured according to requirements
- Standard display mode: numerical display, curve graph, and bar graph
- The numerical interface supports the simultaneous display of 4/8/16/32 channel values, and supports automatic page turning, and the page turning time can be selected from multiple gears
- 6-digit display: the display range of -999.99 to 9999.99
- Built-in GB2312 Chinese character library enables Quanpin input method
- Each channel supports individual parameter settings (including upper and lower limit alarms, temperature calibration, and display units) and arbitrary naming
- When the measured temperature exceeds the set alarm upper limit or lower limit, it will send an alarm through sound and light, (optional: relay alarm output)
- Real-time clock: using hardware real-time clock, the maximum clock error is ±1 minute/year real-time clock
- Isolation between each channel, anti-high frequency interference, isolation voltage peak value up to 400V

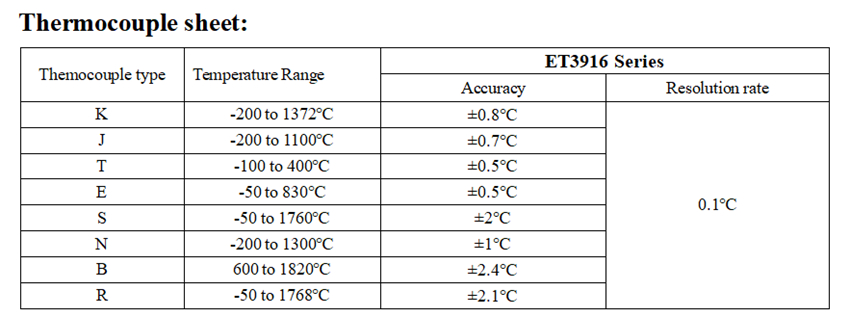

- Support J, K, T, E, S, N, B, and R thermocouple measurement
- 8GB large-capacity FLASH memory chip to store historical data; data can be exported through a U disk
- Sampling period: 1 second/channel (slow); 0.5 seconds/channel (medium speed); 0.1 seconds/channel (fast)
- Language display: Chinese, English
- With USB communication interface; can communicate with computer through the USB interface

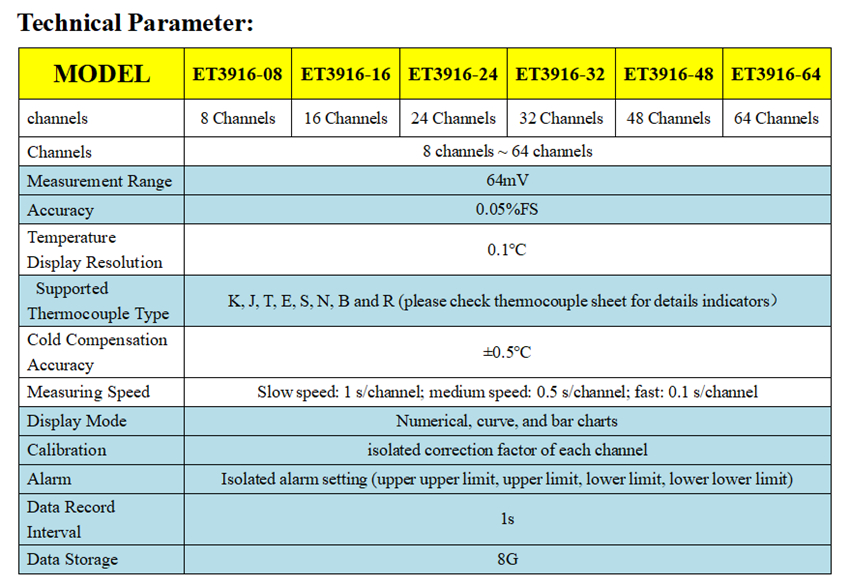

General Specifications:

- Power Voltage: 220V AC±10% or 110V AC±10%, 45~65Hz
- Display: 5" industrial true-color display, 854x480
- Working Temperature: 0℃~40℃
- Storage Temperature: -10℃ to 70℃
- Relative Humidity:<80%
- Communication port: USB Device and USB Host (standard)
- Dimension: 260 x 300 x 100mm/10.2 x 11.8 x 3.9" (LxWxH)
- Weight: 3.2kg/7.1lb

Package Included:
- 1 x Temperature Detector
- 1 x Thermocouple Sensor Probe
