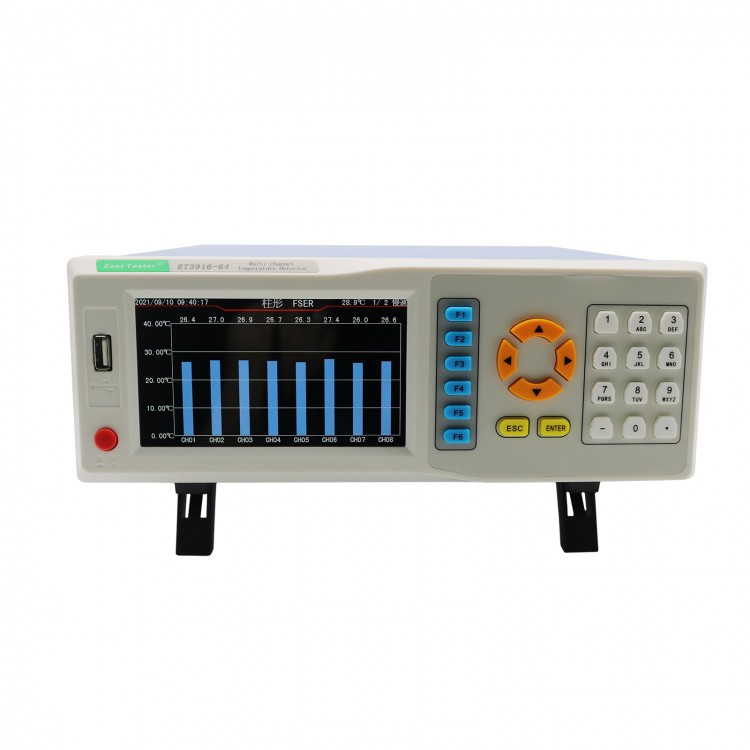

ET3916-64 Multi-Channel Temperature Detector 64CH Temperature Inspecting Instrument w/ 5" Screen
Description:
ET3916
series multi-channel temperature tester has clear interface, flexible
and convenient operation. Also, it can store a large amount of
temperature measurement data. It supports J, K, T, E, S, N, B, and R
type thermocouple input, which can meet the requirements of production,
laboratory and R&D measurement.
It is widely used in the
production, laboratory and quality supervision departments of
manufacturers in the fields of lighting appliances, power tools,
household appliances, motors, electric heating appliances,
pharmaceuticals, petroleum, chemical industry, metallurgy, electric
power and other industries and scientific research units.
Features:
- 5" industrial true color LCD screen boasts clear display and rich colors
-
High-speed 32-bit microprocessor (for ARM) of high performance, and the
screen response time is fast; it can support multi-channel signal
acquisition, recording, display, and alarm at the same time
- Each
measurement module supports 8 channels of measurement, up to 64
channels, which can be configured according to requirements
- Standard display mode: numerical display, curve graph, and bar graph
-
The numerical interface supports the simultaneous display of 4/8/16/32
channel values, and supports automatic page turning, and the page
turning time can be selected from multiple gears
- 6-digit display: the display range of -999.99 to 9999.99
- Built-in GB2312 Chinese character library enables Quanpin input method
-
Each channel supports individual parameter settings (including upper
and lower limit alarms, temperature calibration, and display units) and
arbitrary naming
- When the measured temperature exceeds the set
alarm upper limit or lower limit, it will send an alarm through sound
and light, (optional: relay alarm output)
- Real-time clock: using hardware real-time clock, the maximum clock error is ±1 minute/year real-time clock
- Isolation between each channel, anti-high frequency interference, isolation voltage peak value up to 400V
- Support J, K, T, E, S, N, B, and R thermocouple measurement
- 8GB large-capacity FLASH memory chip to store historical data; data can be exported through a U disk
- Sampling period: 1 second/channel (slow); 0.5 seconds/channel (medium speed); 0.1 seconds/channel (fast)
- Language display: Chinese, English
- With USB communication interface; can communicate with computer through the USB interface
General Specifications:
- Power Voltage: 220V AC±10% or 110V AC±10%, 45~65Hz
- Display: 5" industrial true-color display, 854x480
- Working Temperature: 0℃~40℃
- Storage Temperature: -10℃ to 70℃
- Relative Humidity:＜80%
- Communication port: USB Device and USB Host (standard)
- Dimension: 260 x 300 x 100mm/10.2 x 11.8 x 3.9" (LxWxH)
- Weight: 3.2kg/7.1lb
Package Included:
- 1 x Temperature Detector
- 1 x Thermocouple Sensor Probe
