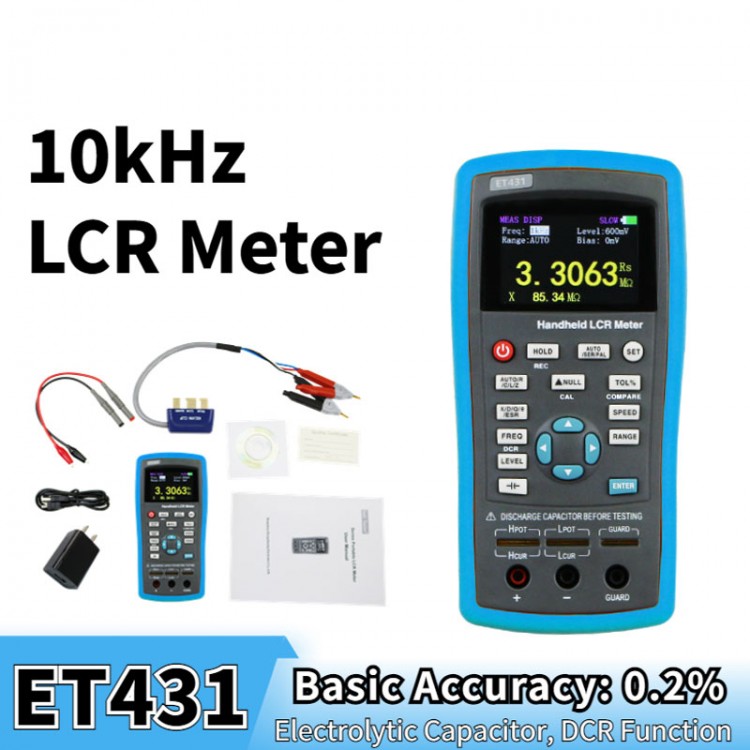

ET431 Handheld LCR Meter LCR Tester Capacitance Inductance Meter 10KHz Frequency Accuracy 0.2%
ET431 Function/Parameters:
10kHz, 0.2% accuracy, internal bias, 4 level points. Electrolytic capacitor and DCR test function.
Product Features:
- Measurable frequency up to 10kHz, continuously adjustable at a step of 1 Hz.
- Measurement of DC resistance and electrolytic capacitor supported
- Internal bias voltage output (0mV-500mV)
- Automatic identification of measured component
- Support for screening and deviation measurement
- 2.8" TFT display screen, a 4 1/2 digit display
- USB communication interface
- Power supply by high-capacity lithium battery
- Support for SCPI protocol
- System configuration available for setting of language, buzzer and display brightness
- Adjustable measuring speed
- Manual and automatic range
- Open circuit and short circuit calibration
- Multiple testing ports
Package Included:
- 1 x Set of LCR Meter
