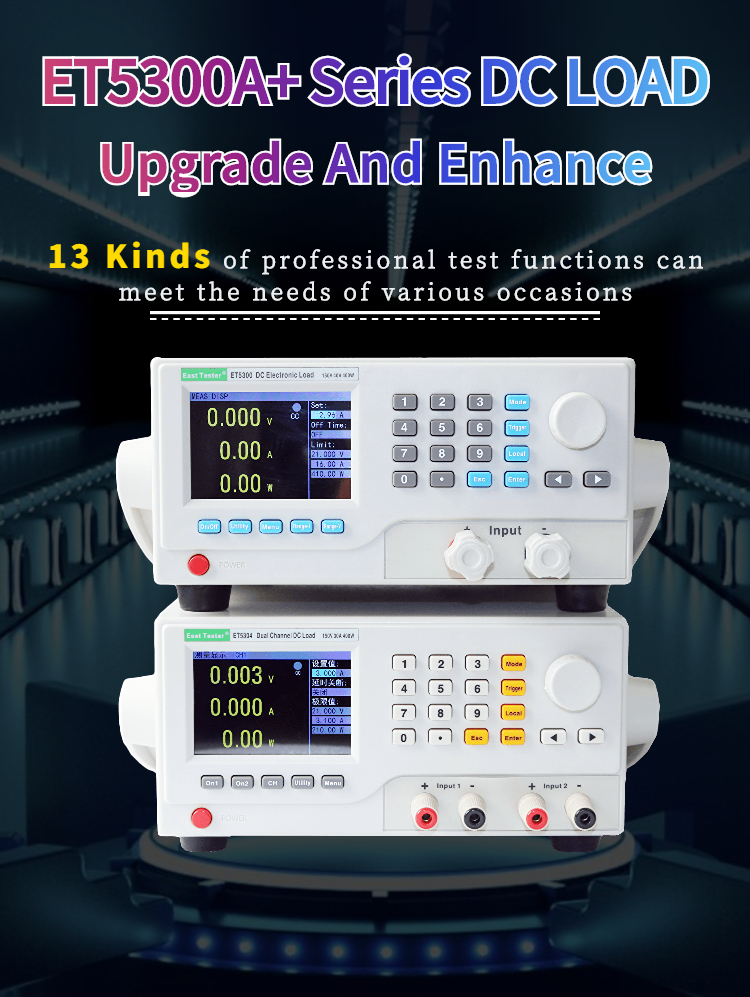

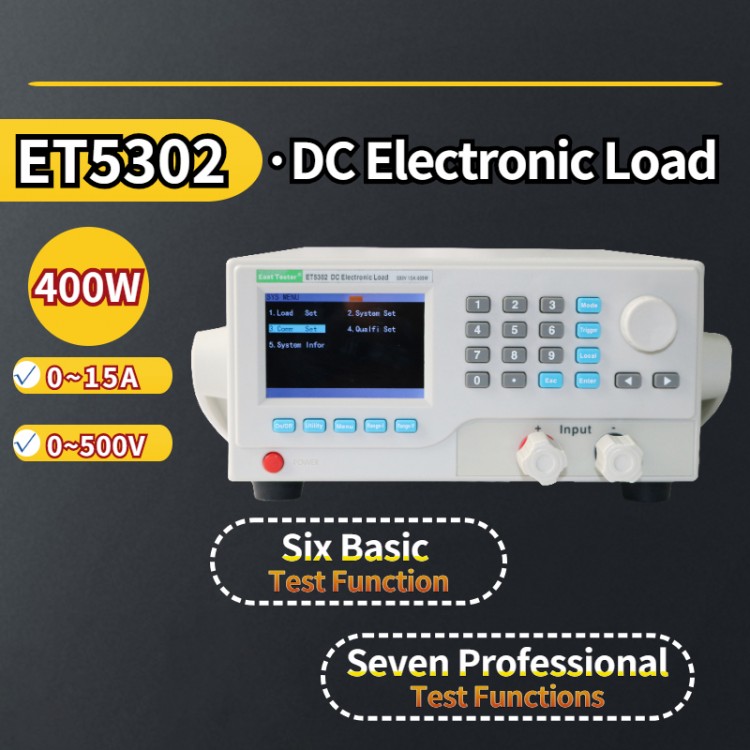

ET5302 400W 15A 500V DC Electronic Load Programmable Load Used in Charger Power Supply Tests
Description:
DC
programmable electronic load provides 1mV/10mV, 1mA/10mA high
resolution and precision with superior performance. It is equipped with
12 common modes and complete test functions, which can be widely used in
charger, switching power supply, linear power supply, battery and other
production line testing.
Key Features:
1. User-friendly Design:

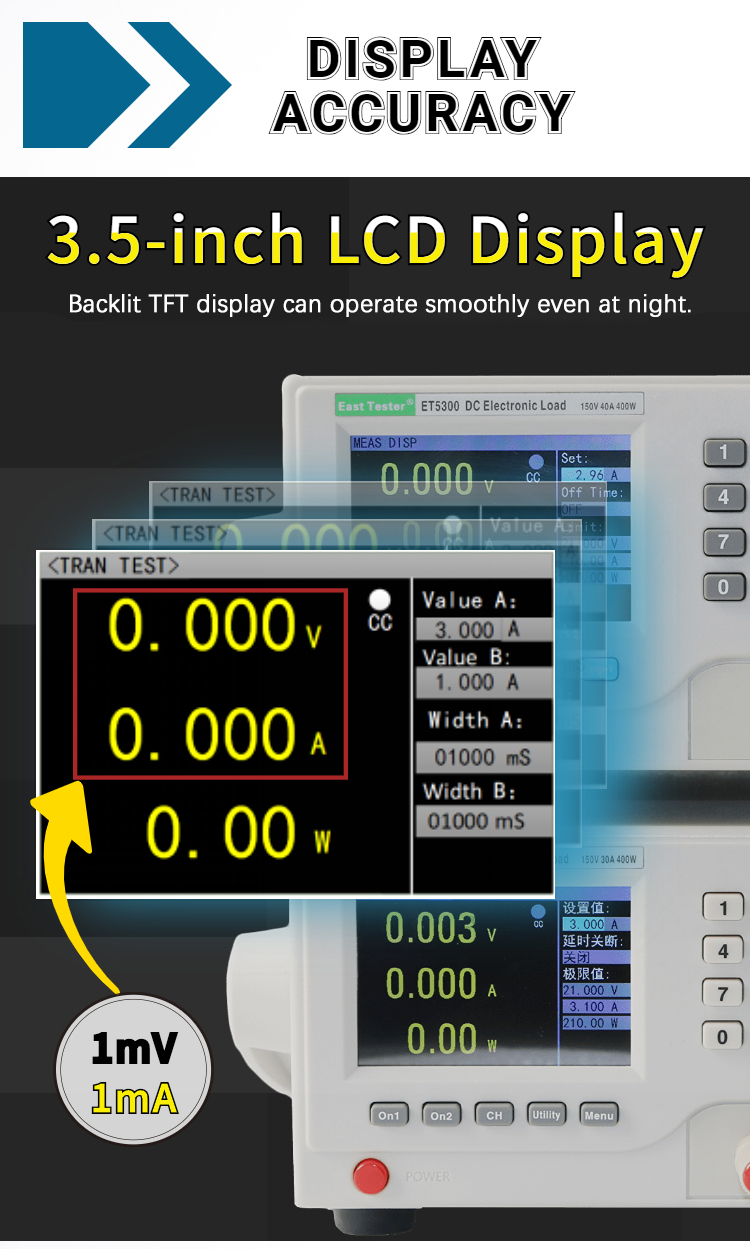

- It adopts 3.5-inch TFT LCD screen with rich display contents and supports Chinese and English display
- The operation process is simple and convenient. With visual interface display system, it is easy to get started

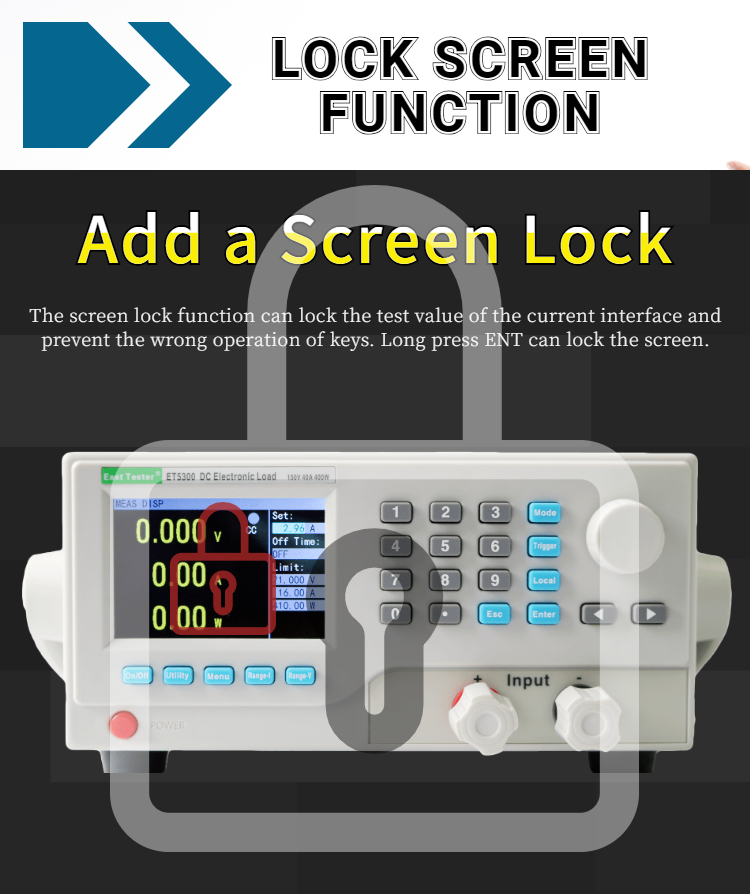

- Key lock function to prevent misoperation
2. High-performance Load:

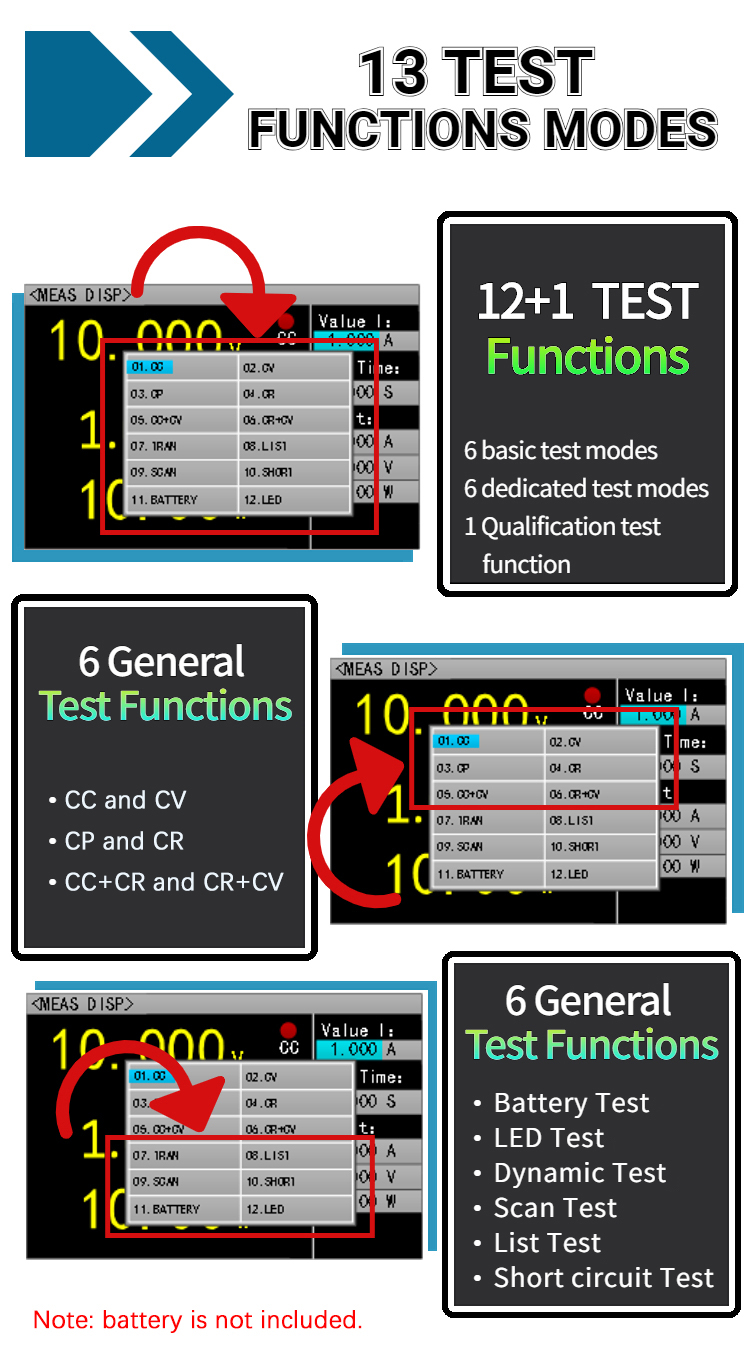

- It provides CC, CV, CR, CP and CC+CV, CR+CV basic measurement modes

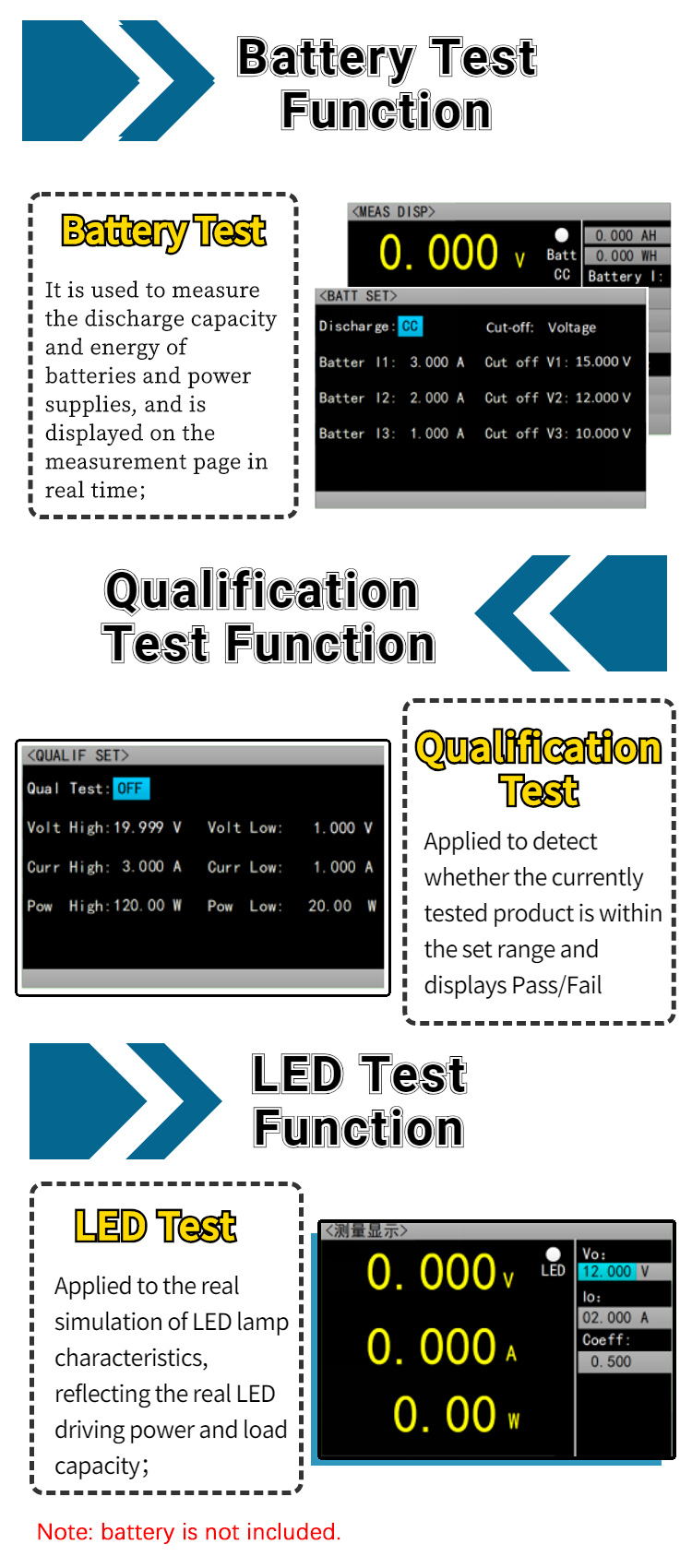

- It provides professional battery test
- It provides professional LED test

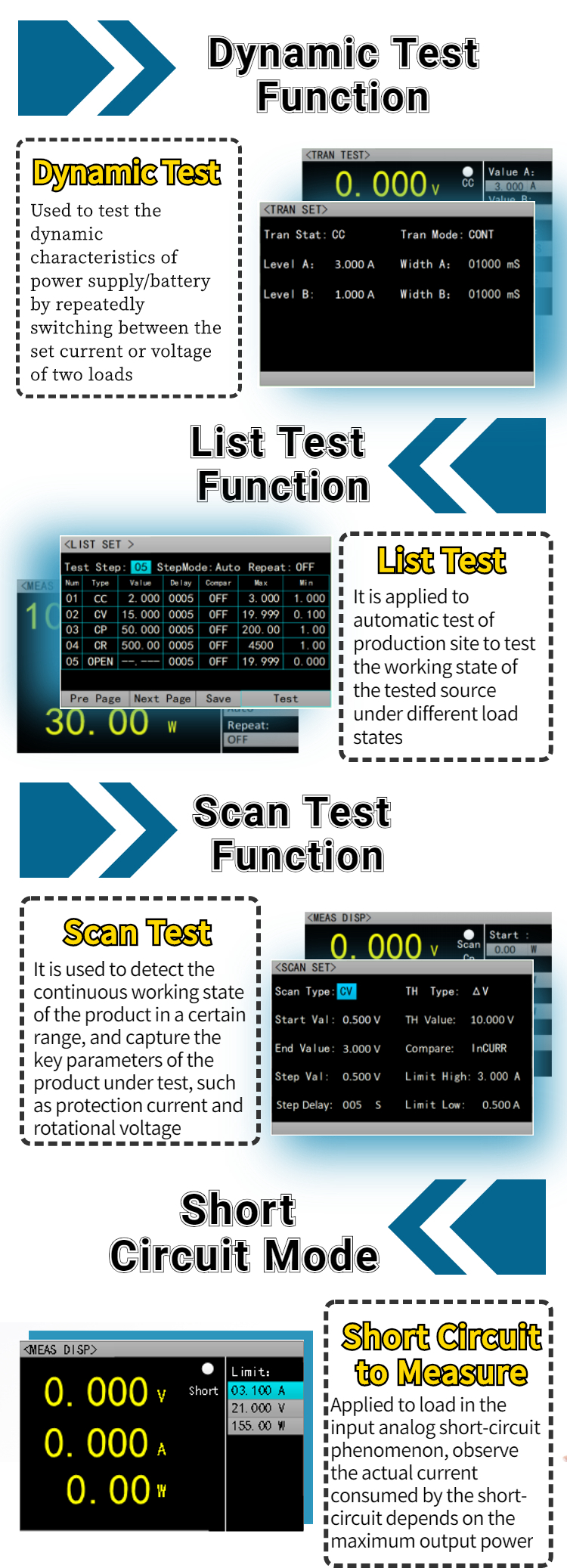

- Tran test mode can test the dynamic output performance of the power supply
- Scan test mode can test the continuity of power output within a certain range
- Support 4-wire measurement
- The list test mode can simulate a variety of loading status changes
- The short circuit test can be used to simulate load short circuit
- Support external trigger input
- Built-in buzzer alarm
- Maintain data storage in case of power failure

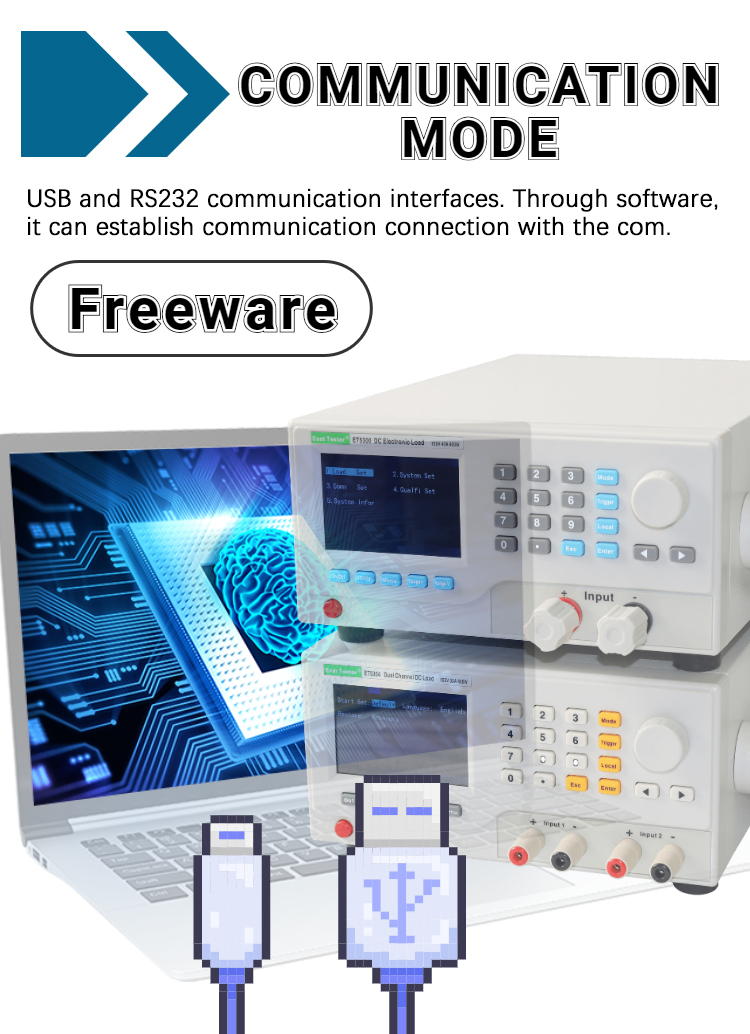

- Remote operation via USB, RS-232 or RS485 (optional) interfaces
3. Multiple Safety Protection:
-
It provides over-current, over-voltage, overpower, over temperature
protection. The over-voltage and over-current parameters can be set
flexibly, so as to effectively protect the load
- It has intelligent fan speed control function, which can effectively reduce the fan noise when it is working
- With input polarity reverse prompt

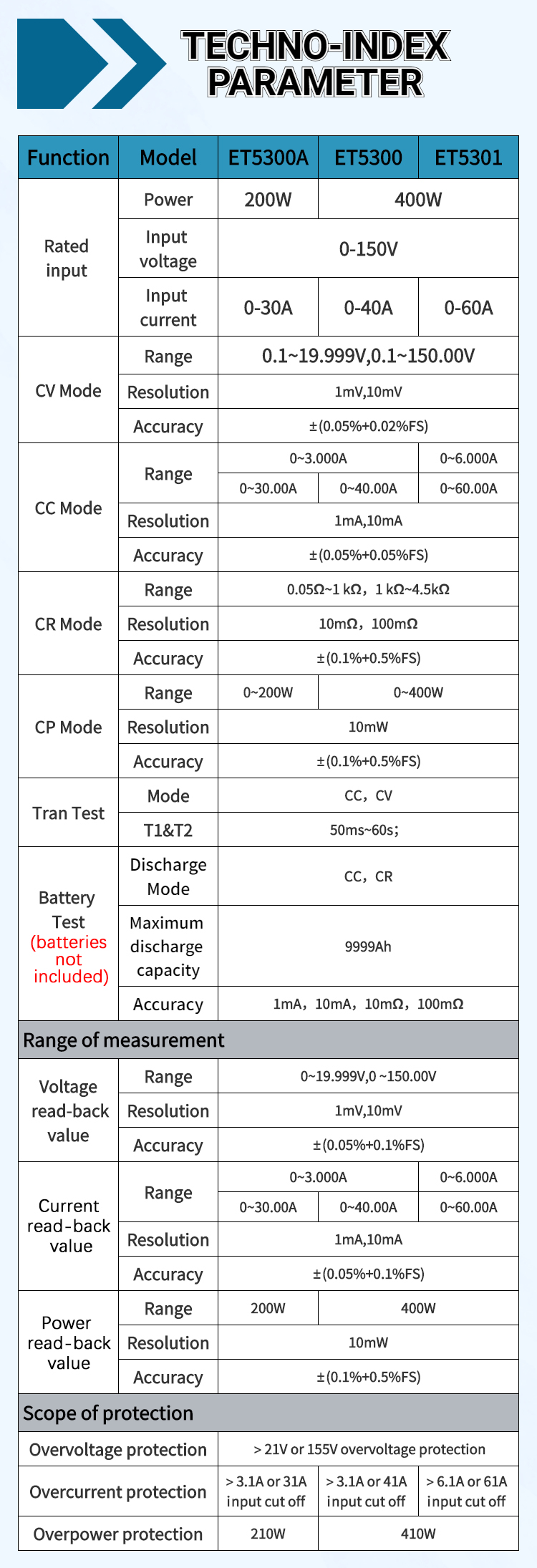

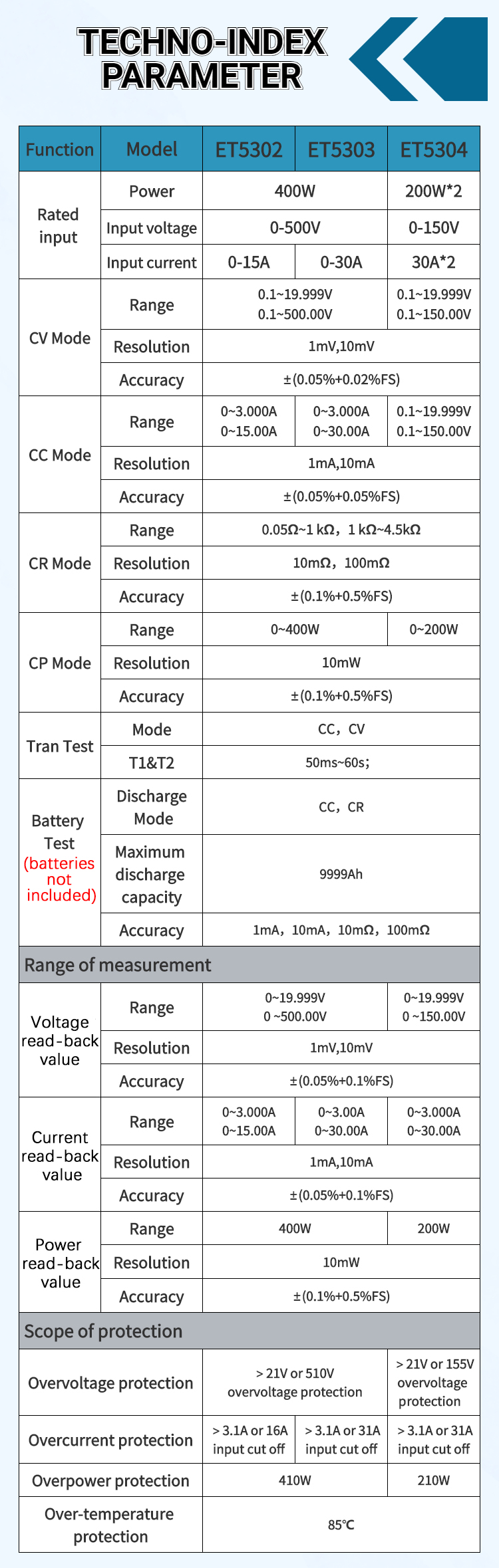

General Technical Specifications:
- Power supply voltage: 220Vac±10%, 110Vac±10%, 45-65Hz
- Display: 3.5" TFT LCD screen with resolution of 480 x 320
- Operating temperature: 0℃ to 40℃
- Storage temperature: -10℃ to 70℃
- Relative humidity: < 80%
- Interface: standard USB, RS232 or RS485 (optional)
Package Included:
- 1 x Electronic Load
- 1 x Power Cable
- 1 x Certificate of Qualification
- 1 x User Manual
- 2 x Fuses
Note:
- Batteries are not included.
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
