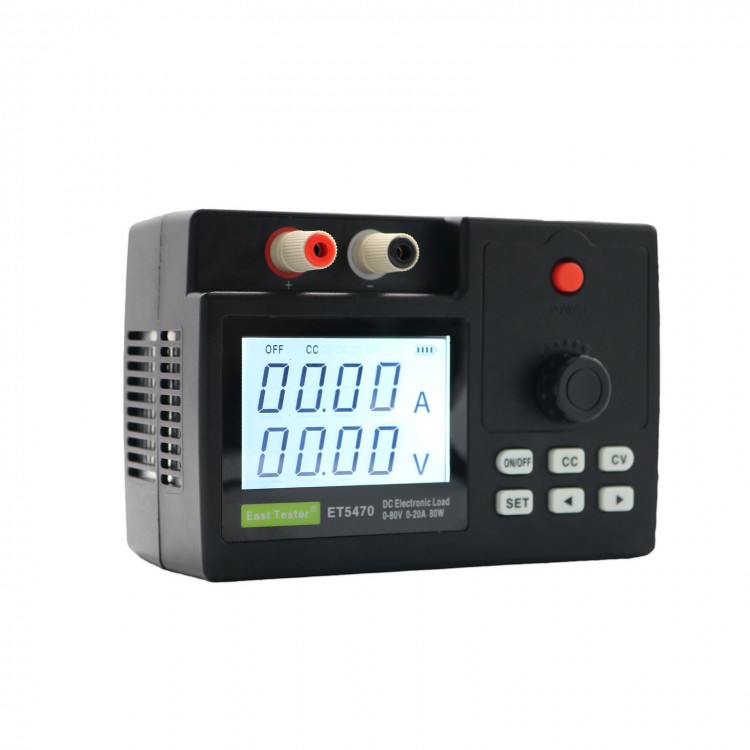

ET5470 0-80V 80W Portable DC Electronic Load Tester Stepless Servo High Performance Load Tester with LED Screen

Availability: In stock, usually dispatched in 1 business day

  • Price:$96.52
  • Price in reward points: 965 Reward Points: 10
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $94.59 $92.66 $89.76 $85.90 Contact US
Quantity:

ET5470 0-80V 80W Portable DC Electronic Load Tester Stepless Servo High Performance Load Tester with LED Screen

Description:

- ET5470 series DC electronic load is a portable DC electronic load, using high-performance chips, high-speed, high-precision design, to provide 10mA and 10mV precision design, the overall structure is rigorous without losing beauty, the use of advanced production technology compared to similar products have a higher cost performance, can be applied to all kinds of production lines (switching power supply, linear power supply, linear power supply, etc.) Mobile phone adapter and all kinds of battery production), scientific research institutions, automotive electronics, aerospace and other industries.

Features:
- Constant voltage, constant current, two basic working modes, to provide the basic needs of all kinds of product testing
- Compared with similar products, the volume is greatly reduced, the weight is reduced, and it is easy to carry
- Equipped with large capacity battery, can work in special environment without external power supply
- Support maximum power 150W, maximum current 20A, maximum voltage 300V measurement needs
- Support over temperature, over voltage, over current, over power, overheating protection
- High brightness large screen LED display
- Stepless servo, intelligent fan cooling
- Interface: Standard Type-C communication interface
- Size: 90mm x 116mm x 165mm
- Weight: 0.82kg
- Power supply voltage: built-in large capacity rechargeable battery, using the standard 5V/3A adapter charging
- In the communication mode, it supports constant voltage, constant current, constant power, constant resistance, dynamic and scanning functions.

Package Included:
- 1 x Host
- 1 x Power Cord
- 1 x User Manual
