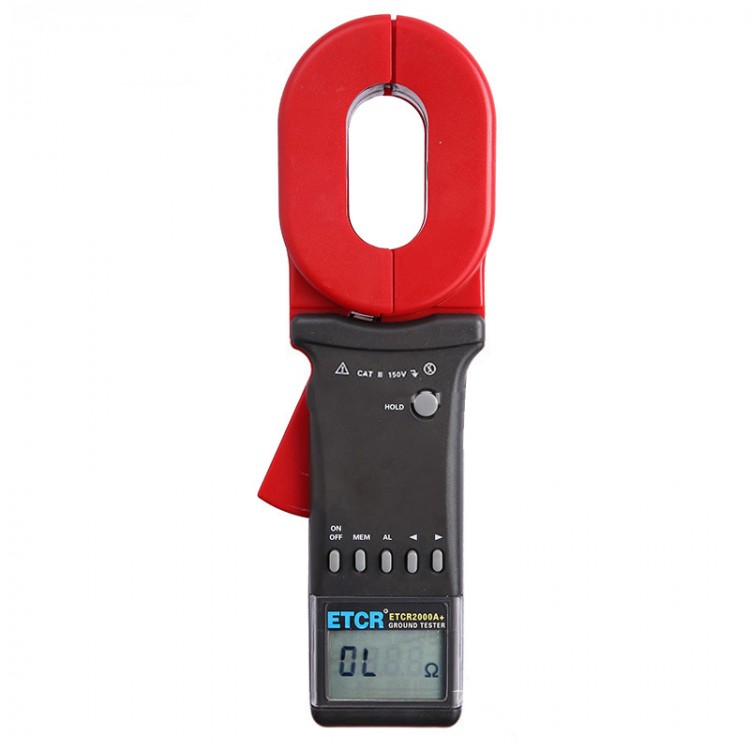

ETCR 0.01-200 Ohm Ground Tester Clamp Ground Resistance Tester Earth Resistance Tester ETCR2000A+

ETCR 0.01-200 Ohm Ground Tester Clamp Ground Resistance Tester Earth Resistance Tester ETCR2000A+

Description:
ETCR2000A+ Clamp Earth Resistance Tester is widely used in the grounding resistance measurement of the power, telecommunications, meteorology, oilfield, construction and the industrial and electrical equipment. In the measurement of a grounding system with loop, does not require breaking down the grounding down lead, and no need the auxiliary electrode. It is safe, fast and simple in use. The tester can measure ground faults which cannot be measured by traditional methods. It can be used in applications where traditional methods cannot be measured, because the ETCR series clamp grounding resistance meter measures the combined value of grounding body resistance and grounding lead resistance.

Features:
- Measurement of earth resistance,loop resistance
- Measure Range: 0.01Ω~200Ω
- Data Storage: 99 sets
- Alarm Threshold Setting: 1-199Ω
- Alarm Function: audible and visible alarm
- CT Size: 65 x 32mm/2.6 x 1.3"

Technical Parameters:
- Range: 0.01Ω~200Ω
- Resolution: 0.001Ω
- Data storage: 99 sets
- Audible and visible alarm: "Beep-beep-beep" alarm sound; press AL button to turn it on/off
- Alarm threshold setting range: Resistance: 1~199Ω
- Working environment: -20 to 55℃; 10%RH~90%RH
- LCD size: 4-digit LCD display; screen size: 47 x 28.5mm/1.9 x 1.1"
- Clamp size: 65 x 32mm/2.6 x 1.3"
- Jaw opening size: 32mm/1.3"
- Tester dimensions: 285 x 85 x 56mm/11.2 x 3.3 x 2.2"
- Protection level: Double insulation
- Structural feature: Clamp CT
- Shift: Automatic shift
- External magnetic field: < 40A/m
- External electrical field: < 1V/m
- Single measurement time: 0.5 second
- Resistance measurement frequency: >1KHz

Package Included:
- 1 x Set of Ground Tester ETCR2000A+

Note:
- Batteries are not included. 4pcs AA alkaline dry batteries are recommended.
