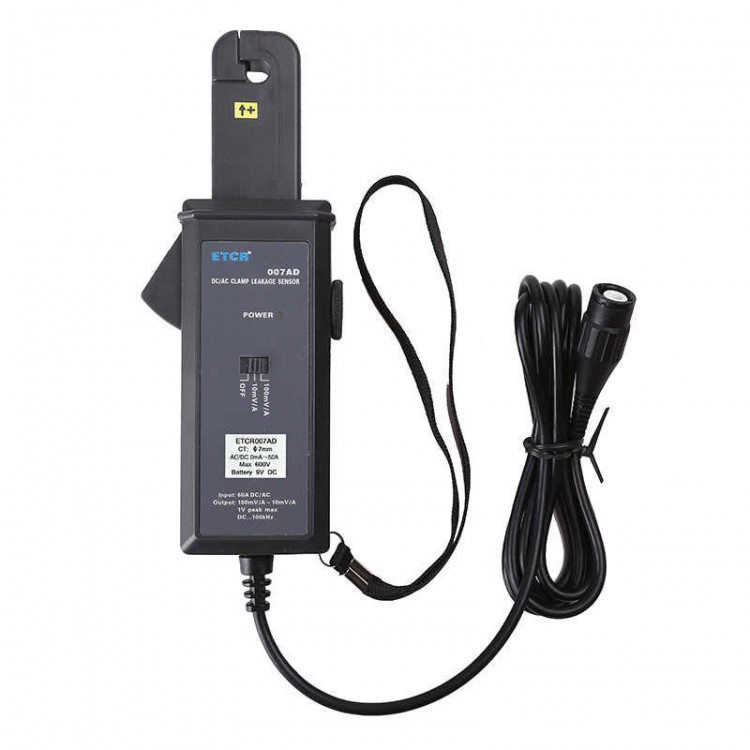

ETCR007AD High Precision AC/DC Clamp Current Sensor Current Transformer with BNC Connector for Oscilloscope Leakage Current
Features:
- Clamp leakage current sensor uses the latest CT technology and digital integration technology to measure AC/DC current and leakage current under 600V line voltage.
- This small clamp is suitable for densely populated areas (electric power measurement system, high-speed rail system, automatic circuit maintenance, etc.), non-contact measurement ensures safe operation.
- It is small in size, high in accuracy and stable in performance. It can be connected with phase detection analyzer, industrial control equipment, data recorder, oscilloscope, electric power quality analyzer and high-accuracy multimeter.
- The sensor is widely used in electric power, communication, meteorology, railway, automobile industry, oil field, construction, measurement, scientific research and education institution, industrial and mining enterprise and other fields.
- The input range is 0mA-50.0A AC/DC and the resolution is 1mA AC/DC, which is easy to operate and convenient to use. Made of high-quality material, it is not easy to damage, durable and has a long service life.
Parameter:
- Model: ETCR007AD
- Range: 0mA - 50A AC/DC
- Resolution: 1mA
- Precision level: 3.0 level

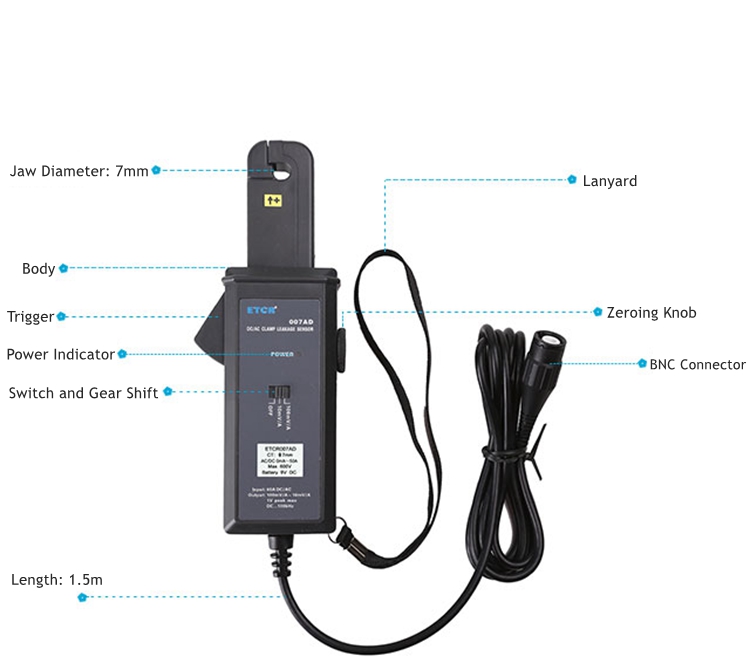

- Jaw size: 7mm (diameter)
- Working frequency: DC - 400Hz
- Output method: 10mV/1A or 100mV/1A (manual hear shifting)
- Output interface: BNC connector
Package Included:
- 1 x Clamp Sensor
