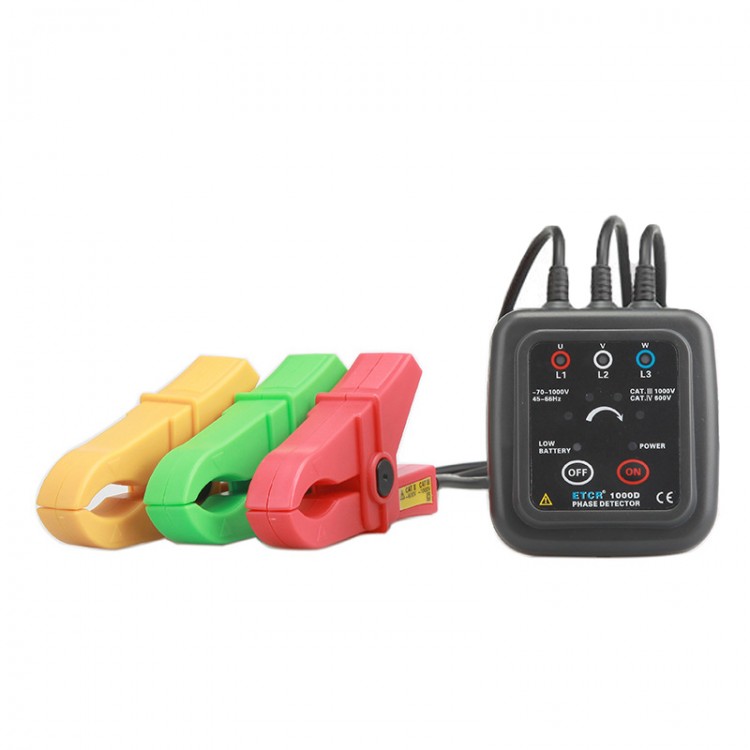

ETCR1000D AC 70-1000V Non-Contact Phase Sequence Tester Indicator Phase Detector w/ 1.6" Jaw Opening

ETCR1000D AC 70-1000V Non-Contact Phase Sequence Tester Indicator Phase Detector w/ 1.6" Jaw Opening



Features:
- With non-contact phase sequence detection, live line inspection, simple electrical inspection, fire line identification, default phase judgment, broken line location search and other functions
- 40mm/1.6" jaw opening
- Clamp wires with outer diameter of 10mm~40mm/0.4~1.6"
- Non-contact inspection for safe and fast productivity. When using, the insulation clamp can be directly clamped on the insulation skin of the live wire to test, no need to stripping off the wire or touching the exposed live wire of high voltage
- The measurement result is dynamic display of LED, which is very clearness and directness, improves the safety and convenience of the test, and practically protects the personal safety of operators
- The dynamic sound and light indicates the positive or negative phase of the phase sequence of the three-phase power supply, which is clear at a glance
- The bottom plate of the instrument is equipped with 4 magnets, which can be attached to the metal casing of the equipment during testing, and the operation is convenient and convenient
- The three clamps adopt 3 colors of the out shell, which is more in line with the distinction of three-phase line

Technical Parameters:
- Model: ETCR1000D
- Function: Phase detection (positive phase, reverse phase, missing phase), live line inspection, simple power inspection, break-point location and line maintenance
- Active power range: AC70~1000V, 45~65Hz (sine wave continuous input)
- Clampable wire size: outer diameter 10mm~40mm/0.4~1.6"
- LED display: Positive phase: 4 phase detection lamps light up sequentially in a clockwise direction. Reverse phase: 4 phase detection lamps light up in sequence counterclockwise. Live power: L1, L2, L3 lamps are turned on within the voltage setting range. Phase loss: L1 or L2 or L3 lights are off. Open circuit: L1 or L2 or L3 light does not light up
- Beep: Positive phase: The instrument emits intermittent short beeps. Reverse phase: The instrument emits a continuous long beep
- Magnetic force: There are four magnets on the back of the meter, which are attached to the distribution box and can withstand 800g mass
- Automatic shutdown: After about 5 minutes of power on, the meter will automatically shut down
- Meter dimensions: 70 x 75 x 30mm/2.8 x 3 x 1.2" (WxHxT)
- Clamp lead length: 0.6m/2 ft
- Working temperature and humidity: -10℃ to 55℃; below 80%RH
- Storage temperature and humidity: -20℃ to 60℃; below 90%RH
- Measuring the highest voltage: AC1000V
- Dielectric strength: 5.4kVrms
- Maximum power rating: 300mVA
- Suitable for safety regulations: EN61010-1: 2001, EN61010-031:2002, pollution level 2, CAT Ⅲ 1000V, transient over-voltage 6000V

Package Included:
- 1 x Phase Sequence Tester
- 1 x Cloth Bag
- 1 x Hand Strap
- 1 x User Manual

Note:
- Batteries are not included. 2pcs AA alkaline dry batteries (LR6) are recommended.
