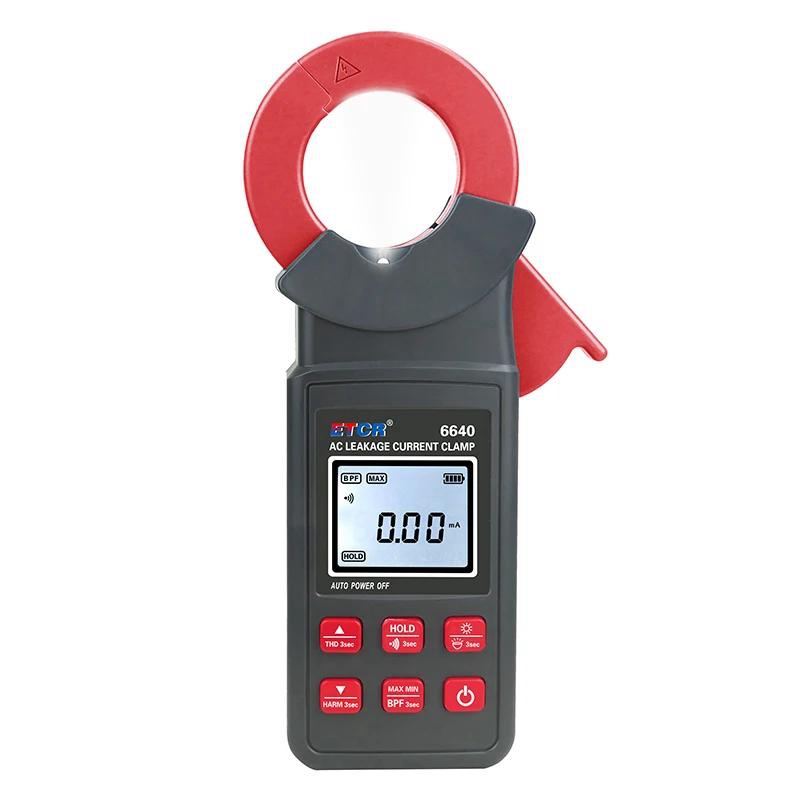

ETCR6640 AC Clamp Meter 0.00mA-300A High Accuracy Digital Ammeter LCD Display for Current Leakage Detection

ETCR6640 AC Clamp Meter 0.00mA-300A High Accuracy Digital Ammeter LCD Display for Current Leakage Detection

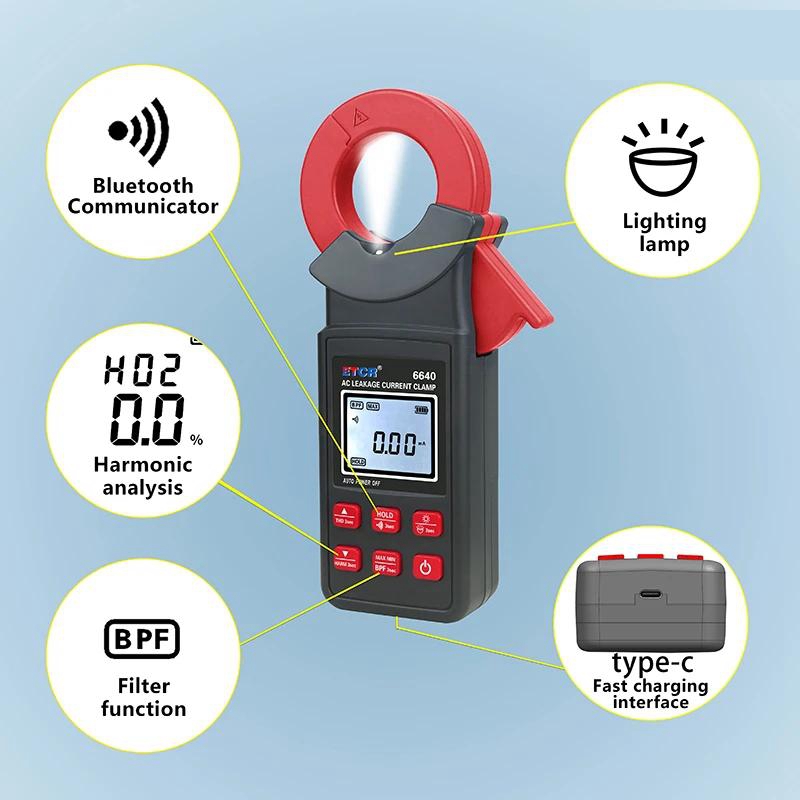

Features:
- AC Current Meter: Clamp meter is specially designed for measuring AC leakage current and current, adopts unique CT technology and digital integration technology, with small size, high accuracy and complete functions.
- Anti Interference: The clamp head adopts magnetic shielding technology, which is hardly affected by external electromagnetic field, has high measurement accuracy and good stability.
- Multi Functions: The clamp meter has true RMS measurement, filtering function, maximum minimum average value, harmonic, distortion rate and other test functions.
- Easy to Use: The current meter also has backlit, flashlight, data retention, communication and other functions, uses large capacity rechargeable lithium battery, portable and easy to use.
- Wide Applications: Widely suitable for electric power, communication, meteorology, railway, oil field, construction, metrology, scientific research and teaching units, industrial and mining enterprises and other fields.

Specification:
- Power supply: Lithium battery DC 3.7V/1000mAh
- LCD size: 43mm x 38mm; display area: 36.5mm x 29mm
- LCD backlight: Yes
- Measurement range: 0.00mA ~ 300A
- Solution: 10uA
- Measurement accuracy:
  0.00mA ~ 999mA, ±1.5%rdg±5dgt
  1.00A ~ 300A, ±1.5%rdg±5dgt
  300A ~ 599A, ±2.0%rdg±5dgt
  600A ~ 1199A, ±2.5%rdg±5dgt
  1200A ~ 2000A, ±2.5%rdg±5dgt
- Clamp jaw size: Φ40mm
- Meter size: 192mm x 96mm x 40mm
- Weight: about 256g (include battery); total weight 470g (include accessory)
- Flashlight: Yes
- Filter Function:
  Filter open: 40Hz ~ 70Hz
  Filter close: 40Hz ~ 1kHz
- Harmonic analysis: 21 times (above 10mA)
- Distortion rate: Yes (above 10mA)
- Max/Min value: Yes
- Average value: Yes
- Data hold: Yes
- Memory: 2000 groups (storage through APP)
- Overflow display: exceed measure range overflow function: “OL” symbol display
- Bluetooth communication: Yes, can test or view the test result on mobile after install the App
- Automatic shutdown: 5 Minutes after power on, the meter shut down automatically without any operation to reduce battery consumption.
- Battery level: 4-cell battery display
- Sampling rate: 2 times/second
- Working current: 60mA (turn on flashlight 72mA)
- Line voltage: line testing below AC600V
- Insulating strength: AC 3700V/rms (between the core and outside shell)
- Suitable safety standard: IEC1010-1, IEC1010-2-032, Pollution level 2, CAT Ⅲ(600V)
- Working Condition: -10℃~50℃; below 80%RH
- Storage condition: -20℃ ~ 60℃; below 70%RH

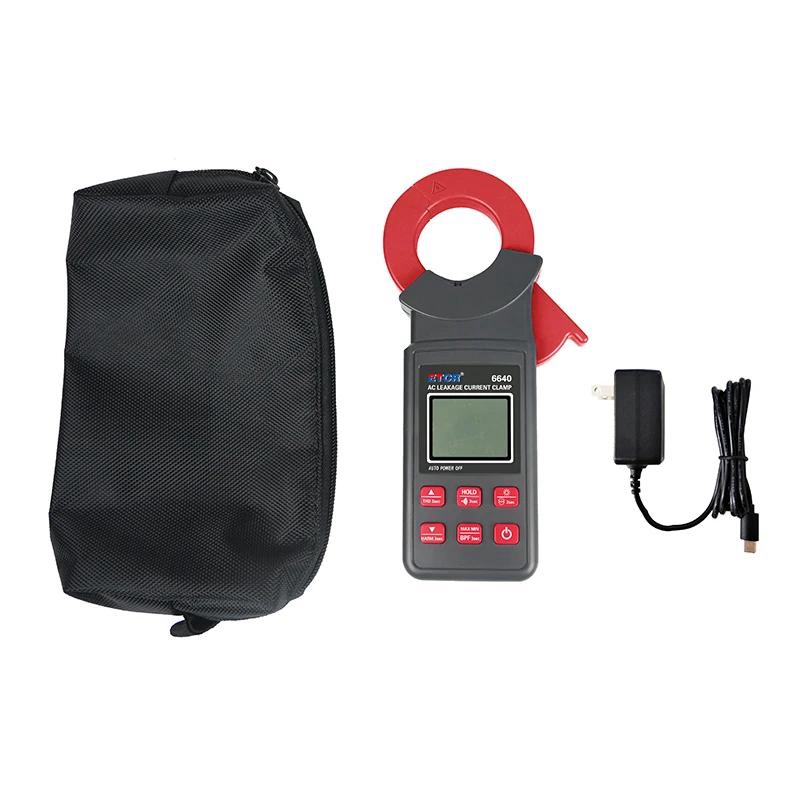

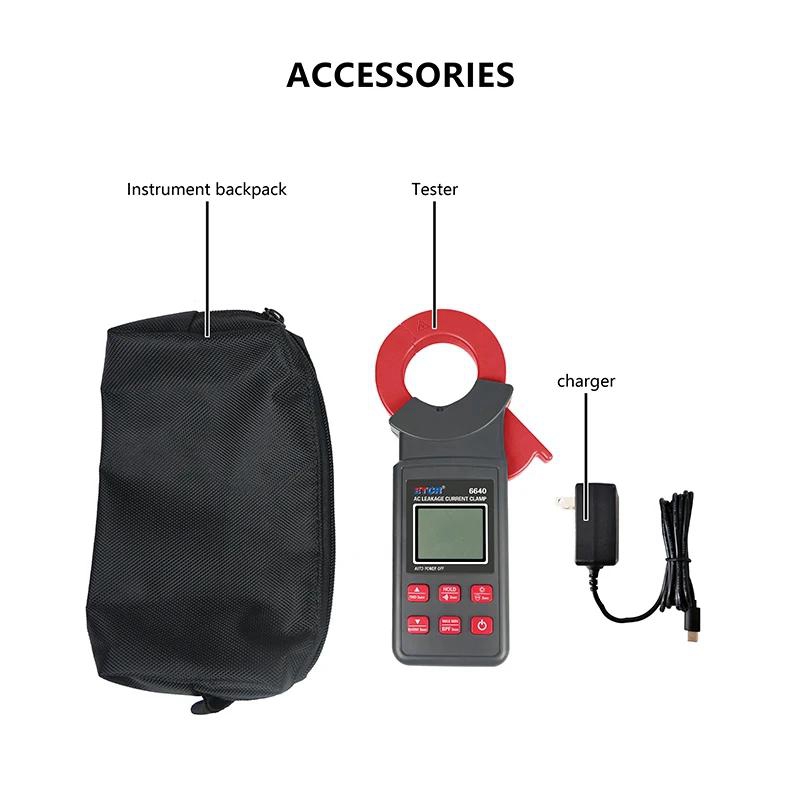

Package Included:
- 1 x Clamp Meter
- 1 x USB Cable
- 1 x User Manual
- 1 x Storage Bag
