ETCR6670 AC Clamp Meter 0.00mA-1200A High Accuracy Digital Ammeter LCD Display for Current Leakage Detection

ETCR6670 AC Clamp Meter 0.00mA-1200A High Accuracy Digital Ammeter LCD Display for Current Leakage Detection

Description:
- ETCR6600 series clamp leakage current meter is specially designed and manufactured for measuring AC leakage current and current. The meter adopts unique CT technology and digital integration technology, has the characteristics of small size, high precision and perfect function. Widely used in electric power, communications, meteorology, railway, oil field, construction, measurement, scientific research and teaching units, industrial and mining enterprises and other fields.
- ETCR6600 series clamp leakage current meter clamp jaw made of permalloy and adopts magnetic shielding technology, it is almost not affected by the external electromagnetic field, ensuring high precision, high stability and high reliability of uninterrupted measurement long time. The clamp meter has test functions such as true virtual value measurement, filtering function, maximum/minimum /average value, harmonics, distortion rate, etc., which can test  the current in the frequency range of 40Hz to 1kHz. The clamp meter also has functions such as backlight, flashlight, data hold, and Bluetooth communication. The clamp meter uses a rechargeable large-capacity lithium battery, which is a new type of necessary tool for electrician safety testing.

Specification:
- LCD size: 43mm x 38mm; display area: 36.5mm x 29mm
- LCD Backlight: Yes
- Flashlight: Yes
- Filter Function: Filter on: 40Hz ~ 70Hz; Filter off: 40Hz ~ 1kHz
- Harmonic: 21 orders (above 10mA)
- Distortion rate: Yes (above 10mA)
- Max/Min value: Yes
- Average value: Yes
- Data hold: Yes
- Data store: 2000 groups (store via App)
- Overflow display: exceed measure range overflow function: “OL” symbol display
- Bluetooth function: Yes, After installing the APP, can test or view the test results on mobile
- Automatic shutdown: After starting up about 5 minutes without any operation, the meter will automatically shuts down to reduce battery consumption.
- Battery power: display with 4 grids
- Sampling rate: 2 times/second
- Working current: 60mA (open flashlight 72mA)
- Line voltage: below AC 600V circuit line to test
- Display mode: 4 digital LCD display, 47mm x 28.5mm
- Working environment: -10℃ ~ 50℃; below 80%RH
- Store environment: -20℃ ~ 60℃; below 70%RH
- Insulation strength: AC3700V/rms (Between iron core and shell)
- Suitable safe standard: IEC1010-1, IEC1010-2-032, Pollution2, CAT Ⅲ(600V)

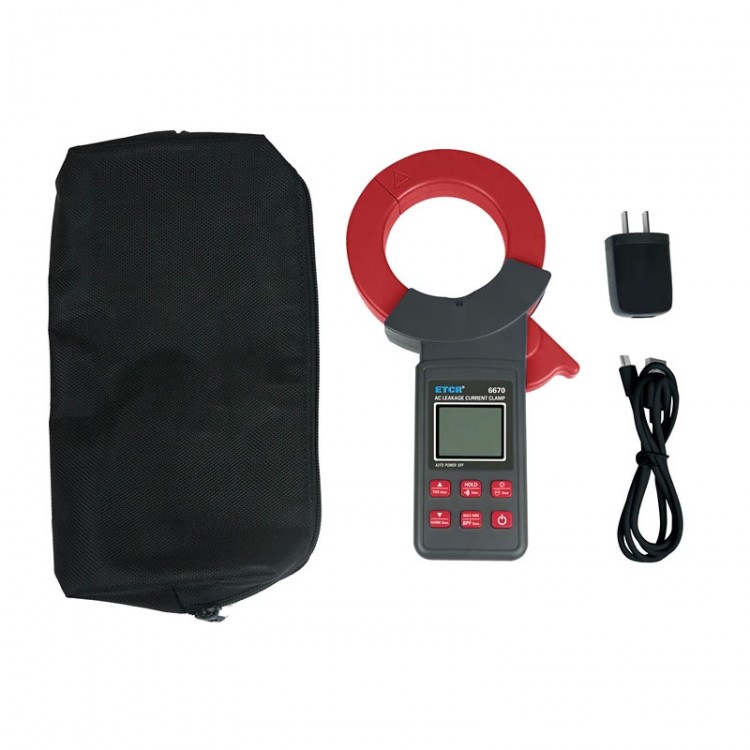

Package Included:
- 1 x Clamp Meter
- 1 x USB Cable
- 1 x User Manual
- 1 x Storage Bag
