ETCR6680D Large Caliber Clamp Meter DC0A-2000A/AC0-1000A High Accuracy Digital Ammeter LCD Display for Current Leakage Detection

ETCR6680D Large Caliber Clamp Meter DC0A-2000A/AC0-1000A High Accuracy Digital Ammeter LCD Display for Current Leakage Detection

Description:
- ETCR6680D large caliber DC/AC Clamp Current Meter, also known as clamp type current meter, which is used for measurement of AC/DC current. The meter adopt with Hall effect sensor and unique CT digital integration technology, the characteristics of small size, high precision and perfect function, which widely used in power, communications, meteorology, railways, oil fields, construction, metrology, scientific research and teaching units, industrial and mining enterprises and other fields. ETCR6680D Large Caliber DC/AC Clamp Current Meter with DC/AC true RMS measurement, maximum value / minimum value / average value and other test functions. The meter with data hold function, Bluetooth communication function, equipped with large capacity rechargeable lithium battery and type-c charging port, which is new type essential tool for electrical safety testing.

Features:
- The meter adopt with Hall effect sensor and digital integration technology, high precision of measurement, stable performance.
- The meter with DC/AC true RMS measurement, maximum value / minimum value / average value and other test functions.
- Memory: data storage 2000 groups
- Bluetooth communication function
- Flashlight function
- Large capacity Lithium battery, type-c charging port

Specification:
- Power supply: Lithium battery DC 3.7V/1000mAh
- LCD size: 43mm x 38mm; display area: 36.5mm x 29mm
- Measurement range: DC 0.0A ~ 2000A, AC 0.0A ~ 1000A
- Measurement accuracy:
  0.0A ~ 99.9A: ±2%rdg ±5dgt
  100A ~ 999A: ±2.5%rdg ±5dgt
  1000A ~ 1499A: ±3%rdg ±5dgt
  1500A ~ 2000A: ±4%rdg ±5dgt
- Clamp jaw size: 80mm x 80mm
- Meter Size: 253mm x 145mm x 40mm
- Weight: about 664g (include battery); total weight: about 1160g (include accessory)
- LCD Backlight: Yes
- Flashlight: Yes
- Max/Min value: Yes
- Average value: Yes
- Data hold: Yes
- Memory: 2000 groups (store via app)
- Overflow display: exceed measure range overflow function: “OL” symbol display
- Bluetooth communication: Yes, can test or view the test results on mobile after install the App.
- Automatic shutdown: 5 Minutes after power on, the meter shut down automatically without any operation to reduce battery consumption
- Battery level: 4-cell display
- Sampling rate: 2 times/second
- Working current: 60mA (open flashlight 72mA)
- Line voltage: line measurement below AC600V
- Insulating strength: AC 3700V/rms (between the core and outside shell)
- Suitable safety standard: IEC1010-1, IEC1010-2-032, Pollution level 2, CAT Ⅲ(600V)
- Working condition: -10℃~50℃; below 80%RH
- Storage condition: -20℃~60℃; below 70%RH

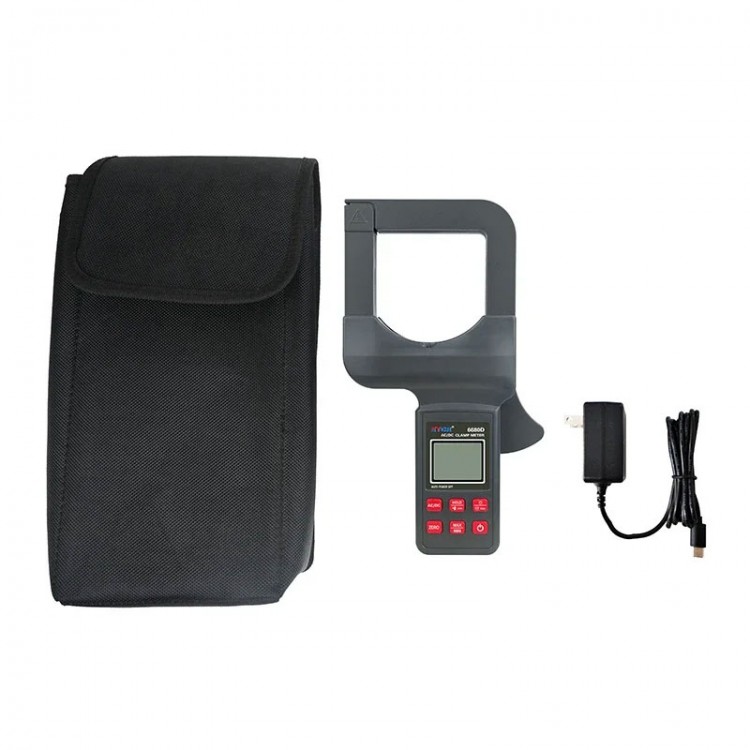

Package Included:
- 1 x Clamp Tester
- 1 x Power Adapter
- 1 x Storage Bag
