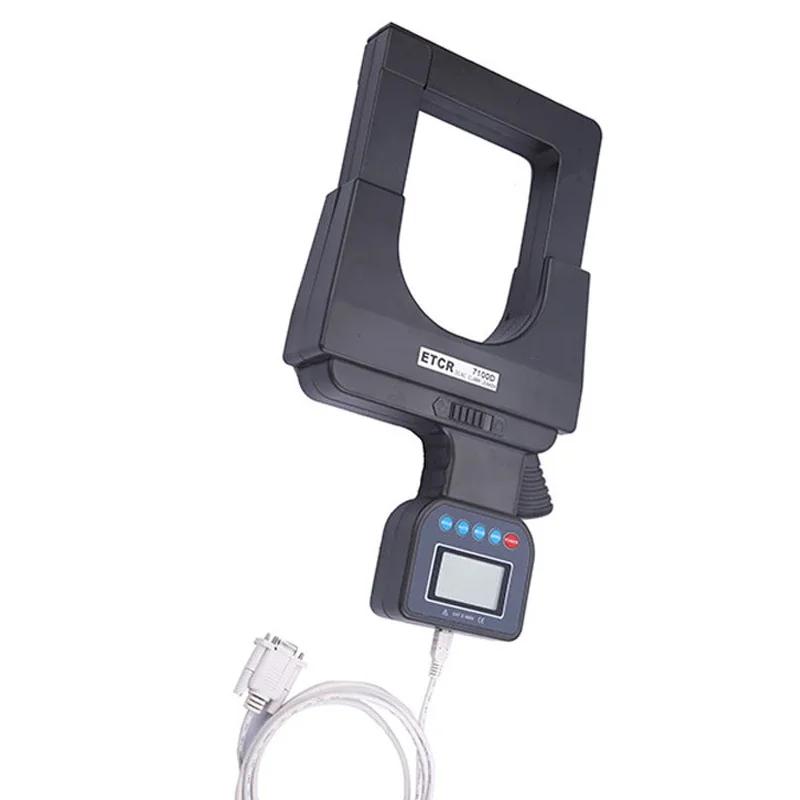

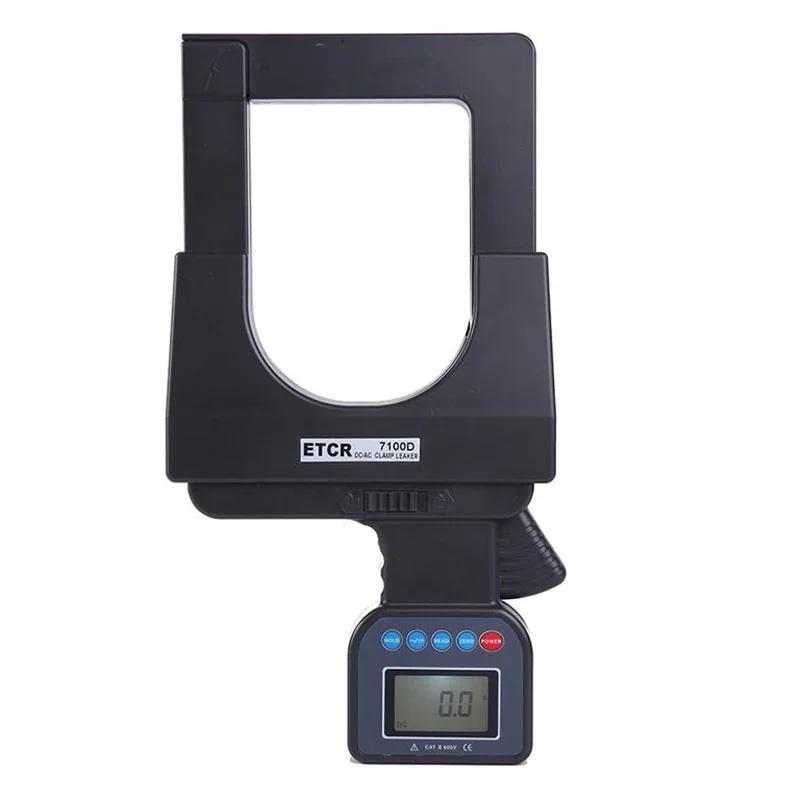

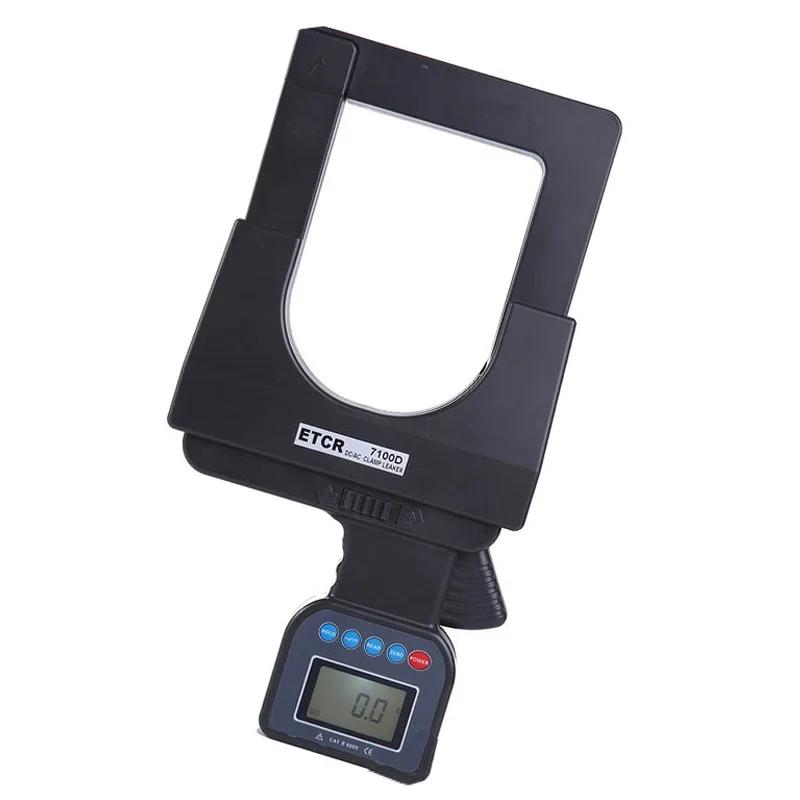

ETCR7100D Super Large Caliber Clamp Meter DC0A-2000A/AC0-1000A High Accuracy Ammeter LCD Display for Current Leakage Detection

ETCR7100D Super Large Caliber Clamp Meter DC0A-2000A/AC0-1000A High Accuracy Ammeter LCD Display for Current Leakage Detection

Description:
- ETCR7100D Super Large Caliber AC/DC Clamp Meter is well designed and manufactured for measuring AC/DC current below 600V line Measure, it adopt the latest CT technology and digital integrated technology. No exposed metal conductor in the Clamp and no-contact measure model mean current measure operation more safer and quicker. Super large Caliber is  particularly suitable for thick wire current measure. This meter is widely used in electric power, communication, meteorology, railway, oil field, architecture, measuring, teaching research unit, industrial mining enterprises, etc. The instrument with current peak value holding, data holding, data storage and other function. Equipped With USB interface, communication line and supervision software, this meter could achieve current online monitoring, show the real time current condition via computer, with consult historical data, saving, print and other functions.

Features:
- Extra large caliber, φ108mm cable can be clamped.
- Data storage function
- Peak hold function
- USB interface, through the system software to upload and store data to the computer, easy to read, save, print and so on.

Specification:
- Function: measure AC/DC current, current peak value holding, online current supervision
- Power: 6V DC (LR6 x 4 alkaline dry batteries) (The package not included batteries)
- Test mode: clamp CT, non-contact test mode
- Clamp size: 108mm x 148mm (can clamp electric cable of 108mm diameter, or 160mm x 4mm flat cable and steel earth wires)
- Measurement range:
  DC: 0.0A ~ 2000A
  AC: 0.0A ~ 1000A
- Resolution: 0.1A AC/DC
- Measurement accuracy (reference condition):
  0.0mA ~ 999A, ±2%±5dgt
  1000A ~ 1499A, ±3%±5dgt
  1500A ~ 2000A, ±4%±5dgt
- Reference condition: 23℃±3℃, below 75%RH, measured wire at the center of the clamp
- Frequency response: AC: 45Hz ~ 400Hz
- Sample rate: about 2 seconds per time
- Measured wire position: measured wire at approximately the geometric center of the clamp
- Display mode: 4 digits LCD display
- Dimension: L x W x H = 350 x 180 x 55(mm)
- LCD dimension: L x W = 47 x 28.5(mm)
- Polarity indication: automatic recognize in AC test model, display “-”
- Gear shift: automatic shift
- Line voltage: below 600V line measure
- Software: available, the stored data in instrument would upload to computer via software.
- USB interface: with USB interface, upload data to computer, software supervision.
- USB line: 1.5m
- Data storage: 99 sets, “FULL” symbol indicate the memory is full
- Peak holding: measure and maintain the peak value, press HOLD and not let it go would show the peak value in test model
- Data Hold: “HOLD” symbol appears
- Overflow: “OL” symbol appears
- Automatic shutdown: automatically shutdown about 5 minutes after power on to reduce battery consumption
- Voltage detection: low battery symbol appears to remind the replacement of battery when the battery voltage drops below 4.6V.
- Weight of meter: 1.5kg (with batteries weight)
- Weight of package: 2.6kg (with accessories weight)
- Reference power: about 17mW
- Working temperature and humidity: -10℃ ~ 40℃; 80%RH
- Storage temperature and humidity: -10℃ ~ 60℃; below 70%RH
- Insulation strength: AC 3700kV/rms (between core and shell)
- Safety specifications: IEC1010-1, IEC1010-2-032, 2 class of pollution, CAT III 600V

Package Included:
- 1 x Clamp Tester
- 1 x RS232 Cable
- 1 x Storage Case

Note:
- Battery is not included.
