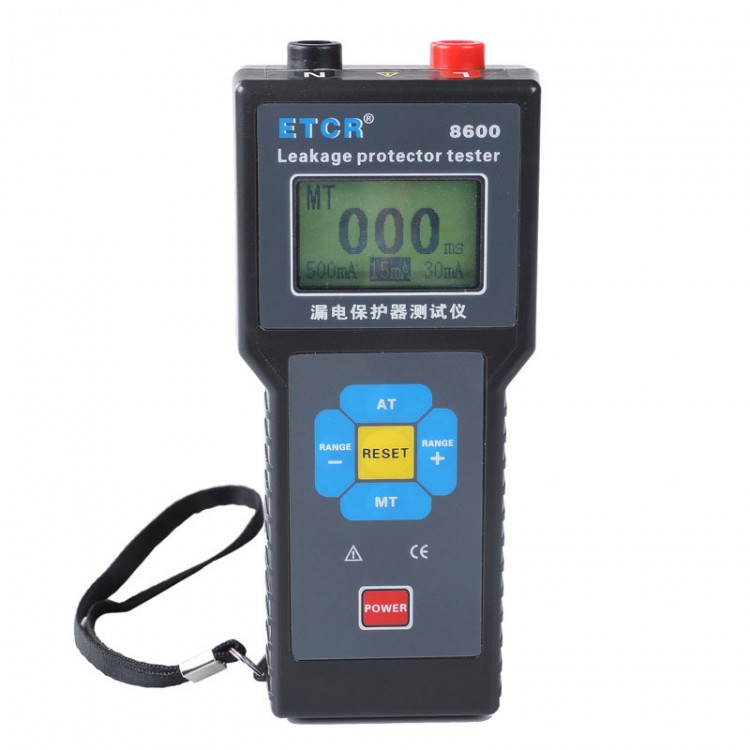

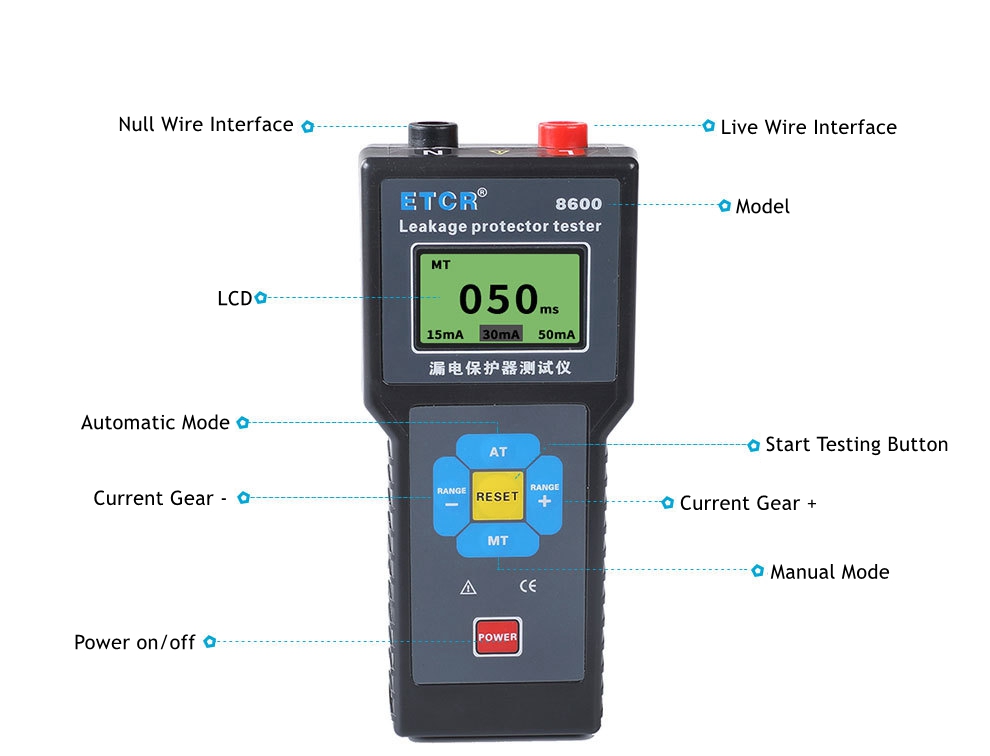

ETCR8600 Portable Leakage Protector Tester Support AT/MT Mode Switch High Accuracy Leakage Current Meter

ETCR8600 Portable Leakage Protector Tester Support AT/MT Mode Switch High Accuracy Leakage Current Meter

Specification:
- Function: measurement of leakage operating time of the leakage protector
- Power supply: DC6V alkaline batteries (LR6 1.5V x 4)
- Test line voltage: AC 250V below
- Rated voltage: AC 220V
- Leakage current gear: 15, 30, 50, 75, 100, 150, 200, 250, 300, 500mA
- Range of the leakage operating time: 0 ~ 999ms
- Accuracy of the leakage operating time: ±0.5%rdg±3dgt
- Accuracy of the current for each gear: ±10%rdg±2dgt
- Failure information: when the LCD display fault, it may be the measured rated operating current gear is too small or the leakage protector has some faults.

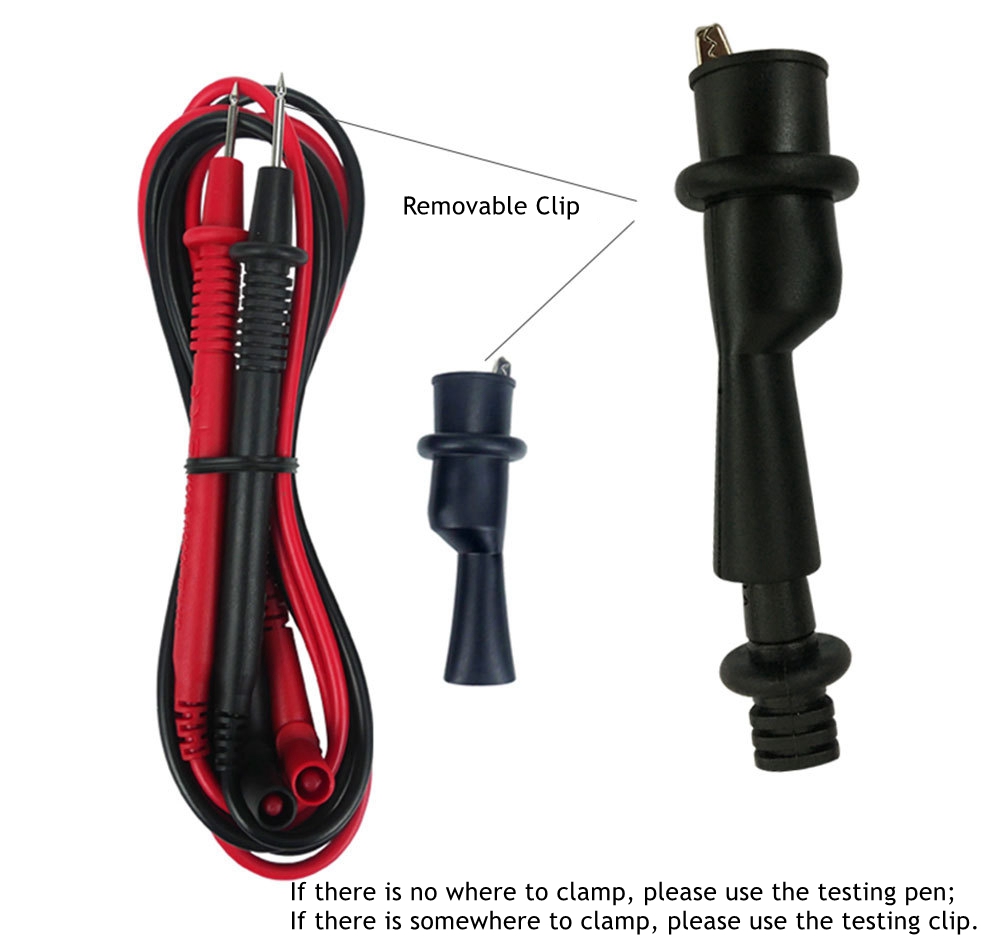

- Length of the test line: 1.5m

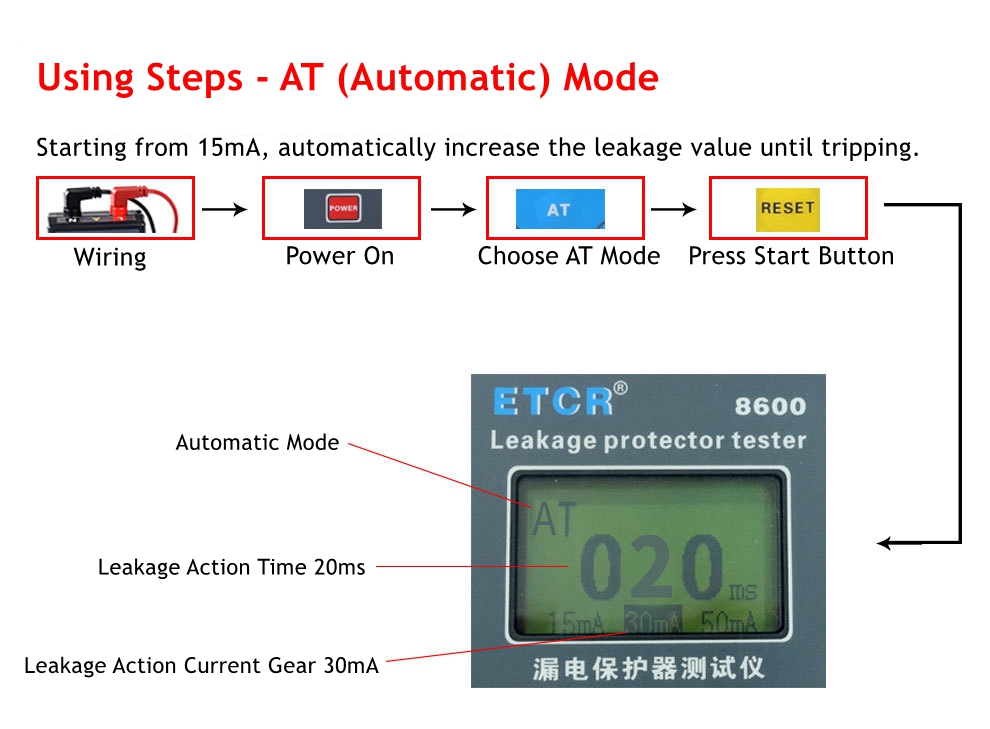

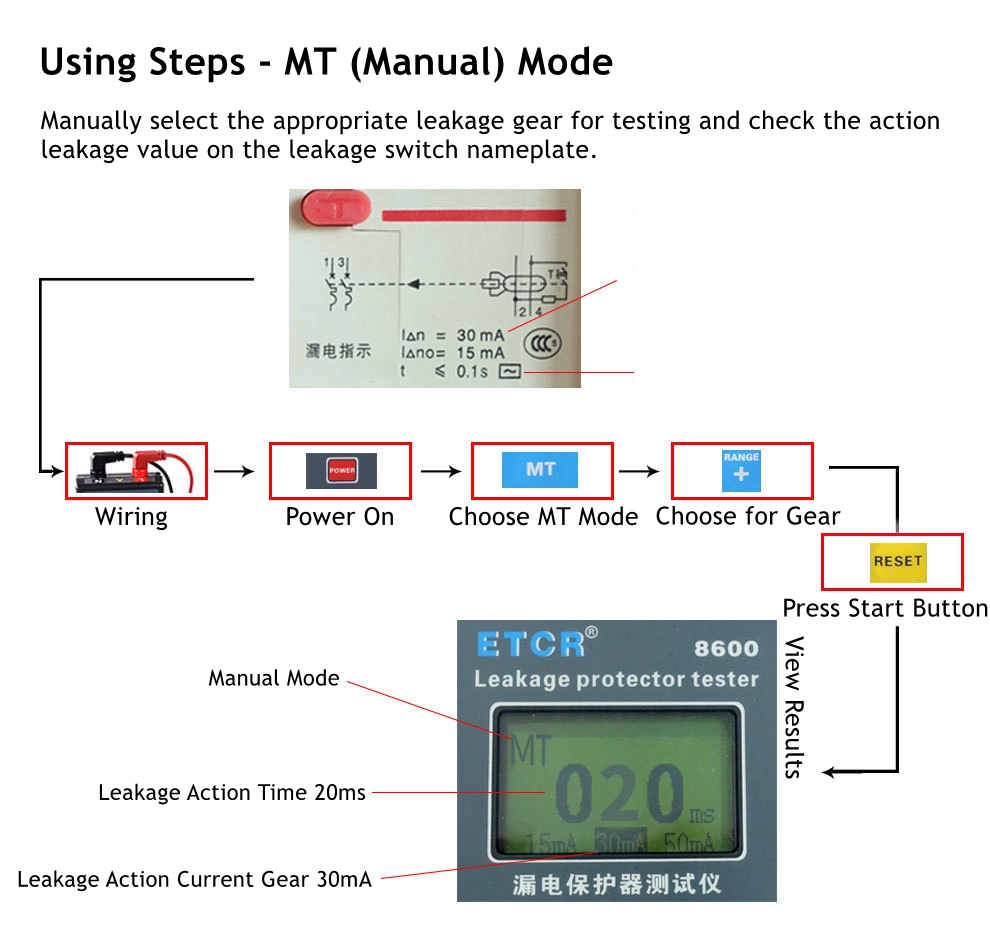

- Test mode: manually or automatically

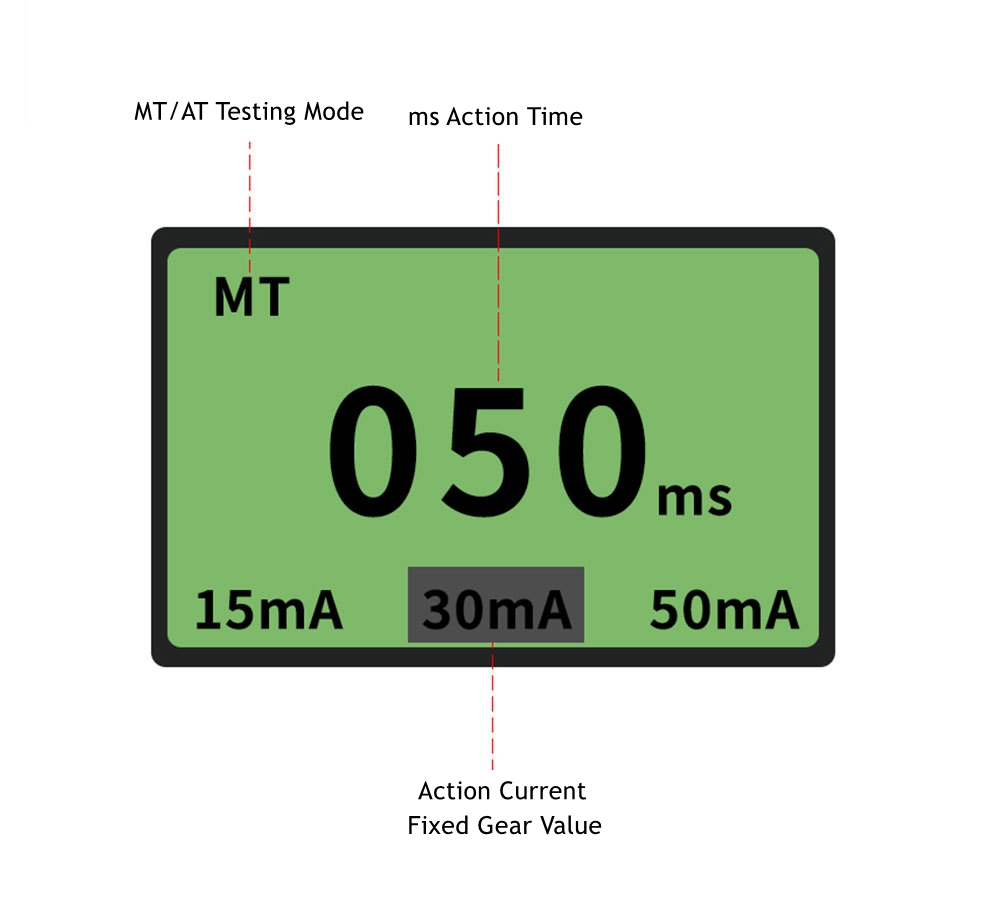

- Display mode: LCD: 128dots x 64dots
- Dimension: 170mm x 75mm x 30mm
- Weight: 290g (including the batteries weight); Total weight: 350g (including the packing)
- LCD dimension: display field: 44mm x 27mm
- Battery voltage: A Low-Battery symbol is displayed and the user should replace the battery with a new one when the battery voltage drops to 4.8V. In this case, the measured values are still accurate.
- Working current: 40mA Max.
- Working humidity: -10℃ to 40℃, below 80%RH
- Storage Humidity: -10℃-60℃, below 70%RH
- Insulating strength: ≥100MΩ, AC2kV/rms (between the screws and the housing)
- Applicable safety rules: IEC1010-1, IEC1010-2-032, Pollution degree 2, CAT III (600V) IEC61326 (EMC standard)

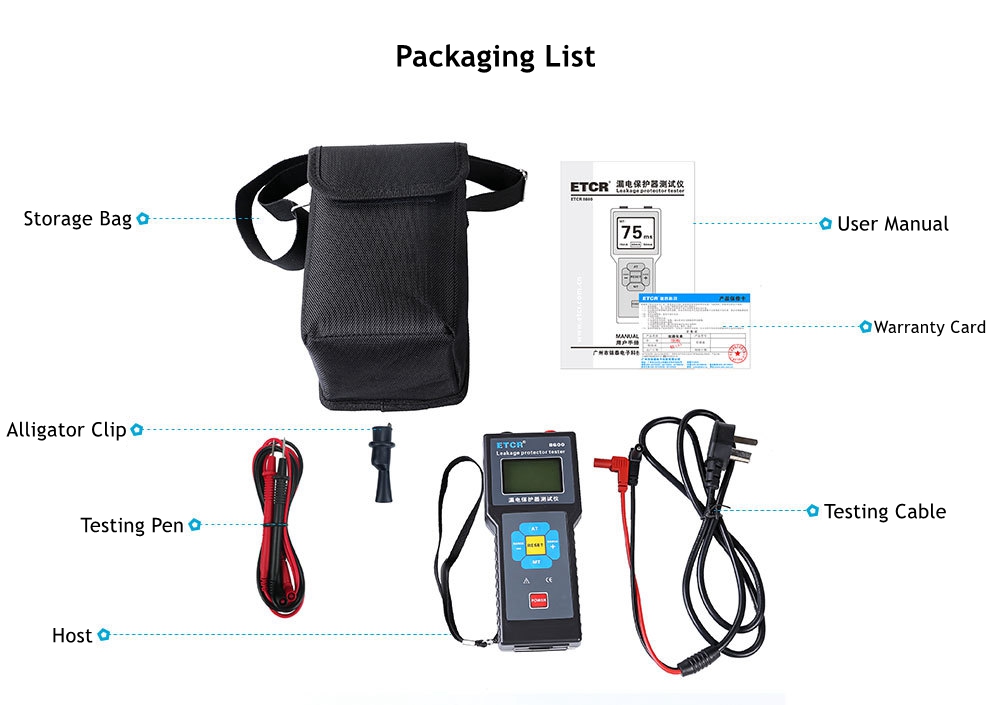

Package Included:
- 1 x Leakage Current Meter

Note:
- Battery is not included.
