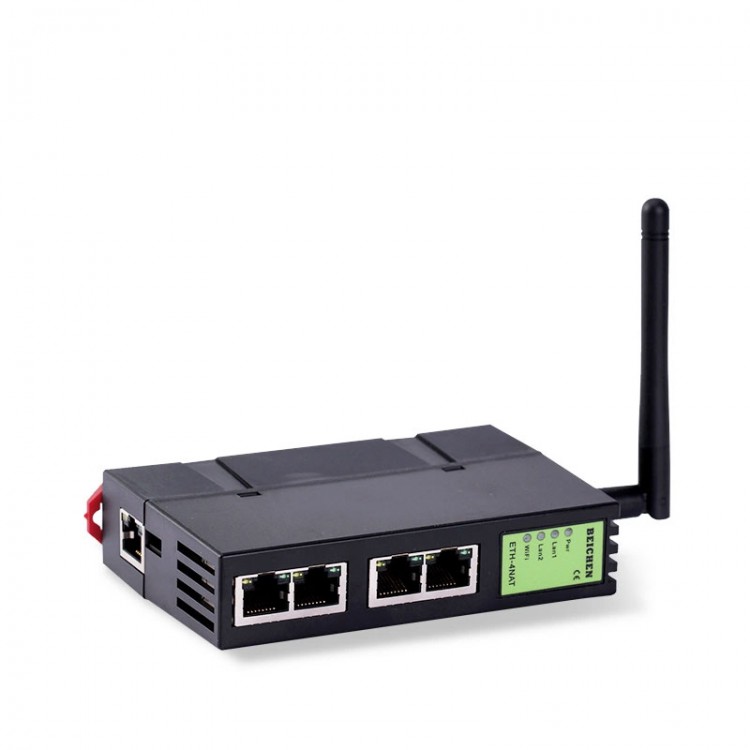

ETH-4NAT Network Coupler 4-Channel Ethernet Module with Rubber Rod Antenna for PLC and CNC Data Acquisition

ETH-4NAT Network Coupler 4-Channel Ethernet Module with Rubber Rod Antenna for PLC and CNC Data Acquisition

Description:
- ETH-4NAT is suitable for network communication and data acquisition of all network interface PLCs or CNC machine tools (TCP/UDP protocol), and has the function of cross network segment and transparent transmission. ETH-4NAT supports IP address translation for 4 network port PLCs or CNC machine tools simultaneously; If multiple equipment in the workshop have different IP addresses, they can be unified into the same network segment's IP address for data collection.
- ETH-4NAT has three physical interfaces, and the LAN1 port has four RJ45 interfaces, with switch function, mainly used for connecting PLC or CNC machine tools; The LAN2 port is a single port RJ45, mainly used for connecting to the upper computer. The WiFi interface is an external rubber rod or magnetic antenna, which can also be used to connect to the upper computer.
- ETH-4NAT can simultaneously achieve the address conversion function of 4-way NAT, which can map PLC devices connected to LAN1 to any IP address of LAN2 port or WiFi interface, solving the problem of on-site devices being unable to modify IP addresses.

Features:
- Installed on a 35mm guide rail, LAN1 is a four port RJ45 with switch function, which is connected to the PLC; LAN2 is a single port RJ45 that is connected to the upper computer; WiFi external high gain antenna, which can be connected to the upper computer; ETH-4NAT requires external 24VDC power supply
- Support NAT mapping and IP address cross segment access for 4 PLCs
- Integrated WiFi function, supporting AP mode, STA mode, and AP+STA mode
- PLC programming and data acquisition can be carried out through WiFi
- Integrated WEB server, device parameters can be set and diagnostic can be run through web pages; It can also be configured through the BCDevice tool; and it can be configured from LAN1, LAN2, or WiFi at will
- The upper computer can access devices connected to the LAN1 interface through LAN2 or WiFi, and can convert IP across network segments
- Supports up to 32 upper computer connections
- Support firmware updates on the user side through Ethernet.

Specification:
- Status display: Pwr, LAN1, LAN2, WiFi
- Diagnostic and parameter setting: IE browser, 192.168.2.188 (LAN2) by default, 192.168.1.188 (LAN1) by default, BCDevice search configuration tool
- Power supply: 24V DC
- Voltage type: 24V DC/100mA
- Working temperature: 0 ~ 60℃
- Working humidity: 95% non-condensing
- EMC: 2014/30/EU
- Anti-vibration: 4.5mm/30Hz/10Min
- ESD: 6KV
- Size (L x W x H): 115 x 27 x 75mm
- Weight: 150g

WiFi interface: 802.11 b/g/n; 2.4G - 2.5G
- Interface type: external high gain antenna
- Transmission power: +26dBm (MAX, 2.4G 802.11b/g/n)
- Receiving sensitivity: -89dBm (802.11b), -74dBm (802.11g), -72dBm (802.11n)
- Wireless type: Station/AP mode
- Safety mechanism: WPA-PSK/WPA2-PSK/WEP
- Supported protocol: for TCP/IP; for UDP/IP
- Connection: max. 32

LAN1 (for PLC): Link/Active indicator, automatic polarity crossing
- Interface type: RJ45 Female x 4
- Transmission speed rate: 10/100Mbps
- Supported protocol: for TCP/IP; for UDP/IP
- Connections: max. 32

LAN2 (for upper computer): Link/Active indicator, automatic polarity crossing
- Interface type: RJ45 Female
- Transmission speed rate: 10/100Mbps
- Supported protocol: for TCP/IP; for UDP/IP
- Connections: max. 32

Package Included:
- 1 x Network Coupler
- 1 x Rubber Rod Antenna
