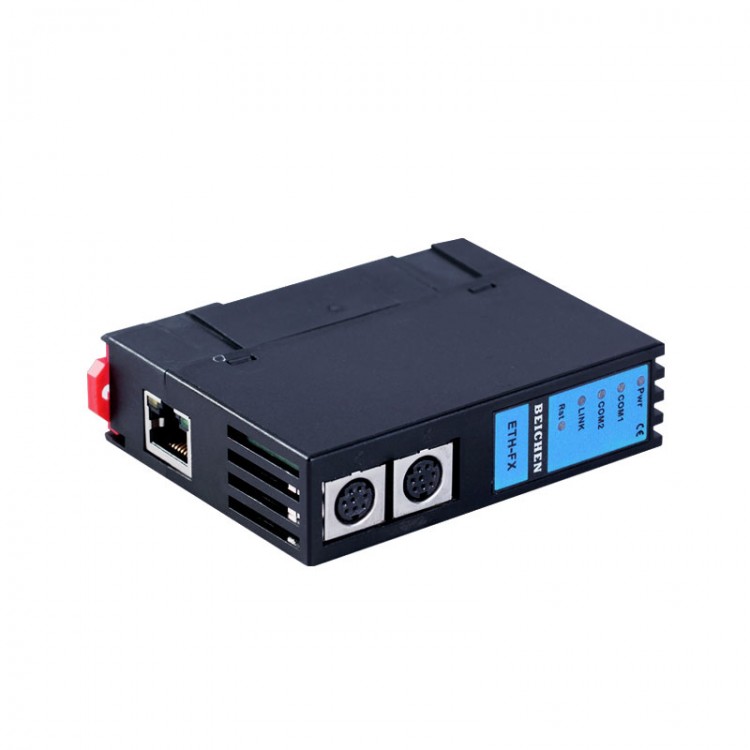

ETH-FX Ethernet Module PLC Round Port to MC Ethernet Module for Mitsubishi FX Series Programming FX3U/FX3G/FX3S
Description:

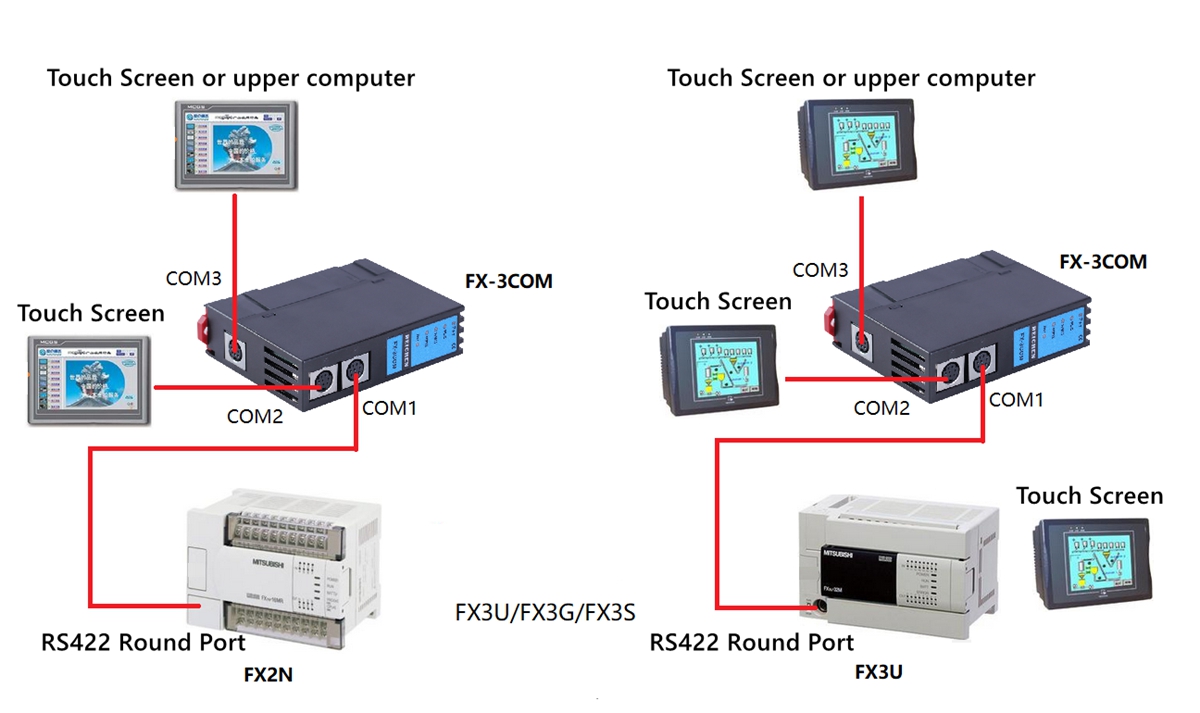

- ETH-FX is an economical version of BCNet-FX, which can expand the RS422 programming round port for Mitsubishi FX3U/FX3G/FX3S series PLC to two RS422 programming round ports and one Ethernet interface. The expanded round port can be connected to a touch screen, and the expanded Ethernet interface supports the MC protocol (BCNet-FX supports both MC protocol and ModbusTCP protocol), supporting Ethernet programming, program download, and upper software monitoring.
Specification:
- Status display: Pwr, COM1, COM2, Link (Ethernet)
- Programming software: for GX Works2
- Configuration software: for MCGS, for KingView, for FORCECON, etc.
- OPC software: for KepWare OPC (MC protocol)
- Diagnostic and parameter setting tool: IE browser, 192.168.1.178 by default, BCDevice
- Power supply: communication port or external 24VDC
- Voltage type: 24VDC/100mA
- Working temperature: 0 ~ 60℃
- Working humidity: 90% (non-condensing)
- Installation method: 35mm guide rail
- Size: 90 x 24 x 65mm
- Weight: 120g
Ethernet Interface: IEEE 802.3 compatibility, Link/Active indicator, line sequence adaptation
- Interface type: RJ45 female socket
- Transmission speed rate: 10/100Mbps
- Supported protocol: for MELSOFT, for MC
- TCP connections: 6
X1 Interface (for PLC): RS422
- Interface type: MD8 Communication Female
- Transmission speed rate: 9.6K, 19.2K, 38.4K, 115.2Kbps
- Supported protocol: FX programming port
X2 Interface (for HMI): RS422
- Interface type: MD8 Communication Female
- Transmission speed rate: 9.6K, 19.2K, 38.4K, 57.6K, 115.2Kbps
- Supported protocol: FX programming port
Package Included:
- 1 x Ethernet Module
- 1 x 0.6m Communication Cable
