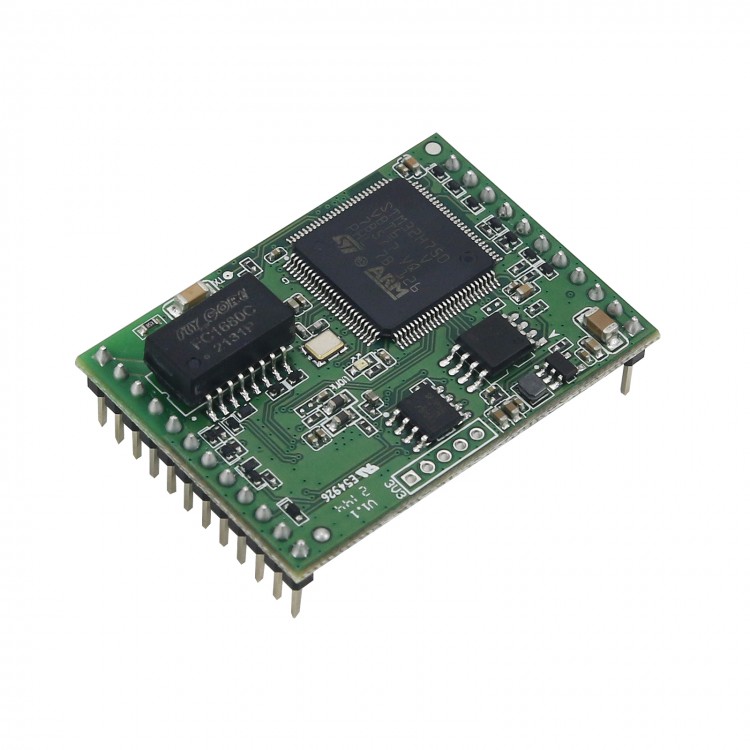

Ethernet to Serial Port Module UART TTL to Ethernet TCP/IP Converter Module USR-TCP232-ED2

Ethernet to Serial Port Module UART TTL to Ethernet TCP/IP Converter Module USR-TCP232-ED2

Description:
-The multifunctional serial port to Ethernet converter USR-TCP232-ED2 is a device used to realize transparent transmission of TCP network data packets or UDP data packets and RS232/RS485/RS422 interface data. It has low power consumption and adopts Cortex-M4 solution. The frequency is up to 120MHz, with fast speed and high stability.
-This is a multifunctional Ethernet serial port data conversion module, which integrates the TCP/IP protocol stack. Users can use it to easily complete the network function of the embedded device.
-The module integrates a 10/100M adaptive Ethernet interface, the highest baud rate of serial communication is up to 230.4Kbps, with TCP Server, TCP Client, UDP, HTTPD Client, TCP Auto, WEB to Serial and other working modes, which can be easily configured through web pages or software.

System Information:
Processor: Cortex-M4
Main frequency: 120MHz
Flash: 512K bytes

Ethernet:
Number of ports: 1
Interface standard: 4-pin interface (with network transformer), TX+, TX-, RX+, RX-
Rate: 10/100Mbps, MDI/MDIX crossover and direct connection automatic switching
Protection: 1.5KV electromagnetic isolation
Network protocol: IP, TCP, UDP, DHCP, DNS, HTTP, ARP, ICMP, Web socket, HTTPD client
Receiving buffer: maximum support 16K byte buffer

Port:
Number of ports: 3 (3 TTTL serial ports, support simultaneous work)
Interface standard: TTL serial port: 2.54 pin 3.3V
Data bits: 5, 6, 7, 8
Stop bits: 1, 2
Check bit: None, Even, Odd, Space, Mark
Baud rate: TTL serial: 600 bps-1000K bps
Flow control: RTS/CTS
Cache: 2K bytes for sending and receiving
RS-485 pull-up and pull-down resistance: none, reserved 485 transceiver control pin

Software:
Virtual serial port (USR-VCOM): Windows 2000 or higher (32-bit/64-bit)
Configuration method: built-in webpage, upper computer setting software, serial port command

Basic Parameters:
Size: 44.5 x 31.8 x 15.4mm (including pins)
Working temperature: -40~85℃ (industrial grade)
Storage environment: -40~105℃, 5~95% RH (no condensation)
Input voltage: DC 3.3V/DC 5V
Working current: 120mA(aver)/125mA(max)@3.3v; 120mA(aver)/125mA(max)@5v
Power consumption: <1W
Certification: CE (EMC+LVD) FCC ROHS WEEE

Features:
-New Cortex-M4 core, industrial-grade operating temperature range, carefully optimized TCP/IP protocol stack, stable and reliable.
-Auto-MDI/MIDX function, arbitrary connection of crossover direct network cable, automatic switching.
-Support TCP Server, TCP Client, UDP, UDP Server, HTTPD Client, WEB to Serial multiple working modes.
-Distinguish which serial port is associated with by port number.
-Three serial ports, can independently set the port and working mode, work independently, support RTS/CTS hardware flow control.
-PCB size (L*W): 44.45*31.75(mm).
-The highest baud rate of the serial port supports 600~1M (bps).
-Support DHCP to obtain IP automatically, and inquire devices in the network through UDP broadcast protocol.
-Provide setting protocol for VIP customers, which can integrate parameter setting function into user's application software.
-Provide the upper computer TCP/IP SOCKET programming example, VB, C++, Delphi, android, ios
Built-in webpage, parameters can be set through the webpage, and webpage can be customized for users.
-It can be set via UDP, providing setting protocol and setting software source code.
-Parameter setting can be carried out through serial command, and setting protocol is provided
-Reload button, one button to restore default settings.
-The MAC address purchased from IEEE can also be left for user-defined MAC address (specify when ordering).
-Support to upgrade the program through the network.
-Server address supports domain name.
-Support http server port (default 80) change.
-Support user-defined MAC address.

Package List:
1 x USR-TCP232-ED2 Module
