Description:

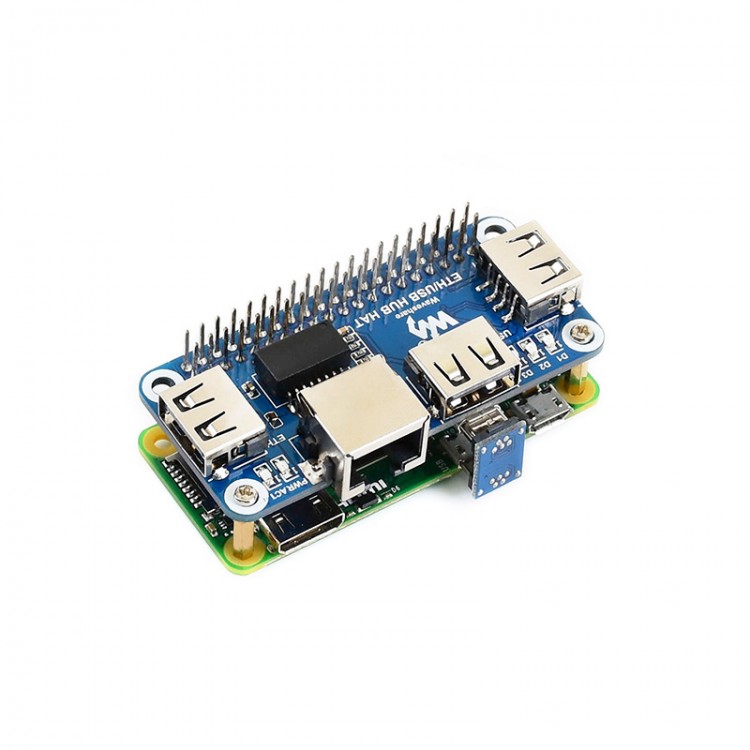

This is an extension board for Raspberry Pi with integrated Ethernet and USB hub. It is designed with one RJ45 network port and three USB ports.

This hub HAT provides more USB capability to your Pi, plus a RJ45 Ethernet port, which is great when you need a stable wired Ethernet connection. It fits for Raspberry Pi Zero/Zero W/Zero WH. It is also perfect for Raspberry Pi 2B/3B/3B+/4B.

Features:
- 3x USB ports compatible with USB2.0/1.1 transmission
- 1x RJ45 port 10/100M self-adaptive, based on RTL8152B Ethernet chip
- Multiple indicators for monitoring the working status of power supply, Ethernet and USB ports

Specifications:
- Operating Voltage: 5V

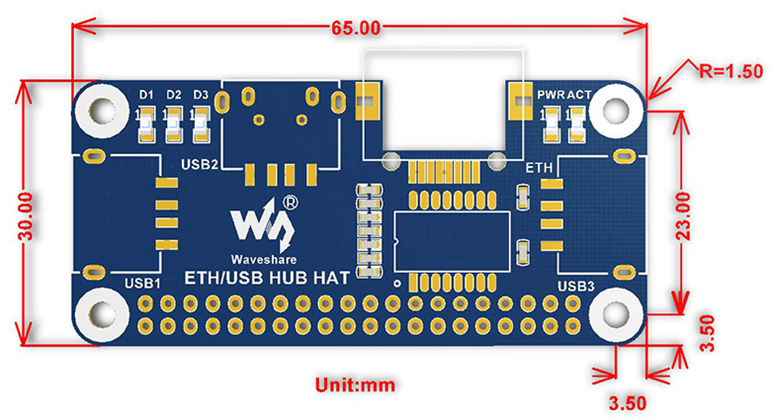

- Dimensions: 65mm x 30mm
- Mounting Hole: 3.0mm

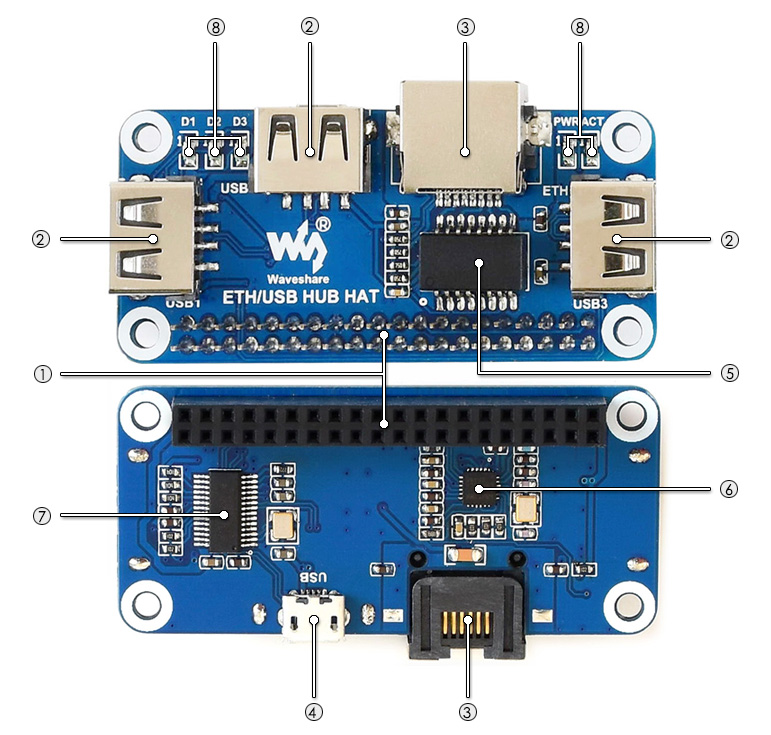

Interfaces:
1. GPIO Interface: for connecting Raspberry Pi
2. USB Extension Ports: USB1~USB3
3. RJ45 Ethernet Port: 10/100M self-adaptive
4. USB HUB Interface (back side): For connecting Raspberry Pi USB port
    For Raspberry Pi Zero / Zero W / Zero WH: connect via Micro USB connector
    For Raspberry Pi B+ / 2B / 3B / 3B+: connect via Micro USB cable

Premium Components:
5. TS8121A: Ethernet filter
6. RTL8152B: 10/100M Ethernet chip
7. FE1.1S: USB HUB chip
8. LED Status Indicators:
    PWR: Power supply indicator
    ACT: Ethernet status indicator
    D1~D3: Indicators for USB1~USB3 respectively

Development Resources:
Wiki : www.waveshare.com/wiki/ETH/USB_HUB_HAT

Package Included:
- 1 x ETH/USB HUB HA
- 1 x Micro USB Connector
- 1 x Micro USB Cable Type A Male to Micro Male
- 1 x Set of Fixing Accessories
