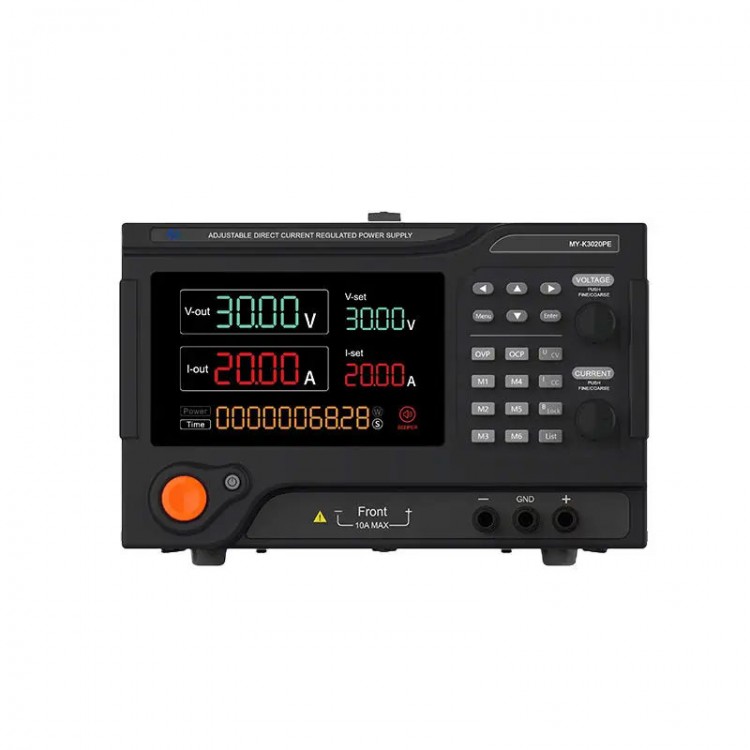

eTM-3020PC (30V/20A/600W) High Power Adjustable DC Regulated Power Supply Programmable Power Supply

eTM-3020PC (30V/20A/600W) High Power Adjustable DC Regulated Power Supply Programmable Power Supply

Features:
- High power adjustable DC regulated power supply
- DC power supply with stable output
- Preset: Current and voltage can be preset. No short circuit is required, and it is convenient and quick to use
- 5 protection functions: Over-voltage/over-current/over-power/over-temperature/short-circuit protection
- Programmable: MODBUS communication protocol. It features a RS485 serial port. RS232 and USB serial port are optional
- 5 windows are displayed at the same time: The 5 windows of three-color HD digital tube can display the preset current and voltage/output current and voltage/time or power simultaneously
- Shutdown switch: One ON/OFF button can control the on-off status of power supply output
- Compensation interface: With SENSE remote compensation interface
- Encoder adjustment: With 2 knobs to adjust voltage and current in a more accurate and convenient way
- With B/LOCK key. One-key lock prevents mis-operation
- Low noise: Built-in temperature controlled fan can effectively reduce noise and improve the service life of the fan. Double-sided heat dissipation hole design effectively facilitates the internal heat dissipation of the machine
- With 6 memory buttons
- The set value and the actual value are displayed in the same frame and can be compared
- The maximum timing is 11 days
- Single timing up to 12 hours

Application:
(1) Aerospace testing
(2) Photovoltaic and energy storage system
(3) New energy vehicle
(4) Data center
(5) Industrial motor
(6) Power semiconductor module
(7) Automated test system (ATE)
(8) Lithium fuel cell
(9) Aging of electronic equipment
(10) Precision electroplating, splashing and surface treatment

Technical Parameters:
- Model: eTM-3020PC
- Output voltage: 00.00-30.00V
- Output current: 00.00-20.00A
- Rated power: 600W
- Input frequency: 50Hz/60Hz
- Output voltage: Constant voltage 0-V continuously adjustable
- Output current: Constant current 0-A continuously adjustable
- Working mode: Automatic switching of voltage and current stabilization status
- Constant voltage indication: CV light is on to indicate that the power supply is in constant voltage mode. Adjusted to the required voltage, it can work with a load, and the current will change with the load
- Constant current indication: CC light is on to indicate that the power supply is in constant current mode. Adjusted to the required current, it can work with a load, and the voltage will change with the load
- Voltage stability: ≤ +(0.2%+0.05V)
- Current stability: ≤ +(0.5%+0.05V)
- Load stability: ≤ 0.5%
- Ripple & noise: 1% (RMS)
- Voltage display accuracy: 4-digit LED display±1%±1-digit
- Current display accuracy: 4-digit LED display±1%±1-digit
- Voltage resolution: <100V: 10mV
- Current resolution: <100A: 10mA
- Power resolution: <10W: 1mW; ≥10W: 10mW
- Protection function: Over-voltage protection, over-current protection, over-power protection, over-temperature protection and short-circuit current limiting
- Cooling method: With temperature controlled fan. Adjust the speed according to the load situation
- Operating environment: -10 to 40°C, relative humidity <80%
- Storage: -20 to 80°C, relative humidity <80%
- Main unit size: 250mm x 330mm x 155mm/9.8" x 13" x 6.1" (WxDxH)
- Weight: about 5kg/11lb

Package Included:
- 1 x Power supply main unit
- 1 x User manual
- 1 x Product quality certificate
- 1 x Power cable

Packaging Details:
- G.W.: 6kg
