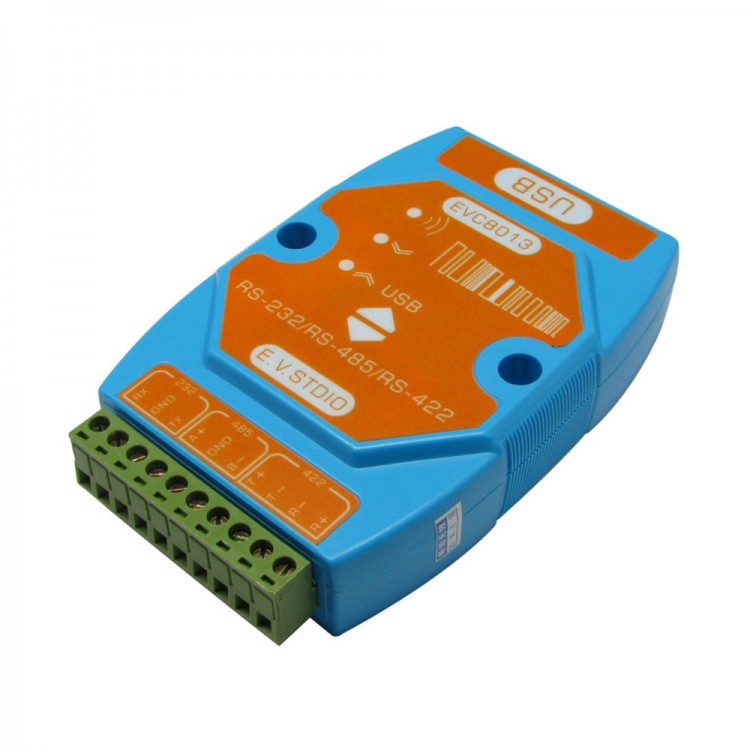

EVC8013 Magnetic Coupling Isolation Converter 3 in 1 Adapter USB to RS485 RS232 RS422

EVC8013 Magnetic Coupling Isolation Converter 3 in 1 Adapter USB to RS485 RS232 RS422

The upgrading as following :
- The second generation of Jinshan 3000V isolation voltage module,. Isolation voltage is 2500V;
- Increase the lightning protection channel, add six gas discharge tubes ;
- Optimize the interface circuit, three protective cascade (discharge tube + TVS + RC filter);
- Optimize the power circuit,  dual-inductor filter network, making the power supply ripple reduced to below 10mV (peak );
- RS-485 interface chip SN75LBC184D, the bus can be connected to 128 devices

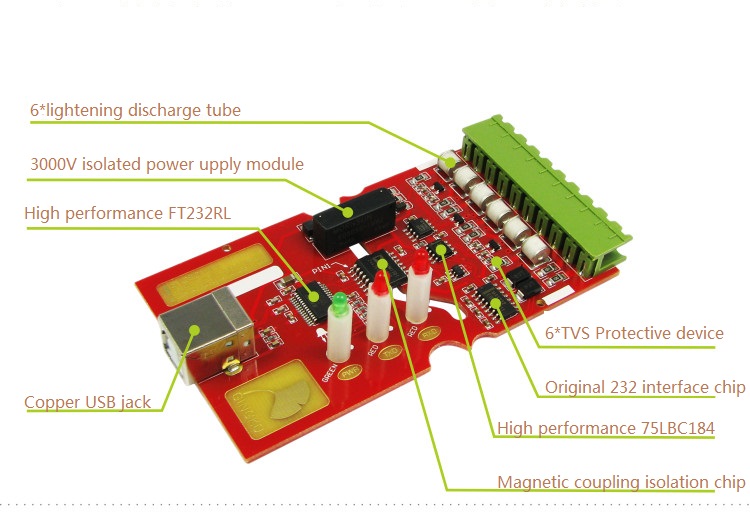

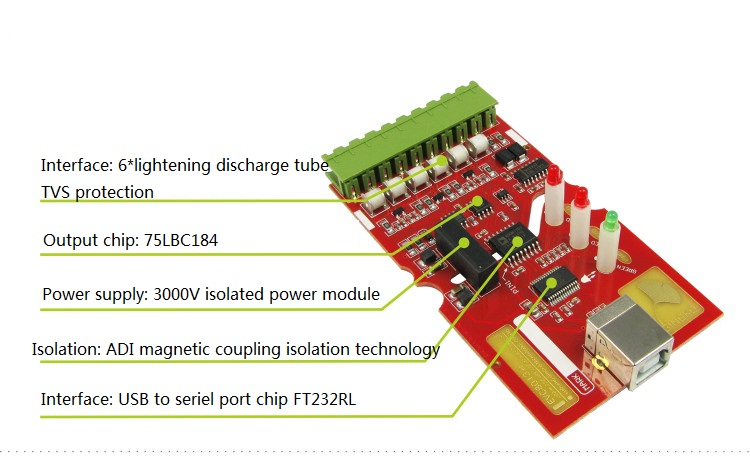

Features
- High-performance USB interface chip FT232RL, high reliability;
- RS-232 / RS-485 / RS-422 is realized by logical time division multiplexing;
- ADI's magnetic coupling isolation technology, performance, long life;
- With the second generation of Jinsheng 3000V isolation voltage module;
- The baud rate range: 300 ~ 460800bps;
- Support Windows ( including the latest WIN 8.1, 32, 64 ), support Linux, Mac, WinCE, etc .;
- Temperature range: -40  ~ 85 deg C.

Specifications:
- Baud rate: 300 ~ 460800bps
- ADI magnetic coupling isolation technology
- Output: RS-232 / RS-485 / RS-422
- Isolation voltage: 2500Vrms
- Interface: FT232RL chip,high performance R232,RS485 chip
- Load: RS485/RS422
- Output protection: Lightening protection+TVS+filter network
- Power supply: 4.75-5.25V, about 100mA
- Working indication: Power/sending/receiving indication
- OS support Windows/Linux/MAC
- Size: 103*74*26mm

Output inteface:
RS-232 interface:
- RX: Sending signal
- GND: Ground signal
- TX: Receiving signal

RS-485 interface:
- A+: 485 differential positive signal
- B+: 485 differential negative signal

RS-422 interface:
T+: 422 sending positive signal
T-:  422 sending negative signal
R-: 422 sending negative signal
R+: 422 sending positive signal

Package Contents :
- 1 x EVC8013
- 1 x 10P output terminal
- 1 x USB cable
- 1 x CD
