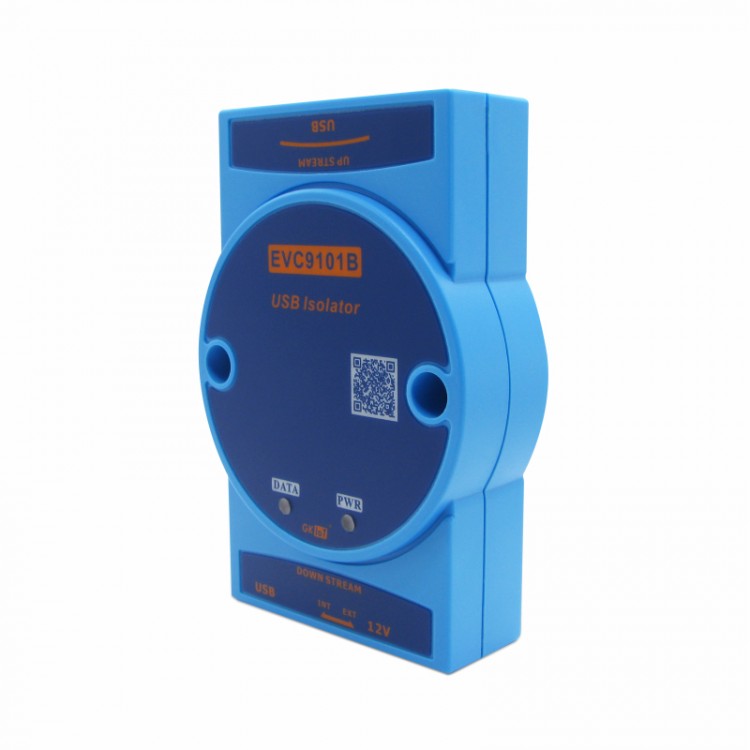

EVC9101B 480Mbps USB Isolator USB2.0 Isolator Eliminates Common Ground Current Sound of Audio Decoder
Why Should a USB Port be Isolated?
1. Human body static electricity will damage your computer motherboard.
2. Isolate the environment with strong electricity and strong interference (such as transformers, frequency converters, and motor drives) to ensure computer and personal safety.
3. In noise-sensitive areas (such as USB data acquisition, HIFI speaker system, etc.), it is necessary to isolate the USB interface communication through this device.

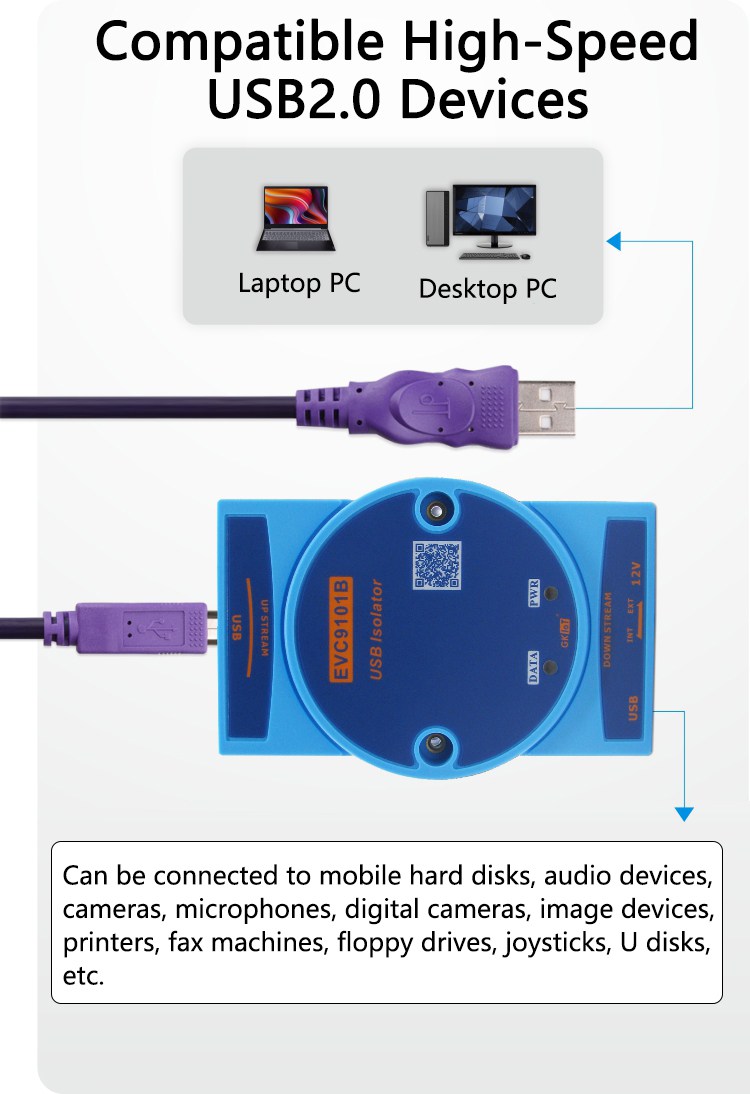

4. In an industrial environment, USB devices often crash, and communication devices such as mobile hard disks, audio devices, cameras and other high-speed communication devices are used. USB isolators can effectively reduce the chance of crashing and damaging these devices in industrial environments.
Features:
- High-speed isolation technology supports USB2.0 high-speed devices with speeds up to 480Mbps
- Industrial grade materials; drive-free
- Suitable for Windows, Mac and Linux systems
- Stronger load capacity, supporting external power supply
- Widely used. Used in various industrial environments with strong electrical interference and noise interference
- Anti-EMC. All interfaces with anti-static protection
- With current limiting and anti-static protection for interface, it can work reliably in harsh environment

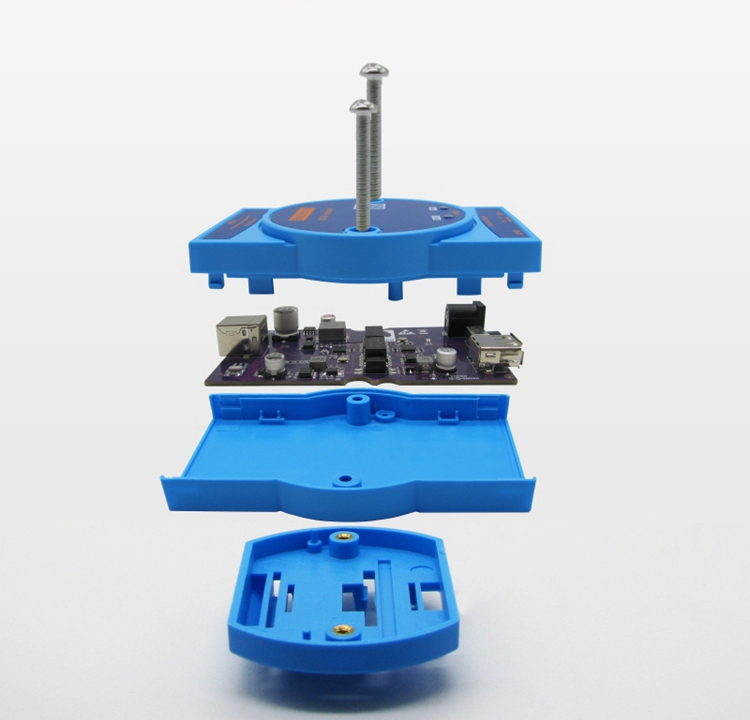

- Full patch process and four-layer board make it more anti-interference
- isolation voltage 1500V enablers more stable working performance
- TVS protection and anti-surge: The module uses TVS protection, with anti-static and anti-surge functions, to protect the module to work reliably in harsh environments
- External power supply can be connected: powered by its USB interface or by an external DC 12V power supply, with stronger load capacity
- Wide temperature range. With working temperature from -40℃ to +85℃, it is suitable for various harsh environments
Technical Parameters:
- Item name: Hi-Speed USB Isolator
- Supported Devices: Supports USB high-speed devices. Full-speed and low-speed devices are not supported
- Isolated power supply: 1500V isolation voltage, power 5W
- Output current: Internal power supply mode: maximum 1A; external power supply mode: determined by external power supply (current limit 1A)

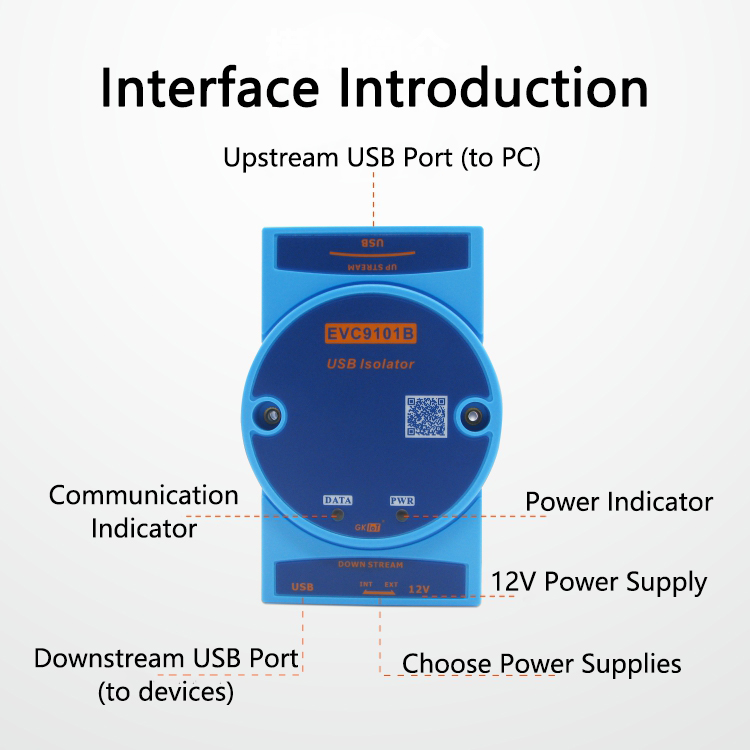

- Input port: USB_B square port
- Output port: USB_A port
- USB Protection: TVS Protection (Upstream and Downstream)
- Output Protection: Switch-level short-circuit protection
- Interface protection: input and output ports with ESD protection

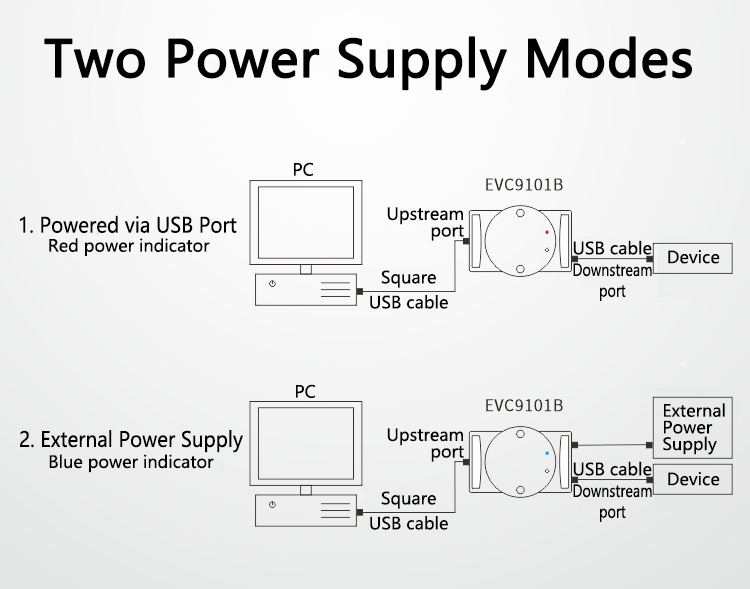

- Power supply mode: USB interface power supply or external (12V DC) power supply, switched by external switch
- Power indicator: red indicator when internal power is connected; blue indicator when external power is connected
- Operating System: for Windows, Linux, MAC, Android and Windows CE
- Working temperature: -40℃ to 85℃ industrial grade
- Installation method: standard Adam module, rail installation, stackable

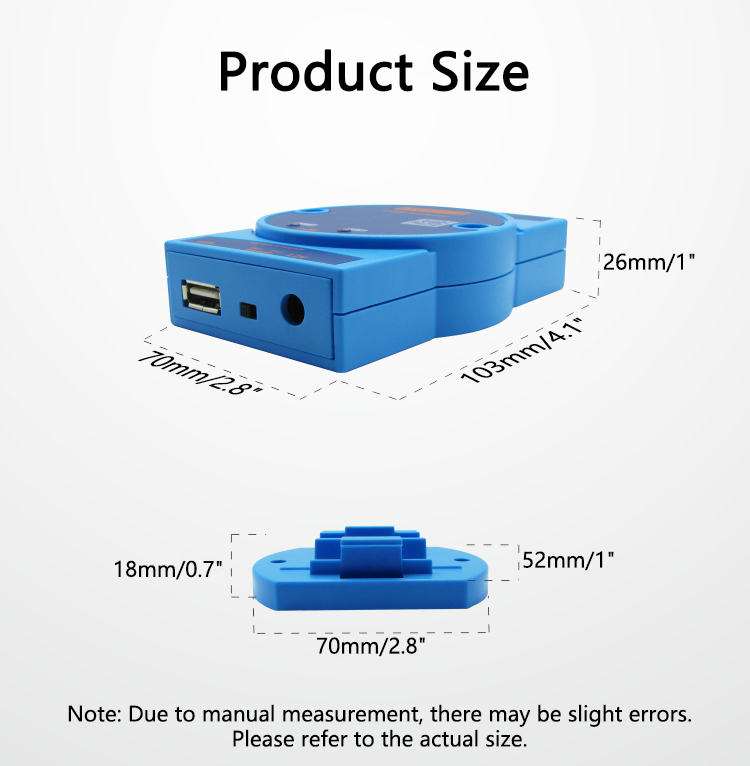

- Mechanical size: 103 x 70 x 26mm/4.1 x 2.8 x 1" (LxWxH)
- Net weight: about 82G/0.2LB
Package Included:
- 1 x USB Isolator

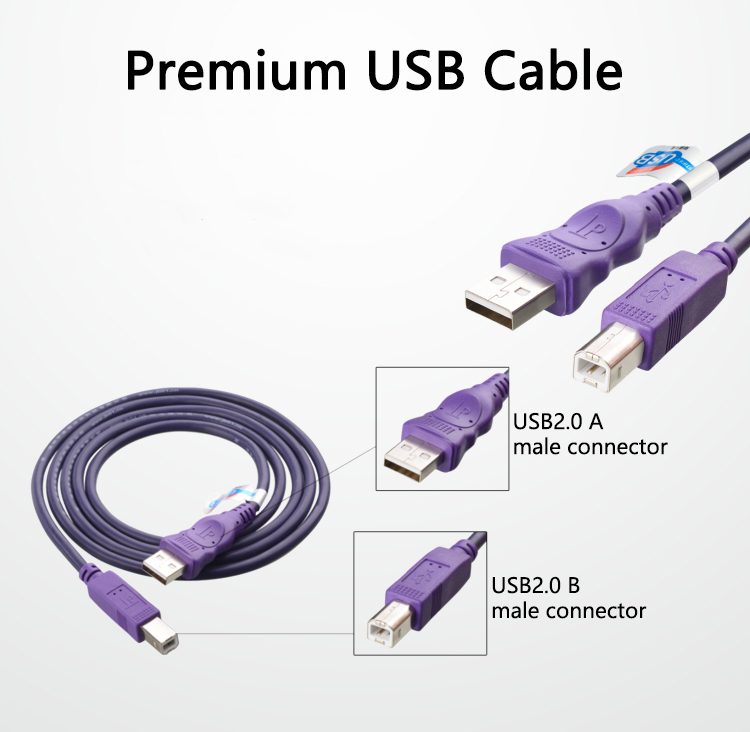

- 1 x USB Cable
- 1 x Guide Rail
- 2 x Screws
- 1 x 12V Power Adapter
