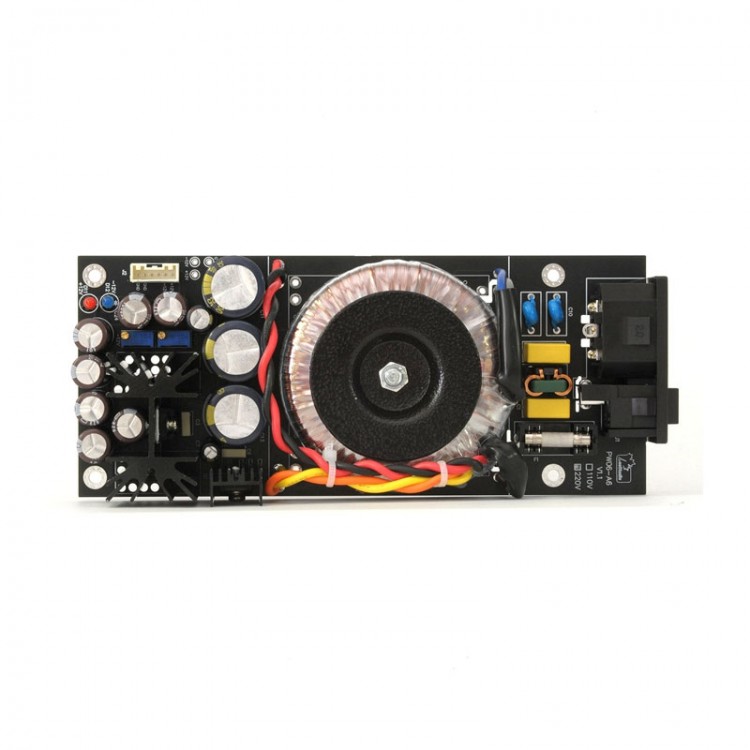

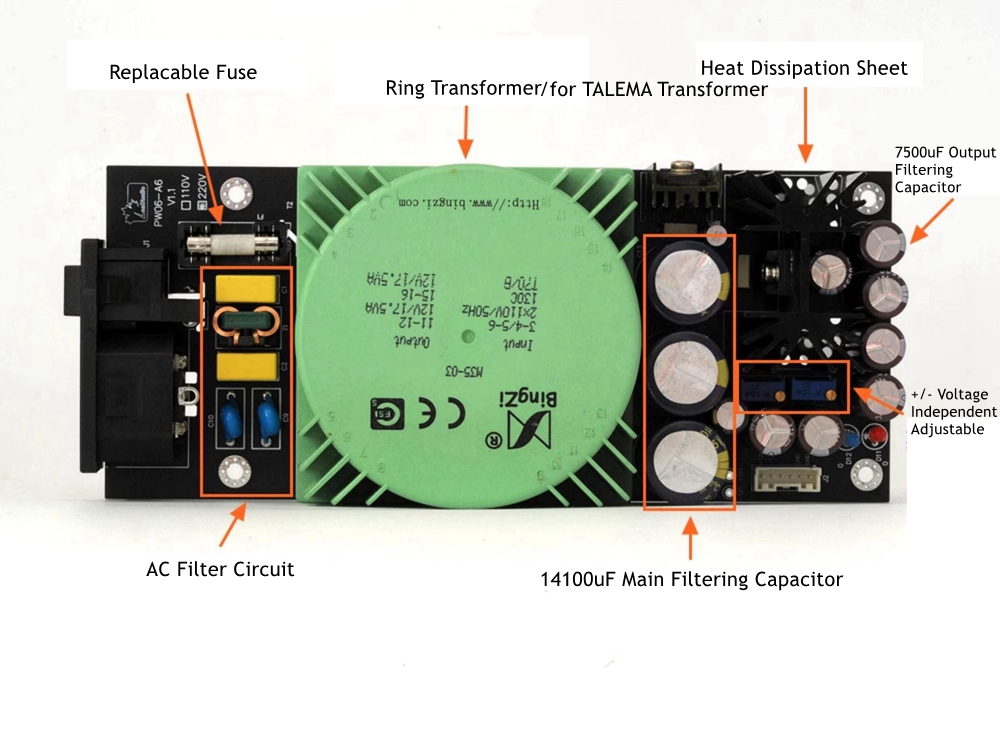

Eversolo A6 30W Linear Power Supply Module for TALEMA Transformer Lossless Upgrade for PW06-A6/LT3042
Difference:
- It is recommended to use green cube transformer for 220V/110V voltage input.
- It is recommended to use transformer for TALEMA for 230V/115V voltage input.
Description:

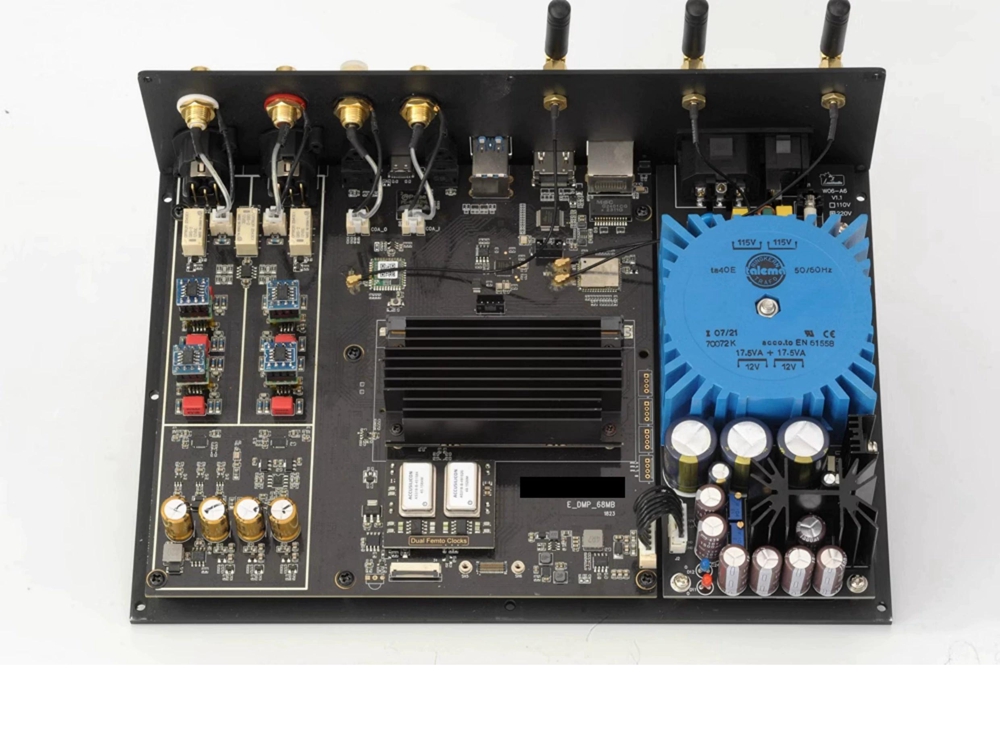

- This linear power supply is designed specifically for the Evesolo A6 digital broadcast and can replace the original switching power supply without loss.
- After research and exploration, it was found that the Eversolo A6 player uses a ±12V power supply, with +12V supplying power to the operational amplifier and digital circuit, and -12V supplying power to the operational amplifier circuit. +12V consumes a current of about 0.7A, and the ripple of using a switching power supply is relatively large. The overall sound is cold and hard. After using this linear power supply, the background is quieter, and the sound becomes smoother and more analog.

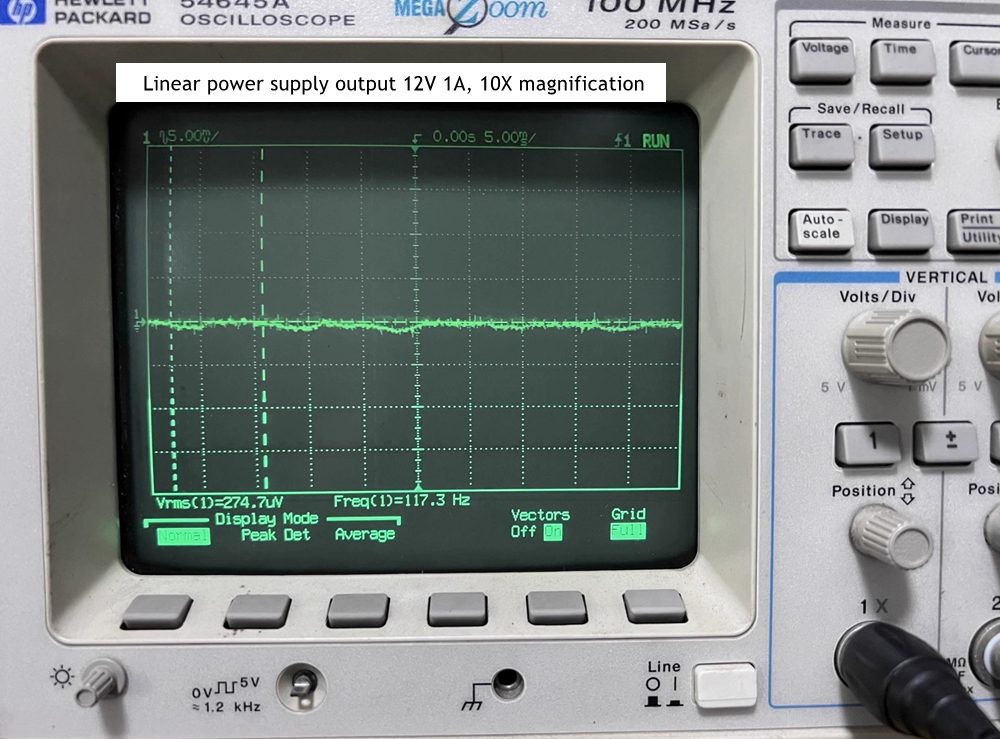

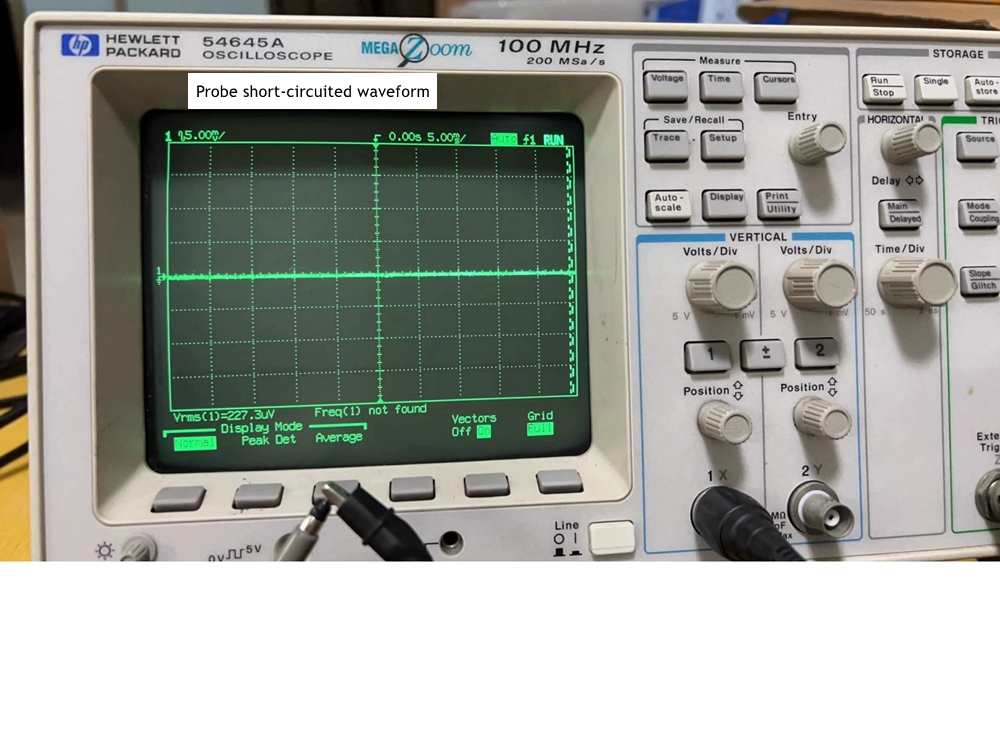

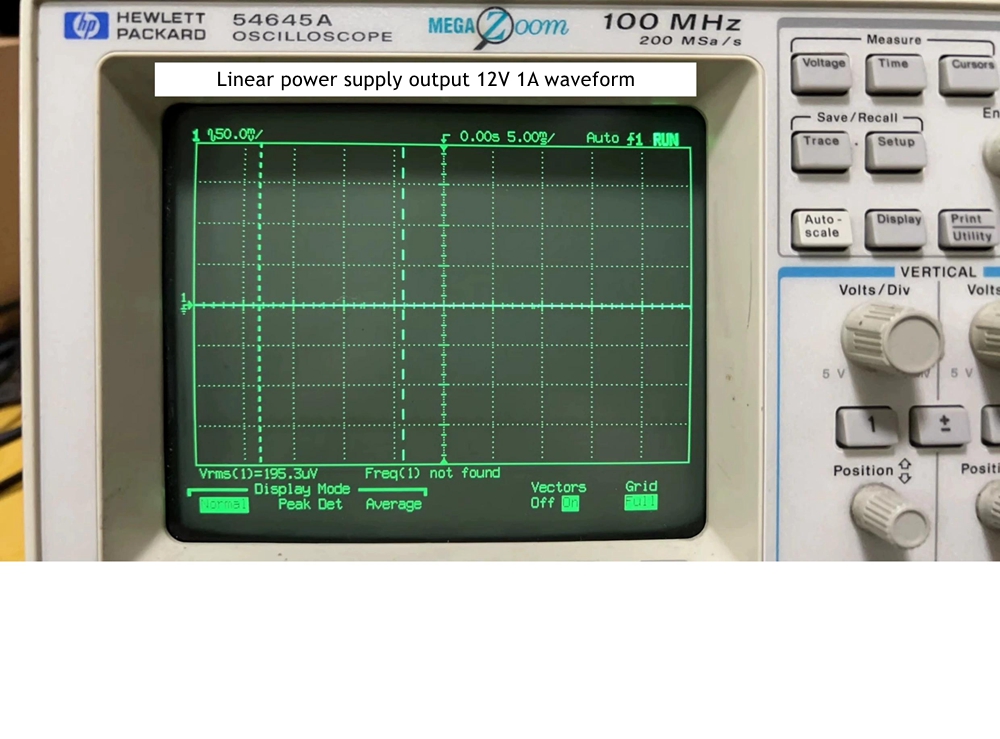

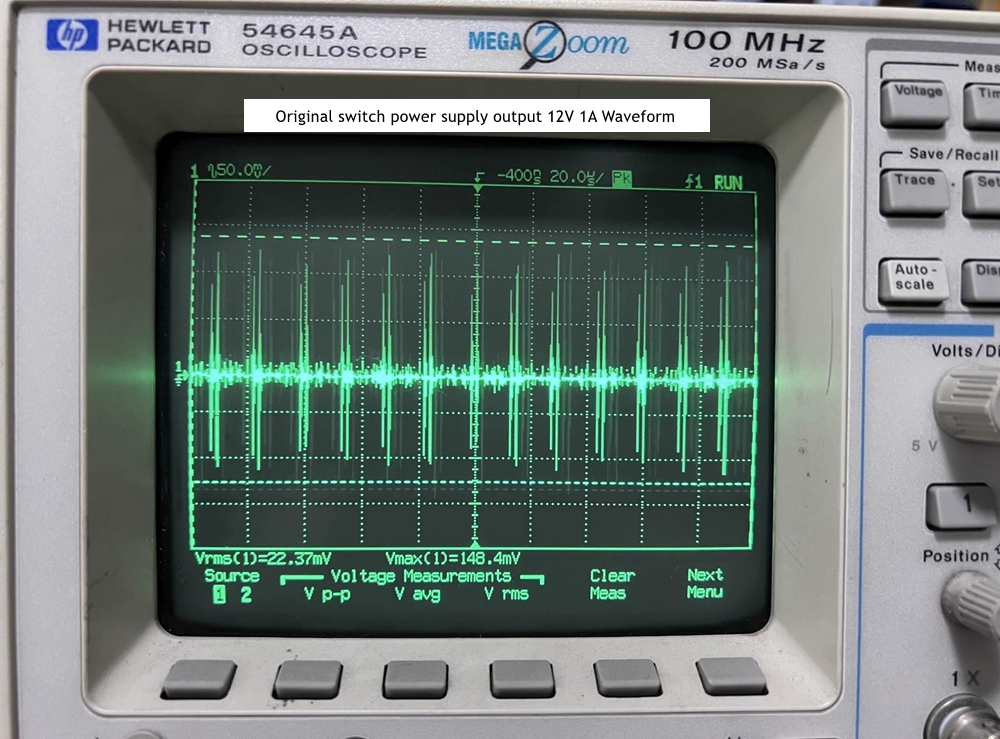

- The voltage stabilization circuit adopts precision low-noise operational amplifier servo stabilization and high current transistor expansion design, greatly reducing the output ripple of the power supply. When tested to output 1A current at +12V, the ripple is only 80-100uV, which is 1/10 of the original switching power supply (the ripple of the original switching power supply was 1.5mV).
Specification:
- Input voltage: 230V/115V
- Output voltage: ±12v
- Maximum output current: 12V, 1.45A
- Ripple: 80 - 100uV at +12V, 1A
- Net weight: 790g
Precautions for replacing power supply:
1. Power off operation is necessary for replacement.

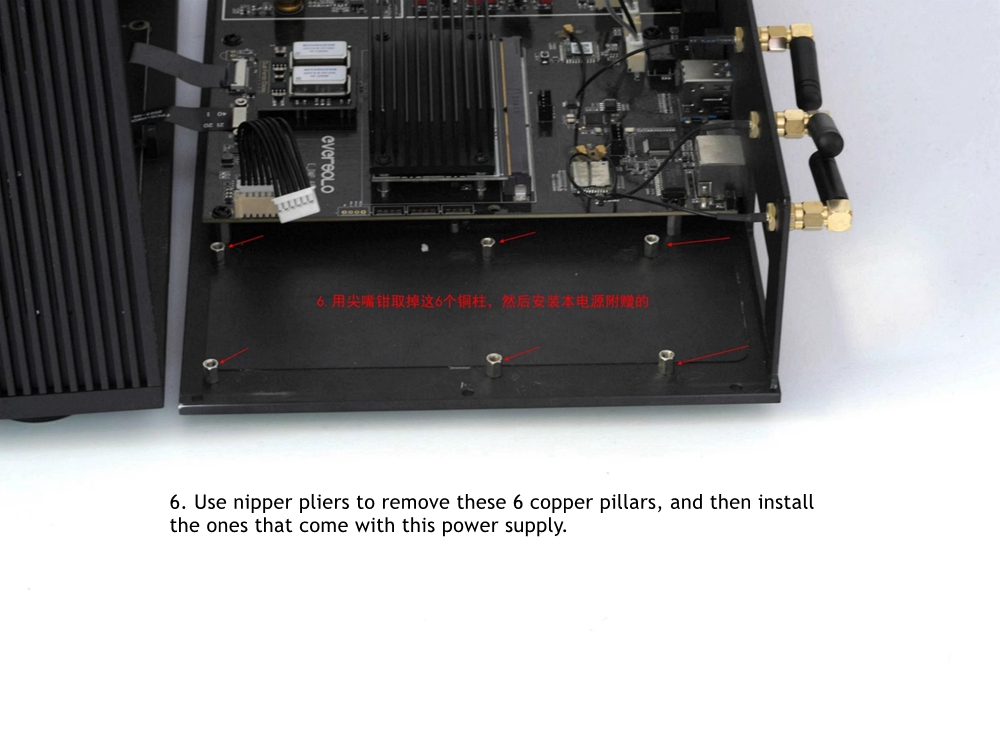

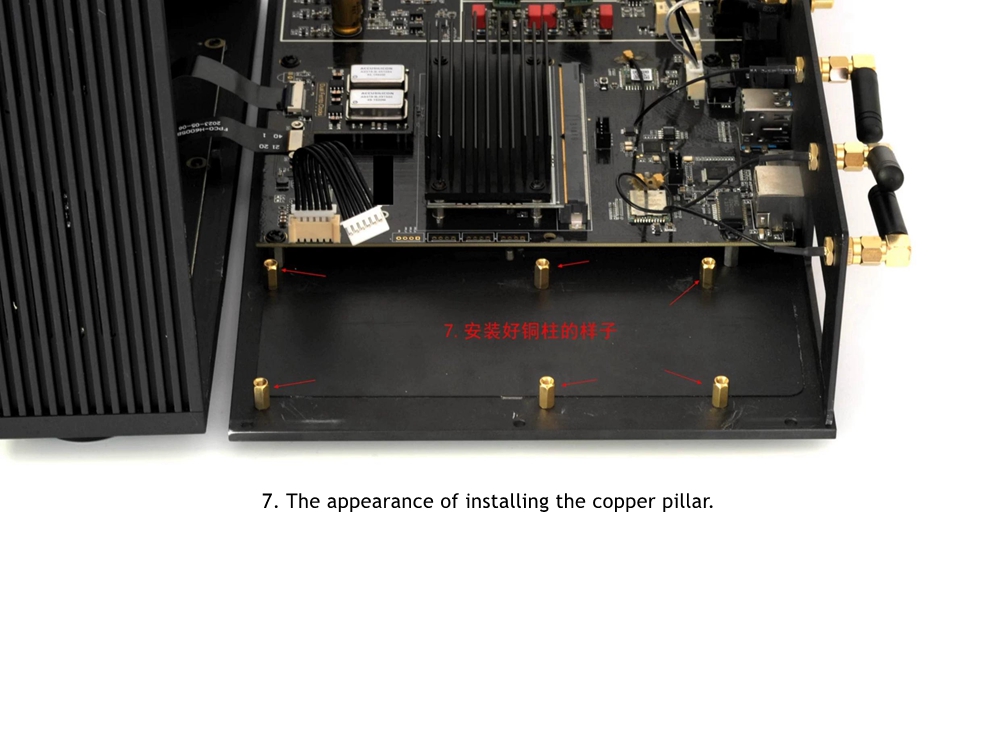

2. Before installation, it is necessary to remove the copper pillar of the original machine and use the copper pillar provided with this power supply.

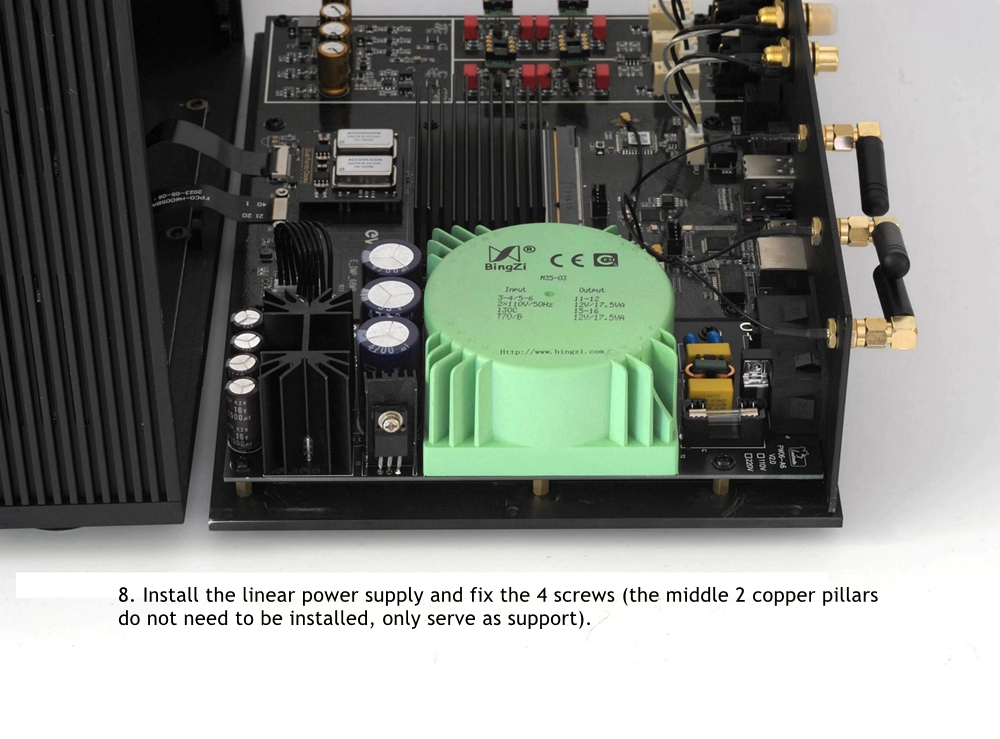

3. Use the original screws and cables, and only four screws need to be installed for this power supply.
4. This power supply is a linear power supply, and heating is a normal phenomenon, so there is no need to worry.
Tools required for replacing the power supply:

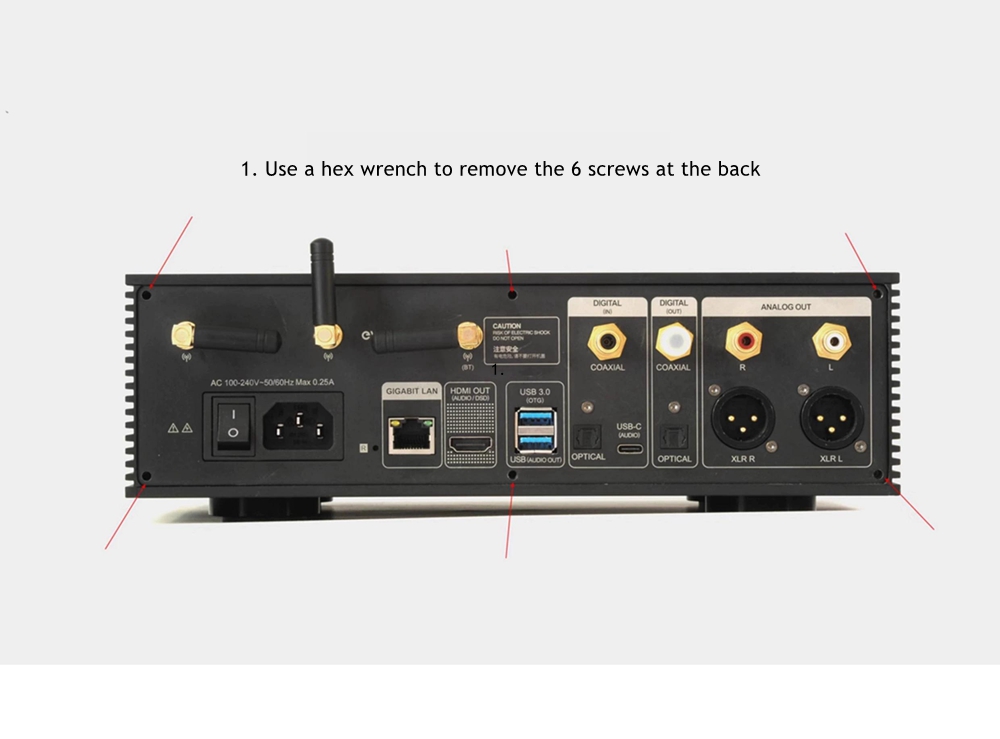

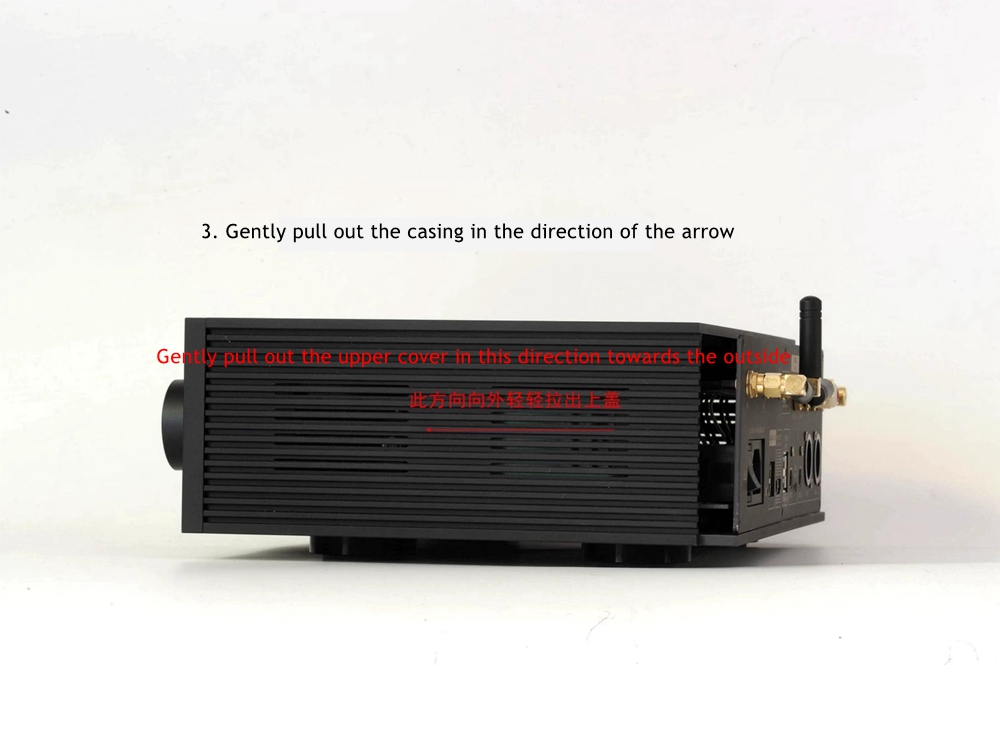

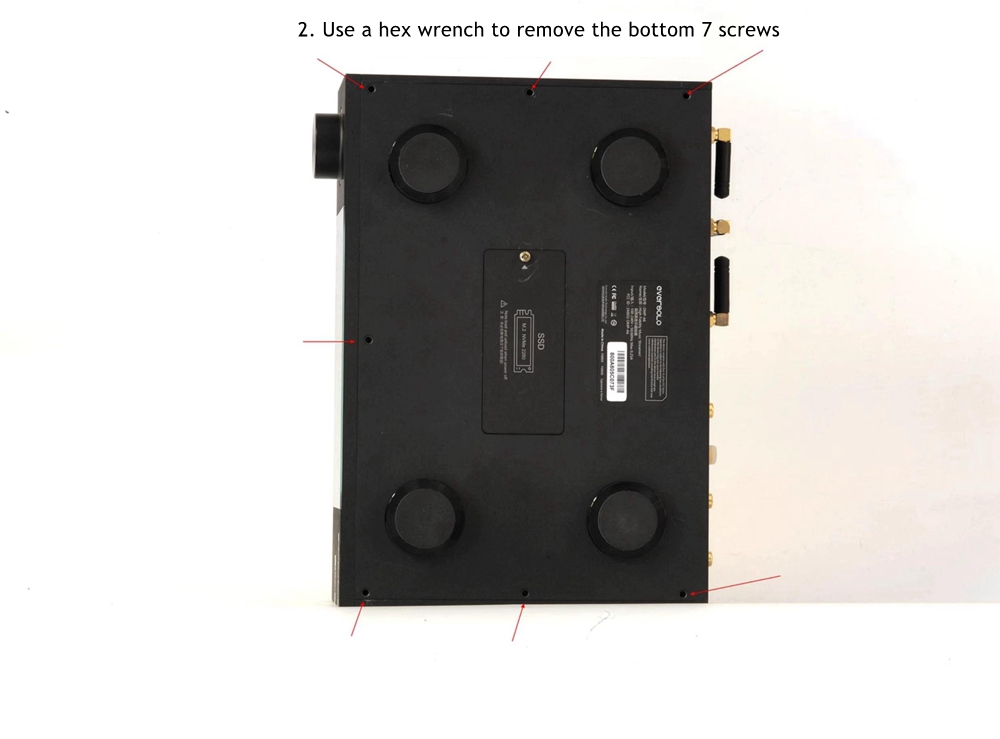

1. 2mm hex wrench (for disassembling the machine shell)

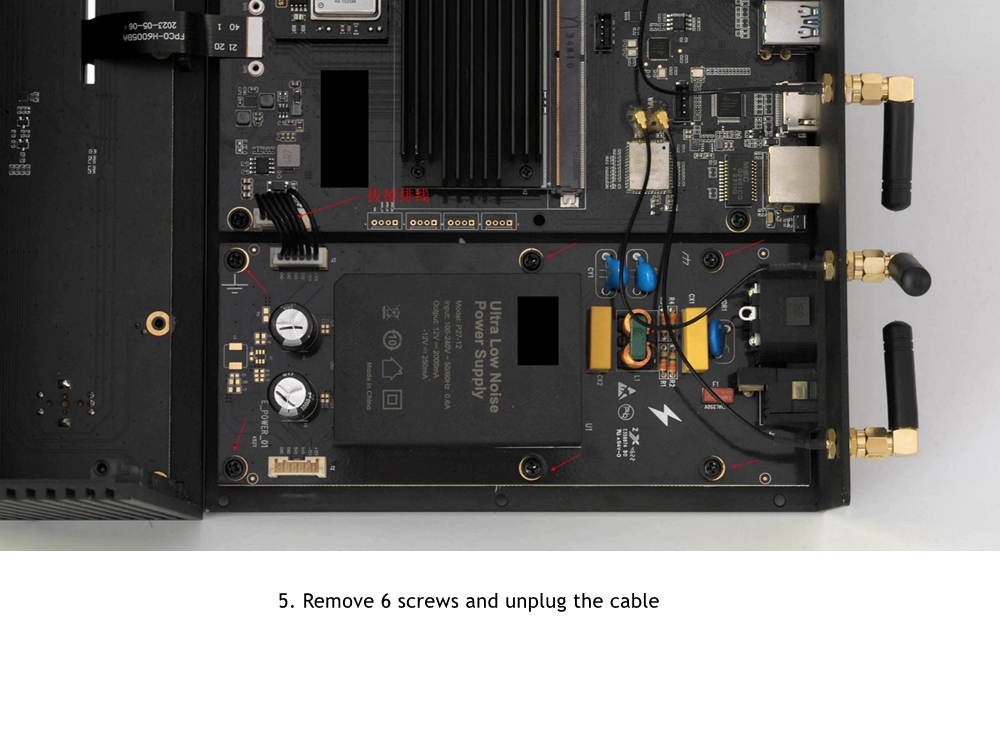

2. Phillips screwdriver (for disassembling the power board)
3. Sharp nose pliers (for disassembling the original machine copper pillar)
Package Included:
- 1 x Linear Power Supply
