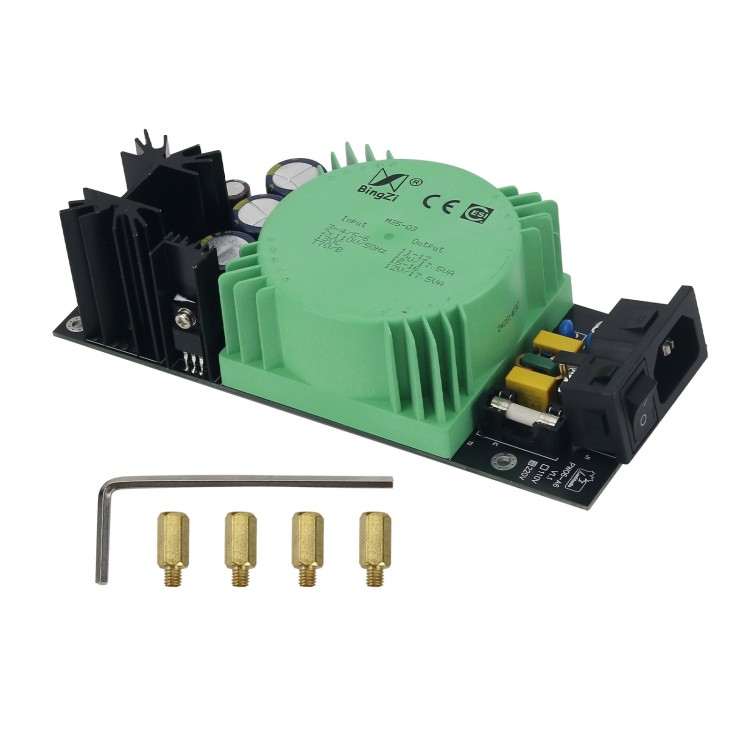

Eversolo A6 35W Linear Power Supply Module Green Cube Transformer Lossless Upgrade for PW06-A6/LT3042

Eversolo A6 35W Linear Power Supply Module Green Cube Transformer Lossless Upgrade for PW06-A6/LT3042

Description:
- The "Green Magic Cube" M series is a ring-shaped packaged transformer, which is characterized by high efficiency, low magnetic leakage, good output characteristics, strong EMC capability, high safety performance, and winding to winding electrical strength that can withstand 50Hz 4000V/1 minute. It is equipped with a built-in temperature protector, which can effectively cut off the power supply and prevent equipment from burning out even in harsh situations where the transformer load is short circuited. It is small in size and light in weight, making it the best matching choice for customers producing industrial grade equipment and military grade products. Due to the use of environmentally friendly green flame-retardant PP0 engineering plastic for all its shells, its performance indicators are particularly in line with the national requirements for "green, environmentally friendly, energy-saving, and efficient" in the power industry, and it is as excellent as being enchanted, hence it is called the "Green Magic Cube".

- This linear power supply is designed specifically for the Evesolo A6 digital broadcast and can replace the original switching power supply without loss.

- After research and exploration, it was found that the Eversolo A6 player uses a ±12V power supply, with +12V supplying power to the operational amplifier and digital circuit, and -12V supplying power to the operational amplifier circuit. +12V consumes a current of about 0.7A, and the ripple of using a switching power supply is relatively large. The overall sound is cold and hard. After using this linear power supply, the background is quieter, and the sound becomes smoother and more analog.

- The voltage stabilization circuit adopts precision low-noise operational amplifier servo stabilization and high current transistor expansion design, greatly reducing the output ripple of the power supply. When tested to output 1A current at +12V, the ripple is only 80-100uV, which is 1/10 of the original switching power supply (the ripple of the original switching power supply was 1.5mV).

Specification:
- Input voltage: 220V/110V
- Output voltage: ±12v
- Maximum output current: 12V, 1.45A
- Ripple: 80 - 100uV at +12V, 1A
- Net weight: 790g

Precautions for replacing power supply:
1. Power off operation is necessary for replacement.
2. Before installation, it is necessary to remove the copper pillar of the original machine and use the copper pillar provided with this power supply.
3. Use the original screws and cables, and only four screws need to be installed for this power supply.
4. This power supply is a linear power supply, and heating is a normal phenomenon, so there is no need to worry.

Tools required for replacing the power supply:
1. 2mm hex wrench (for disassembling the machine shell)
2. Phillips screwdriver (for disassembling the power board)
3. Sharp nose pliers (for disassembling the original machine copper pillar)

Package Included:
- 1 x Linear Power Supply
