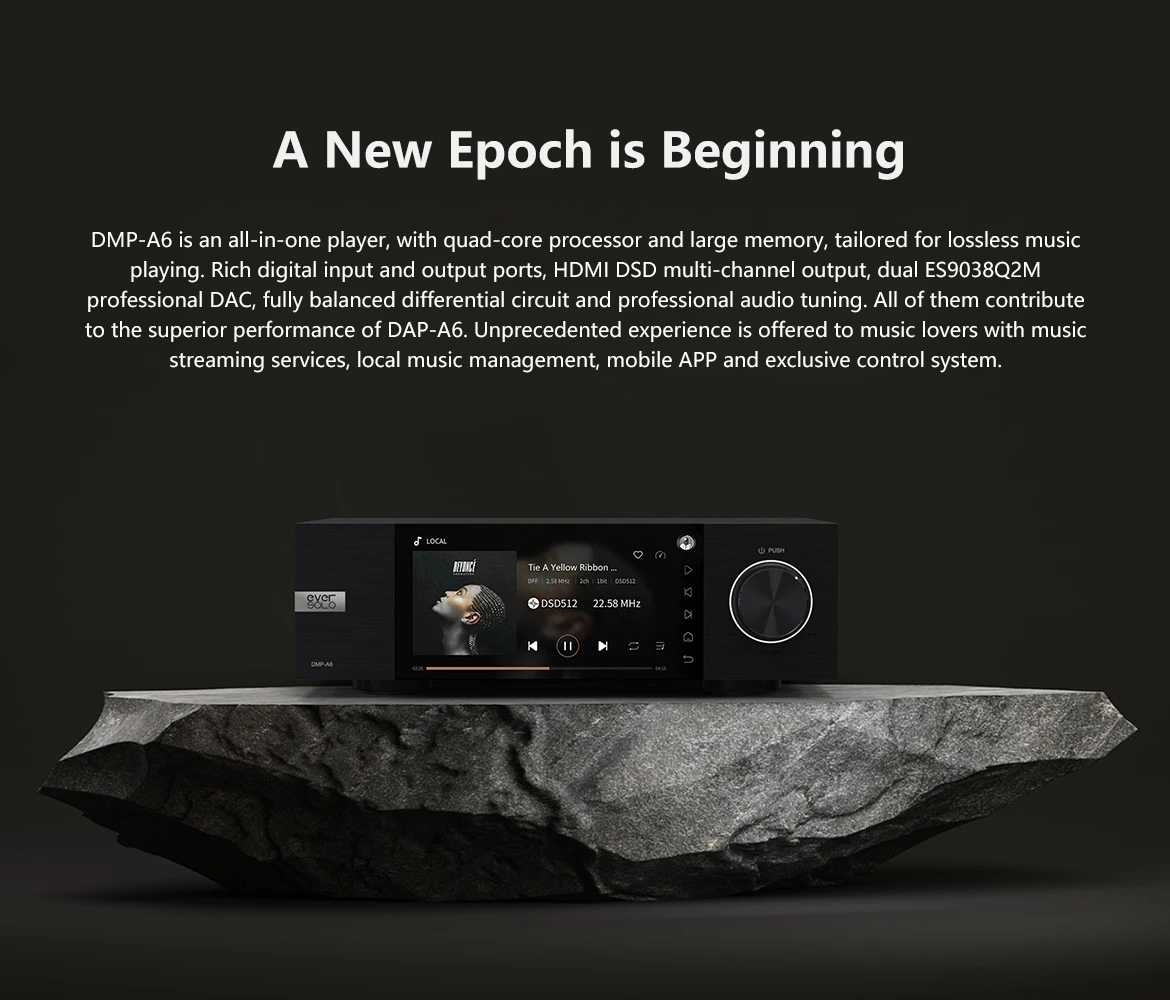

Eversolo DMP-A6 Digital Player Bluetooth 5.0 Receiver DAC 6" Touch Screen for DSD512 PCM 768KHz

Eversolo DMP-A6 Digital Player Bluetooth 5.0 Receiver DAC 6" Touch Screen for DSD512 PCM 768KHz

Features:

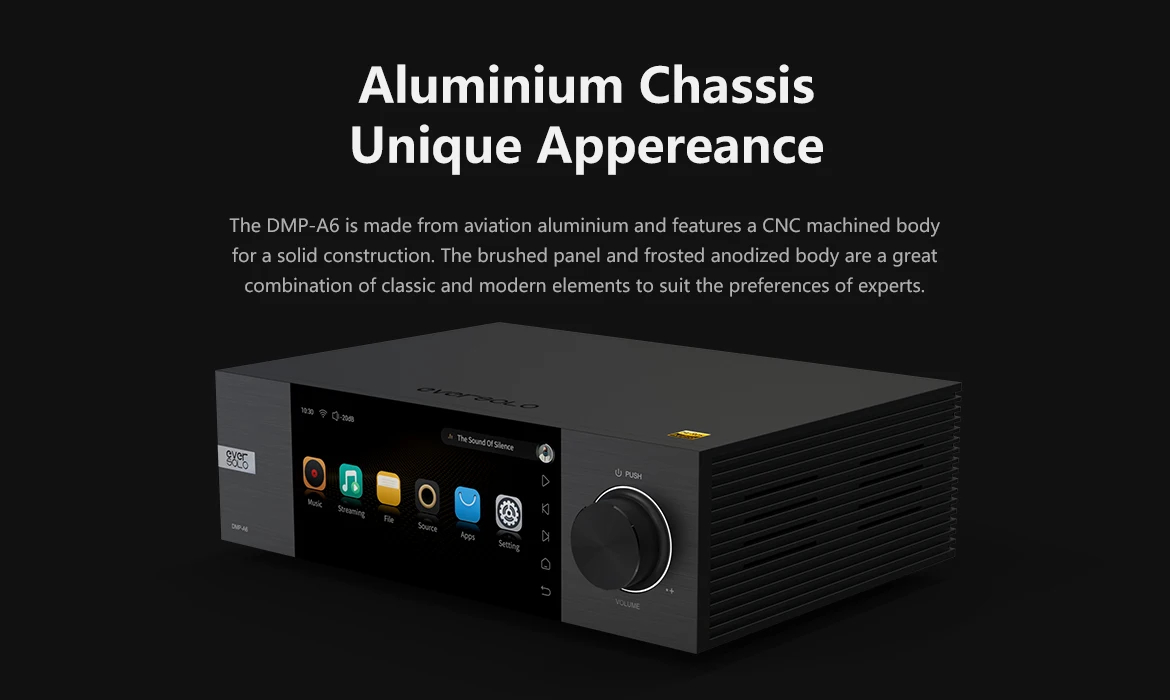

- Solid aluminium alloy chassis and brushed panel
- Quad-core ARM Cortex-A55 professional processor

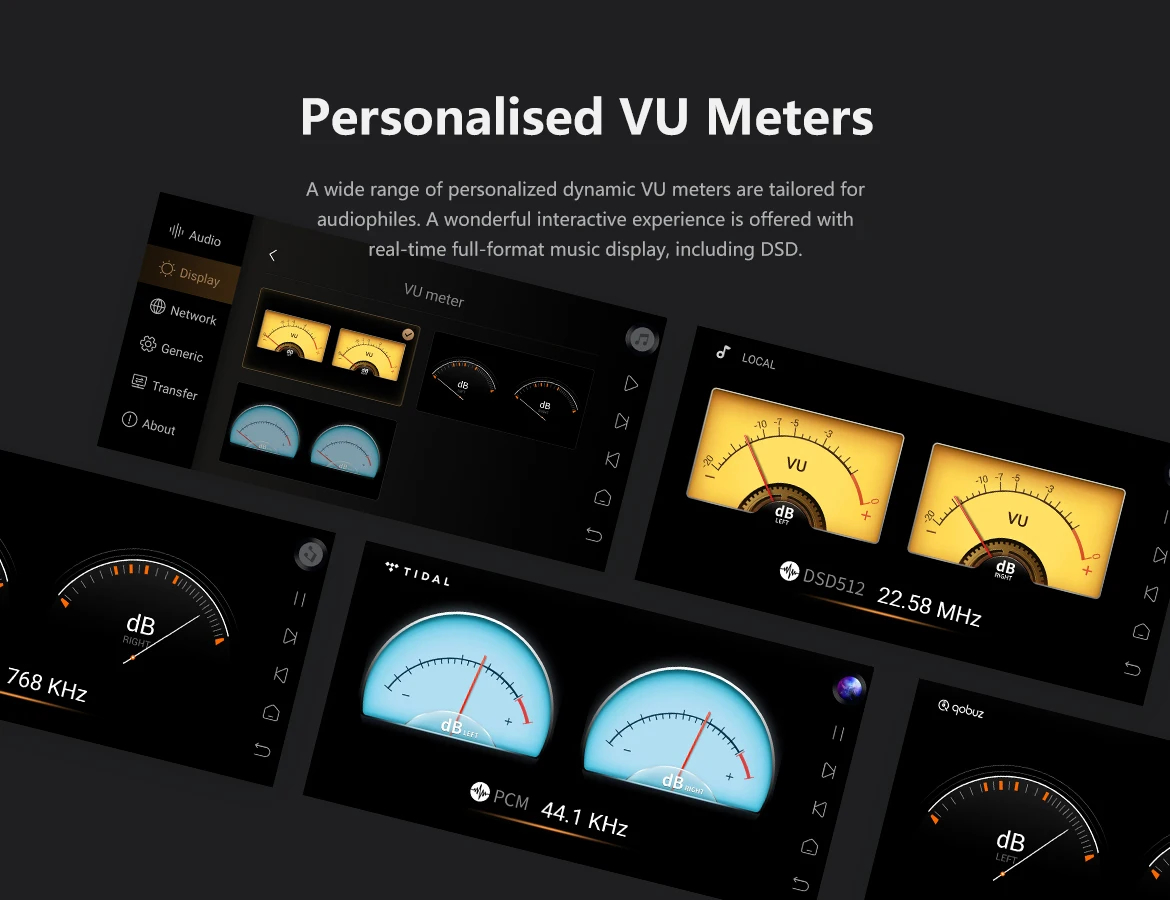

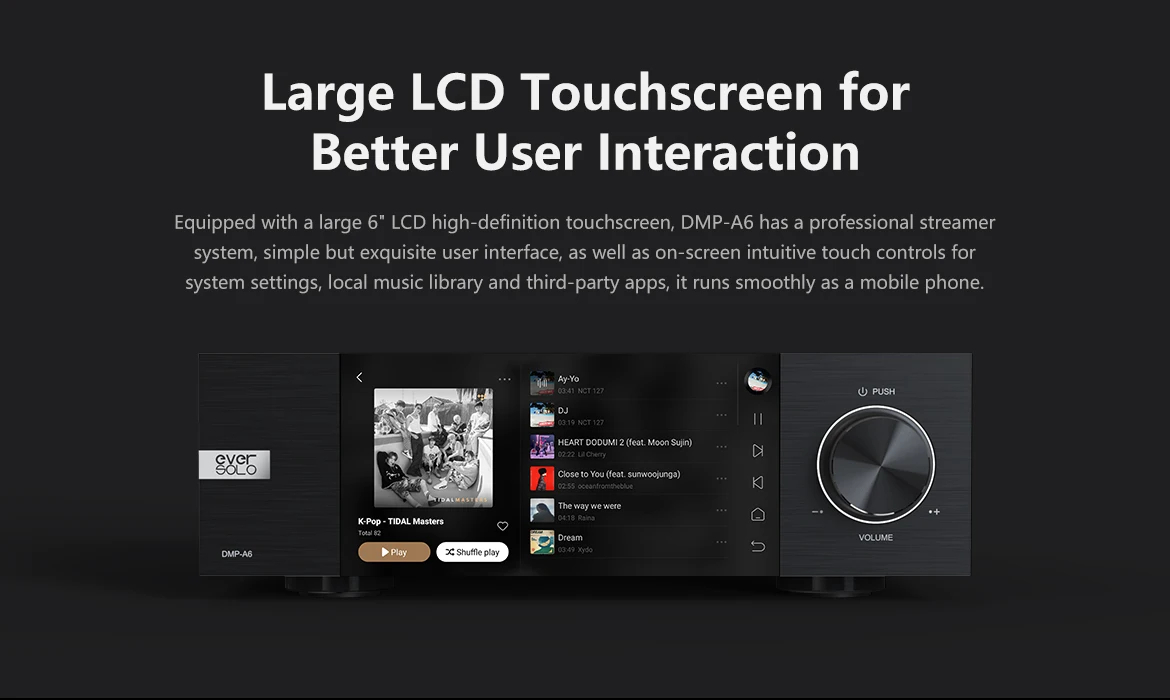

- 6" large LCD colour touch screen enables easy control
- Deeply tailored system based on that for Android 11
- 4G DDR+32G eMMC large memory for masses of applications

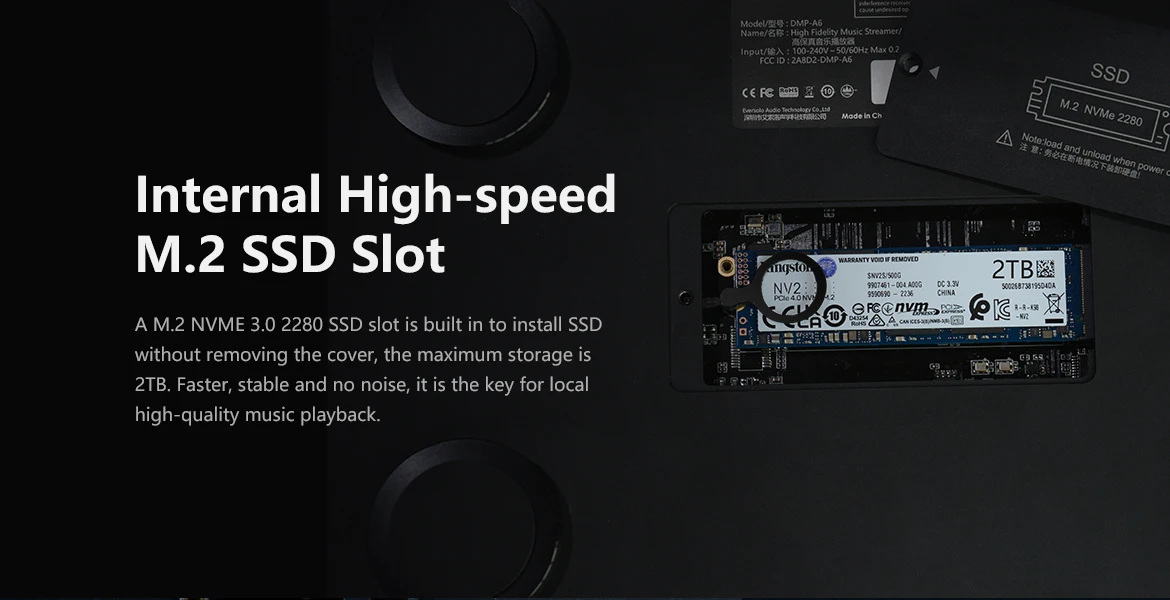

- Support M.2 NVME 3.0 SSD (not included) up to 4TB
- 2xES9038Q2M DAC for independent stereo decoding
- Support DSD512 Native, PCM768KHz at 32Bit, MQA full decoding
- The 3rd generation XU316 for higher performance and processing speed

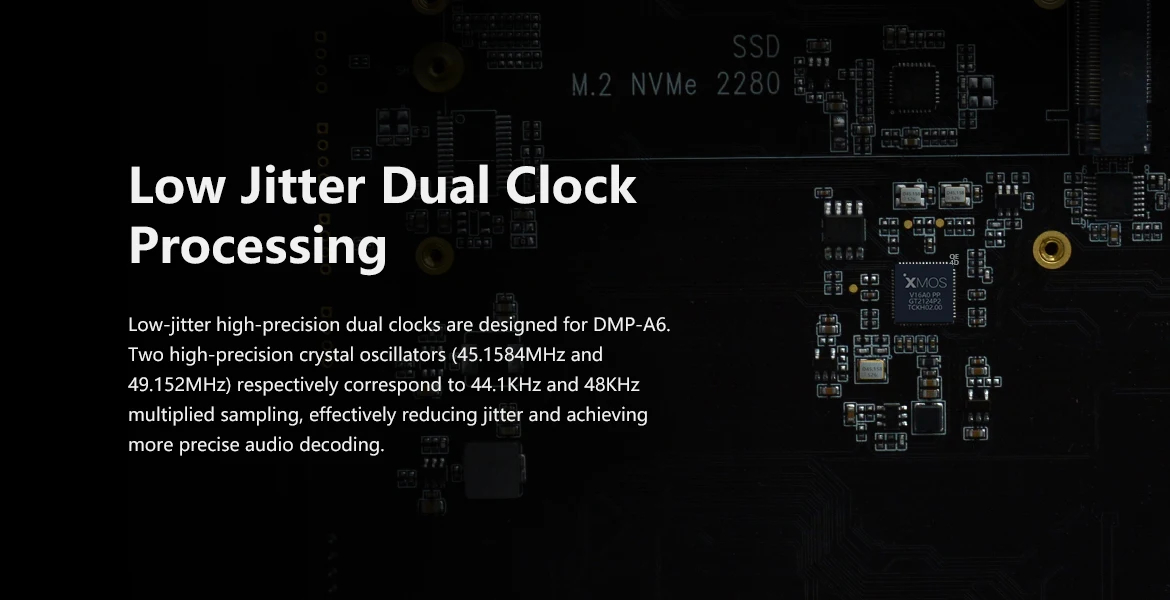

- Low-jitter dual clock synchronous processing with higher accuracy

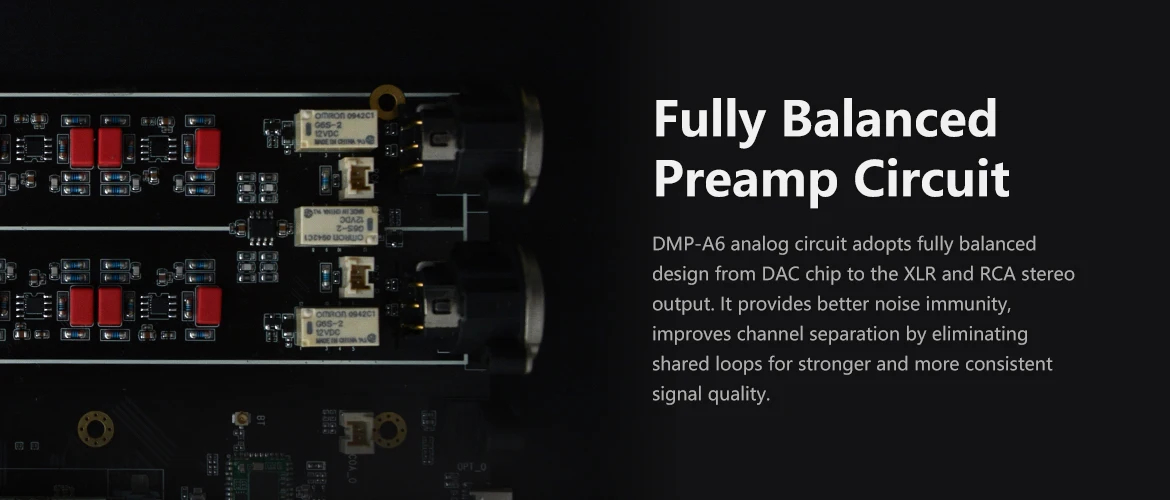

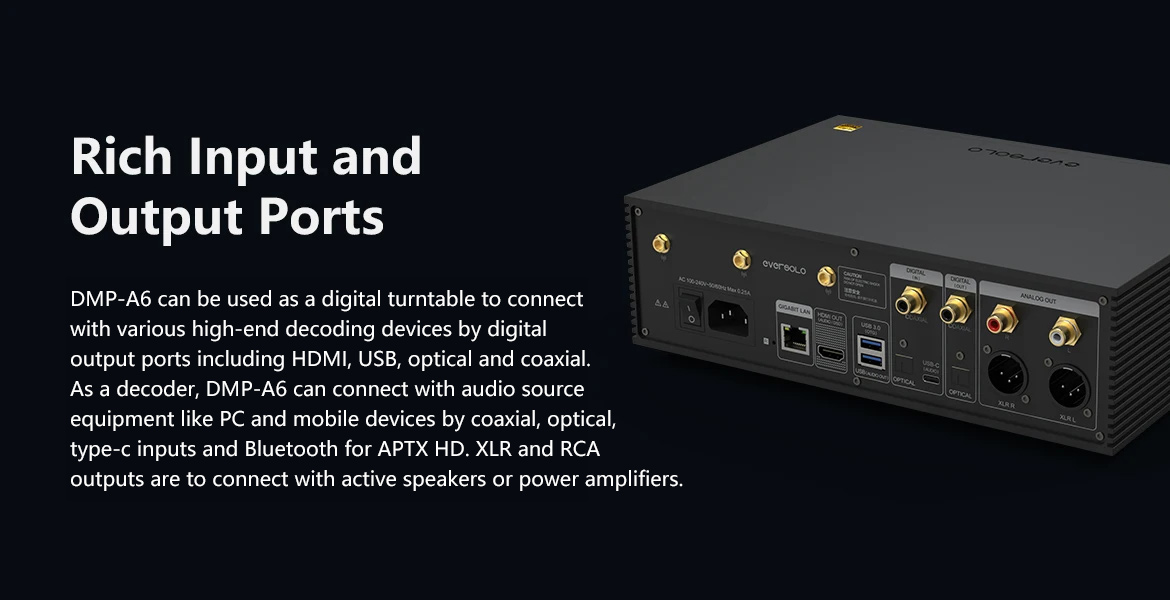

- Fully balanced circuit, XLR balanced and RCA single-ended hi-fi pre-out

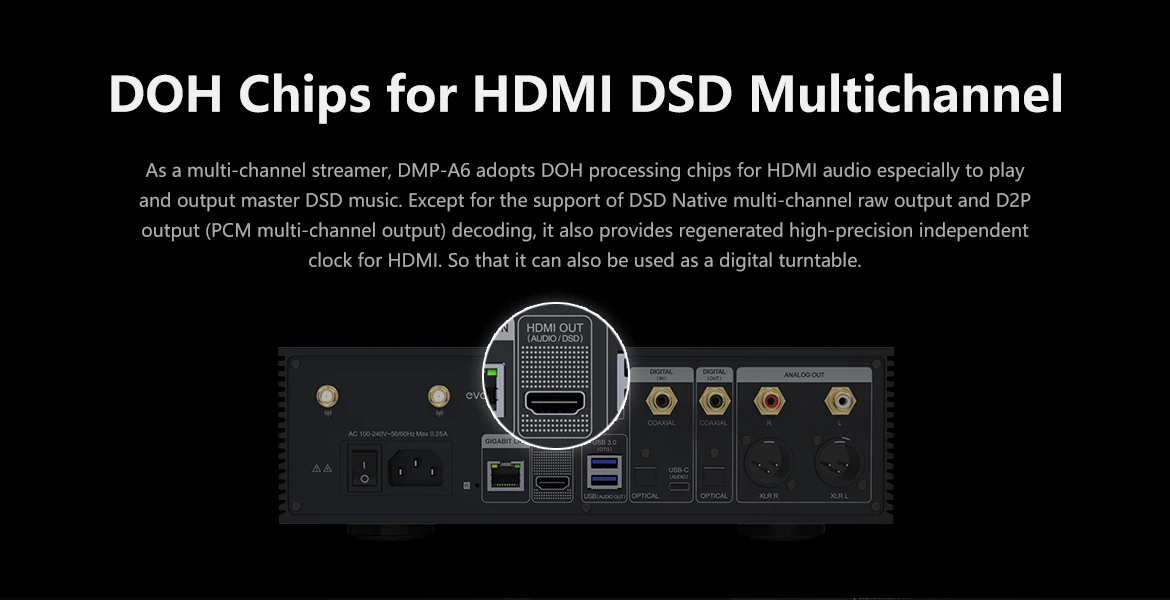

- 2x DOH chips, support HDMI DSD Native and D2P multi-channel output (Up to 5.1)
- QCC5125 Bluetooth 5.0 module for APTX HD: The QCC5125 Bluetooth audio receiving module supports for SBC/AAC/aptX/aptX LL/aptX HD/LDAC and is compatible with Bluetooth 5.0. Connecting with mobile phones, tablets and laptops via Bluetooth allows for simple music playing and CD-quality sound

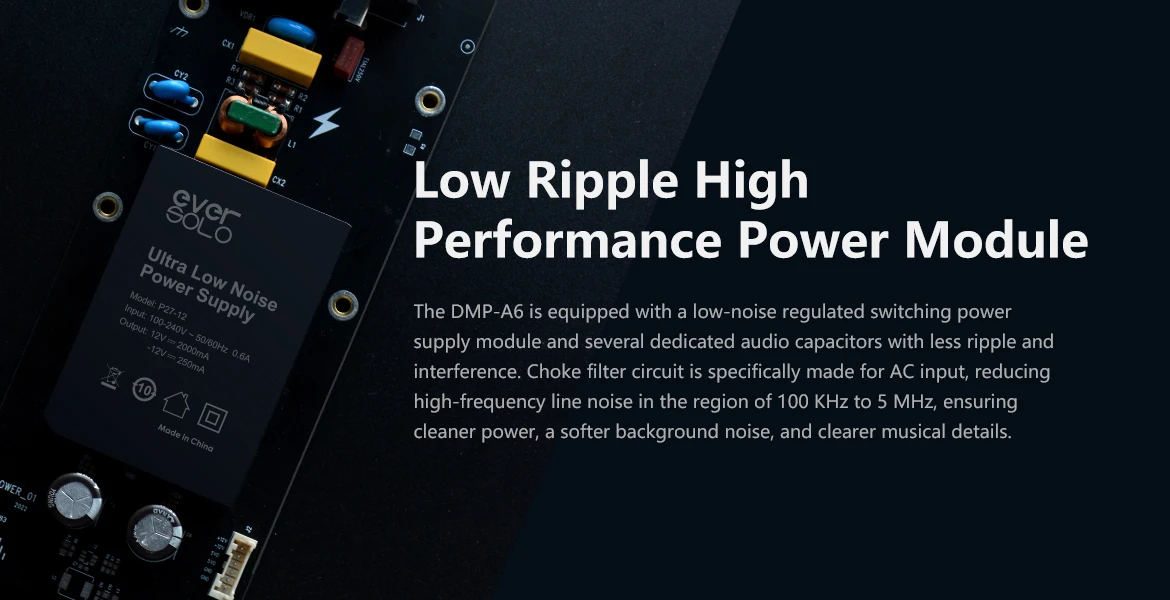

- Low noise, high quality power supply provides pure power source for audio circuits
- Support mastering audio formats DSD (.dsf/.dff/.iso/.dst), APE, FLAC, WAV, MQA, etc.
- Support 2-channel and multi-channel gapless playback (FLAC,WAV)

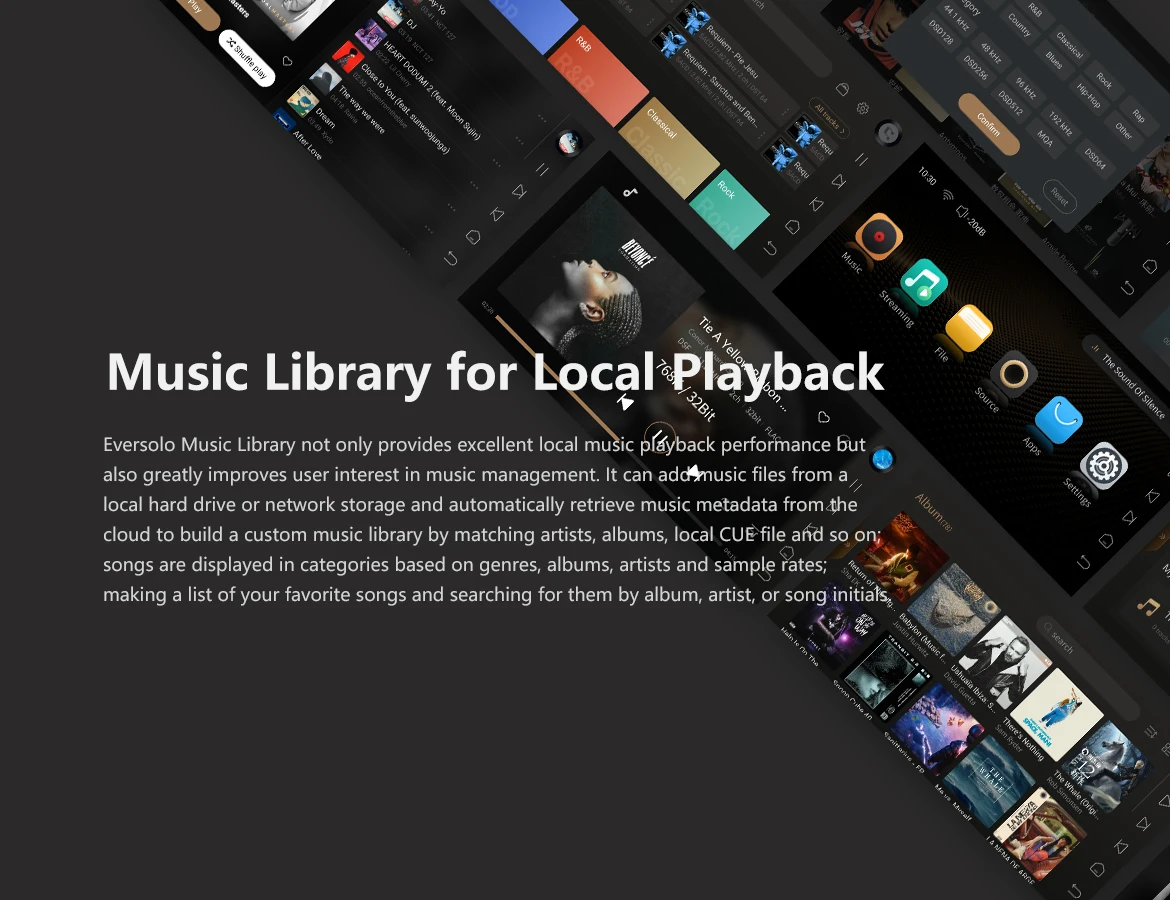

- Personalized music management, lyric matching and music data matching
- EOS audio engine developed by Eversolo, globally bypassing SRC restrictions
- Support direct audio in 3rd party APPs (for Apple Music hi-res direct output)
- Full decoding and rendering support for MQA on optical, coaxial and USB input, etc.
- Support USB, optical, coaxial and HDMI digital audio Bit-perfect output

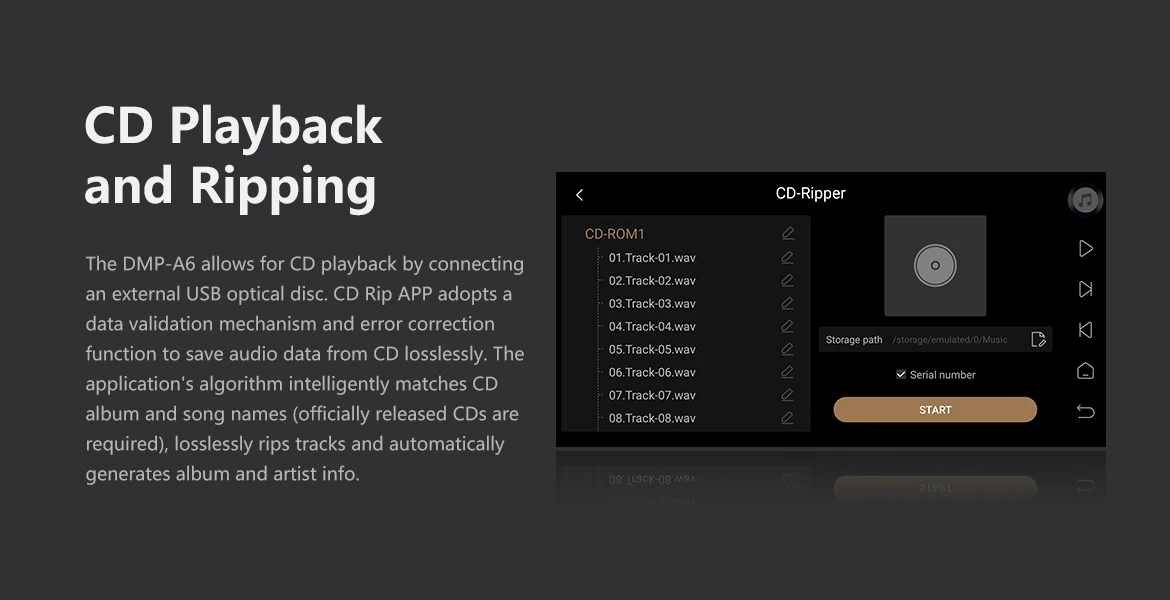

- Support external USB optical drive for CD disc playback and CD ripping
- Music services for Tidal, Qobuz, Highresaudio, Amazon, etc.
- Support for Roon ready, Tidal Connect, etc.
- Support music playback from DLNA

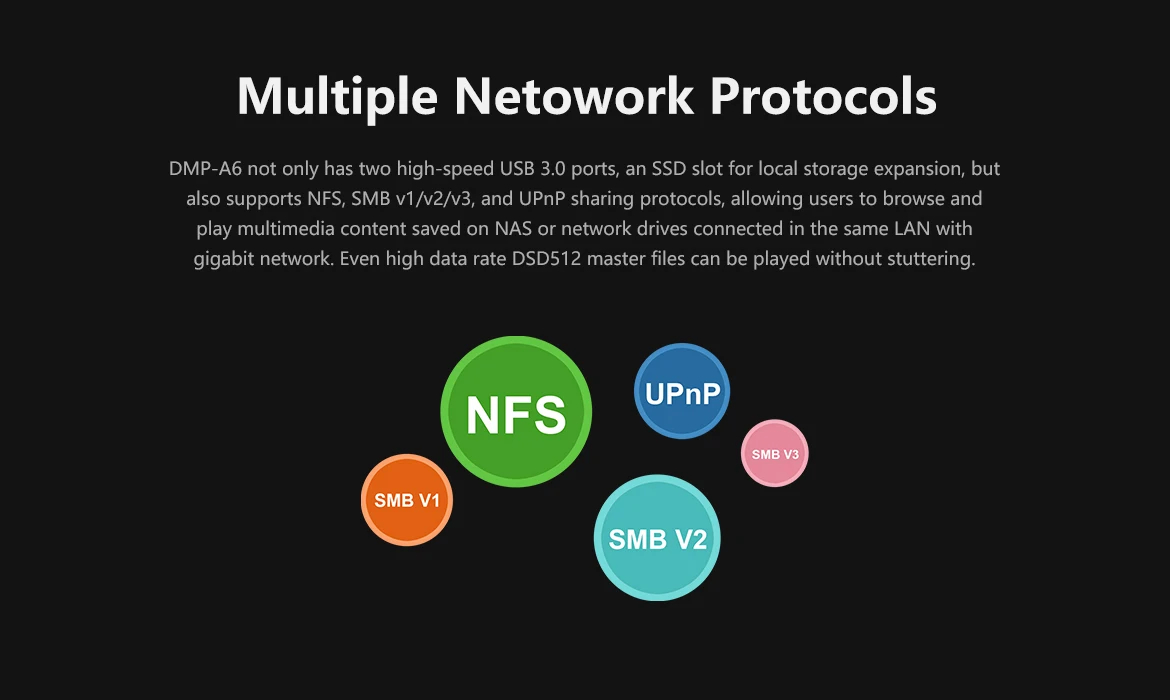

- Support NFS, SMB, Web DAV, UPnP protocols to access storage devices shared in the LAN

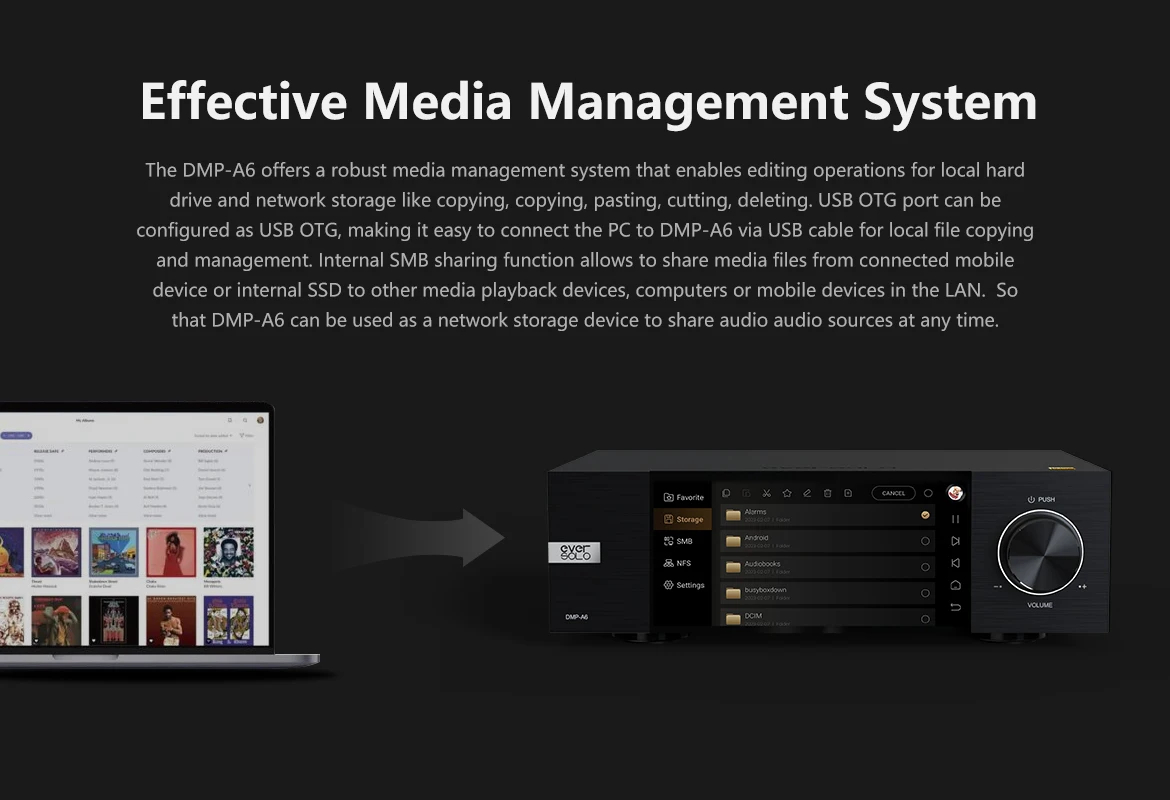

- Support built-in SMB network media sharing service for easy local media sharing

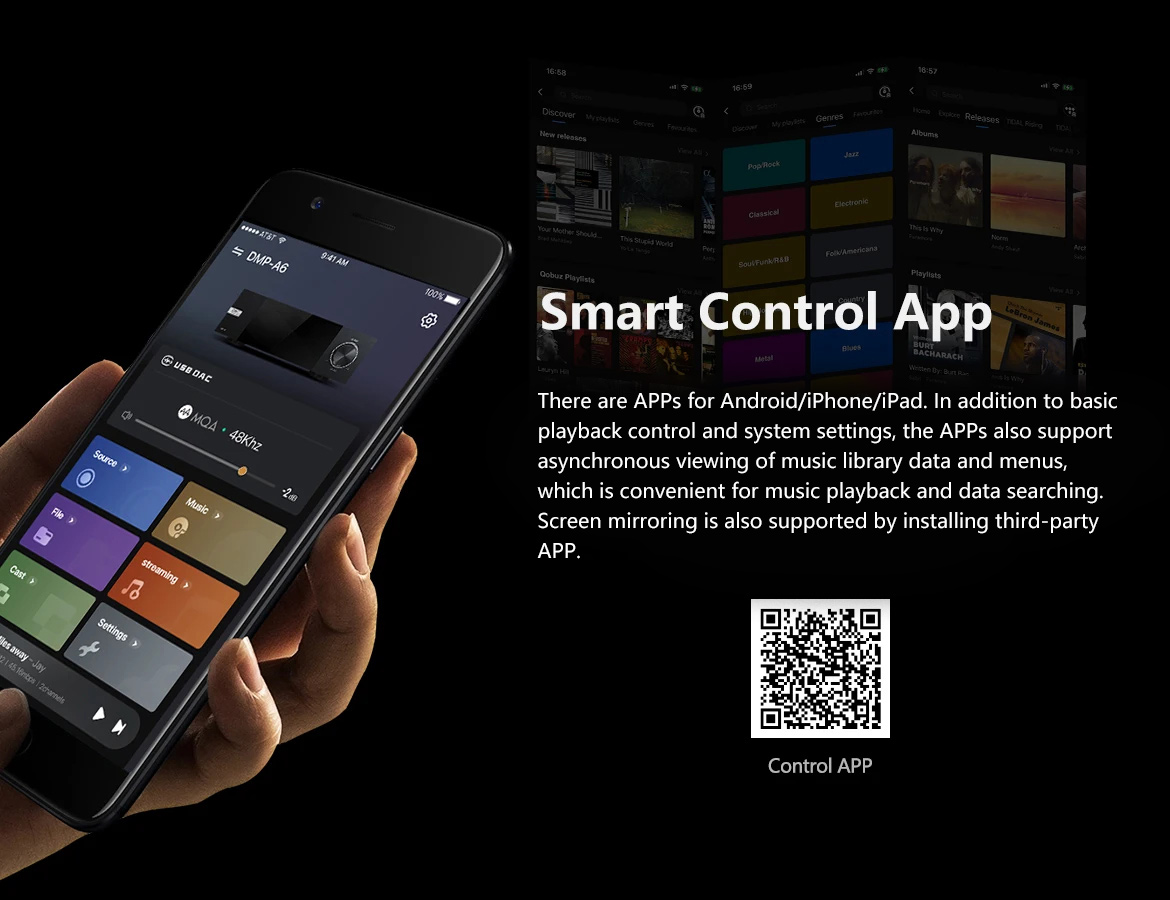

- Exclusive mobile APP for Android/IOS mobile phones and tablets
- Handpicked audio components: Sound quality of DMP-A6 analog output is monitor-level. The primary elements of the audio circuit are excellent, including original capacitors for WIMA, original dedicated audio capacitors for NICHCON, original chip capacitor for Murata and original relays for Omron and genuine audio op amps for TI. The goal is to provide more authentic and pure sound performance

Specifications:
- Model: EVERSOLO DMP-A6
- Display: 6" LCD touch screen
- Internal Memory: 4G DDR4 +32G eMMC
- DAC: ES9038Q2M*2
- Audio Processor: For XMOS XU316
- Op-amp Chip: OPA1642
- Power Supply: Low noise, high quality switching power supplies
- SSD: M.2 NVME 3.0 2280 protocol, up to 4TB
- USB-A Port: USB3.0*2
- Ethernet: RJ-45 (10/100/1000Mbps)
- WiFi: WiFi 2.4G + 5G
- Playback and DAC Decoding: Support up to stereo DSD512, PCM 768KHz 32Bit, MQA
- Music Service: For Tidal, Qobuz, Highresaudio, Amazon, WebDAV, UPnP
- Wireless music streaming: DMP-A6 supports for Roon Ready, Spotify Connect, Tidal Connect, DLNA and AirPlay. High quality music can be streamed online to mobile devices in the same LAN, making it simpler to enjoy online music services and easier to play music at home
- Bluetooth Audio Input: Bluetooth BT5.0, supporting for SBC/AAC/aptX/aptX LL/aptX HD/LDAC
- USB-C Audio Input: USB Audio Compatibility: For Windows (7, 10), Mac, Android and IOS. Support up to stereo DSD512, PCM 768KHz 32Bit, MQA
- Optical/Coaxial Audio Input: Support up to stereo PCM 192KHz 24Bit, DSD64 Dop, MQA
- Optical/Coaxial Audio Output: Support up to stereo PCM 192KHz 24Bit, DSD64 Dop, MQA
- HDMI Audio Output: DSD64 Native multi-channel/PCM192KHz multichannel raw output (Up to 5.1)
- Control Method: Mobile App and touch screen control
- XLR Output Audio Characteristics:
  * Output level: 5.2V
  * Frequency response: 20Hz~20KHz (±0. 15dB)
  * Dynamic range: > 128dB
  * SNR: >128dB
  * THD+N: <0.00009% (-120dB) at A-wt
  * Crosstalk: >-125dB
- RCA Output Audio Characteristics:
  * Output level: 2.6V
  * Frequency response: 20Hz~20KHz (±0. 2dB)
  * Dynamic range: > 124dB
  * SNR: >124dB
  * THD+N: <0.00011% (-119dB) at A-WT
  * Crosstalk: >-124dB
- PSU: AC 110~240V 50/60Hz
- Rated Power: 13W
- Dimensions: 187 x 270 x 90mm/7.4 x 10.6 x 3.5" (LxWxH)

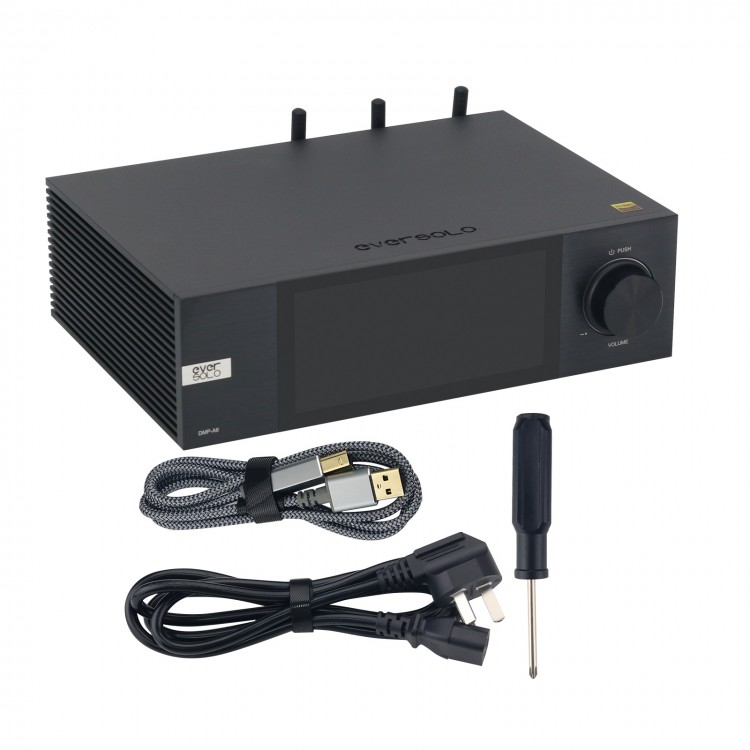

Package Included:
- 1 x Digital player
- 1 x Power cable
- 1 x USB cable
- 1 x Screwdriver
- 1 x User manual

Packaging Details:
- G.W.: 5kg
