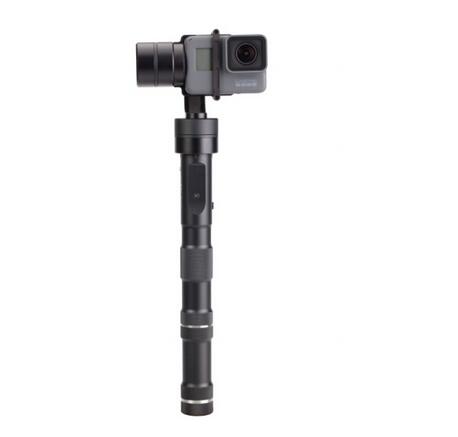

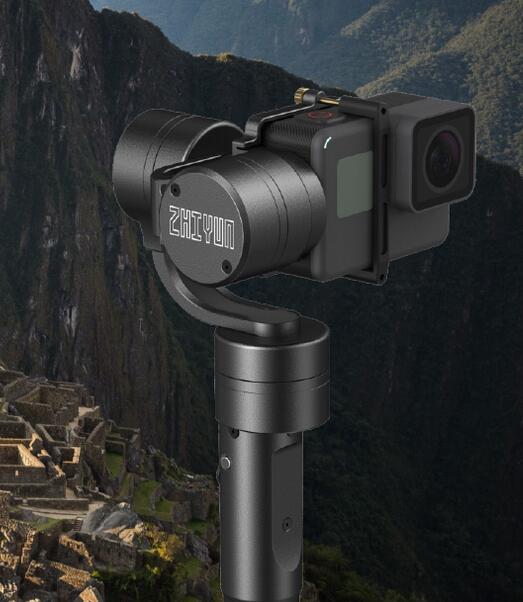

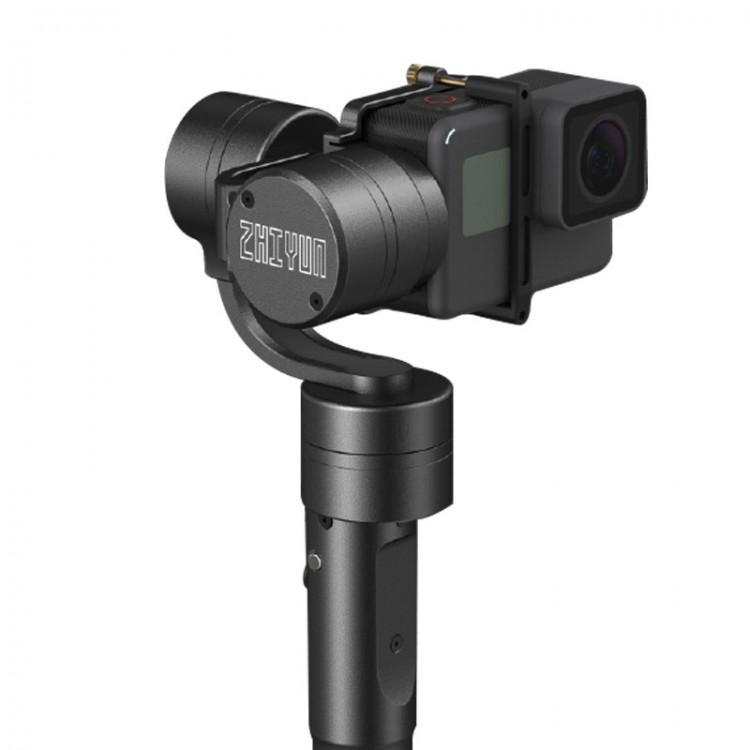

Evolution Updated Version Gimbal Stabilizer Steadicam for Most Action Cameras & HERO5

Evolution Updated Version Gimbal Stabilizer Steadicam for Most Action Cameras & HERO5

Product Description:
- A Must Have for Outdoor Enthusiasts
Designed for outdoor enthusiasts and adventure sports photographers & videographers, the unique brushless motor control system on EVOLUTION has achieved the control accuracy up to x8 higher than industry average, presenting extraordinary stabilizing performance that realizes perfect smooth imaging even under intense motions.
Putting mode switch and camera angle controls ALL in ONE just in reach of your thumb
Convenient thumb screw design for easy camera mounting
EVOLUTION realizes an unprecedented angle sensing precision to 0.02°
Designed for most action cameras
- Unique Algorithmic System
Featuring ZHIYUN’s self-developed stabilizing control algorithms , EVOLUTION guarantees high performance and quick attitude responses while minimizing power consumption for extensive operation time.
- Magnet-steel Integrated Motor Construction

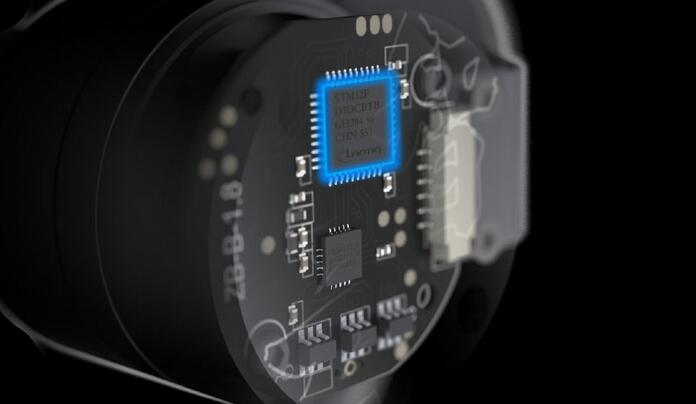

ZHIYUN’s unique motor construction has integrated magnetic sources and electronic cells into compact units that greatly enhances work efficiency of the motors while saving more power. As the result, the size of the motors has been made smaller while the torque output remains unchanged.

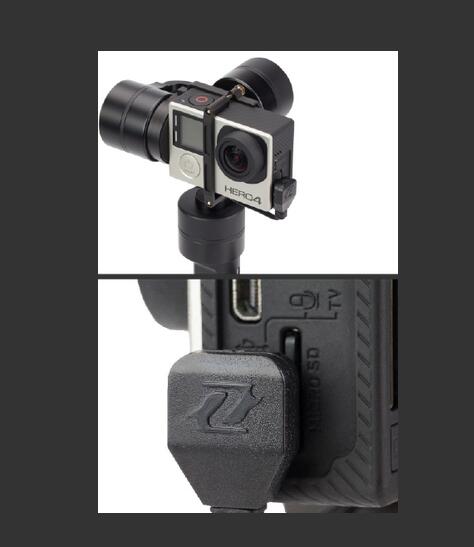

- Synchronous Camera Charging
Compatible with both 18350 and 18650 Li-Ion batteries and featured with a power-saving construction, EVOLUTION supports a continuous runtime of up to 12 hours. In addition, a Micro USB port at the side of the handle allows synchronous power charging to the mounted camera for more convenient shooting operations, saving the trouble for changing camera batteries, while unifying working duration of both devices.
- Thumb Up and All is Done
A smart 5-way joystick plus one power button on the side are all you need to command your EVOLUTION to work, putting mode switch and camera angle controls ALL in ONE just in reach of your thumb.
- Complexity Made Simple
In designing the very compact and robust construction of EVOLUTION, the design team had pioneered to apply the magnet-steel integrated technology combined with antioxidant contact ring design, making it more solid and durable to tackle tasks in various environmental conditions. In addition the anti-slip thread pattern on the handle enhances hand feel and prevent slipping.
- Crafted into Every Detail
Elaborately and independently engineered by ZHIYUN team from every part to the final production, and through stringent QC process, we have made it possible for the perfect integration and cooperation between software algorithms and hardware performance, defeating general stabilizers from any assembling enterprise that uses serial/open source system with third-party parts.
- Anodic Oxidation & Sandblasting Processes
Constructed through the combination of anodic oxidation and sandblasting processes, EVOLUTIONS is ensured with comfortable hand feel and optimized corrosion & abrasion resistance for better durability.

Tech Specs:
- Item     Min.     Standard     Max.     Remark
- Operation Voltage     6.8V         12.6V
- Operation Current     50mA     80mA     3000mA
- Output Voltage         5V
- Output Current         800mA
- Following Deviation in Static State     ±0.01°         ±0.04°
- Following Deviation in Motion State     ±0.05°     ±0.1°     ±0.3°
- Tilt Angle Range         320°
- Roll Angle Range         270°
- Pan Angle Range         320°
- Controllable Tilt Angle     -135°         +185°
- Controllable Roll Angle     -30°         +30°
- Controllable Pan Angle     -160°         +160°
- Operation Temperature     -10°C     25°C     45°C
- Battery Runtime     11h     13h     15h
- Charging Time         3h
- Valid Payload             160g
- Compatible Cameras     GoPro3/4/5 Camera

User Manual:Click here

TOOLS:
- APPLE
Zhiyun USB drive(Mac OSX)
Calibration upgrade tool(Mac OSX v1.30)
- WINDOWS
Zhiyun USB drive(Windows XP)
Zhiyun USB drive (Windows 7 and above)
Smooth-Q USB drive (Windows 7 and above)
Smooth-3 USB drive (Windows 7 and above)
Tools(Windows v1.3)
- APP
Zhiyun APP(IOS)
Zhiyun APP(android)

Packing List:
- 1  x  Gimbal Stabilizer
- 1  x  Camera Protection Sticker for Pan Axis Motor
- 1  x  Battery Compartment
- 1  x  18650 Battery Charger
- 2  x  18650 Li-ion Batteries
- 1  x  Micro USB Cable
- 1  x  AV Output & Charging Cable (4-pin)
- 1  x  Camera Charging Cable (3-pin)
- 1  x  User Guide
- 1  x  Warranty Card
- 1  x  Company Contact Card
