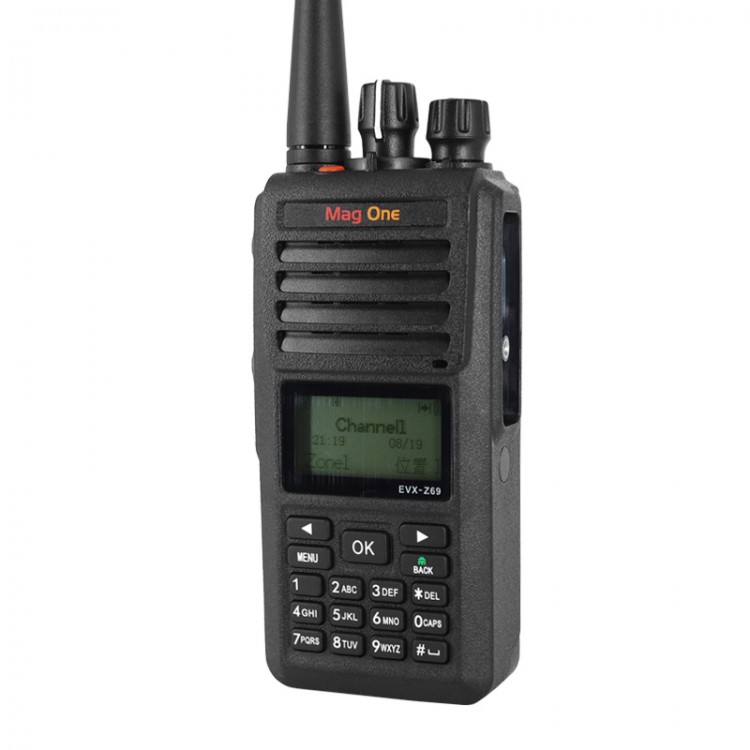

EVX-Z69 Original Walkie Talkie Portable UHF Radio Handheld Transceiver Standard Edition for Mag One

EVX-Z69 Original Walkie Talkie Portable UHF Radio Handheld Transceiver Standard Edition for Mag One

Description:
EVX-Z69 is an affordable digital walkie-talkie which enables you to communicate with digital capabilities, making the process of digitally upgrading your walkie-talkie simple and affordable. It is compact, functional and flexible to provide you with convenient communication.

Features:
- With analog and digital adaptive function: It supports automatic identification of analog and digital signals, so you can communicate with your existing analog radios and keep in touch with digital radios.
- Dual groups of calls: In pass-through mode, it can realize two groups of calls on one frequency, without the need for repeaters.
- Text message: With pre-programmed or self-edited text messages, you can quickly text each other to facilitate coordination and increase productivity. Clear audio output and 1,000mW internal speakers enable you to get clear voice when communicating with your team, which is convenient for communication.
- 512 channels. Adjust frequency manually. Users can set the channel through computer programming or manual programming, supporting 512 channels. You can quickly set the frequency manually to achieve interoperability
- Recording function: In analog and digital mode, the content of the call and the duration of the call can be saved. In digital mode, it can also save incoming/outgoing ID codes at the same time, supporting about 8 hours of recording. You can easily turn on/off/play/delete the recording by pressing the button (attention: 250 hours recording function needs to be customized)
- Power-on password setting: An 8-digit power-on password can be set in advance through the programming software. When this function is enabled, you need to enter a password to make the walkie-talkie work normally and ensure safe use.
- Priority access: At the critical moment, the walkie-talkie with priority can interrupt the current call to ensure the priority transmission of important calls.
- Dustproof and waterproof: Compact body, IP55 dustproof and waterproof.
- Widely used: This digital walkie-talkie can meet the needs of users in different industries such as retail, hotel, catering, service, property and event management so as to facilitate your communication.

1. Other features:
- 1,000mW internal speaker
- Built-in VOX
- Numeric keys for quick contact access
- Recording function
- Emergency alarm; Multiple scanning options

2. Simulation mode features:
- PTT ID DTMF (encoded only)
- DTMF decoding only supports killing of walkie talkie and reviving
- CTCSS/DCS encoding and decoding

3. Digital and analog characteristics:
- Busy channel lock
- Priority access
- All call/group call/individual call
- In pass-through mode, it can realize two groups of calls on one frequency

4. More details:
- Large torque knob for easy operation: The large torque knob prevents misuse
- Small and portable: Made of environmentally friendly materials, its body is ergonomic and comfortable to hold
- Metal interface is not easy to oxidize: the metal antenna interface boasts good adhesion and durability
- Large-capacity lithium battery: 2300mAh large-capacity battery ensures long working hours
- Original product: both body and battery have anti-counterfeiting labels for Motorola

Specifications:
General Specifications:
- Frequency range: 403-470MHz
- Dimensions: 136 x 60 x 39mm/5.4 x 2.4 x 1.5" (including battery)
- New weight: about 346G/0.8LB (including battery, antenna, and belt clip)
- Channel Spacing: 25/12.5kHz
- Number of channels: 512
- Programmable buttons: 4
- Battery life (5-5-90 duty cycle in power saving mode): FNB-V143LI: 17 hours [digital] / 15 hours [analog]
- IP protection class: IP55
- Voltage: 7.4VDC±10%
- Operating temperature range: -25°C to 60°C
- Frequency Stability: ±1.5ppm
- RF input-output impedance: 50Ω

Receiver:
- Sensitivity: Analog 12dB SINAD: 0.25μV/Digital 1% BER: 0.28μV 5% BER: 0.20μV
- Adjacent channel selectivity: TIA603: 65/55dB [25KHz/12.5KHz]
- Channel Spacing: 25/12.5kHz
- Intermodulation: 60dB
- Clutter image rejection: 70dB
- Hum and Noise: 45/40dB [25kHz/12.5kHz]
- Audio output [5% THD]: 1,000mW at 16 Ohms [internal]; 200mW at 32 ohms [external]
- Audio Distortion: <5%
- Conducted spurious emissions: -57dBm

Transmitter:
- Output power: 5/1W
- Modulation Limits: ±5.0kHz [25kHz] / ±2.5kHz [12.5kHz]
- Conducted spurious emissions: -36dB [≤1GHz]; -30dB [>1GHz]
- FM hum and noise: 45/40dB [25kHz/12.5kHz]
- Audio Distortion [at 1kHz]: <5%
- Analog FM modulation: 16K0F3E [25kHz] /11K0F3E [12.5kHz]
- 4FSK Digital Modulation: 12.5kHz Data: 7K60F1D and 7K60FXD/12.5kHz Voice: 7K60F1E and 7K60FXE; 12.5kHz Data and Voice: 7K60F1W
- Digital Vocoder Type: for AMBE+2
- Digital Protocol: ETSITS102 361-1, -2, -3

Package Included:
- 1 x Walkie Talkie Body
- 1 x Battery
- 1 x Charger
- 1 x Antenna
- 1 x Back Clip
- 1 x User Manual
