EWGP 4-Axis CNC MPG Wireless MPG Simplified MPG Pendant 40M/131.2FT Barrier Free for Industrial Uses

Availability: In stock, usually dispatched in 1 business day

  • Price:$137.00
  • Price in reward points: 1370 Reward Points: 14
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $134.26 $131.52 $127.41 $121.93 Contact US
Quantity:

EWGP 4-Axis CNC MPG Wireless MPG Simplified MPG Pendant 40M/131.2FT Barrier Free for Industrial Uses

Application:

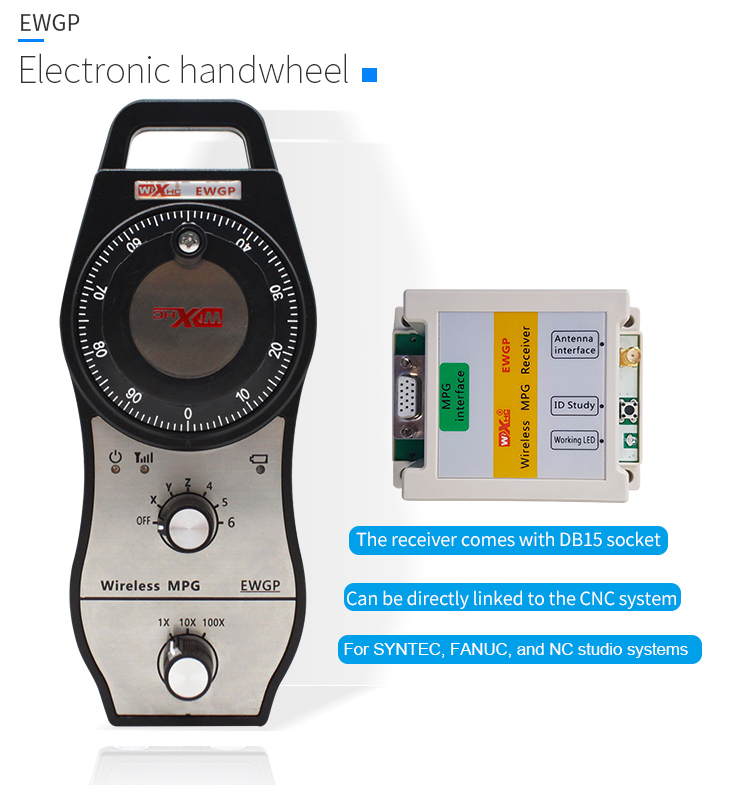

- Type: Wireless hand-wheel (instead of wired hand-wheel)
- Number of axes: 4
- Applicable system: for FANUC, Mitsubishi, Siemens, Higerman, Fagor, etc. (If the system you use is not listed here, please refer to the table)
- Emergency stop button: No
- Communication frequency: 433MHZ
- Anti-interference: The same range supports 32 sets of equipment to operate stably at the same time
- Pulse signal: Support differential and non differential, NPN, PNP and other signal types
- Relevant: Support point to point
- Parameters related to model selection: Please let us know your model number after selection

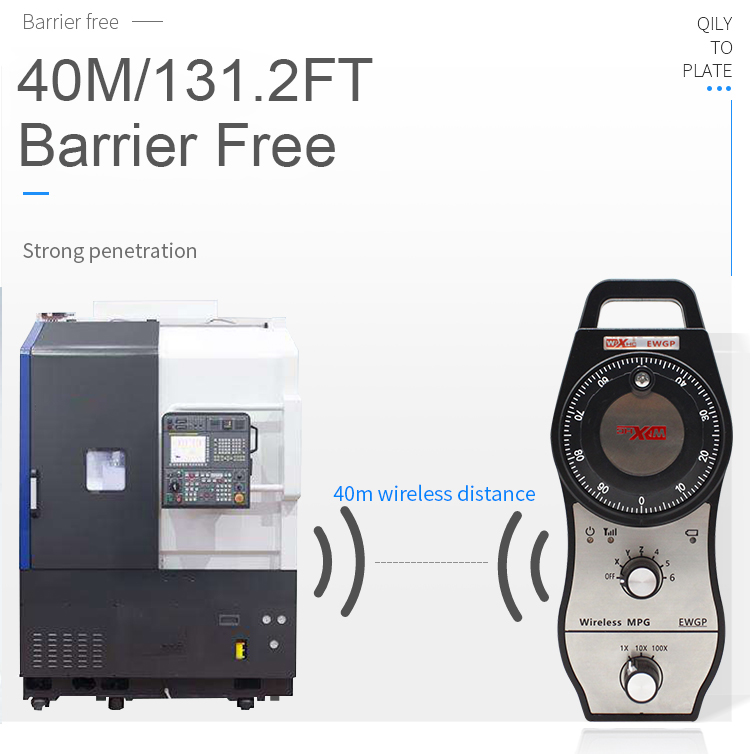

- Signal transmission distance: 40m/131.2ft wireless operating distance
- Parameter: A pulse encoder, 100 pulses/turn

Product Parameters:
Wireless Transmission Parameters:
- Communication channel: ISM 433M
- Wireless transmission distance: Accessible 40m/131.2ft

DC Electrical Parameters:
- Handheld operating voltage: 2.2V-3.3V
- Average operating current: <10mA; low power consumption

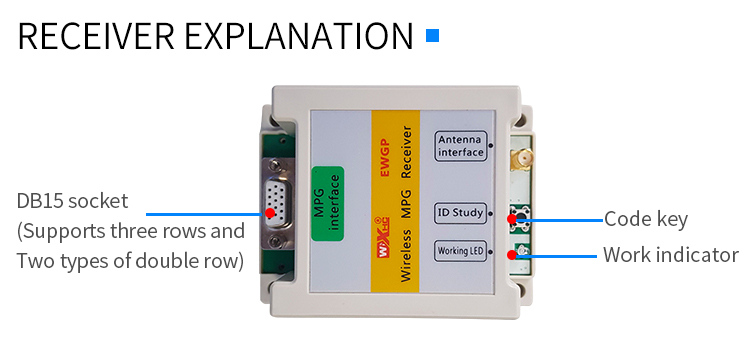

- Receiver operating voltage: 5V, 12V or 24V
- Average operating current: Less than 260mAh

Encoder Pulse Output Parameter:
- Encoder: 100PPR
- Pulse signal type: 5V differential signal or 12V non-differential signal
- Pulse signal voltage: Support 5V and 12V

Axis Selection Factor:

- Axis selection signal output mode: Point to point mode

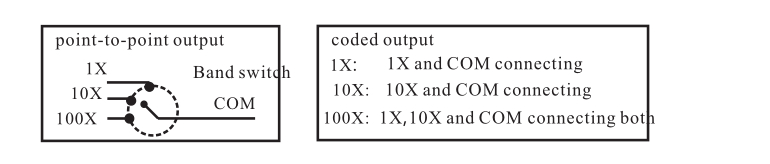

- Magnification signal output method: Point to point mode

Handwheel Performance Parameters:

- Transmit power: 10DB
- Receiving sensitivity: -98DB
- Maximum supported axes: 4-axis
- Material: ABS PC alloy material

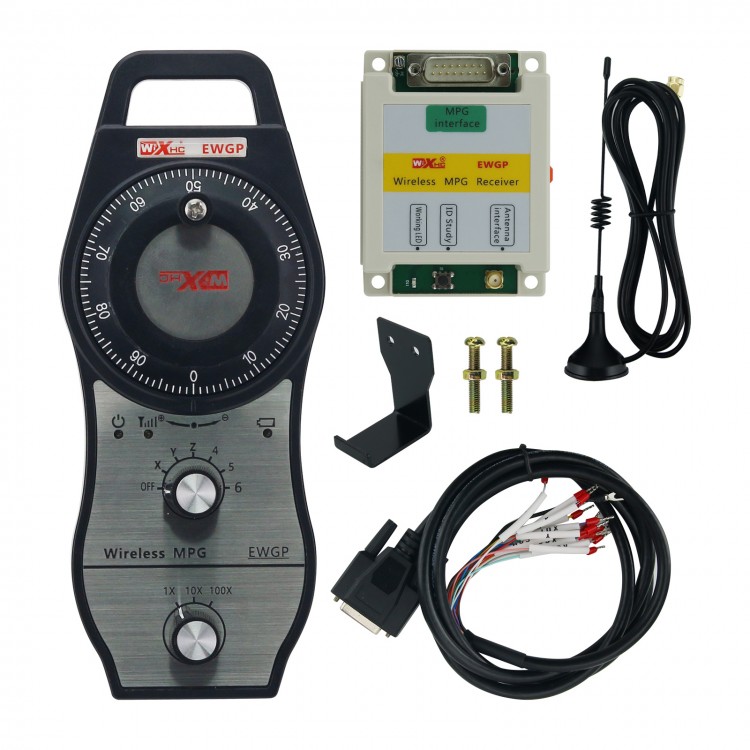

Package Included:
- 1 x CNC MPG

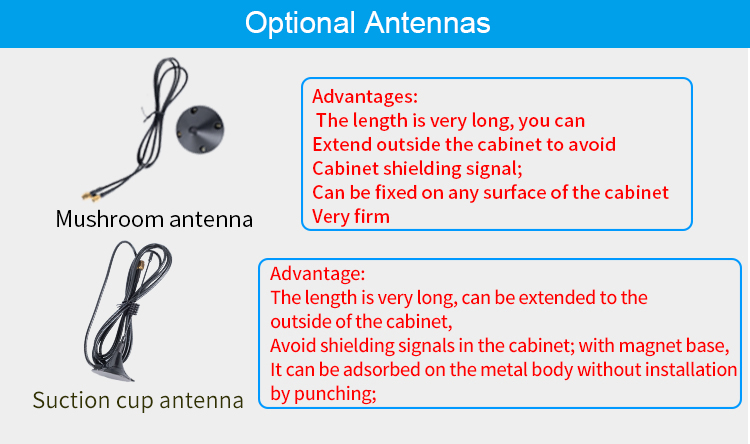

- 1 x Wireless Receiver with Antenna
- 1 x Control

Note:
- Batteries are not included. Two AA alkaline batteries are recommended.
- Please inform us the system and parameters you use when purchasing. Thank you!

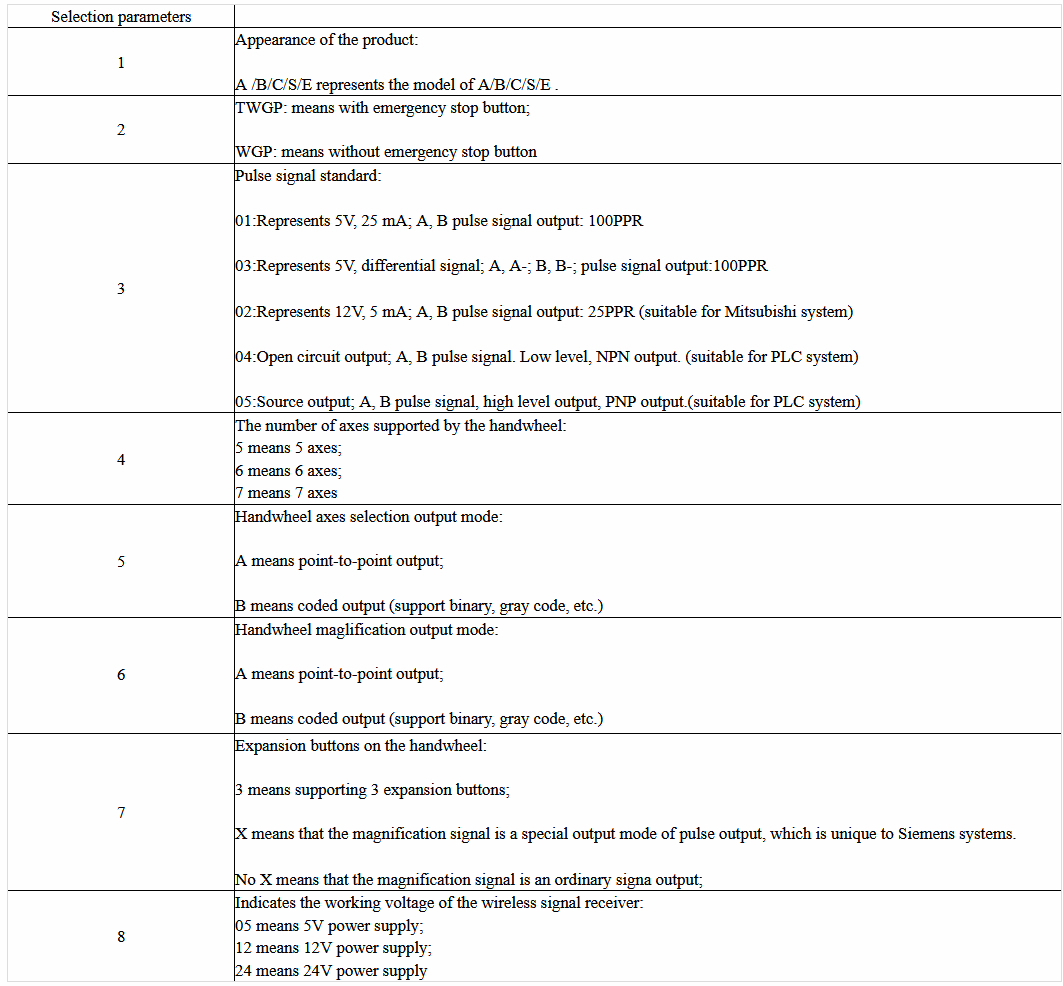

Model Selection:
