Excel ELM327 II OBD 2 Bluetooth Auto Car Diagnostic Interface Scanner for Toyota

Excel ELM327 II OBD 2 Bluetooth Auto Car Diagnostic Interface Scanner for Toyota

Description:
- ELM327 Mini supports all OBD-II protocols. for Android phones Only
- It is the latest version 1.5.
- Bluetooth connection, no Batteries, Cables, or Switches.
- Wireless (Bluetooth) 5~10 meter.
- Retrieve Fault Codes (DTCs) and clear Check Engine lights.
- Can also be used with a PC with a Bluetooth Card.
- Super Compact PCB Board Design offers the latest ELM327 chip as well as a CSR high quality bluetooth module.
- Check car performance levels and see vital information about your car LIVE with your Android Phone! Download the free app called "Torque" (Android Only)
- To see if your car is OBD II compliant, please follow this simple instruction: Check the Vehicle Emissions Control Information Label which is located under the hood or by the radiator of most vehicles. If the vehicle is compliant, the label will designate "OBD II Certified" and will have a 16-pin OBDII standard socket.

Features:
- Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
- Clear trouble codes and turn off the MIL ("Check Engine" light)
- Display current sensor data, including:
- Engine RPM
- Calculated Load Value
- Coolant Temperature
- Fuel System Status
-Vehicle Speed
- Short Term Fuel Trim
- Long Term Fuel Trim
- Intake Manifold Pressure
- Timing Advance
- Intake Air Temperature
- Air Flow Rate
- Absolute Throttle Position
- Oxygen sensor voltages/associated short term fuel trims
- Fuel System status
- Fuel Pressure
- Many others...
- This tool does not match abs and airbag system!

Multi-Protocol Support:
- SAE J1850 PWM(41.6Kbaud)
- SAE J1850 VPW(10.4Kbaud)
- ISO9141-2(5 baud init,10.4Kbaud)
- ISO14230-4 KWP(5 baud init,10.4 Kbaud)
- ISO14230-4 KWP(fast init,10.4 Kbaud)
- ISO15765-4 CAN(11bit ID,500 Kbaud)
- ISO15765-4 CAN(29bit ID,500 Kbaud)
- ISO15765-4 CAN(11bit ID,250 Kbaud)
- ISO15765-4 CAN(29bit ID,250 Kbaud)
- SAE J1939 CAN(29bit ID,250*Kbaud)
- USER1 CAN(11*bit ID,125*Kbaud)
- USER2 CAN(11*bit ID,50*kbaud)
- default settings(user adjustable)

Vehicle Coverage:
- Works on all OBD2 Vehicles (from 1996 in USA) and EOBD vehicles ( Petrol cars from 2001 and diesel cars from 2003/2004 in Europe)
- Software Included:
- Scantool_net113win (Full Version)
- EasyOBDII V2.2 (Free Version)
- OBD2Spy (Demo Version)
- ScanMaster-ELM (Demo Version)
- wOBDCRAZY (Demo Version)
- We suggest that you use the "Scantool_net113win" application for Windows.
- This device also works great with smart phones such as Android, the app named "TORQUE" (not included in this auction but can be downloaded free from your phone).
- This hardware can match many other software still! But most of them are not free!
- Works for Windows 98/ME/2000/XP/Vista/7.
- Bluetooth Pair code: 1234 or 6789 or 0000 or 6666 (either 4 may be the pair code)
- Main Control Chip:PIC18F2480

Package includes:

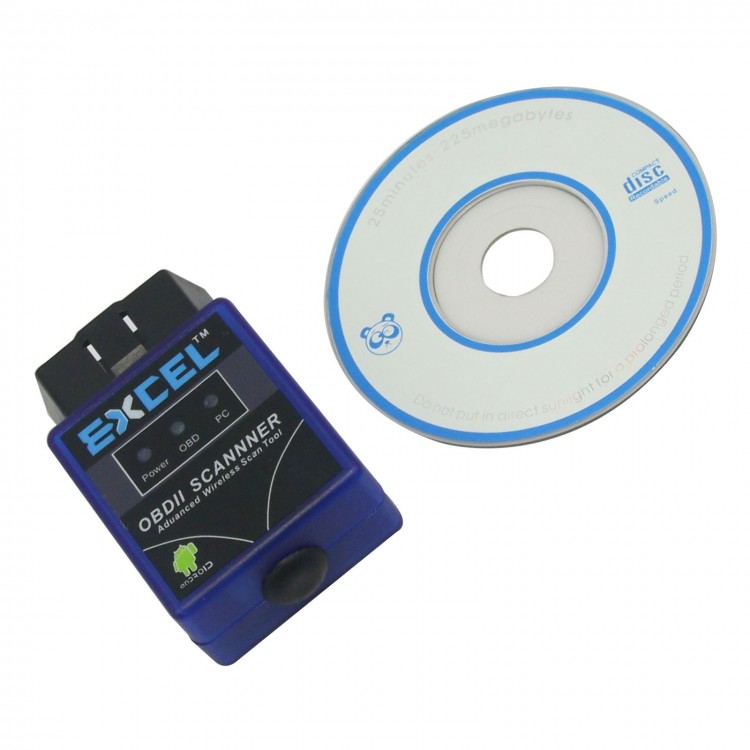

- 1x E-OBD OBD2 ELM327 MINI Bluetooth Diagnostic Interface
- 1x CD-ROM with Free Software - Some software you may need to purchase
