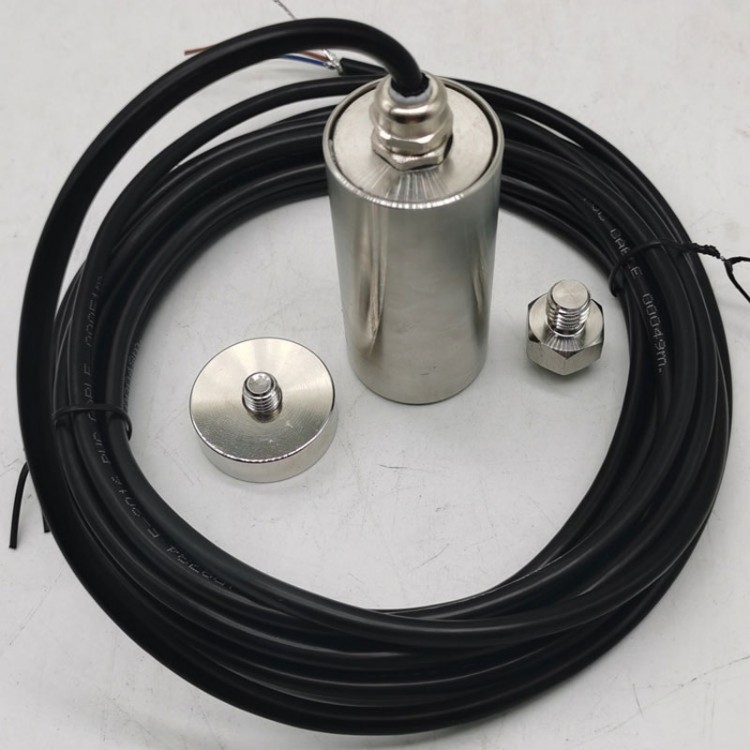

Explosion-proof Vibration Transmitter Vibration Sensor Transmitter for Harsh Environment
Technical Parameters:
- Power supply: DC12-28V
- Range: 0-20mm/s (for general rotating equipment vibration) or vibration displacement 0-200um (for reciprocating vibration)
- Optional output signal: analog 4-20mA, digital RS485 communication (please consult customer service for specific protocols), and analog voltage signal
- Non-linearity: ≤ 5% F.S (high accuracy can be customized)
- Resolution: 0.01mm/s or 1um
- Impact limit: 100g/0.2lb
- Power frequency response: 10-300Hz
- Output impedance: ≯ 500Ω
- Operating temperature: -40 to 85°C (ambient temperature)
- Installation thread: M10*1.5*10
- Interface: aviation plug or random wire pre-embedded
- Product weight: 350g/0.8lb
Package Included:
- 1 x Vibration Transmitter
Note:
- Please leave a message about the output signal you want while purchasing. Thank you!
