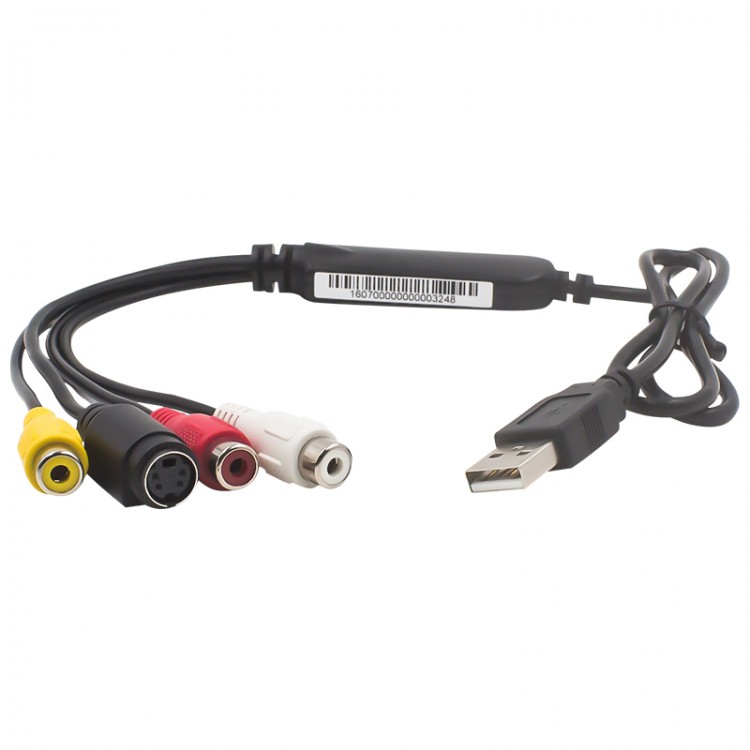

External USB Video Card Grabber U652 for Video Conference Rebroadcast

External USB Video Card Grabber U652 for Video Conference Rebroadcast

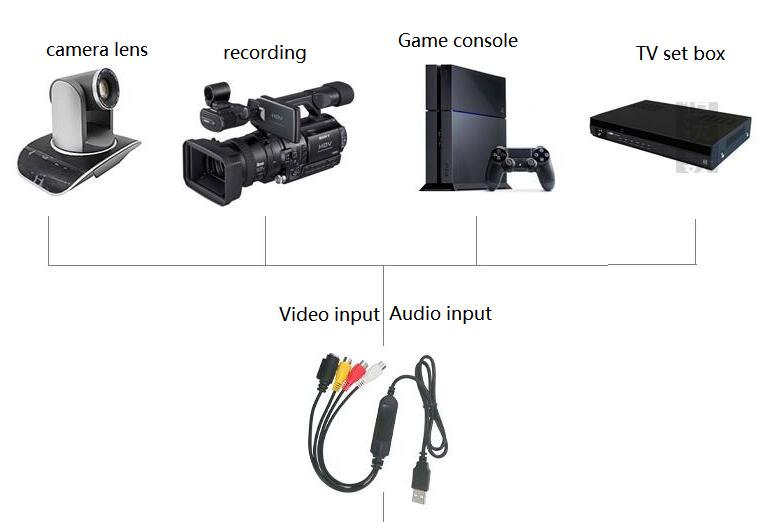

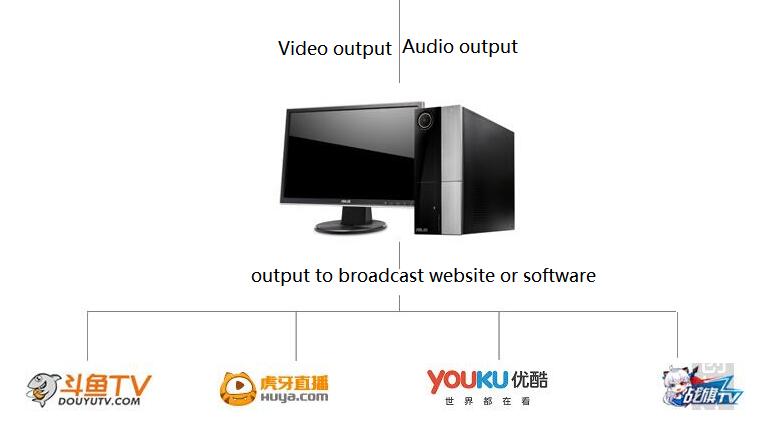

Operation sketch map:

Application:
- Video conference rebroadcast
- Remote education training
- Multimedia video recording
- CT image acquisition,Gastrointestinal endoscope video acquisition
- IPC,VR,Virtual Studio
- X-ray screening machine,Radar image signal
- Website broadcat,game broadcast,outdoors broadcast
- Hospital surgery broadcat

Product Features:
- Can collect 1-channel AV video signal or 1-channel S terminal sub-signal,1-channel analog dual channel audio signal
- Input video signal the max PAL format 768x576@25 and NTSC format 720x480@30
- Support most Windows Multi-Media video software or streaming media software.
- Can compatible composite video (CVBS) input signal through adapter.
- Provide SDK second development,support VC++/C#/.NET/VB/V4L2,supply RTSP.RTMP,HLS series routine,support fast cutting and real-time record,supply Intel GPU,Nvidia CUDA,AMD OpenCL compression algorithm.
- Hardware colour conversion,can output YUY2 colour format.

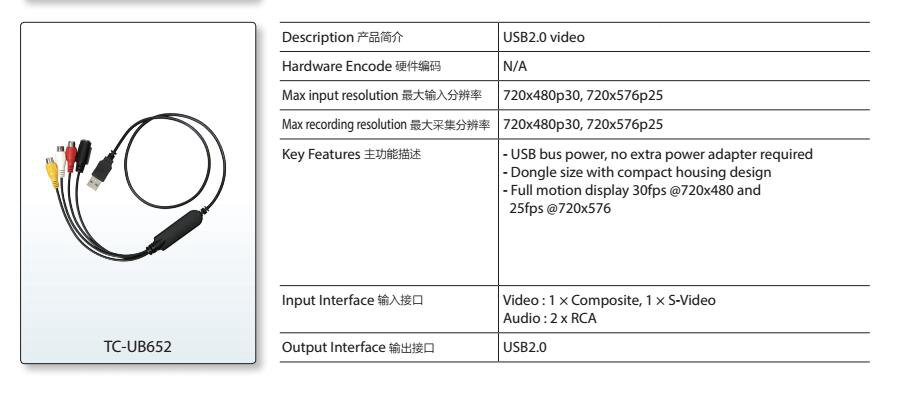

Product Parameter:
- Dimension:55x18mm (acquisition card main part) wire length:750mm
- Main unit interface:USB2.0

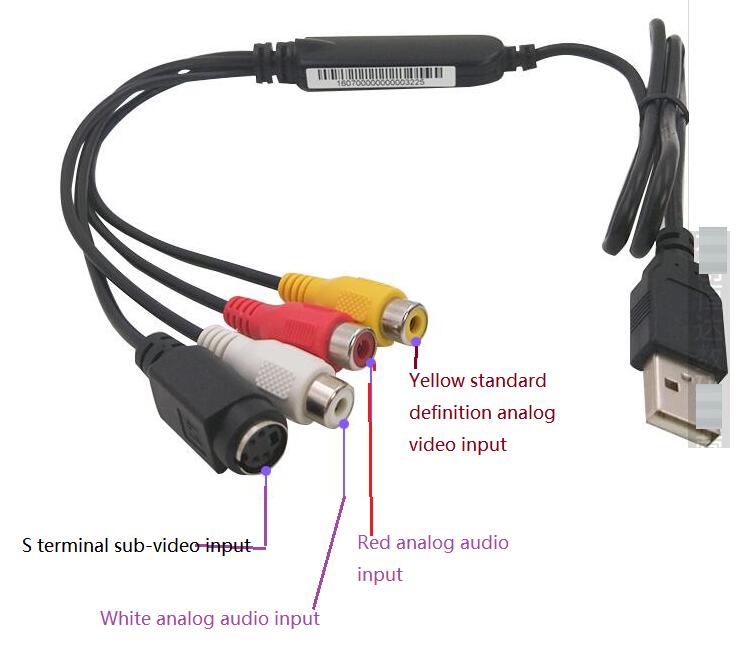

- Input interface:1-channel S-Video,1-channe CVBS/AV,1-channe stereo audio
- S-Video input format:480i,576i,480p,576p
- CVBS input format:PAL/NTSC
- Standard definition output image format:size:176x144-768x576,frame rate:1-30fps
- Power consumption:<=6W
- Working temperature range:0℃~50 ℃
- Storage temperature range:-20℃~70℃
- Storage humidity range:5%~90%
- Operation system support:Support the following operation system x86 & x64 Version:
Windows ® XP Professional
Windows ® Server 2003
Windows ® Vista
Windows ® Server 2008
Windows ®7
Windows ®8
Windows ® Server 2008 R2
Linux & WIN10

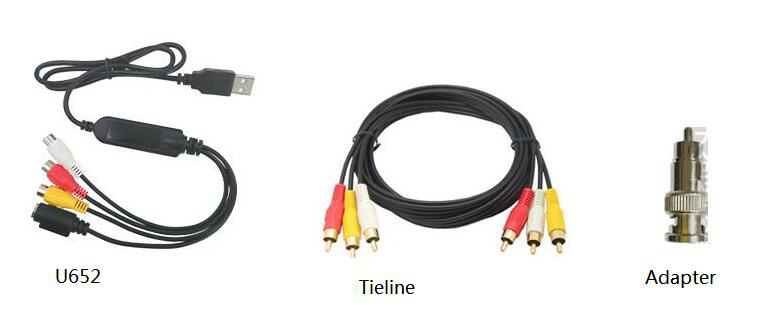

Package List:
- 1 x U652 Acquisition Card
- 1 x Tieline
- 1 x Adapter
- 1 x CD,User manua
