Exynos 4412 Development Board Quad Core Cortex-A9ARM Android Linux210 Development Module

Exynos 4412 Development Board Quad Core Cortex-A9ARM Android Linux210 Development Module

Product introduction:

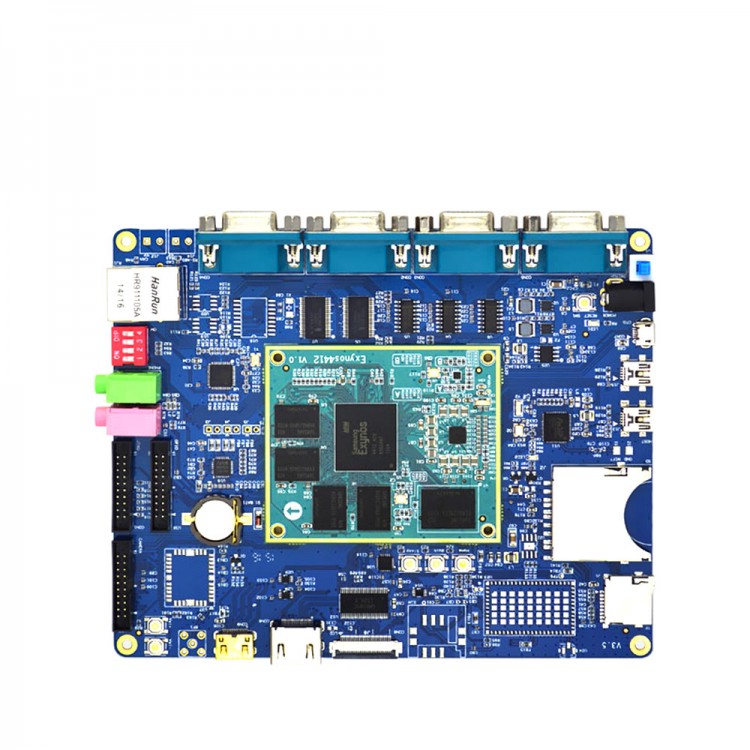

ITOP - Exynos4412 development board using Exynos4412 main chip, with higher frequency and more rich peripherals, dual-channel DDR3 memory configuration 2 gb and 16 gb storage, with strong stability, high reliability, can apply to have higher request for performance and processing power of embedded systems applications.
ITOP - Exynos4412 development board built-in wireless WIFI module, Bluetooth, GPS, Camera, 3 g module, support HDMI1.4 (1080 p / 60 hz), according to the customer can directly draw complete product information from development platform, and even can be directly used in the subsequent product development, is completely different from general development platform.

Specification:
- ITOP - 4412 core board
- Core plate size: 6 cm x 7 cm
- As many as 320 pin lead Angle
- Power management to choose their own power management chip, high efficiency and energy saving!
- With 9 channel DC/DC and 28 channel output power
- Quadcore Exynos 4412  main frequency 1.6 GHz
- 2Gb dual-channel DDR3
- 16Gb large storage
- Support the 9.7 -inch IPS screen
- 3G module: With high-performance module, downlink rate can be up to 21 m/s under WCDMA
- GPS module: support UBLOX 7020 global positioning
- HDMI interface:  HDMI  v1.4interface, 1080p HD output
- WIFI: 802.11 b/g and 802.11 n (1 x1)
- Bluetooth 2.1 + EDR/Bluetooth 3.0
- CAN bus and RS485 bus
- Supports 2MP camera
- Screen size 9.7 inch capacitive screen
- Resolution 1024*768

Core board parameters:

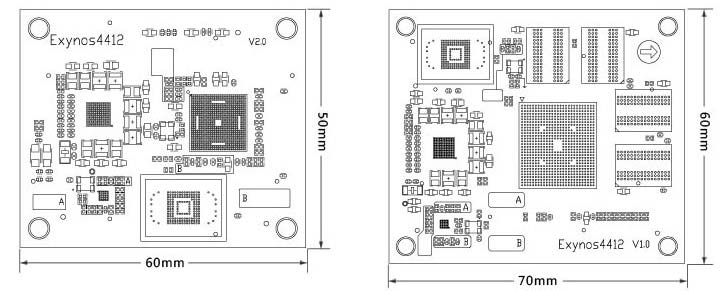

- Size 6cm*7cm
- Height: 0.26cm
- CPU: Exynos4412 , quad core Cortex-A9,main frequency  1.4GHz-1.6GHz
- Memory: 2GB dual channel DDR3
- Storage: 16GB EMMC
- USB HOST: Onboard USB3503, leads to high performance HSIC,  achieve  3 channels HOST USB output
- Pin expansion: up to 320
- Temperature range -20 to 70 deg C
- Operating voltage 2.65V--5.5V (recommended 4.0V)
- System support : Android 4.0.3

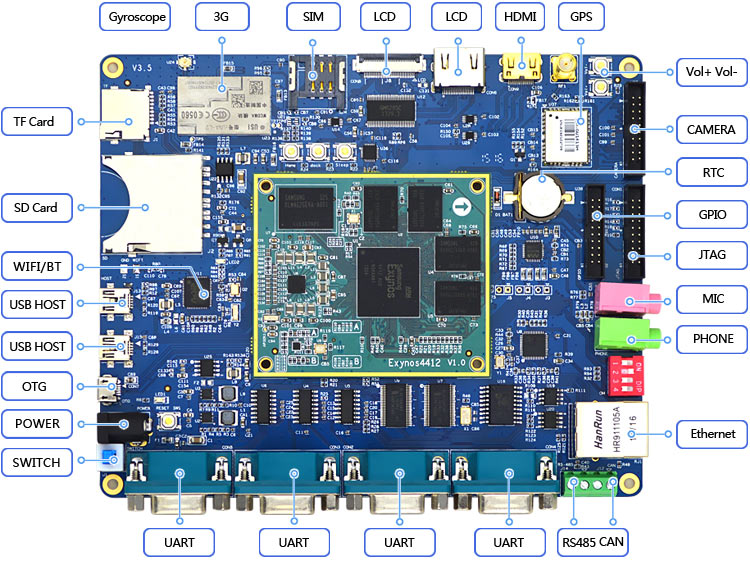

Bottom plate parameters

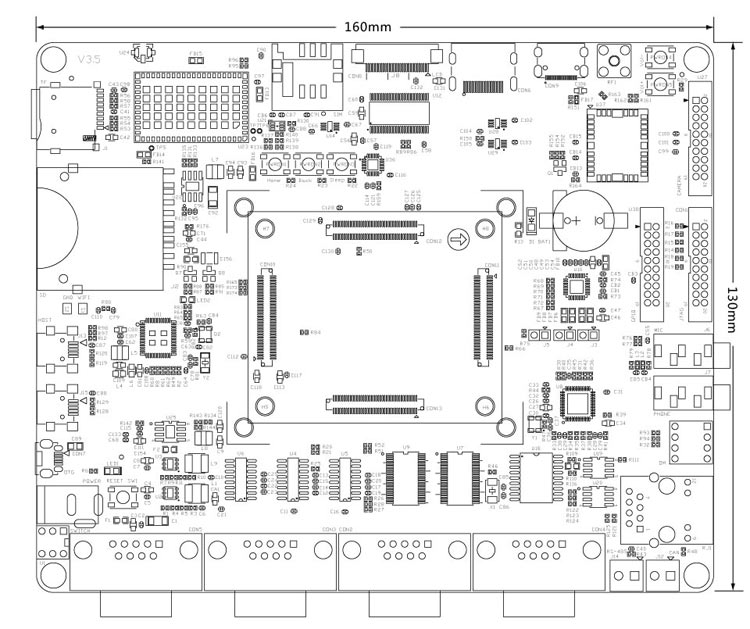

- Size :13cm*16cm
- SWITCH: power switch
- POWER: DC power input interface, 5V/2A power input
- USB_HOST interface 2 channels USB_HOST output
- USB OTG  interface 1 channel OTG USB 2
- JTAG interface: standard JTAG interface 20pin 2.0mm needle spacing
- 3G equipped with imported high performance 3G module, WCDMA downlink rate of up to 21M/s (optional)
- Pin expansion: up to 320
- Camera interface supports 2MP camera /5MP camera
- HDMI interface standard HDMI  v1.41080p HD resolution
- LCD interface to connect the LCD signal RGB
- WIFI : 802.11b/g 802.11n, (1x1)
- BT 2.1 + EDR / Bluetooth 3.0
- TF card interface 1* TF card interface
- SD card interface 1* standard SD card interface
- Net port 10M/100M adaptive network port
- PHONE: support headphone output
- MIC: supports MIC input
- Key User: 5
- Serial 4 serial port
- GPIO: 19 channel through the socket outlet (including SPI, I2C, AD, etc.)
- Real time clock:Onoard RTC chip
- Gravity induction: support
- Gyroscope: support

Package List:
- 1 x Development Board
