EY800W Solar Panel Multimeter 5-800W Solar Panel Tester Backlit LCD Automatic Manual MPPT Detection

EY800W Solar Panel Multimeter 5-800W Solar Panel Tester Backlit LCD Automatic Manual MPPT Detection

Description:

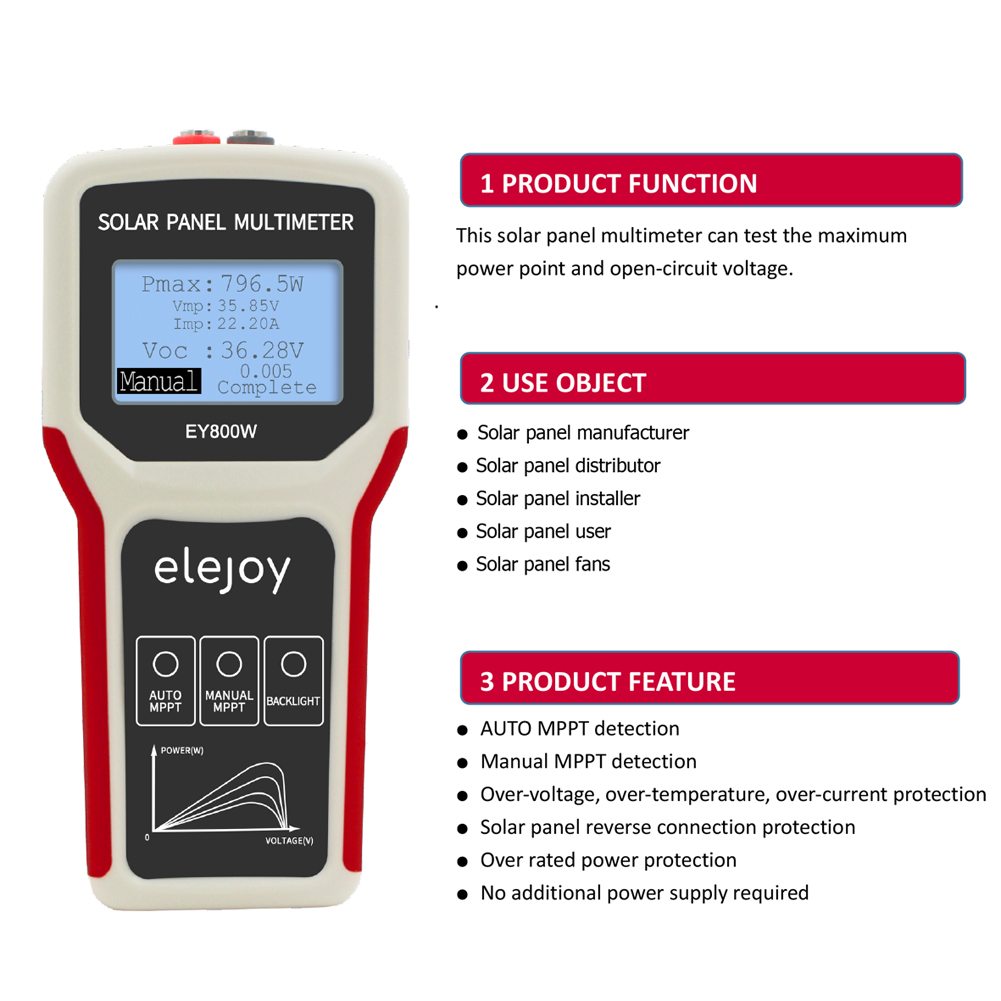

This solar panel multimeter can test the maximum power point and open circuit voltage of photovoltaic panel. The photovoltaic panel power supply method is more energy-saving and does not require additional electricity. If you are looking for this product, come and have a try, and it will not let you down.

Features:
- Automatic MPPT Detection: When pressing the AUTO MPPT test button, the instrument automatically adjusts the test interval time according to the current power value and refreshes the digital display. For example, when the power of solar panel is 100W, it will refresh once every 5S.
- Manual MPPT Detection: When pressing the manual MPPT test button, the instrument starts a scan of the maximum power point and refreshes the digital display.
- Open Circuit Voltage Real-time Display: The open circuit voltage will display on the large LCD screen at any time, giving you a better experience.
- Large LCD Display with Backlight: The upgraded screen adopts large LCD with backlight, you can turn on or turn off the screen with your like.

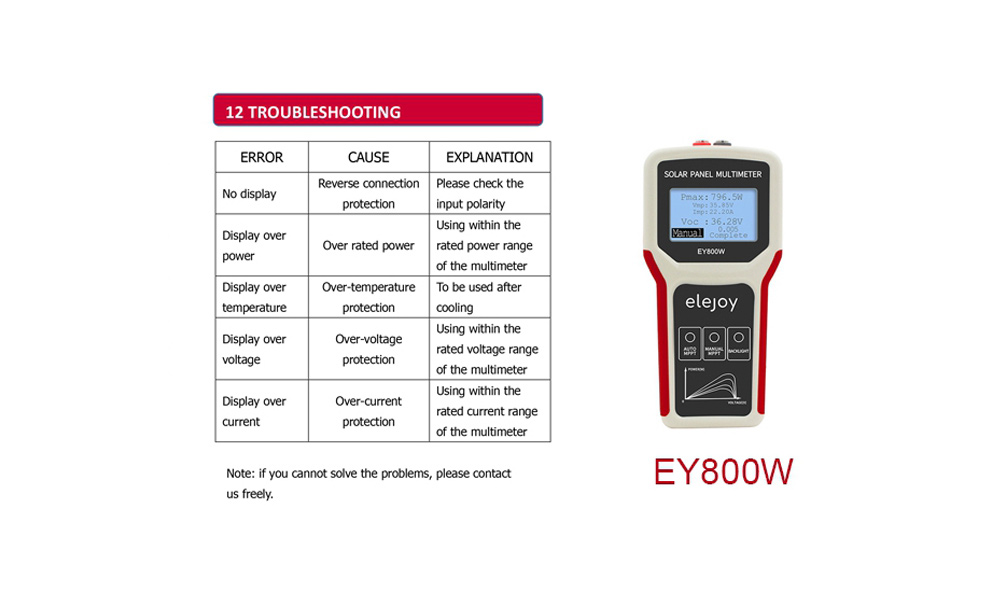

- Multi-protections: over-voltage, over-temperature, over-current and over rated power protection as well as anti-reverse connection for solar panel.
- No additional power supply is needed.
- Wide Applications: This multimeter can be widely used by PV panel manufacturers, PV panel distributors, PV panel installers, PV panel users and PV panel fans.

Specifications:
- Type: EY800W
- Power: 5-800W
- Voltage: 12~60V
- Current: 0~35A
- Display: LCD
- Backlight: with
- Power supply mode: powered by solar panel
- Item size: 165 x 80 x 30mm/6.5 x 3.1 x 1.2"
- Item weight: 450g/1lb
- Material: ABS

Package Included:
- 1 x Main unit multimeter
- 1 x User manual
