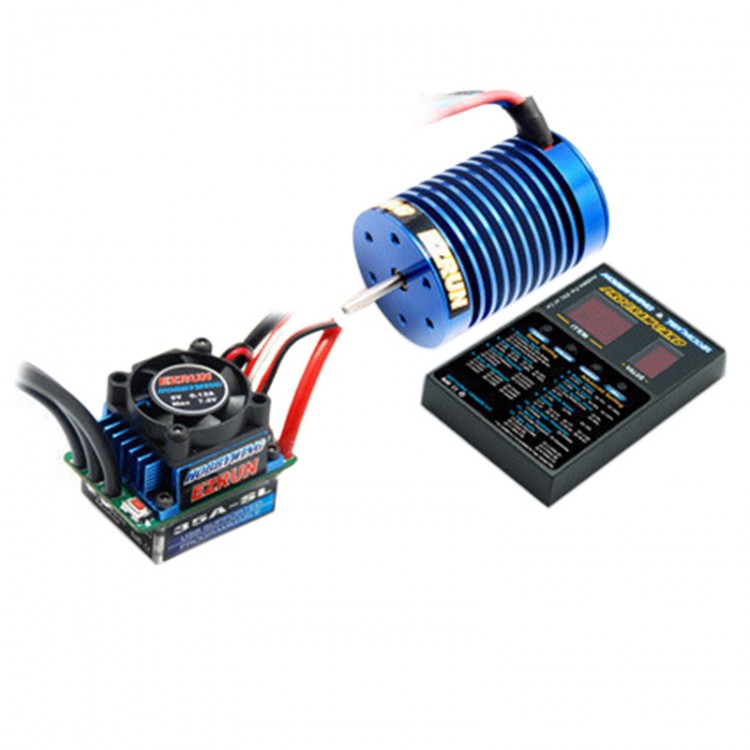

EZRUN 13T 3650M Brushless Motor+35A ESC+Digital Program Card for 1/10 1/12 RC Car
EZRUN-35A Brushless ESC for 1/10 Car:
- Output: Continuous 35A, burst 190A.
- Input: 4-9 cells Ni-MH/NiCd or 2-3S LiPo.
- BEC: 6V/1.5A (Linear mode built-in BEC).
- Resistance: 0.0015 Ohm.
- Motor Supported: Sensorless Brushless Motor.
- Suitable Motor: for 3650 sized brushless motor (Ø=36, L=50)
- With 4-6 cells Ni-MH/NiCd or 2S Lipo: On-Road≥9T, Off-Road≥12T;
- With 6-9 cells Ni-MH/NiCd or 3S Lipo: On-Road≥12T, Off-Road≥18T;
- Suitable Car: 1/12 and 1/10 on-road sport.
- Size: 31.5mm (L) * 27.5mm (W) * 24mm (H).
- Weight: 30g (Without wires)
Features for EZRUN-35A Brushless ESC:
- Compatible with sensorless brushless motors
- High quality components, big current endurance
- Excellent start-up, acceleration and linearity features.
- Plenty of programmable items, suitable for various of chassis's, tires and racing tracks.
- Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection.
- Internal timing can be changed easily to make the ESC suitable for various of motors.
- Easily programmed with the SET button, LED Program Box, Professional LCD Program Box and USB Link Software
- ESC firmware can be updated through the USB adapter in the LCD Program Box.
EZRUN-3650M Sensorless Brushless Motor for 1/10 Car:
- KV Value: KV3000
- Turns: 13T
- Motor Diameter: 36mm
- Motor Length: 50mm
- Shaft Diameter: 3.17mm
- Shaft Length: 15mm
- Weight: 170g
Features for EZRUN-3650 Sensorless Brushless Motor:
- Same size as a traditional brushed 540 class motor, suitable for all 1/10 scale chassis.
- Top quality materials
- Aluminum shell (case)
- High quality magnets
- Copper wires of high temperature endurance
- High quality bearings
- Dustproof design
- Large output power
The Combo Includes the Following Products:
- ESC: EZRUN-35A-ESC 1pcs
- Motor: EZRUN-3650M Brushless motor 1pcs
- Program Card: Digital LEDs Program Card 1pcs
